Proel · Sound Systems

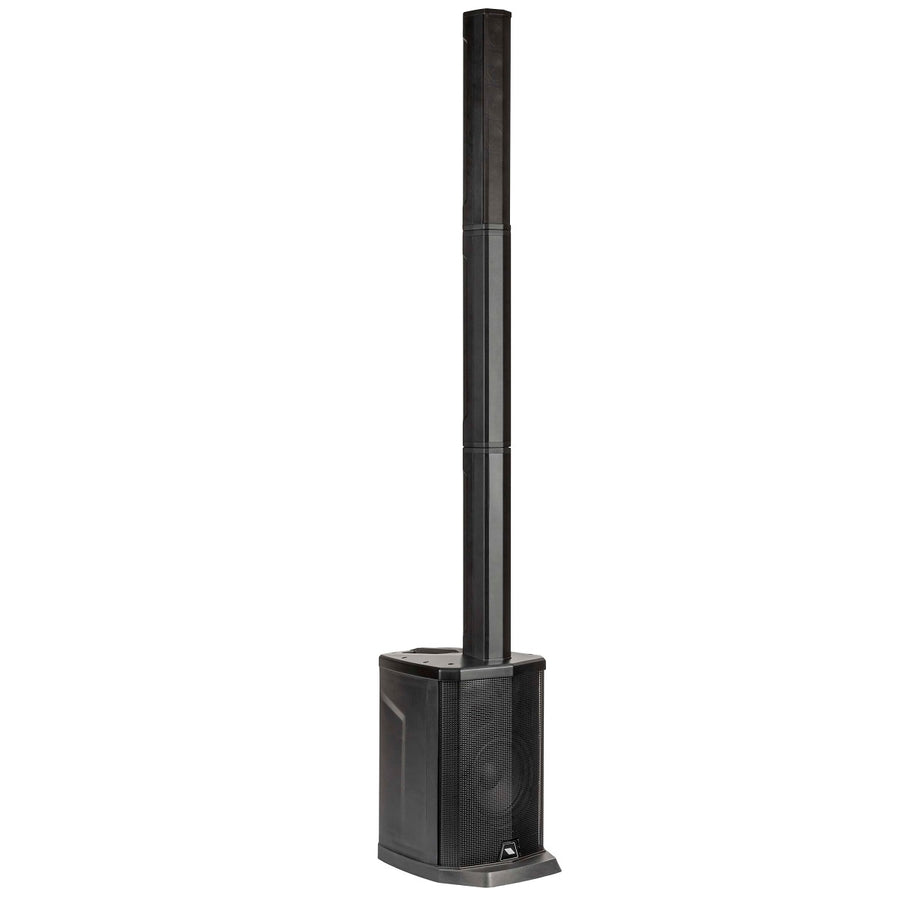

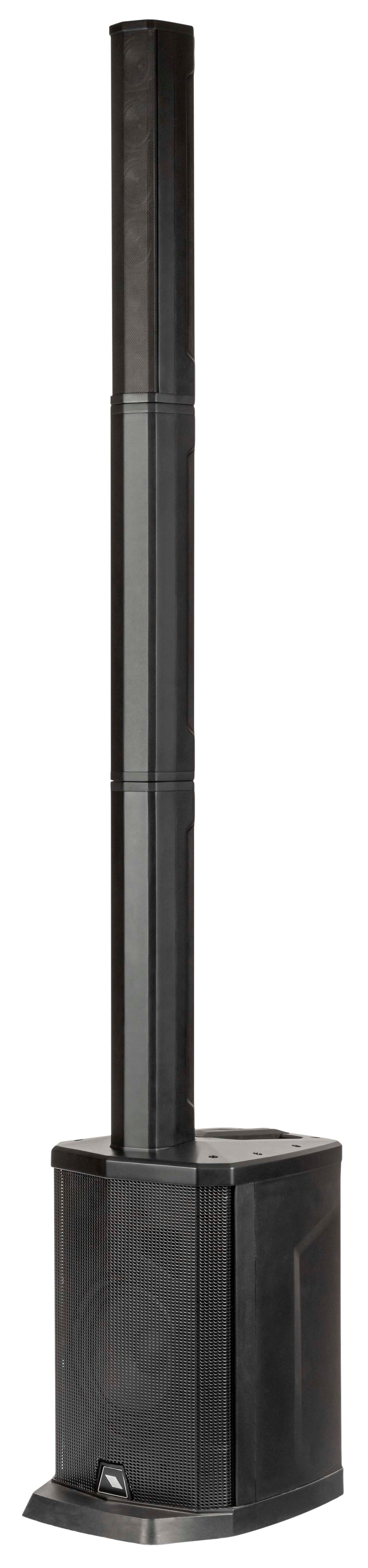

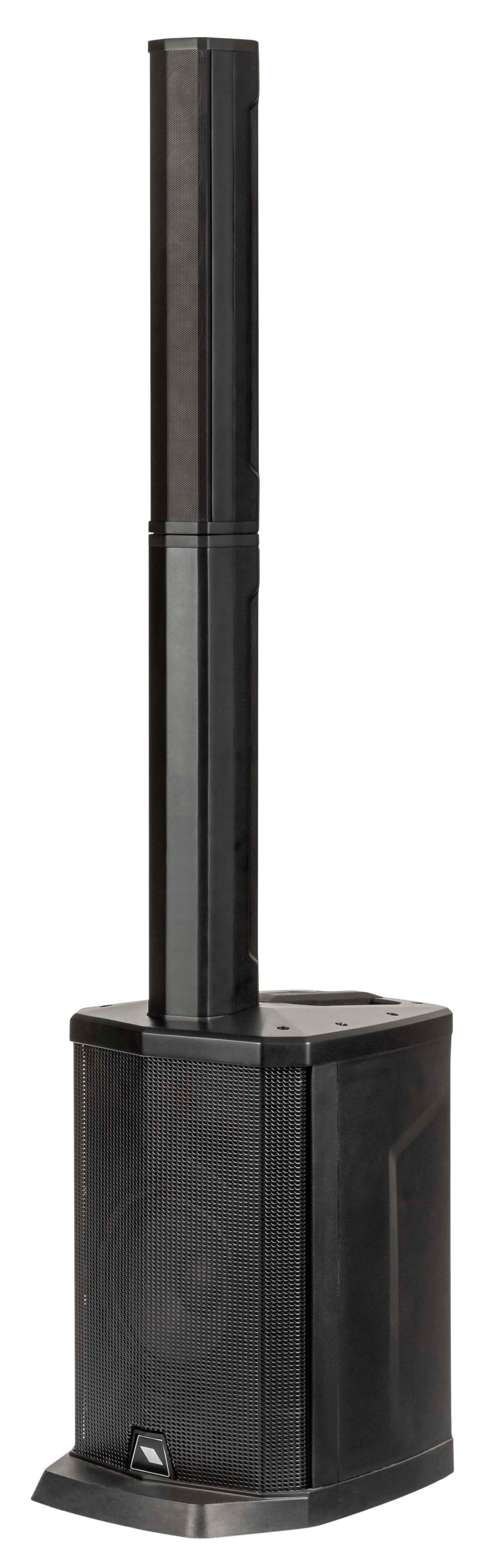

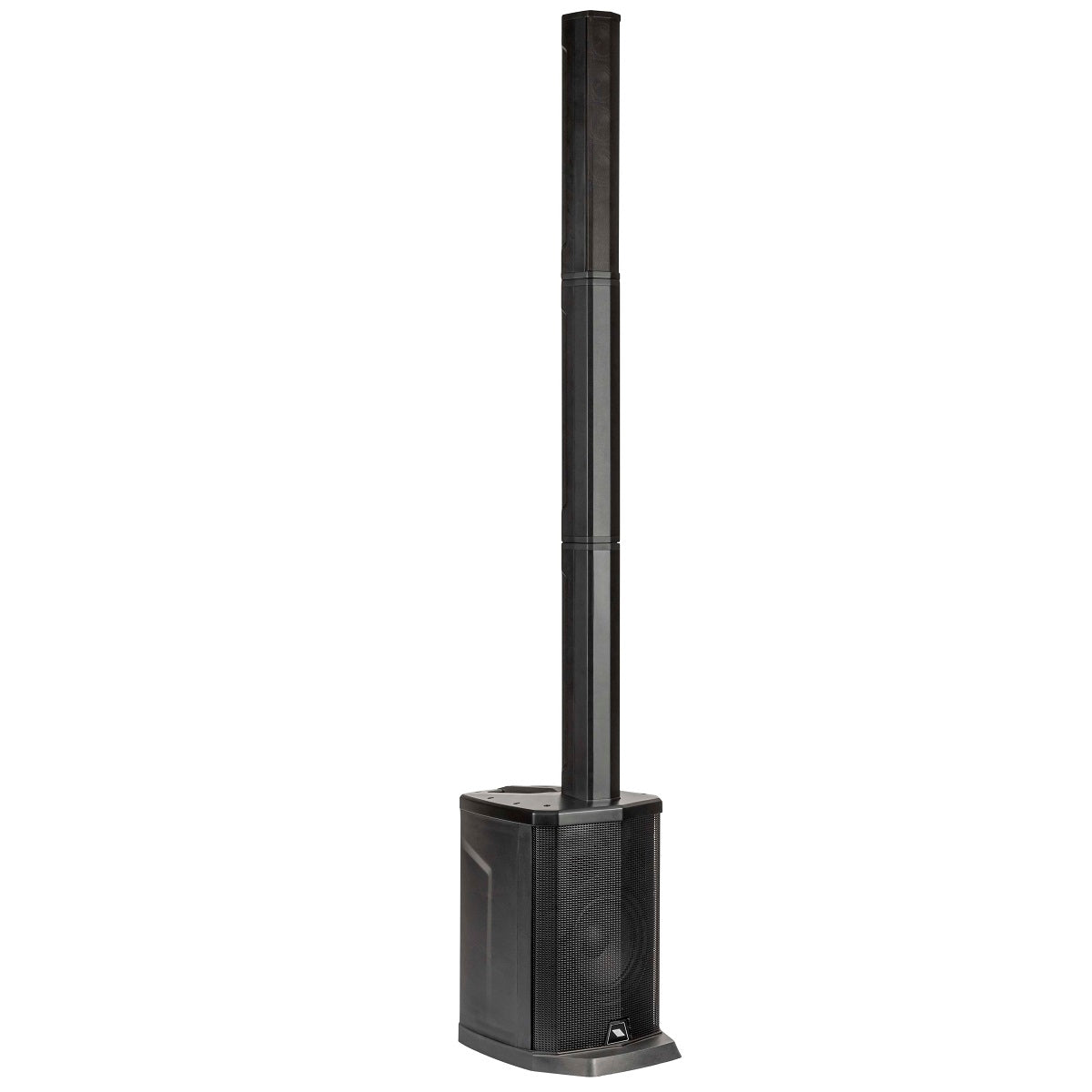

Compact Portable Array System 400W

Item SESSION1 · Designed in Italy

No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.

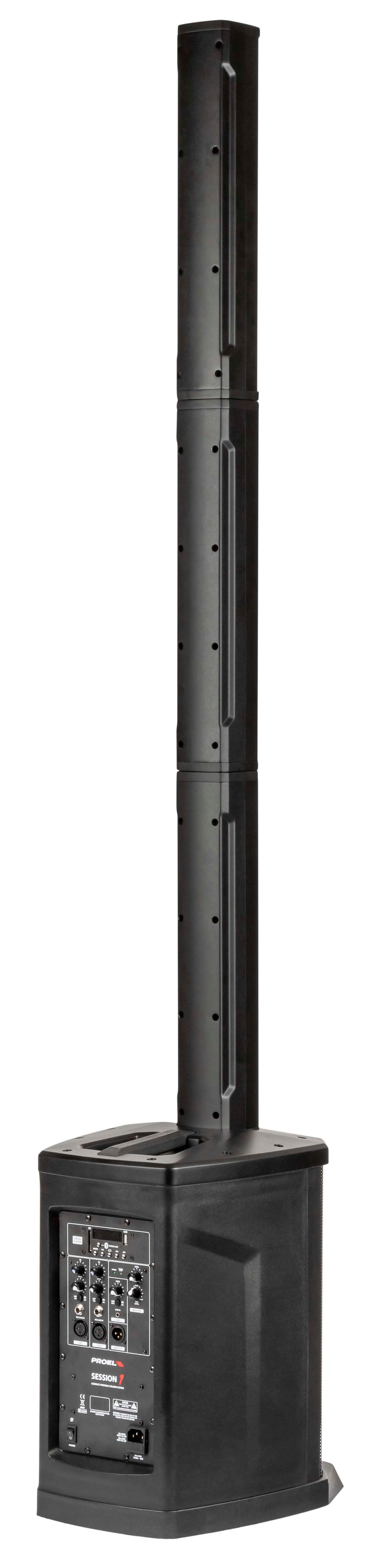

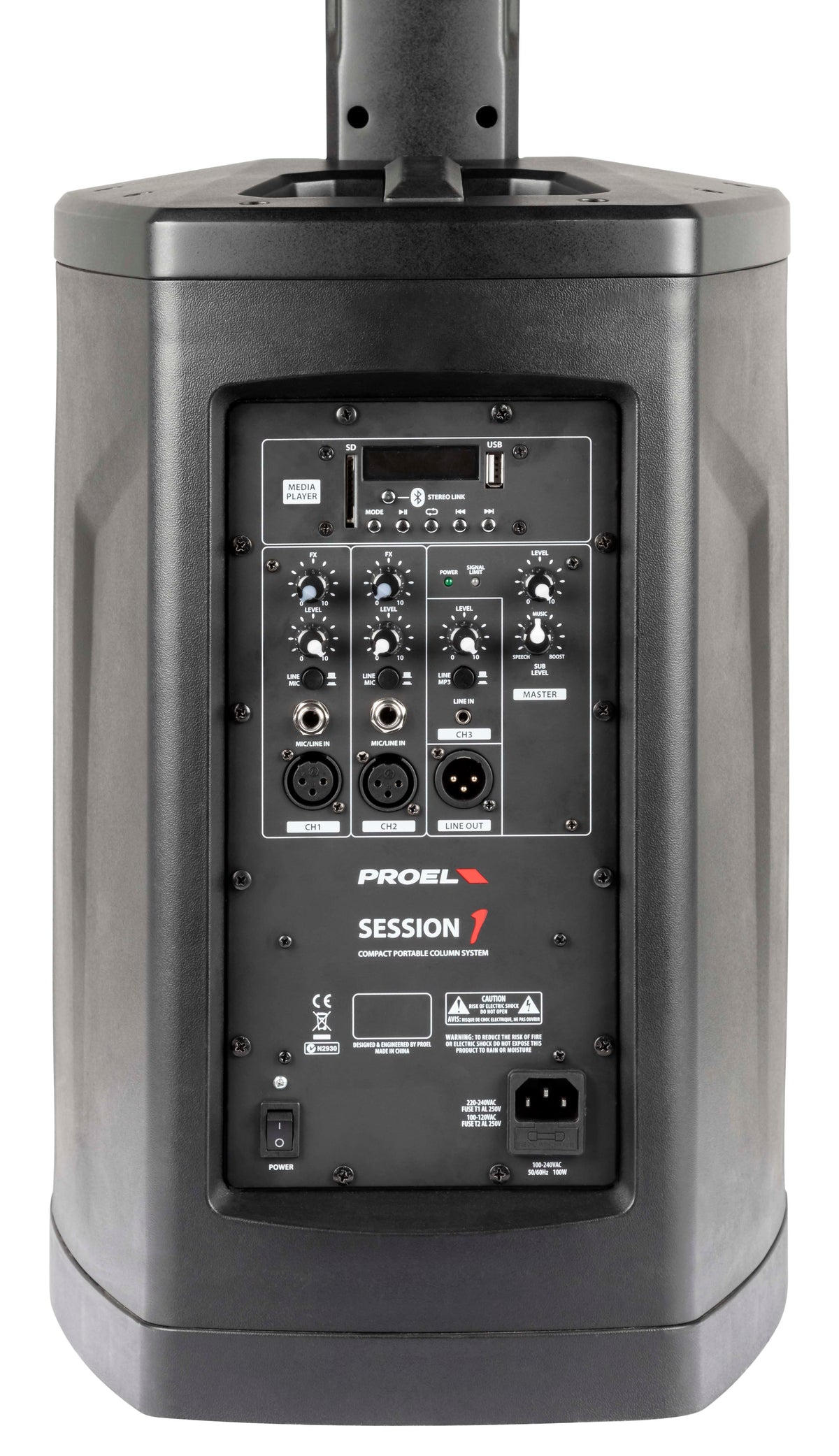

MIXER Section
MONO inputs 2 x MIC/LINE IN (XLR-F + 1.4" JACK)
STEREO input 1 x LINE IN (MINI-JACK)
Outputs LINE OUT (XLR-M)
Main EQ SUB LEVEL (SPEECH-MUSIC-BOOST)
Internal Effect ECHO-DELAY
MULTIMEDIA Section
Player Type USB / SD / WIRELESS AUDIO player with TWS
Compatible File Formats MP3
Control Interface LCD display, CONTROL buttons
AMPLIFIER Section
Total Peak Power 400 W
Continuous Power 200 W
Amplifier Type Class D
Power Supply SMPS
Processing Analog
LOUDSPEAKER Section

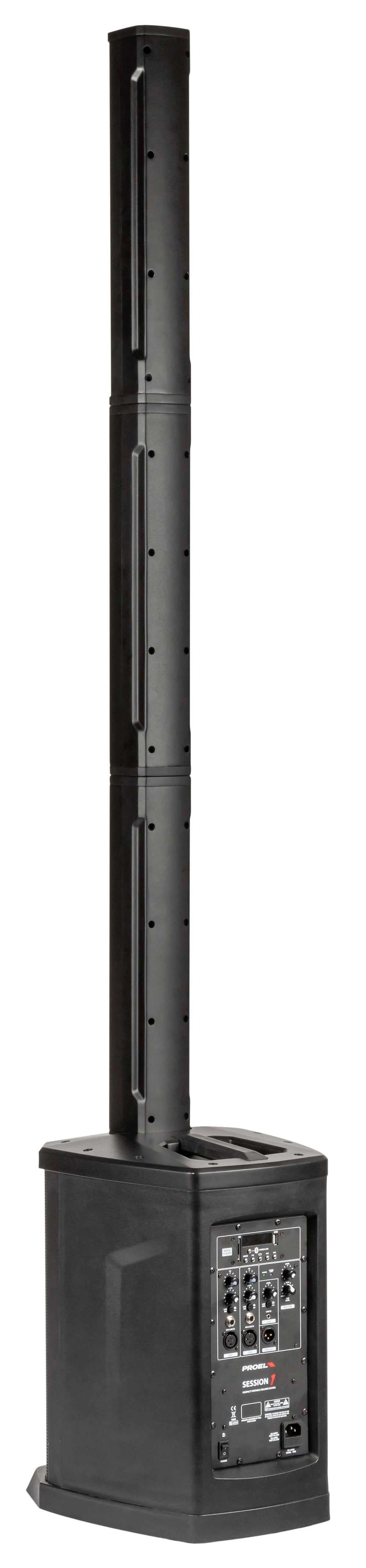

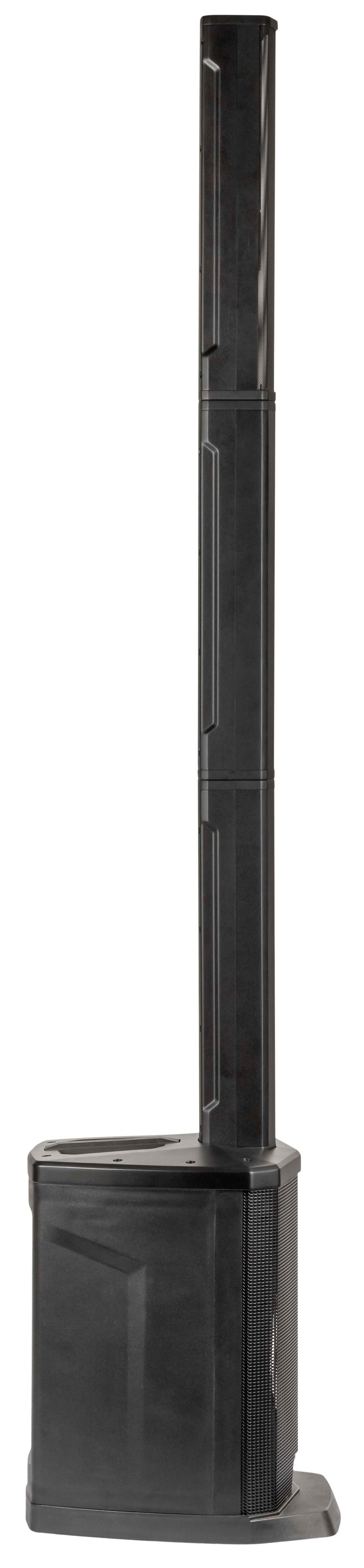

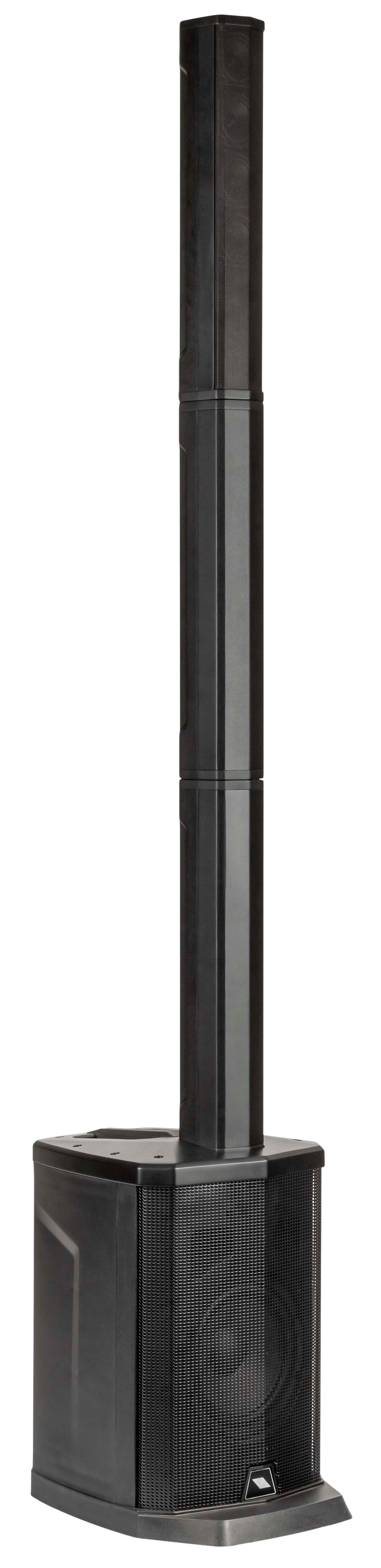

System Type Compact powered column system with subwoofer
High Frequency Device 4 x 2.5" (66mm) drivers
Low Frequency Device 8” (200mm) woofer with 1.5” VC
Angular Coverage 90° H x 60° V
Frequency Response 50Hz – 18kHz
Maximum SPL Output 108 dB
GENERAL Specifications
Construction Polypropylene
Cabinet Color Black

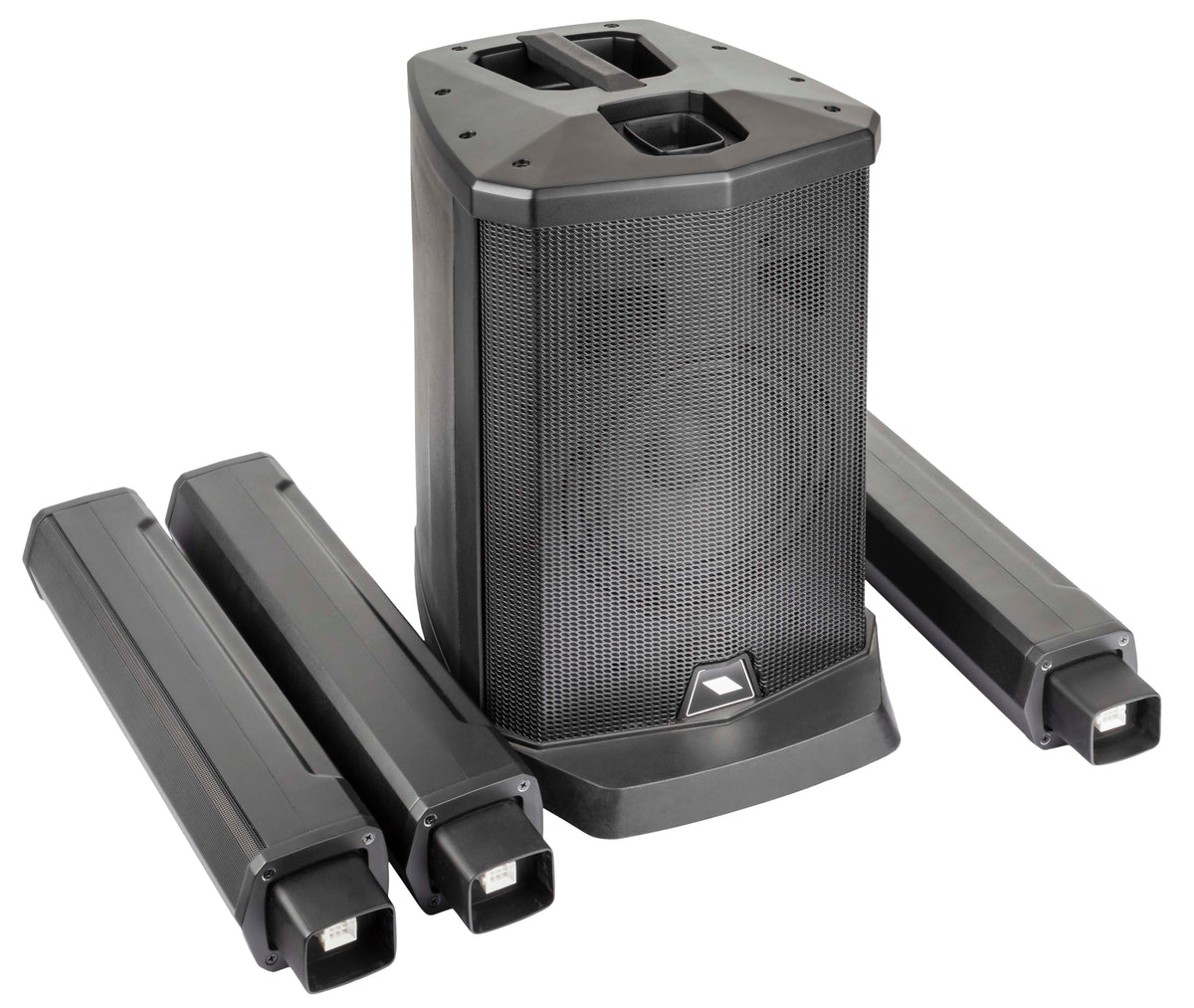

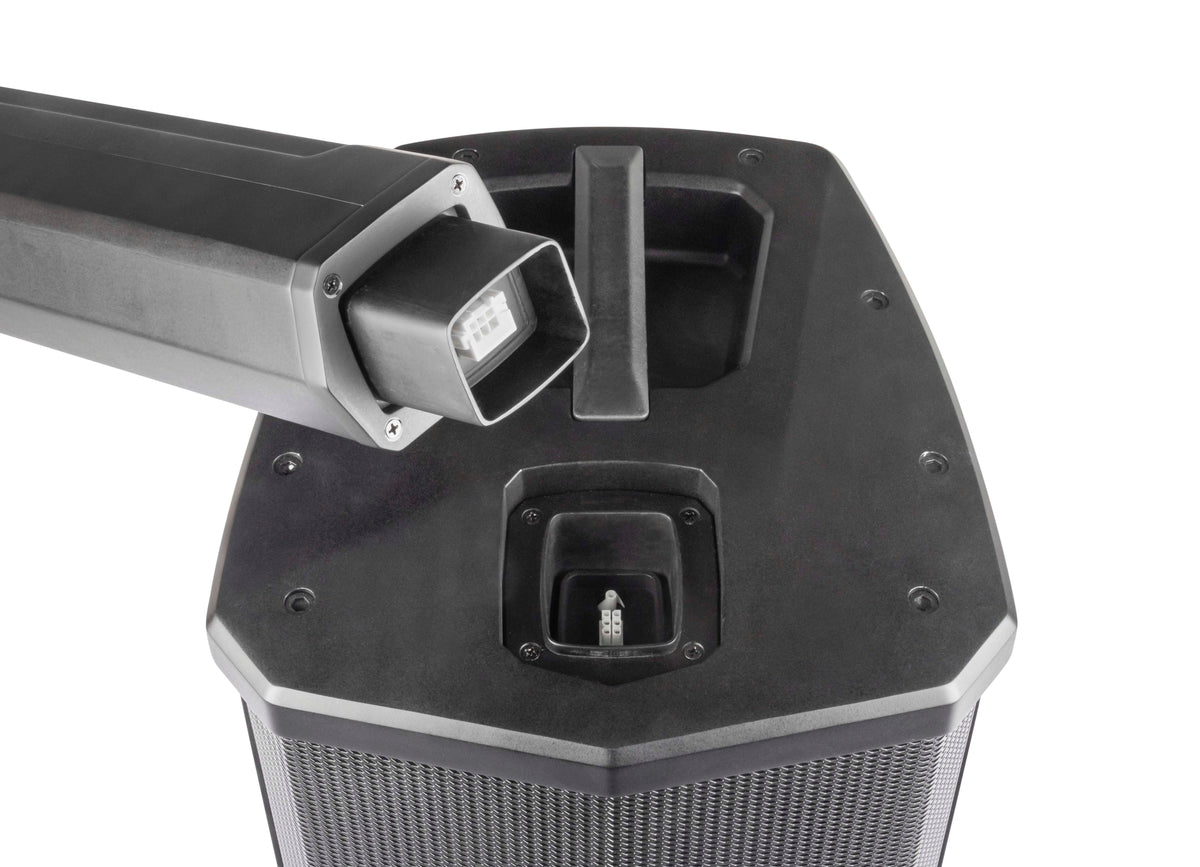

Column system 3-pcs with fast-linking system and integral power connections
Handles 1 x subwoofer top

Dimensions (WxHxD) SUB: 318x 400 x484.5 mm
COLUMN (each piece): 520 X 84 X 97.5 mm
Weight 14 Kg (complete system)
Power Supply 100 V-240 V~ 50/60 Hz
Rated Power Consumption 100 W

Specifications

The details that matter.

Manuals & downloads

MIXER Section

MONO inputs
2 x MIC/LINE IN (XLR-F + 1.4" JACK)
STEREO input
1 x LINE IN (MINI-JACK)
Outputs
LINE OUT (XLR-M)
Main EQ
SUB LEVEL (SPEECH-MUSIC-BOOST)
Internal Effect
ECHO-DELAY
MULTIMEDIA Section
Player Type
USB / SD / WIRELESS AUDIO player with TWS
Compatible File Formats
MP3
Control Interface
LCD display, CONTROL buttons
AMPLIFIER Section
Total Peak Power
400 W
Continuous Power
200 W
Amplifier Type
Class D
Power Supply
SMPS
Processing
Analog
LOUDSPEAKER Section
System Type
Compact powered column system with subwoofer
High Frequency Device
4 x 2.5" (66mm) drivers
Low Frequency Device
8” (200mm) woofer with 1.5” VC
Angular Coverage
90° H x 60° V
Frequency Response
50Hz – 18kHz
Maximum SPL Output
108 dB
GENERAL Specifications
Construction
Polypropylene
Cabinet Color
Black
Column system
3-pcs with fast-linking system and integral power connections
Handles
1 x subwoofer top
Accessories

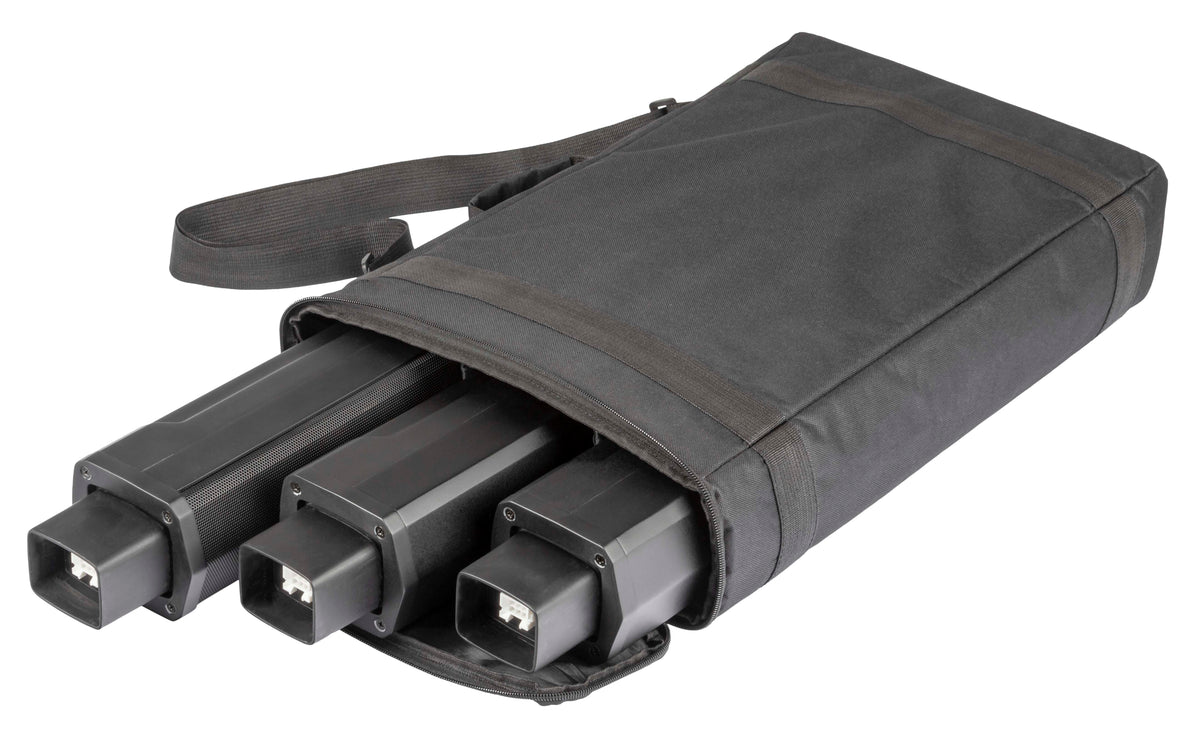

Padded bag for 3-pcs column
Dimensions (WxHxD)
SUB: 12.5 × 15.7 × 19.1 in (318x 400 x484.5 mm)
COLUMN (each piece): 20.5 × 3.3 × 3.8 in (520 X 84 X 97.5 mm)
Weight
30.9 lb (14 Kg) (complete system)
Power Supply
100 V-240 V~ 50/60 Hz
Rated Power Consumption
100 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
