Proel · Sound Systems

2-way active speaker with DSP

Item V8PRO · Designed in Italy

V PRO series is the ultimate evolution of the acclaimed V series of PROEL powered loudspeakers. The V PRO features now a totally new pre-amp section including an advanced processing with high-performance DSP engine, for a very smooth response and a high-definition sound. The possibility...

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

V PRO series is the ultimate evolution of the acclaimed V series of PROEL powered loudspeakers. The V PRO features now a totally new pre-amp section including an advanced processing with high-performance DSP engine, for a very smooth response and a high-definition sound. The possibility to select the 5 different EQ presets allows to adapt the system response to the different applications with a touch of your fingers. These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D Amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point. The four models, V8PRO, V10PRO, V12PRO and V15PRO, feature a new extremely efficient amplifier module capable of delivering 600 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V PRO the most portable PROEL speakers ever.

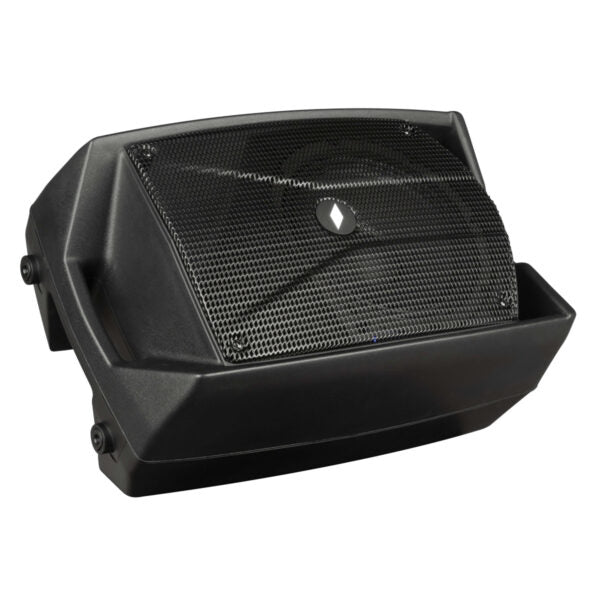

The V PRO cabinets, expression of the most advanced Italian design, include a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the speakers to be laid on their side and used also as stage monitors.

Thanks to the MIC/ LINE input and the WIRELESS USB input for the use of PROEL U24 microphone systems, the V PRO can be used in a variety of applications without external equipment.

Specifications

The details that matter.

Manuals & downloads

System type
2-way vented enclosure
High Frequency Device
1’’ neodymium compression driver
Low Frequency Device
8” woofer with 1.5"VC
Angular Coverage
90° H x 60° V
Total peak power
600 W
HF Amplifier Cont. Power
50 W Class AB
LF Amplifier Cont. Power
250 W Class D
Power Supply type
SMPS
Frequency Response
70 Hz - 20 kHz
Processing
DSP
Preset
MUSIC, LIVE, DJ, MONITOR, SPEECH
Max SPL at 1mt (peak)
122 dB SPL
Crossover Frequency
2000 Hz
Input Impedance
30 kΩ balanced / 15 kΩ unbalanced
Input Sensitivity
LINE: +4 dBu / MIC: -30 dBu
Controls
MIC/LINE, DSP VOICING, LEVEL
Connectors
MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
WIRELESS MIC (U-24H or U-24B)
Power Supply
220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector
Rated Consumption*
300 W
Construction
Polypropylene
Cabinet Color
Black
Flying System
4 x M8 top/bottom
Handles
1 x top
Mounting Pole
1 x bottom
Monitor taper
46°
Weight
15.7 lb (7.1 kg)
Dimensions (W x H x D)
11 × 16.6 × 10.4 in (280 x 422 x 263 mm)
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
