Proel · Sound Systems

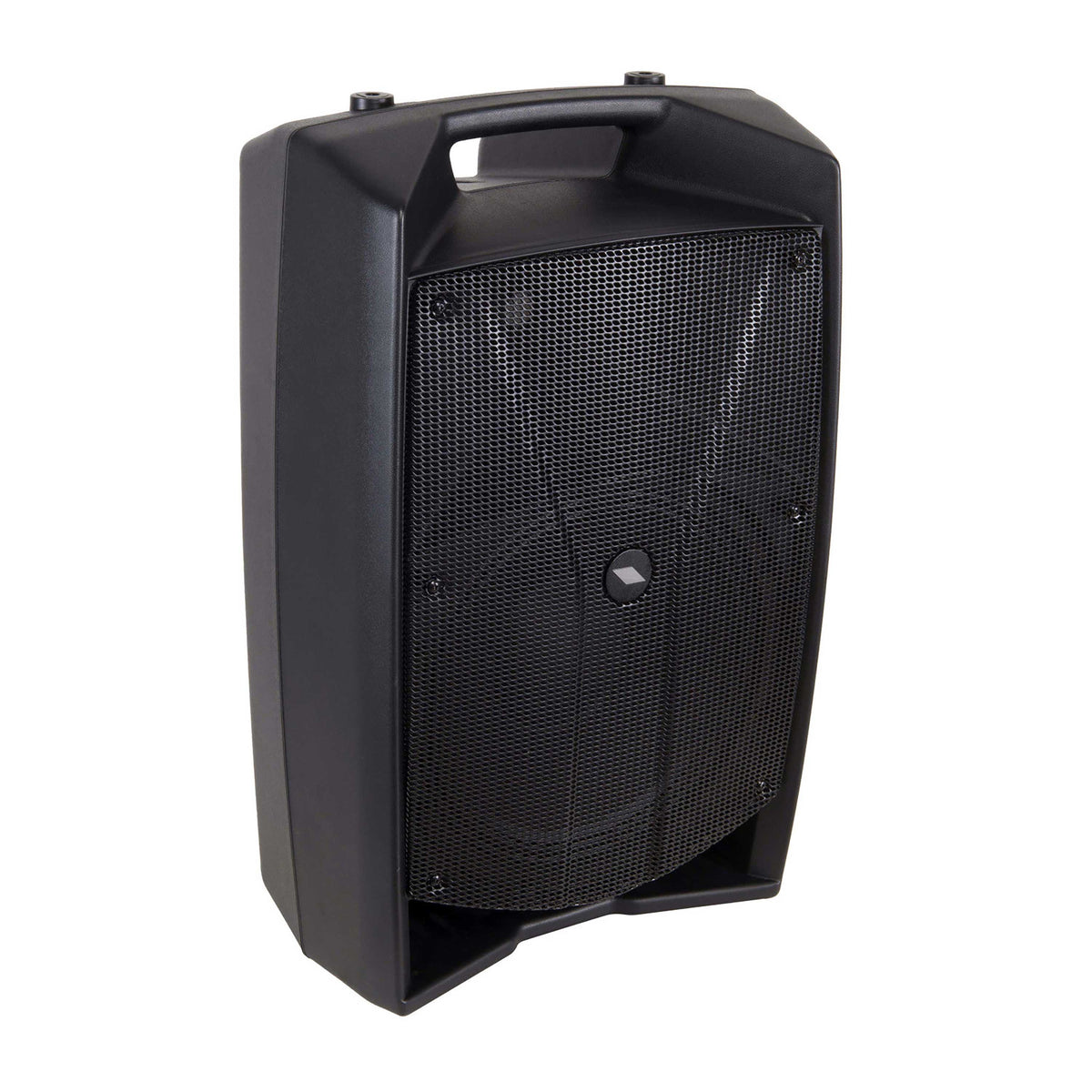

V-PLUS Series Active 2-Way Powered 12" Loudspeaker Sound System

Item V12PLUS · Designed in Italy

Final Stock

A lightweight active 2-way 12-inch loudspeaker with 600 W peak of power in a slanted cabinet that doubles as a stage monitor.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Evolution of the V Series

V PLUS is the evolution of the PROEL V Series of powered loudspeakers. Light, carefully engineered cabinets pair clear, accurate PROEL sound with Class D amplification for the low frequencies and a switch-mode power supply.

Amplifier

An efficient amplifier module delivers 600 W peak to the transducers. SMPS technology keeps the package very light. The module sits in a fully sealed aluminum box for protection, insulation and efficient cooling.

Carefully selected speakers and active electronics with dual clip limiters keep the sound undistorted at the loudest levels.

Cabinet design

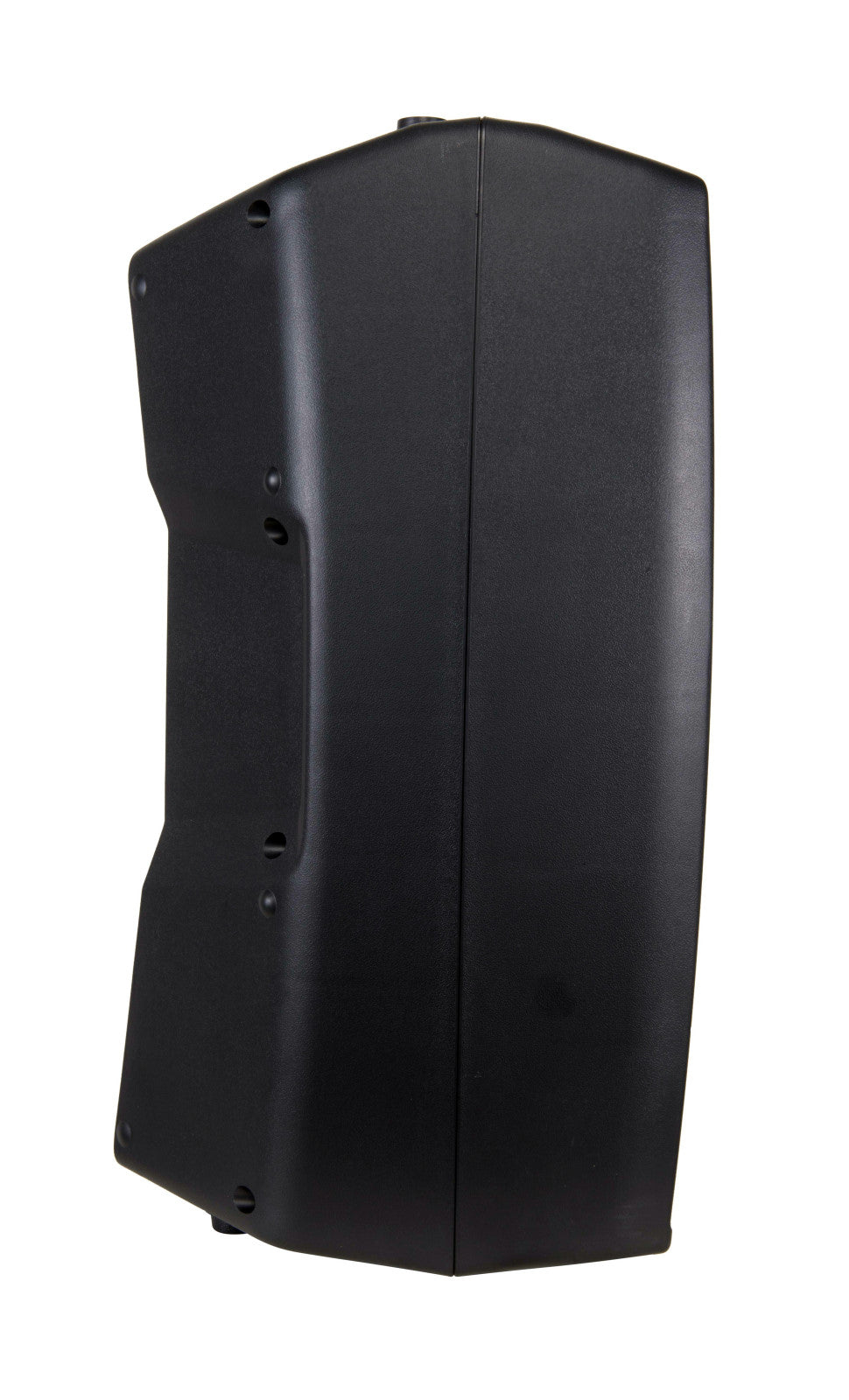

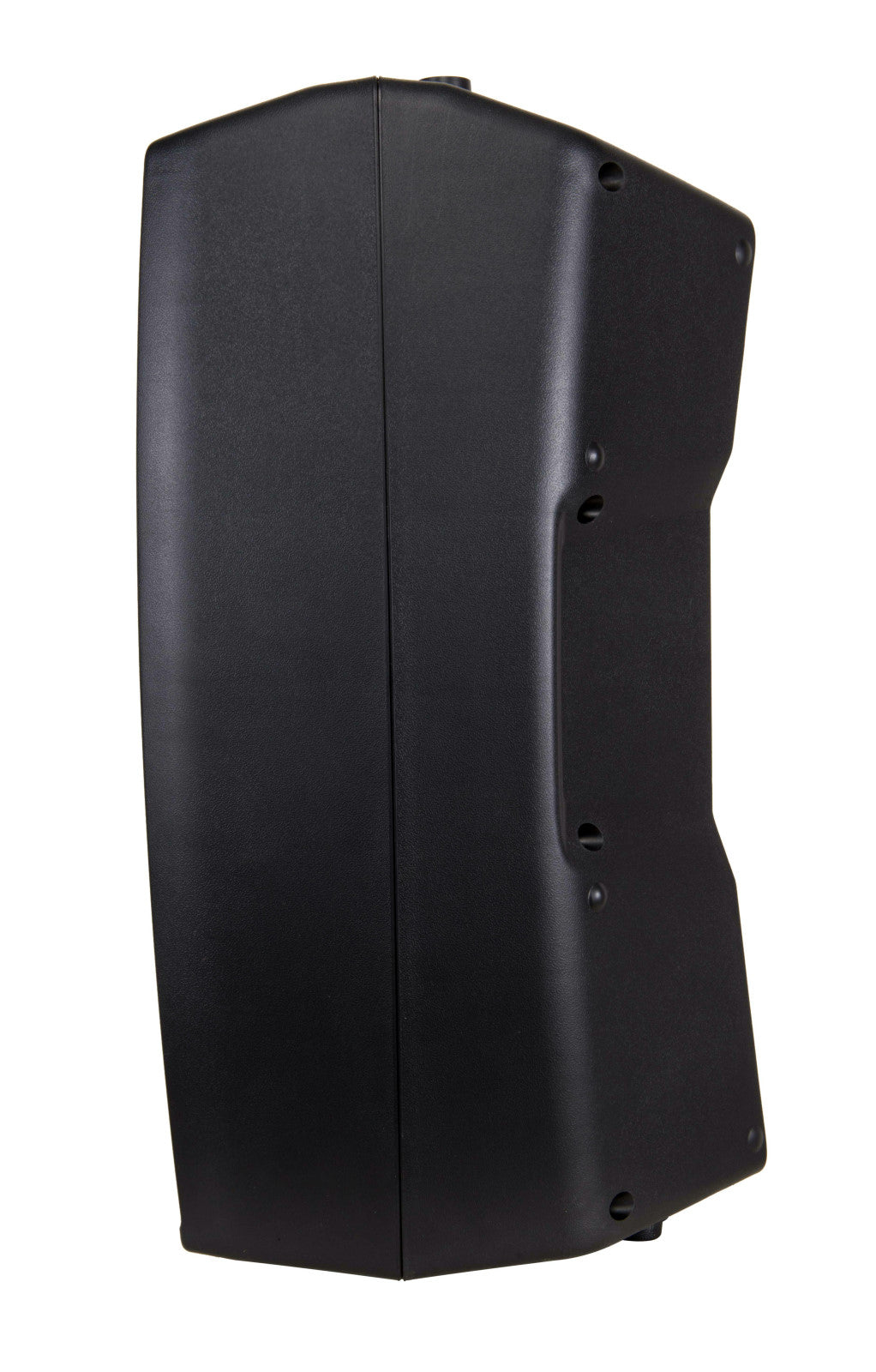

The cabinet reflects advanced Italian design and has a comfortable luggage-style top handle. Its slanted shape lets you lay the speaker on its side as a stage monitor.

Specifications

The details that matter.

Manuals & Downloads

System type
2-way vented enclosure
High Frequency Device
1” neodymium compression driver
Low Frequency Device
12” woofer with 2.5” voice coil
Angular Coverage
90° H x 60° V
Total peak power
600 W
HF Amplifier Continuous Power
50 W Class AB
LF Amplifier Continuous Power
250 W Class D
Power Supply
SMPS
Processing
Analog
Frequency Response
50 Hz - 20 kHz
Max SPL
124 dB

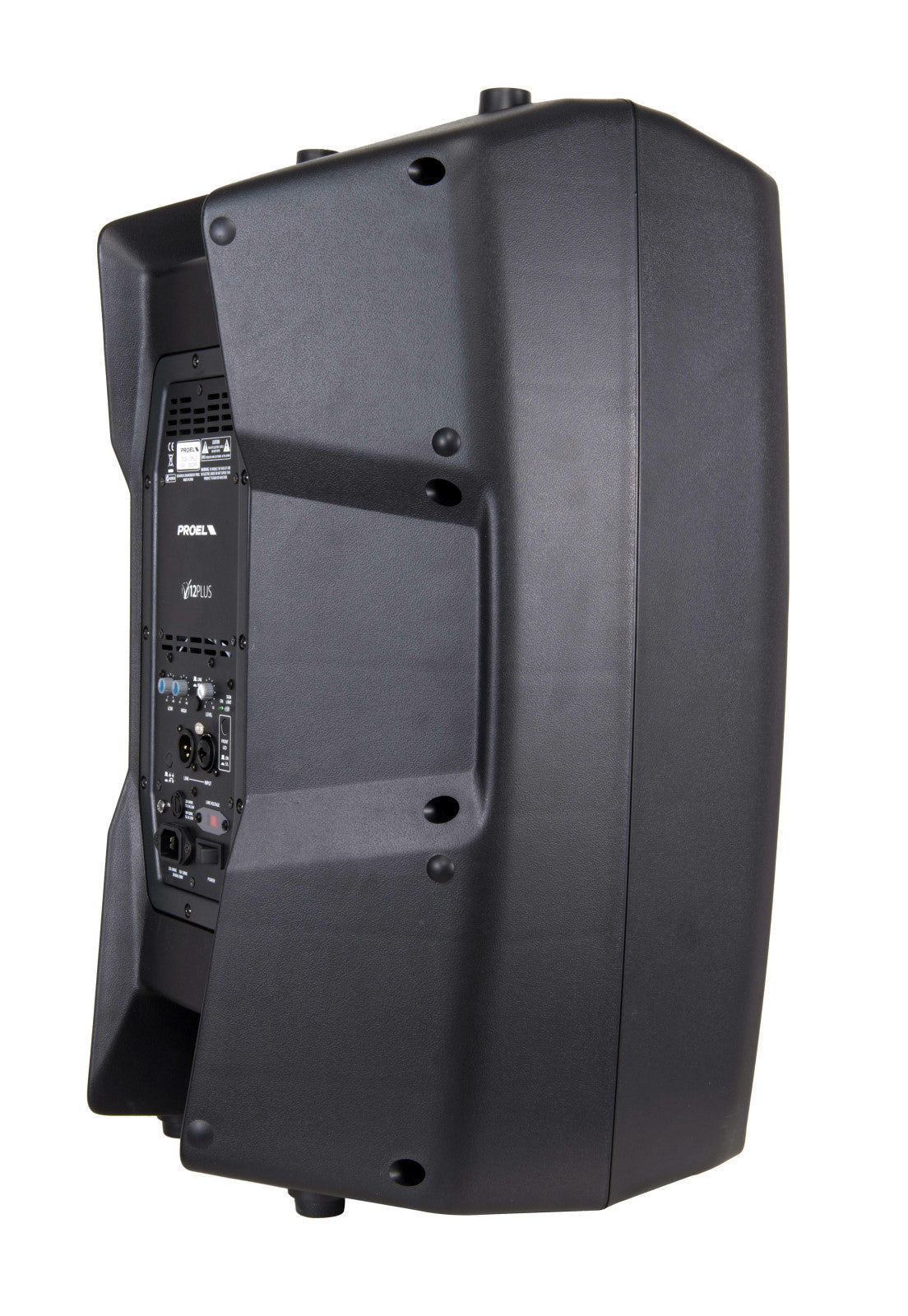

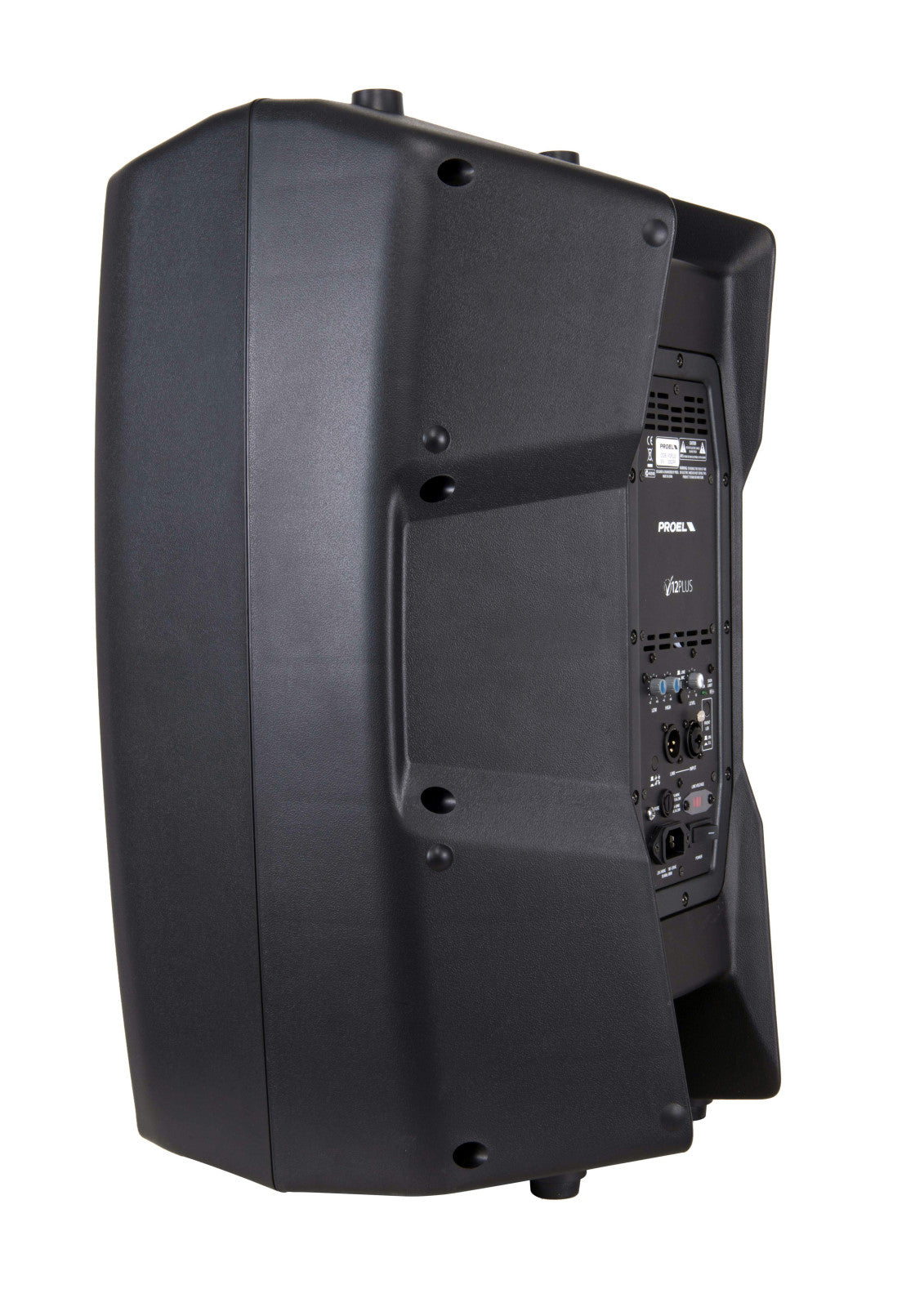

Connectors
IN: COMBO, LINK: XLR M
Controls
LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector
Monitor Taper
44°
Flying System
4 x M10 - top/bottom
Construction
Polypropylene
Cabinet Color
Black
Handles
1 x top
Mounting Pole
1 x bottom
Mains
230 VAC or 120 VAC 50/60 Hz

Shipping

Carton (L x W x H)
15.7 x 26.8 x 18.1 in (40 x 68 x 46 cm)
Shipping weight
34 lb (15.4 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
