Proel · Sound Systems

V10WAVE V-WAVE Series 10" Active Loudspeaker with Mixer and Media Player

Open Box · Item V10WAVE-B · Designed in Italy

Final Stock

An active 10-inch portable PA with a 600 W peak Class D amplifier, 3-channel mixer, Bluetooth MP3 player and BT LINK stereo pairing.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.

Mixer and media player

V WAVE expands the PROEL V Series with a versatile 3-channel mixer. It keeps the lightweight, ultra-durable polypropylene cabinet and the 600 W peak amplifier. The MP3 player plays from an SD card, a USB stick or a smartphone or tablet over Bluetooth.

BT LINK connects your Bluetooth device to two speakers in stereo, with no cables between them.

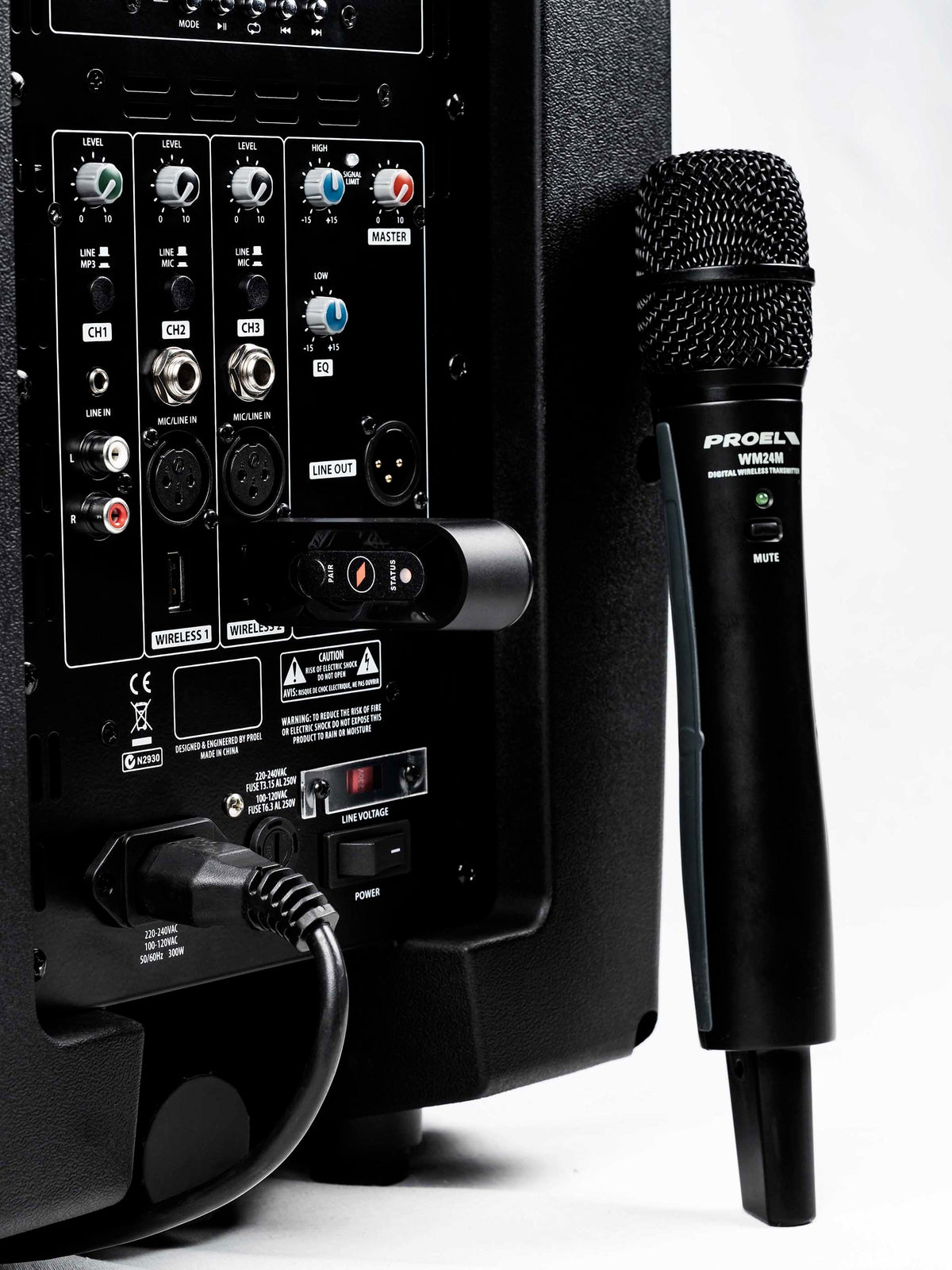

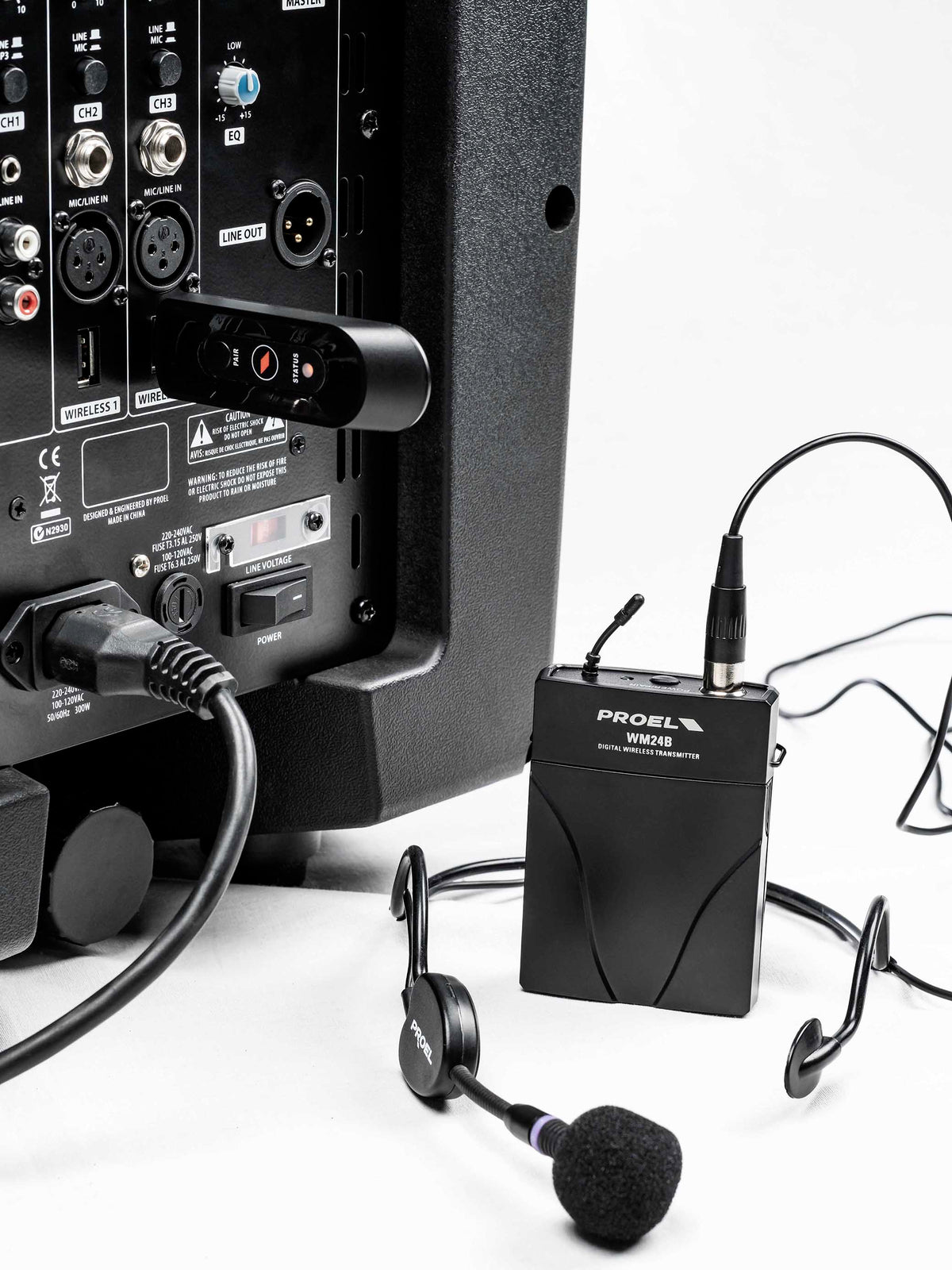

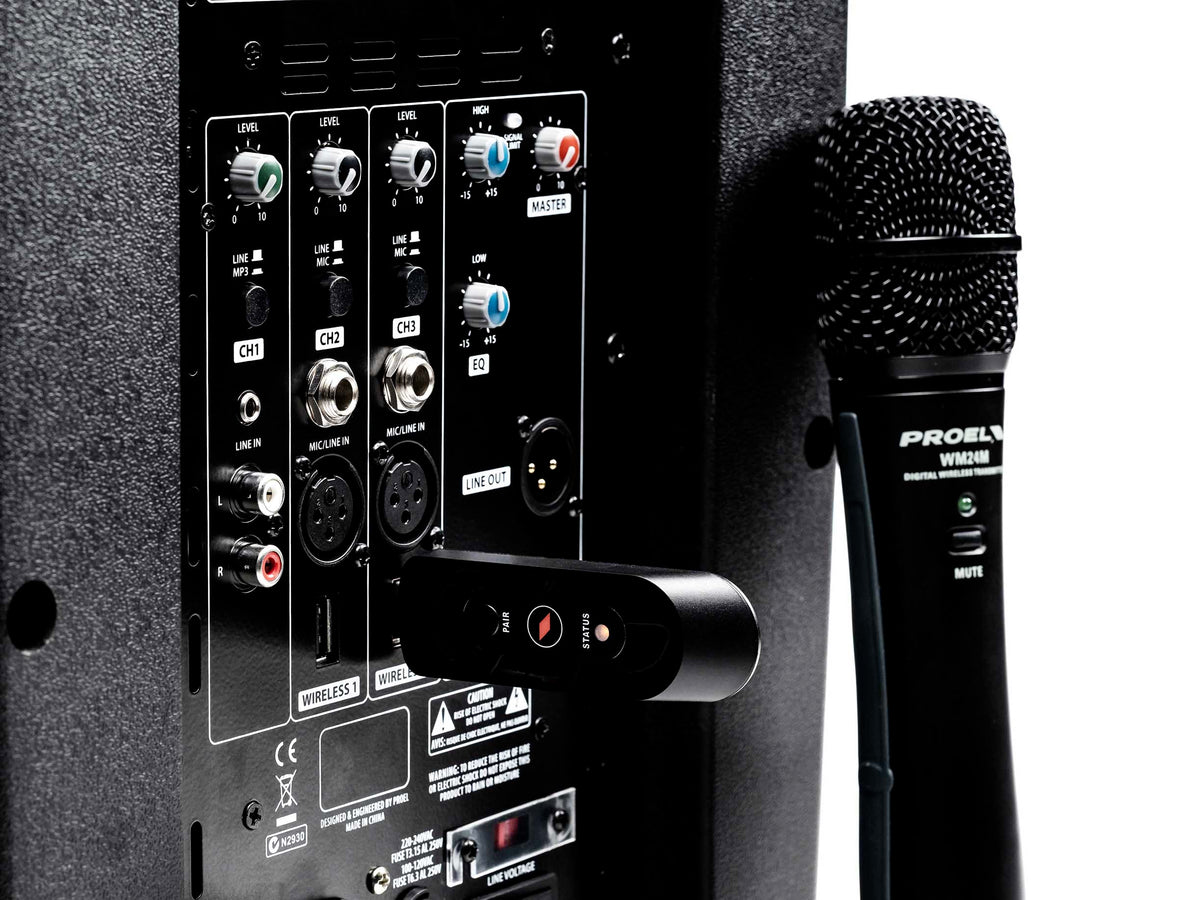

Wireless microphones

The mixer has independent level controls, a 2-band EQ and two USB inputs for PROEL U24H or U24B 2.4 GHz wireless microphones. Plug in the ultra-compact USB receiver for clear, interference-free transmission with a handheld or bodypack transmitter.

Versatile use

Use it for speech, music playback, live music and DJ sets. The cabinet mounts on standard speaker poles.

Specifications

The details that matter.

Manuals & Downloads

MIXER Section

MONO inputs
2 x MIC/LINE IN (XLR-F + 1.4" JACK)
STEREO input
1 x LINE IN (2xRCA + MINI-JACK)
WIRELESS inputs
2 x USB TYPE-A
Outputs
MONO LINE OUT (1.4" JACK)
Main EQ
2-band EQ (HIGH + LOW)
MULTIMEDIA Section
Player Type
USB / SD / BLUETOOTH player with BT LINK
Compatible File Formats
MP3
Control Interface
LCD display, CONTROL buttons
AMPLIFIER Section
Total Peak Power
600 W
Continuous Power
300 W
Amplifier Type
Class D
Power Supply
SMPS
Processing
Analog
LOUDSPEAKER Section
System Type
2-way vented enclosure
High Frequency Device
1" horn loaded neodymium compression driver
Low Frequency Device
10” woofer with 2” VC
Angular Coverage
90° H x 60° V
Frequency Response
60 Hz - 20 kHz
Max SPL
123
GENERAL Specifications
Construction
Polypropylene
Cabinet Color
Black
Handles
1 x top
Wheels
-
Mounting Pole
1 x bottom
Dimensions (WxHxD)
13 × 20.2 × 11.3 in (330 x 514 x 286 mm)
Weight
31.9 lb (14.5 kg)
Power Supply
230 V~ or 115 V~ 50/60 Hz with LINE VOLTAGE selector
Rated Consumption
300 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
