Proel · Sound Systems

V10PRO 2-Way Active Speaker with DSP

Open Box · Item V10PRO-B · Designed in Italy

A lightweight 2-way active 10-inch speaker with 600 W peak power, five DSP presets, and a wireless mic input for Proel U24 systems.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Processing and sound

The V PRO series is the latest evolution of Proel's V series powered loudspeakers. A new preamp section with a high-performance DSP gives a smooth, high-definition response.

Five EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH) adapt the speaker to each application at the touch of a button.

Amplification

V10PRO pairs a 10-inch woofer with a 1-inch neodymium compression driver. The amplifier delivers 600 W peak, with a Class D stage for the woofer and a Class AB stage for the driver, on a lightweight switch-mode power supply.

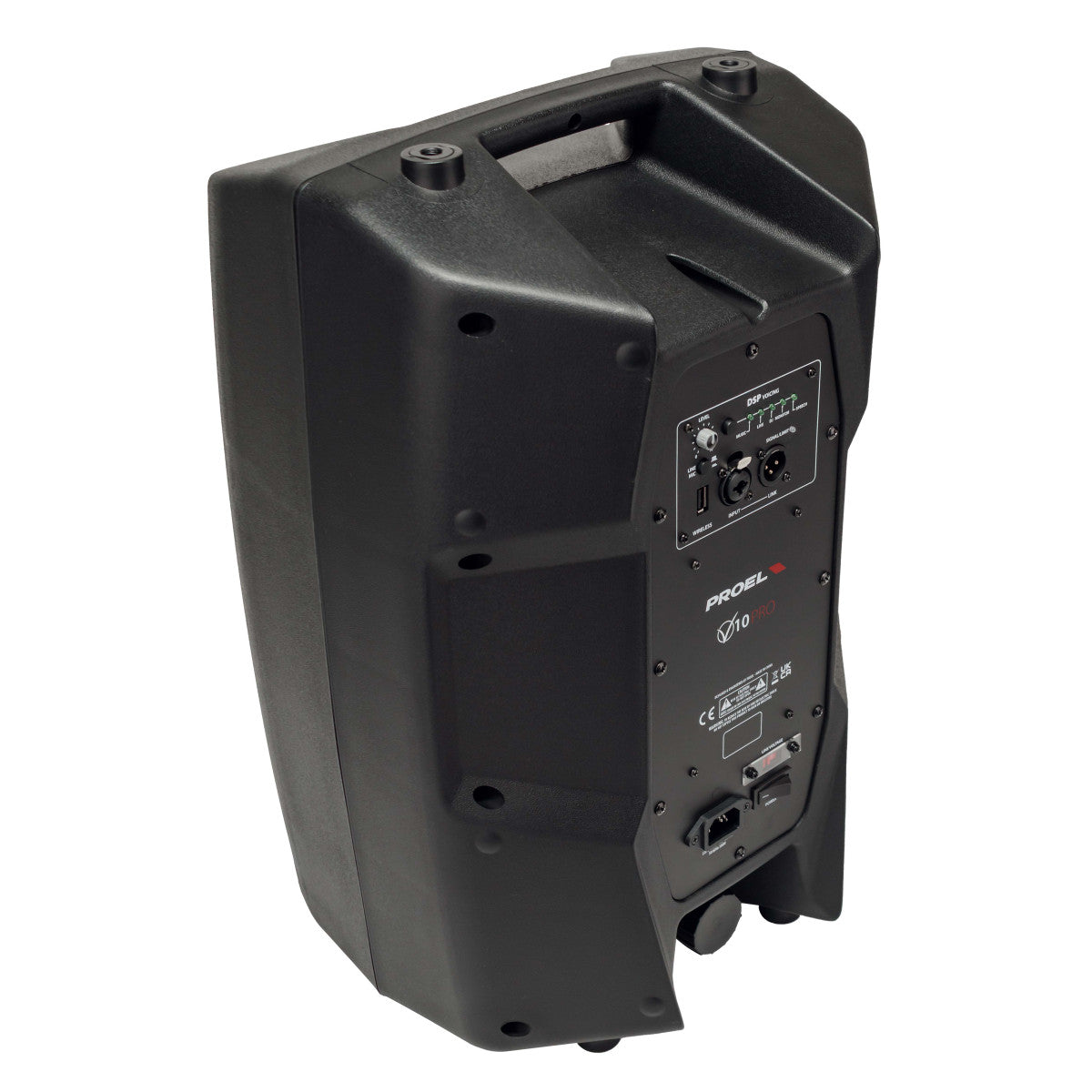

Cabinet and connections

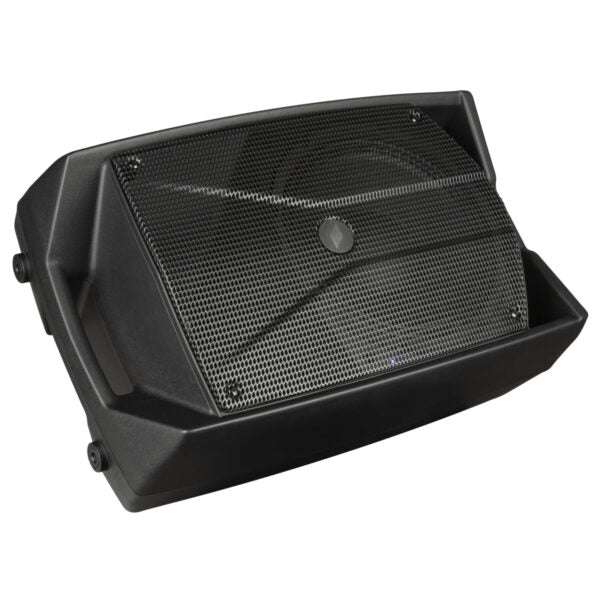

The lightweight cabinet reflects Italian design and has a luggage-style top handle. Its slanted shape lets it lie on its side as a stage monitor.

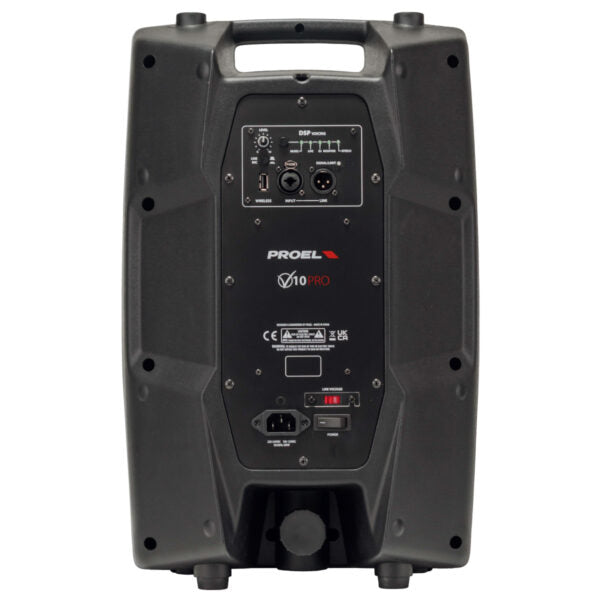

A mic/line input and a wireless USB input for Proel U24 microphone systems let it work in many settings without extra equipment.

Specifications

The details that matter.

Manuals & Downloads

System type
2-way vented enclosure
High Frequency Device
1’’ neodymium compression driver
Low Frequency Device
10” woofer with 2"VC
Angular Coverage
90° H x 60° V
Total peak power
600 W
HF Amplifier Cont. Power
50 W Class AB
LF Amplifier Cont. Power
250 W Class D
Power Supply type
SMPS
Frequency Response
60 Hz - 20 kHz
Processing
DSP
Preset
MUSIC, LIVE, DJ, MONITOR, SPEECH
Max SPL at 1mt (peak)
123 dB SPL
Crossover Frequency
2000 Hz
Input Impedance
30 kΩ balanced / 15 kΩ unbalanced
Input Sensitivity
LINE: +4 dBu / MIC: -30 dBu
Controls
MIC/LINE, DSP VOICING, LEVEL
Connectors
MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
WIRELESS MIC (U-24H or U-24B)
Power Supply
220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector
Rated Consumption*
300 W
Construction
Polypropylene
Cabinet Color
Black
Flying System
4 x M10 top/bottom
Handles
1 x top
Mounting Pole
1 x bottom
Monitor taper
45°
Weight
21.8 lb (9.9 kg)
Dimensions (W x H x D)
13 × 20.2 × 11 in (330 x 512 x 280 mm)
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
