Proel · Recording Gear

2.4GHz USB Wireless Handheld Microphone System

Item U24H · Designed in Italy

The U24 USB Wireless Microphones are professional wireless systems offering a high-definition, interference-free transmission thanks to the 2.4GHz technology and featuring an ultra-compact USB receiver. The receiver is powered thru the USB interface and features a dual-mode audio interface for an auto-sensing connection both to...

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

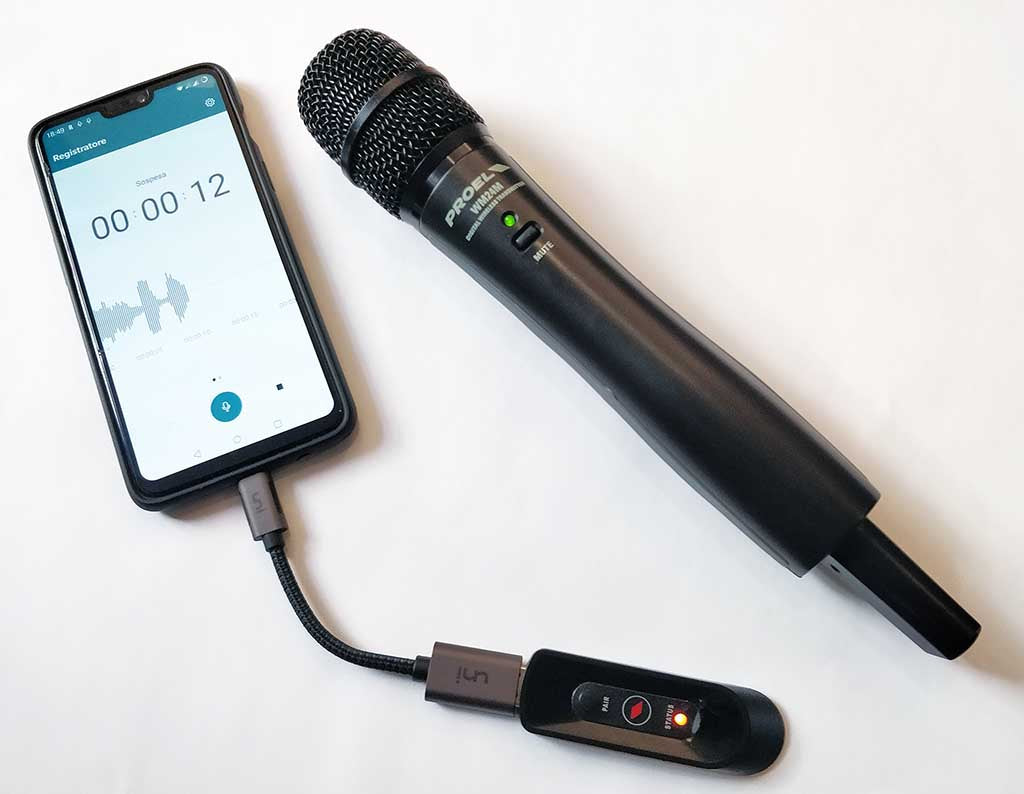

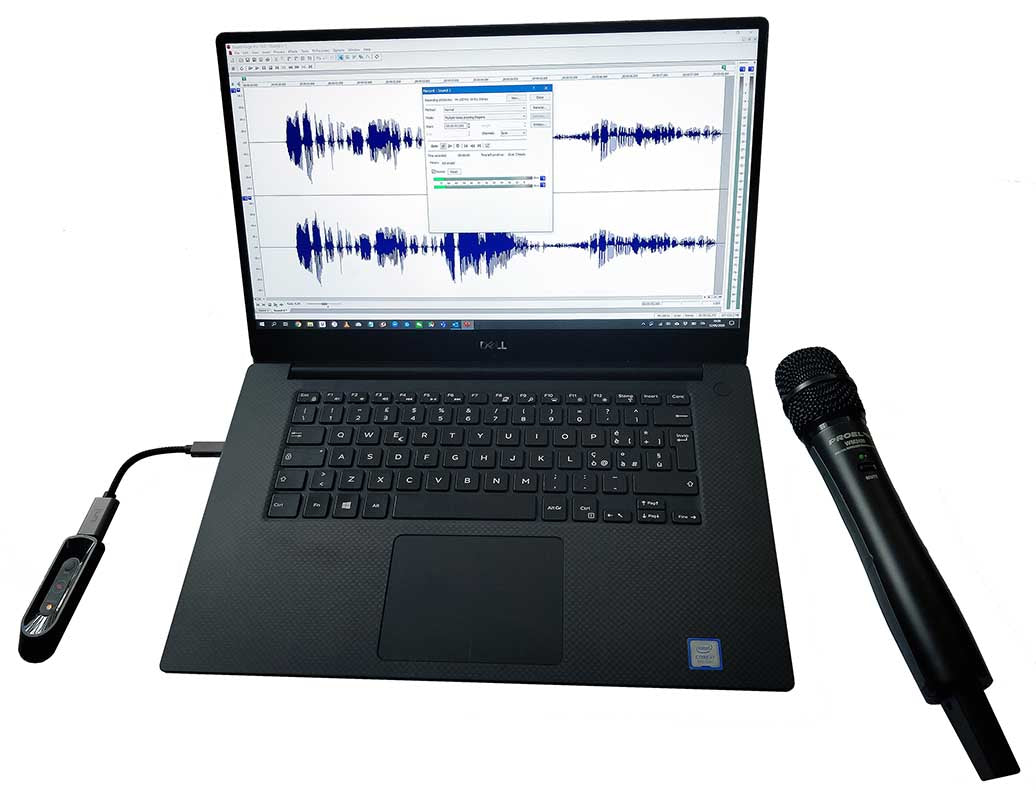

The U24 USB Wireless Microphones are professional wireless systems offering a high-definition, interference-free transmission thanks to the 2.4GHz technology and featuring an ultra-compact USB receiver. The receiver is powered thru the USB interface and features a dual-mode audio interface for an auto-sensing connection both to analog and digital devices. It features a plug-and-play operation with no driver installation required and it can be connected to any PC/MAC for recording directly into your favorite DAW application. Using a proper USB type-A adapter it can be also connected to IOS or Android devices for digital stand alone applications.

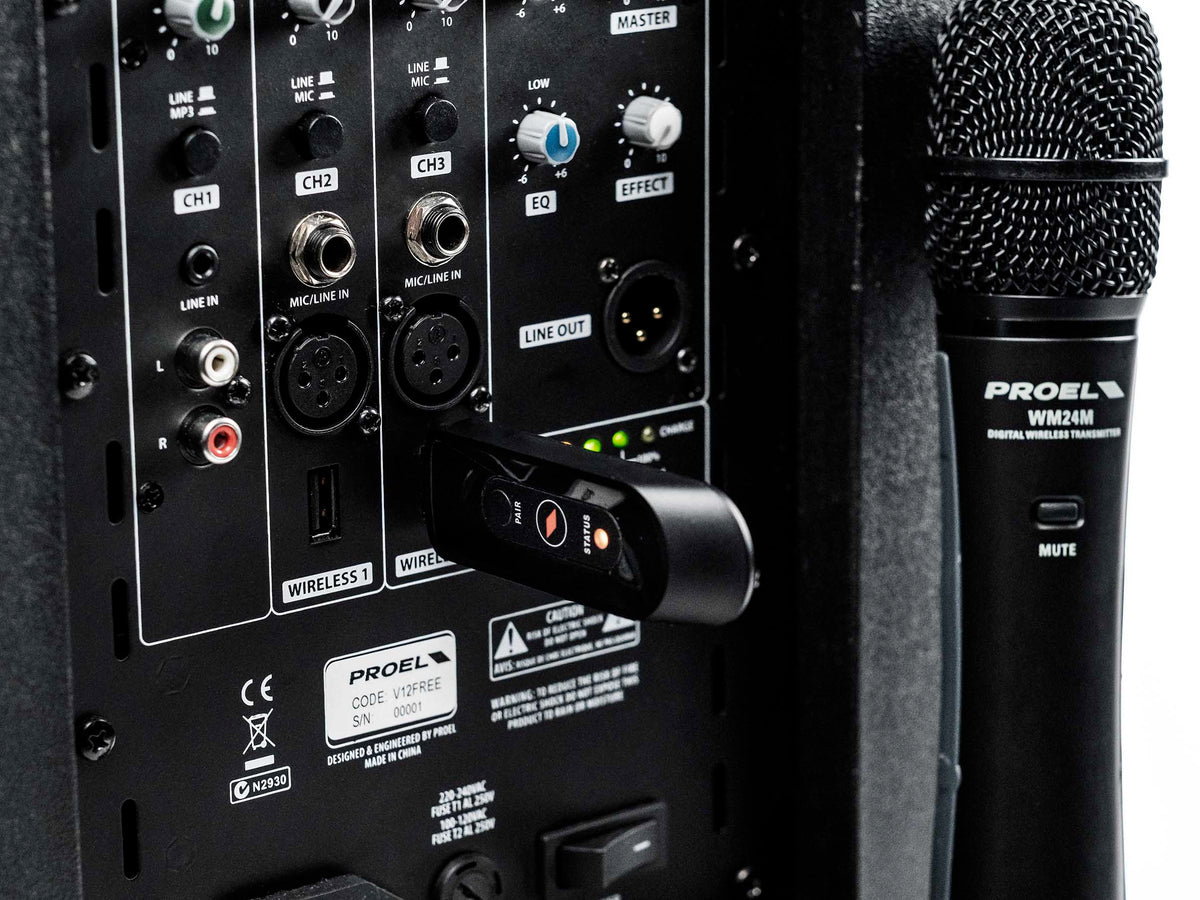

Finally, it can be plugged into any PROEL device featuring a USB WIRELESS input (such as V FREE and V WAVE speakers) for using a professional microphone system in a flash and without the hassle fo cables. The digital 2.4GHz wireless technology offers superior sound quality and maximum reliability, avoiding interferences from television stations and other broadcast devices. The transmitter is automatically paired to the receiver and the intelligent frequency hopping ensures a stable connection. U24H includes a handheld microphone featuring a high-quality dynamic capsule for dedicated vocal applications.

Specifications

The details that matter.

Manuals & downloads

U24 - USB Receiver

Frequency Range
2.404 – 2.476 GHz
RF Sensitivity
-78 dB
Frequency Response
50 Hz – 15 kHz
Sampling
16 bit @ 38.5 kHz
THD
<0.05% @ 1KHz
SN Ratio
>85 dB
Transmission Delay
18.3 mS
Output Connector
USB Type-A
Audio Output Level
4dBu (1000mV)
Current
<55mA
Operating Temperature
14 °F (-10 °C) ~ 122 °F (50 °C)
Dimensions (WxHxD)
3.7 × 1 × 0.37 in (94 x 26 x 9.5 mm)
WM24M - Handheld Transmitter
Frequency Range
2.404 – 2.476 GHz
Transmitting Power
< 10 dBm
Transmission Distance
Up to 82 ft (25m) (open space)
Frequency Response
50 Hz – 15 kHz
Sampling
16 bit @ 38.5 kHz
THD
<0.05% @ 1KHz
SN Ratio
>85dB
Transmission Delay
18.3 mS
Power Supply Battery
2x1.5V AA alkaline type
Operating time
Up to 20 hours
Dimensions
H: 278 x Ø: 1.9 in (47 mm)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
