Proel · Recording Gear

2.4GHz USB Wireless Bodypack Microphone System

New · Item U24B · Designed in Italy

A 2.4 GHz digital wireless system with a bodypack transmitter, headset microphone and plug-and-play USB receiver.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

USB receiver

The U24 systems use 2.4 GHz digital transmission and an ultra-compact USB receiver. The receiver is powered by USB. Its dual-mode audio interface senses whether it is connected to an analog or digital device.

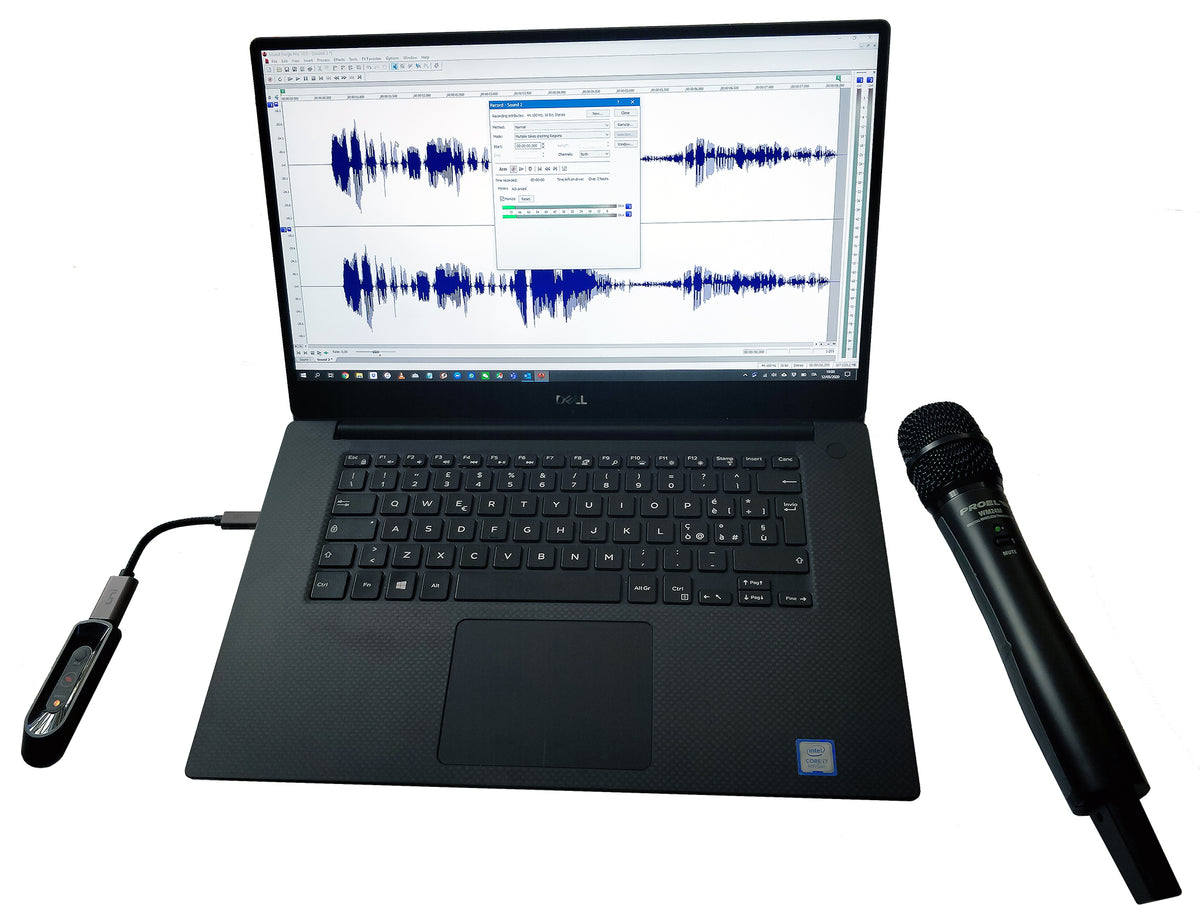

  • Plug-and-play on any PC or Mac, with no drivers, for recording straight into your DAW

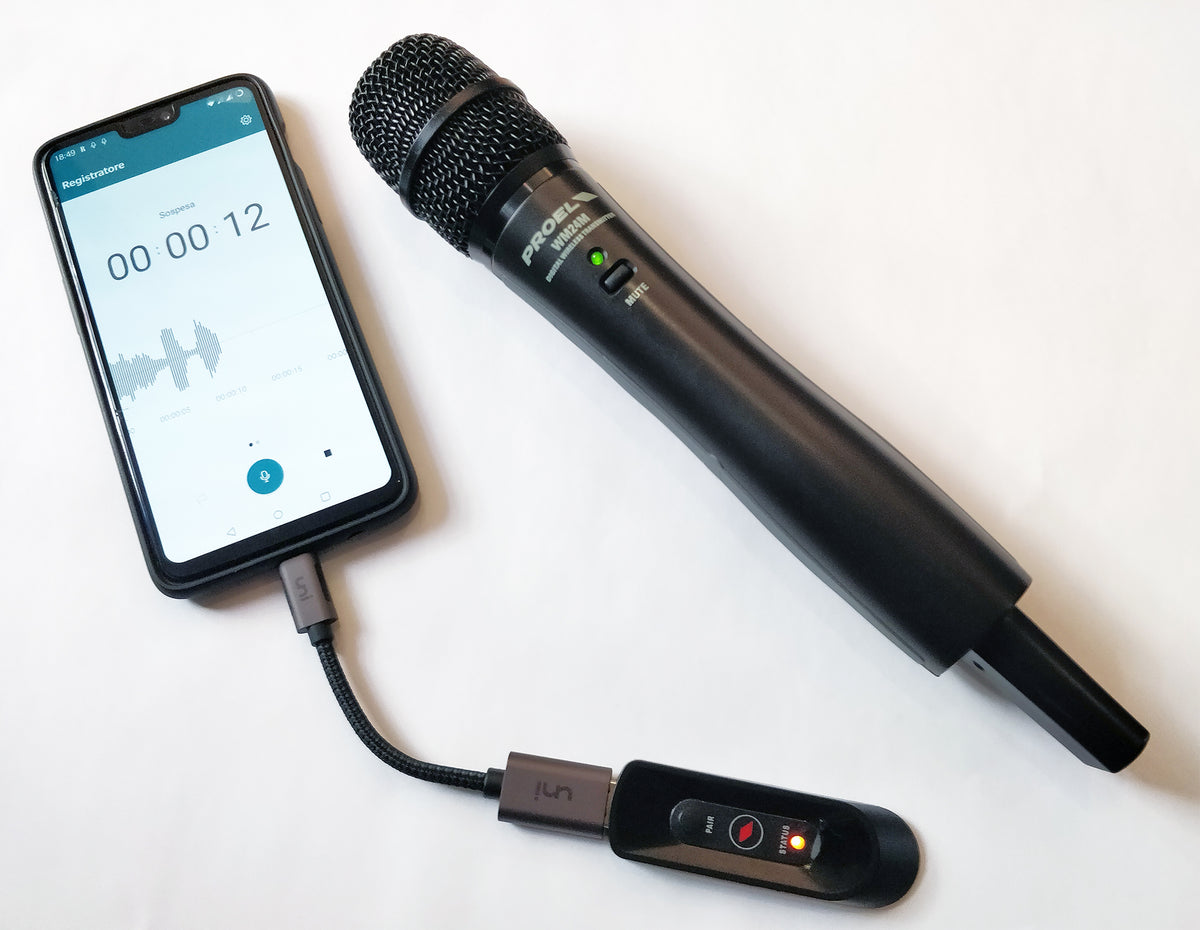

  • Works with iOS or Android devices through a suitable USB Type-A adapter

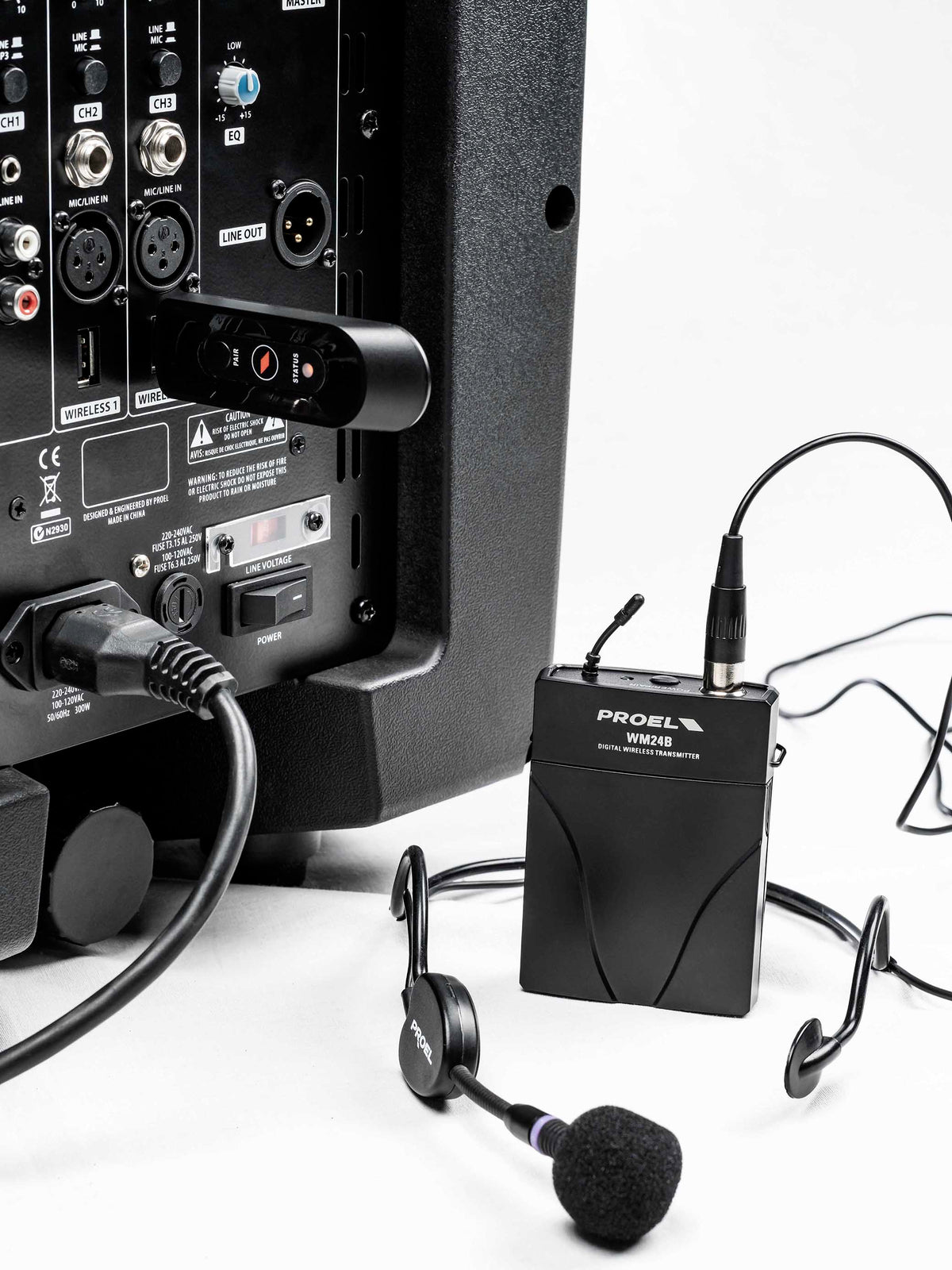

  • Plugs into any PROEL device with a USB WIRELESS input, such as V FREE and V WAVE speakers

Reliable wireless link

The digital 2.4 GHz link avoids interference from TV stations and other broadcast devices. The transmitter pairs automatically, and intelligent frequency hopping keeps the connection stable. Range is up to 82 ft (25 m) in open space, and two AA batteries give up to 20 hours of use.

In the box

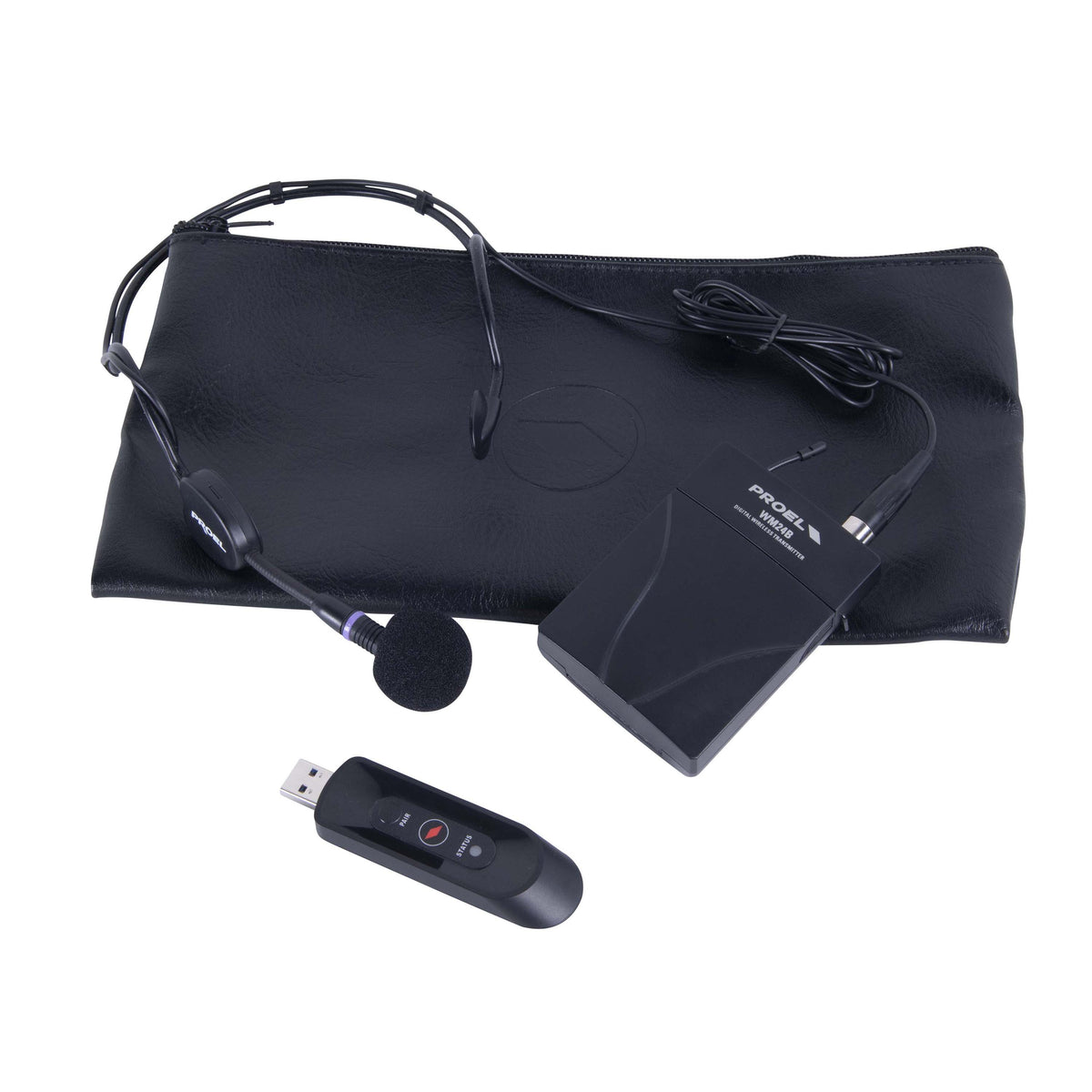

The U24B includes a bodypack transmitter and a double-ear headset microphone.

Specifications

The details that matter.

Manuals & Downloads

U24 - Receiver

Frequency Range
2.404 – 2.476 GHz
RF Sensitivity
-78 dB
Frequency Response
50 Hz – 15 kHz
Sampling
16 bit @ 38.5 kHz
THD
<0.05% @ 1KHz
SN Ratio
>85 dB
Transmission Delay
18.3 mS
Output Connector
USB Type-A
Audio Output Level
4dBu (1000mV)
Current
<55mA
Operating Temperature
14 °F (-10 °C) ~ 122 °F (50 °C)
Dimensions (WxHxD)
3.7 × 1 × 0.37 in (94 x 26 x 9.5 mm)
WM24B - Bodypack Transmitter
Frequency Range
2.404 – 2.476 GHz
Transmitting Power
< 10 dBm
Transmission Distance
Up to 82 ft (25m) (open space)
Frequency Response
50 Hz – 15 kHz
Sampling
16 bit @ 38.5 kHz
THD
<0.05% @ 1KHz
SN Ratio
>85 dB
Transmission Delay
18.3 mS
Input Connector
TA4M
Power Supply Battery
2x1.5V AA alkaline type
Operating time
Up to 20 hours
Dimensions (WxHxD)
2.4 × 3.3 × 0.87 in (62 x 85 x 22 mm)
HCM-38 - Headset Microphone
Transducer type
Back-electret plate
Polar pattern
Cardioid
Frequency response
80Hz - 12 kHz
Max SPL
110 dB
Nominal Impedance
680 ohm
Power Supply
1.5-3 volt DC, 0.05mA
Cable
1.2 mt
Connector
Mini XLR 4-pin
Weight
51 gr

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
