Proel · Sound Systems

SESSION Series 2400W Compact 2x1 Portable Array System

Item SESSION6 · Designed in Italy

A high-power portable 2.1 column PA with two 6-driver array tops, a dual 10-inch subwoofer, 2400 W peak power and Bluetooth.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Overview

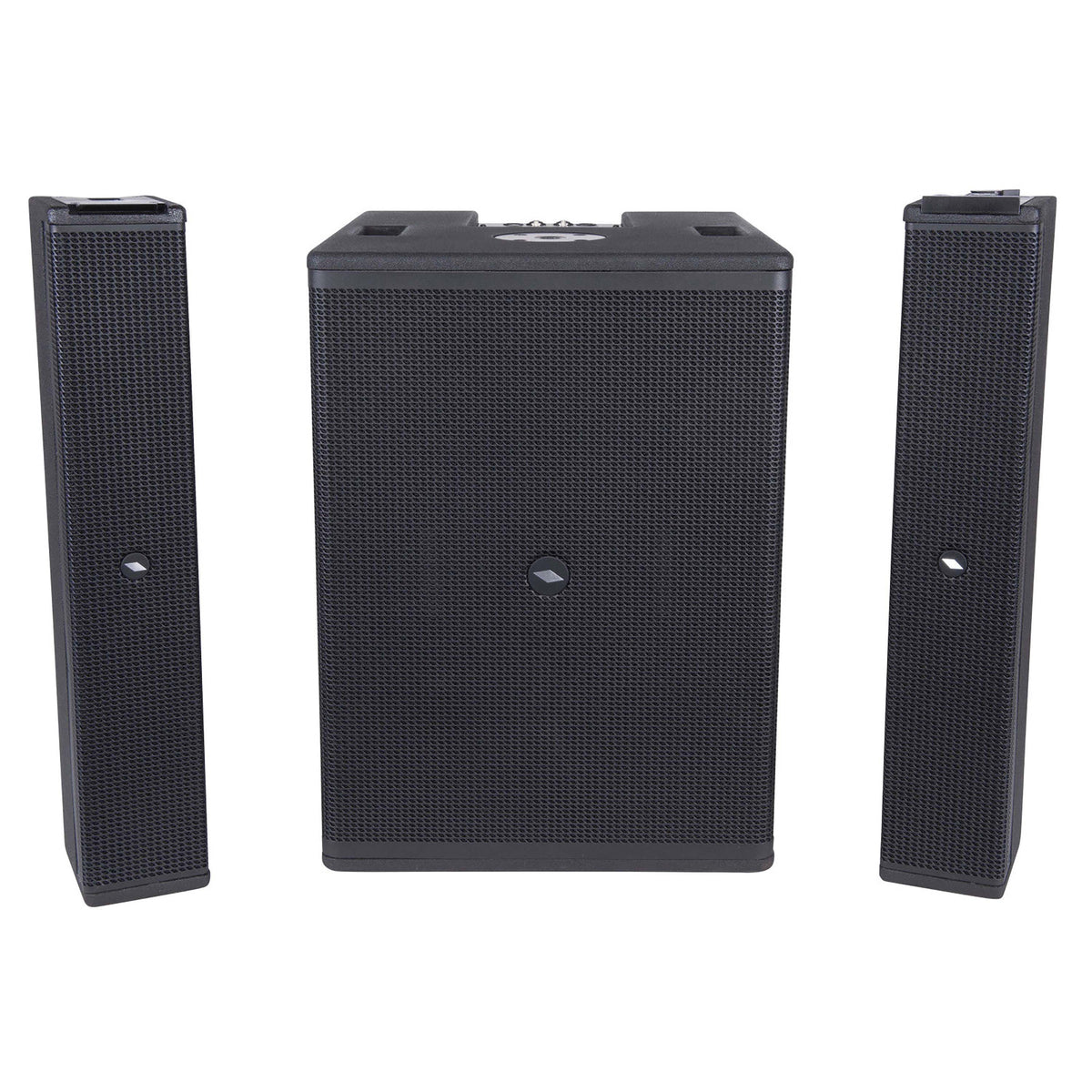

SESSION6 is a compact, high-power active 2.1 portable array with two tops and one subwoofer. It is designed for indoor and outdoor live concerts, mobile DJ setups and corporate events. The sturdy plywood construction pairs portability with a professional design.

Tops and subwoofer

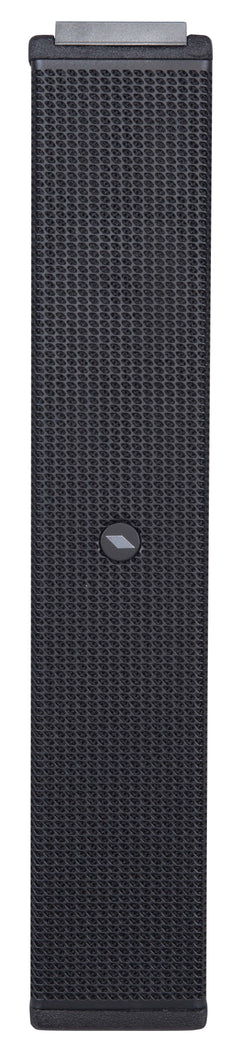

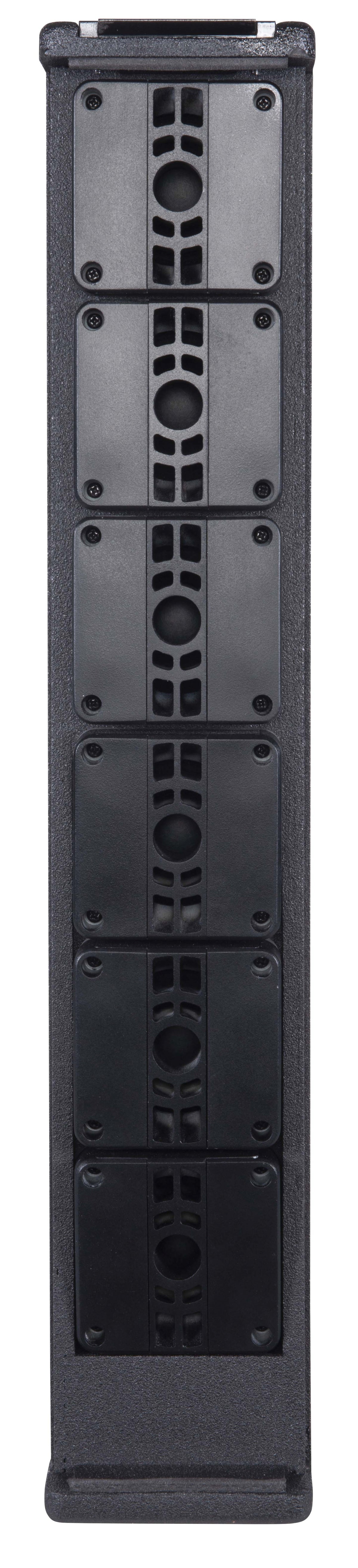

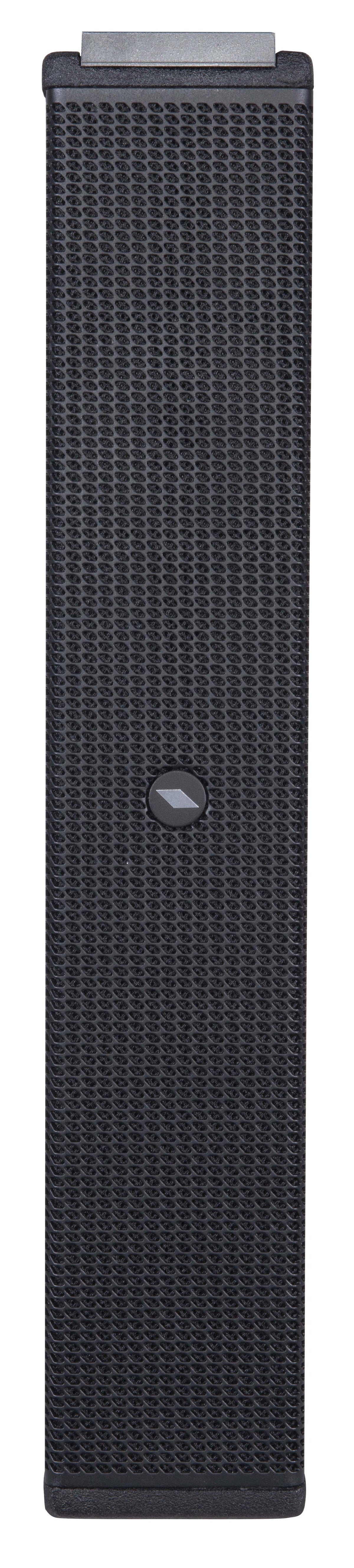

Each top has six 3.25" neodymium drivers in a vertical array with progressive down tilt for wider vertical coverage. A custom phase plug gives ultra-wide 120° horizontal coverage for clear voice and accurate sound throughout the room.

The subwoofer uses two high-excursion 10" woofers with 2.5" voice coils for punchy, dynamic bass, extended low end and high SPL.

Amplifier and control

  • 3-channel Class D amplifier with SMPS, 2400 W total peak power
  • PROEL CORE LT DSP with Dynamic EQ
  • 4 EQ presets: MUSIC, LIVE, DJ, SPEECH
  • Single-knob control with a large LCD for DSP, inputs, configuration and Bluetooth
  • Two MIC/LINE combo inputs
  • Control and connection panel on top of the subwoofer for easy access
  • Maximum SPL 128 dB peak, frequency response 38 Hz - 20 kHz

Flexible setup

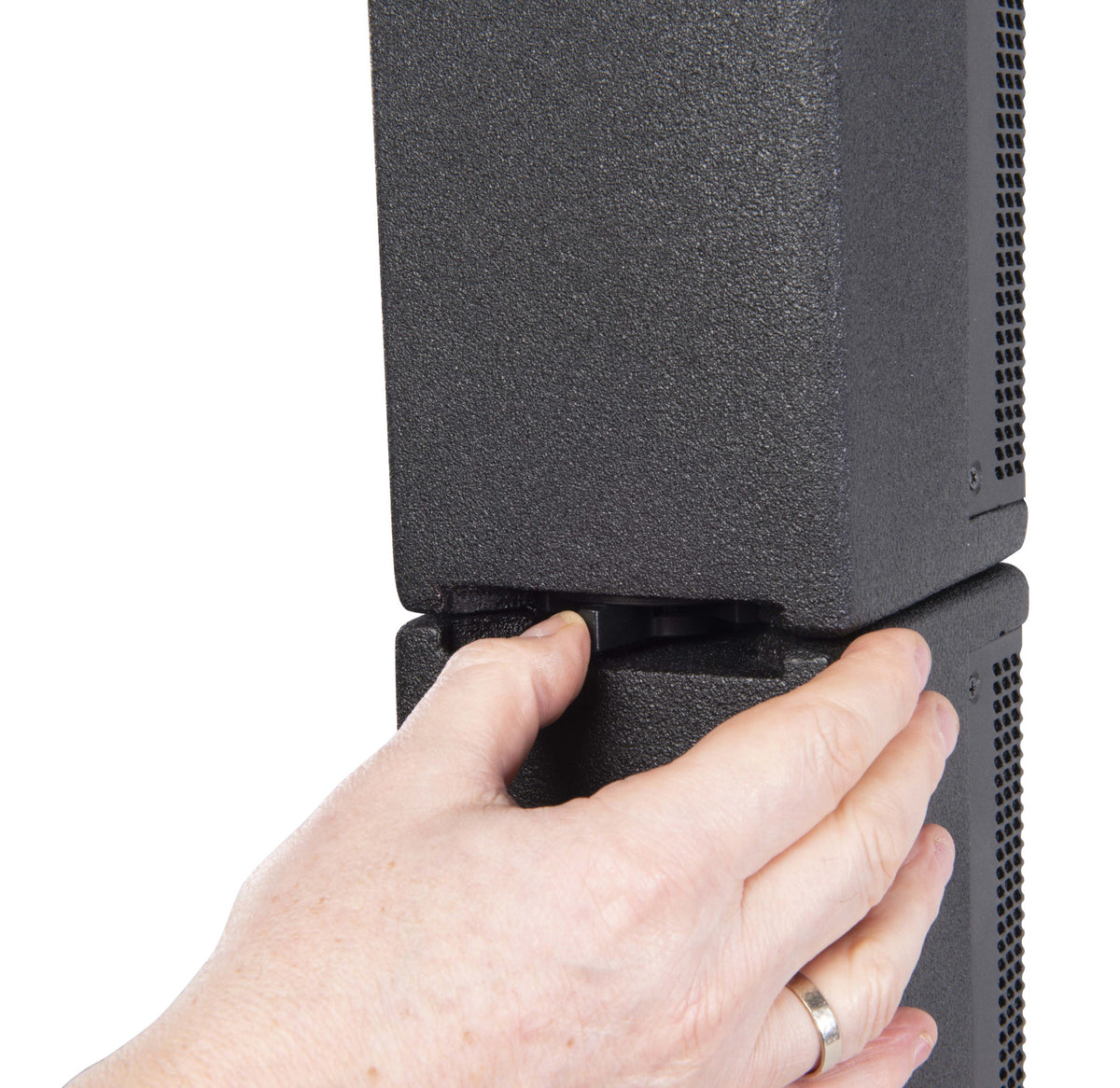

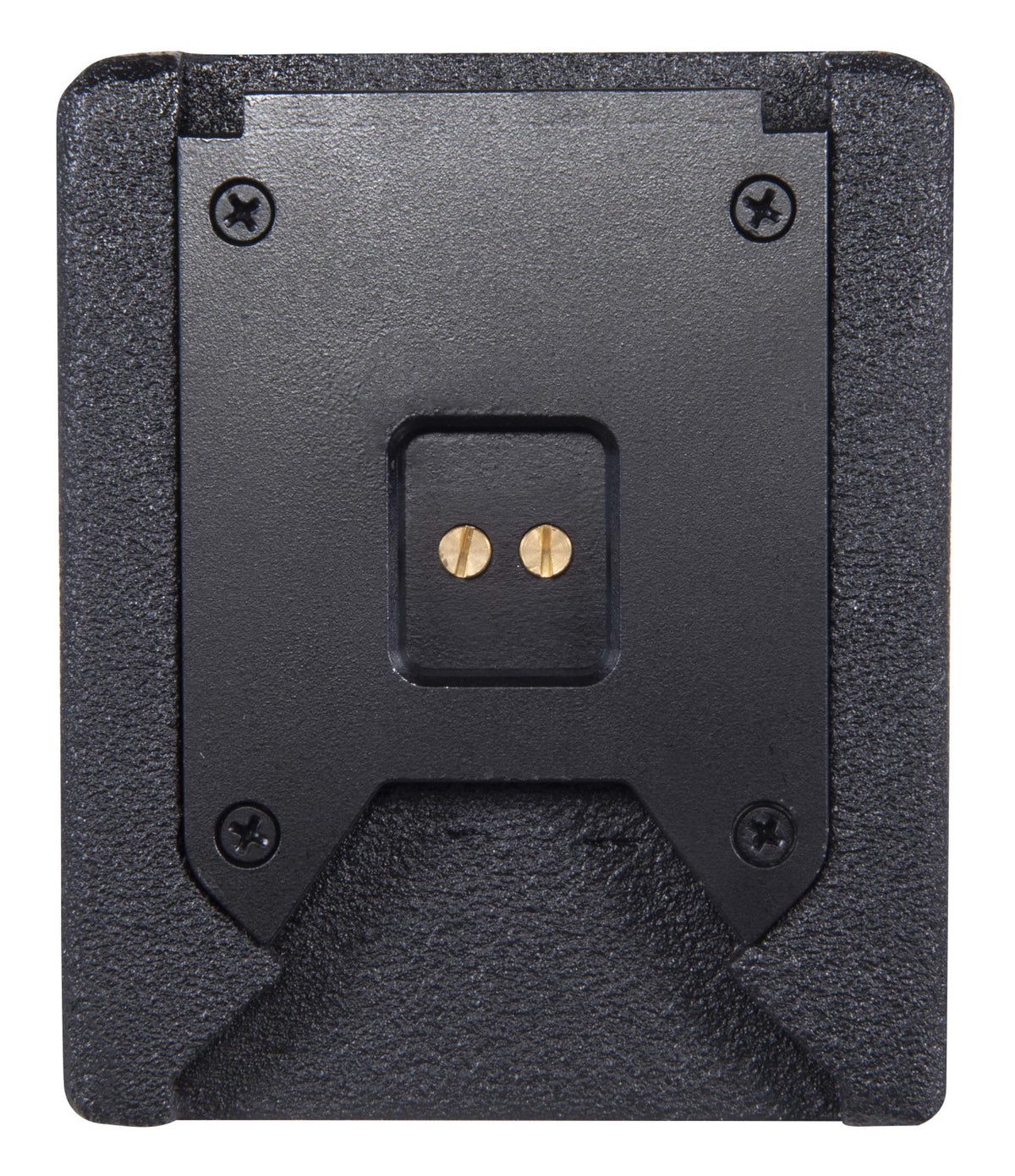

A die-cast fast-link system with integrated connections joins the two tops into one 12-driver column. Run the system in STEREO, MONO or DOUBLE mode. A padded bag holds both columns, the included pole and the speaker cable.

Specifications

The details that matter.

Manuals & Downloads

System

System Type
Portable Powered 2.1 System with Two Line Array Tops and One Subwoofer
Maximum SPL Output
128 dB peak system output (pink noise)
Frequency Response (-10dB)
38Hz – 20kHz
Speakers
LF Driver
2 x 10" (254mm) woofer
HF Driver
12 x 3.25" (82mm) neodymium drivers (6 for each TOP)
Coverage Pattern
120° x 60°
Amplifier
Type
Class D with SMPS
System Power Rating
600 Watts LF, 2x300 Watts HF Continuous, 2400W Peak
Channels
2 MIC/LINE selectable inputs
Connectors
2 x COMBO (INPUTS), 2 x XLR-M (LINK), 2 x SPEAKON (POWER OUTPUTS)
Controls
1 x LCD with Data Encoder
Processing
24bit / 48 kHz CORE DSP, 2-band EQ Selectable CONFIGURATION and EQ PRESETS, Digital Limiting
Wireless Audio
Bluetooth built-in receiver
General Specifications
Cabinet Material
Plywood
Finishing
High-strength polyurethane black paint
Grille
Powder coated perforated steel
Handles
2 x sides (SUB)
Pole Socket
1 x top M20 (SUB), 1 x bottom 1.4 in (35mm) (TOP)
Included Accessories
M20 / 1.4 in (35mm) telescopic pole, 4-wire SPEAKON/SPEAKON cable, PADDED BAG for SAT
AC input
230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D)
TOP: 4.4 × 24.3 × 5.2 in (112x616x132 mm), SUB: 16.5 × 22.8 × 19.3 in (420x580x490 mm)
Weight
TOP: 9.9 lb (4.5 kg), SUB: 58.4 lb (26.5 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
