Proel · Sound Systems

S-Series Active 10" Subwoofer

Item S10A · Designed in Italy

An active 10-inch hybrid band-pass subwoofer with a 350 W continuous Class D amplifier, selectable crossover and phase switch.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Hybrid band-pass design

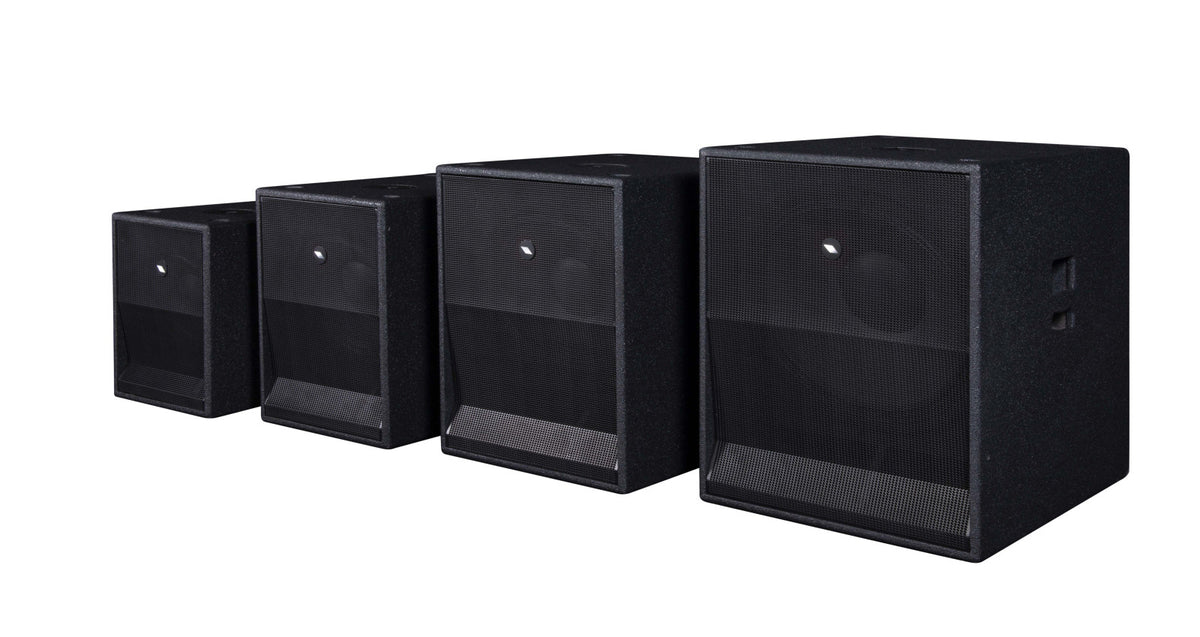

The S Series is a range of compact, powerful subwoofers designed to complement PROEL full-range speakers. Its sizes, power levels and SPL extend the low end of any speaker in the PROEL range. Every S model uses high-excursion woofers in a Hybrid Band Pass (HBP) configuration.

HBP is more efficient than direct-radiating subwoofers. It also couples the tuning ducts better with the outside air, reducing distortion and turbulence for defined, deep and punchy bass.

Amplifier

The Class D amplifier module with a switch-mode power supply delivers high continuous power in a compact, light and reliable package. It includes a stereo preamp, 24 dB/oct crossover filters with selectable frequency and a phase reverse switch.

Cabinet

The cabinet is built of 15/18 mm plywood with extra-durable polyurethane paint and has two flush handles.

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active; the passive version is S10P.
System type
Hybrid Band Pass subwoofer
Loudspeaker
10" woofer with 2" VC
Amplifier Continuous Power
350 W
Frequency Response
46 Hz - 160 Hz
Max SPL
119 dB
Connectors
IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
LINK: 2 x NEUTRIK XLR-M
Controls
Volume, GND lift
X-over Frequency, Phase
Power Supply
230 VAC or 120 VAC 50/60 Hz
Weight
30.8 lb (14 kg)
Cabinet
15/18 mm plywood
Black anti-scratch paint
0.06 in (1.5 mm) metal grille
2 handles
1 x pole socket
Dimensions (W x H x D)
12.4 × 16.5 × 19.5 in (315x420x495 mm)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
