Proel · Recording Gear

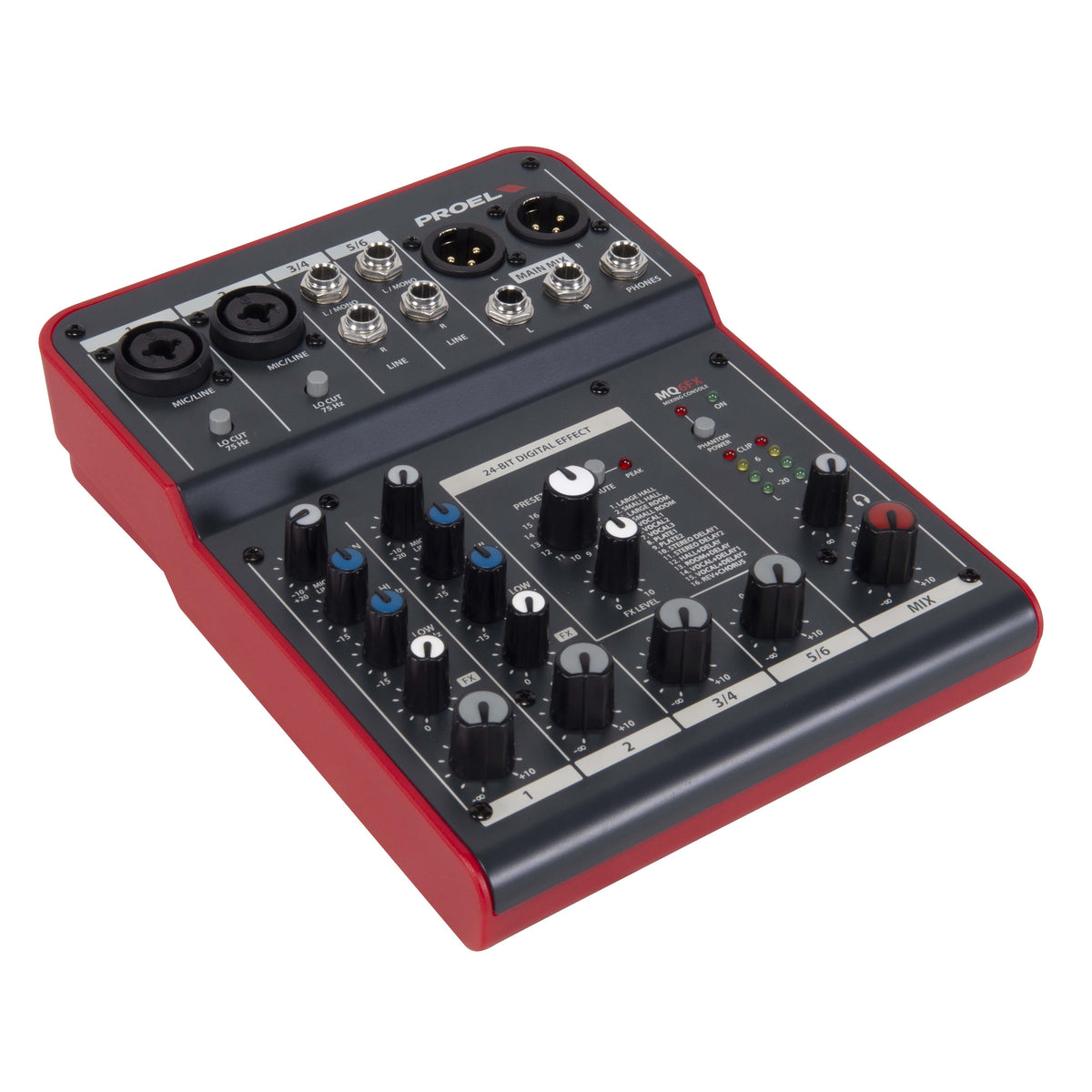

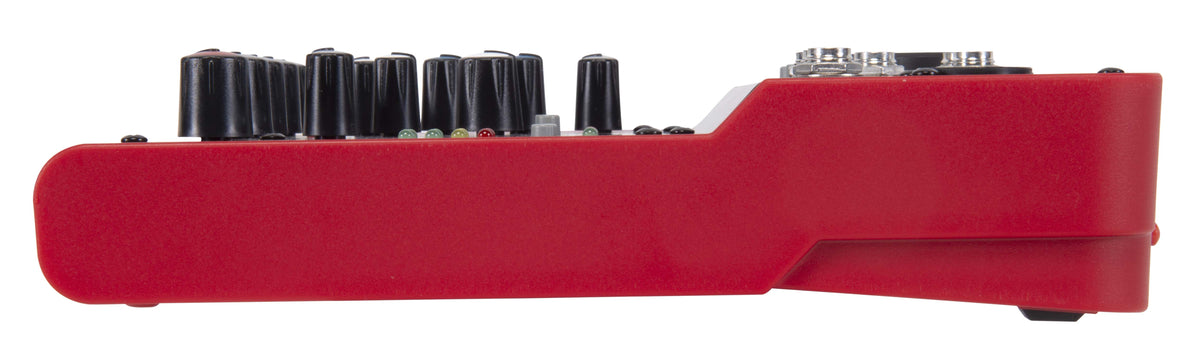

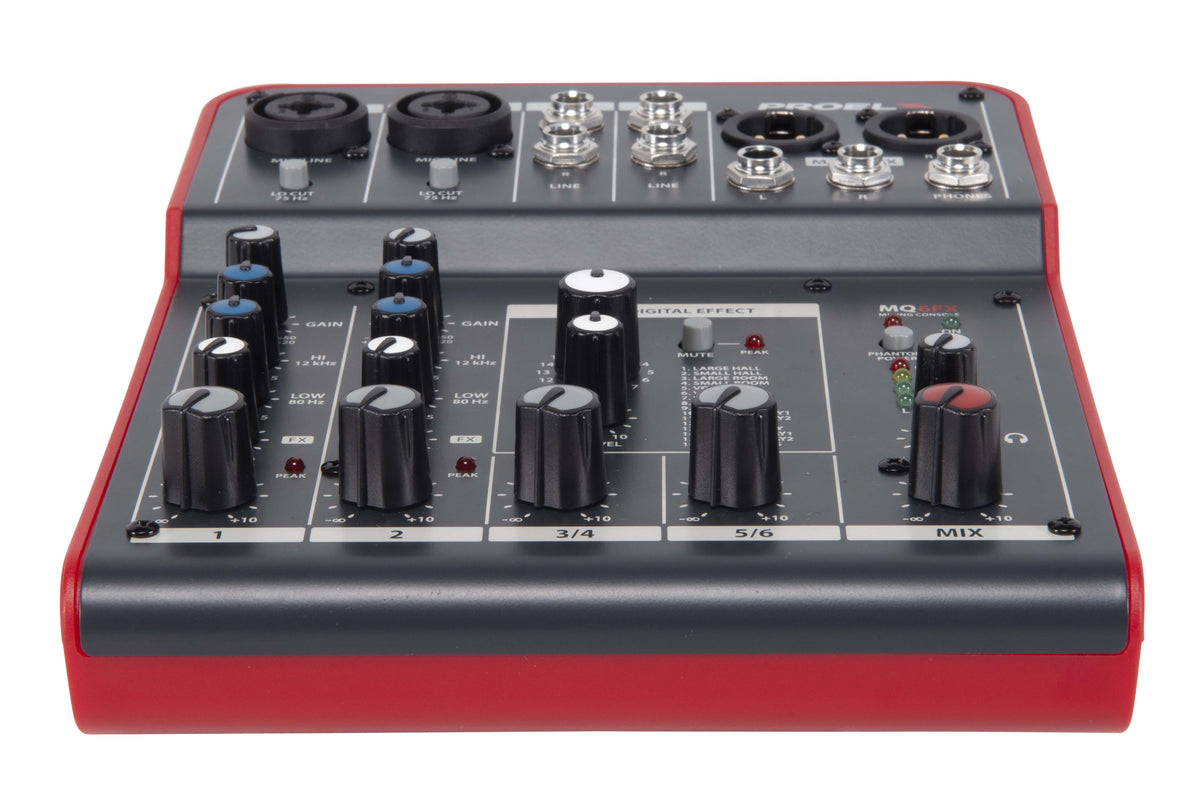

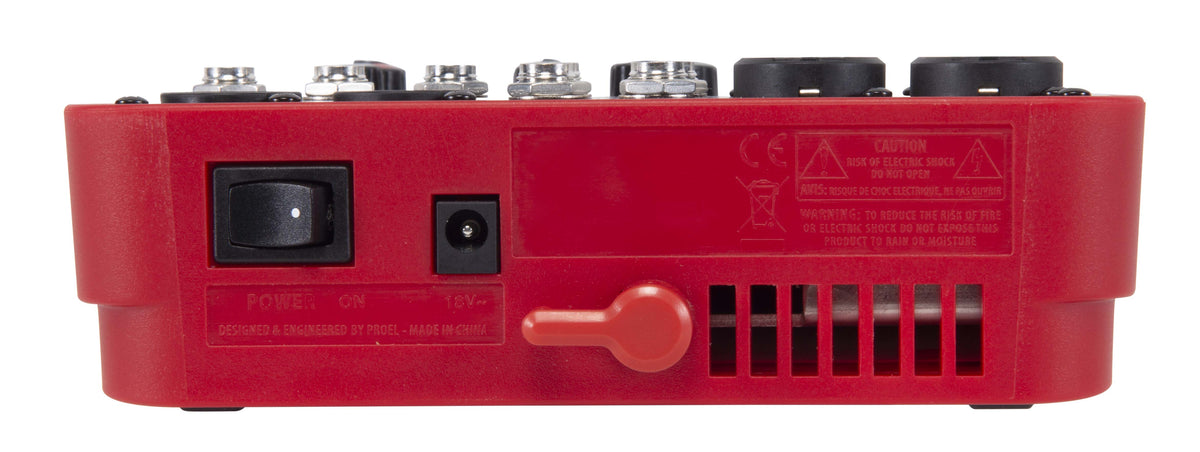

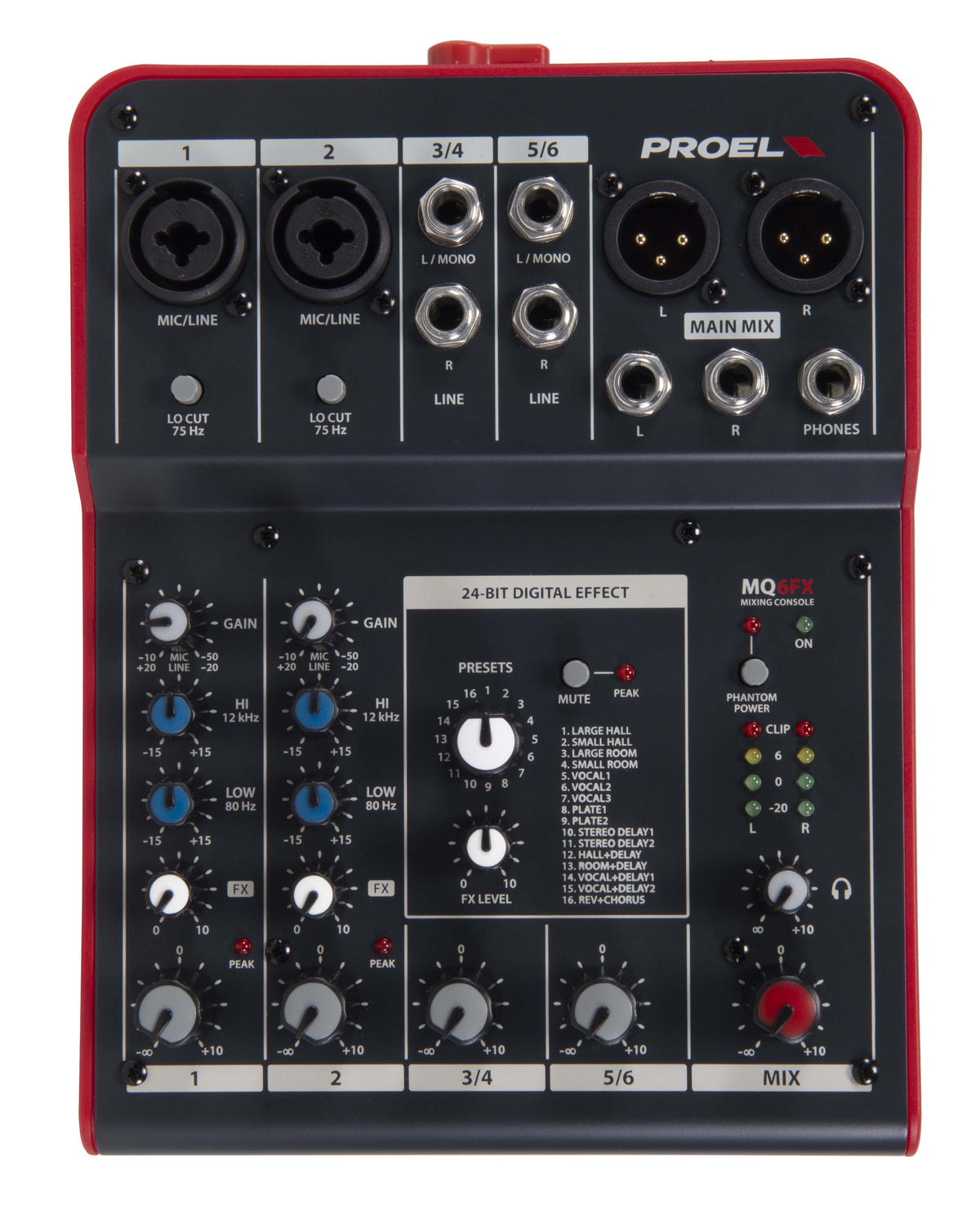

Compact 6-channel Mixer with FX

Item MQ6FX · Designed in Italy

Final stock

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with...

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.

The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects. MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection. MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders. The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders. Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

Specifications

The details that matter.

Manuals & downloads

Mono Input Channel

Mic Input
sensitivity · from -10 to -50 dB · Balanced XLR-F
impedance
2 kΩ
Line Input
sensitivity · from +20 to -20 dB · Balanced JACK
impedance
10 kΩ
Lo cut
75Hz, 18dB/oct.
EQ
HIGH (shelving) · ±15 dB @ 12KHz
LOW (shelving)
±15 dB @ 80Hz

Stereo Input Channel

Line Input
sensitivity · -10 dB · Balanced JACK
impedance
10 kΩ

Master Section

Main Mix
nom. out level · +4 dBu · Balanced JACK and XLR-M
Headphones
min. impedance · 32 ohm
max. out level
(2x) 193 mW · Stereo JACK

Digital Effect Processor

Effects
16 presets
A/D and D/A converters
24 bit
DSP resolution
24 bit
Controls
ROTARY SELECTOR, PEAK LED, MUTE switch

General Specifications

Maximum level
all outputs · +22 dBu
Crosstalk
meas. at 1 KHz · > 82 dBu
HUM & Noise
unweighted · < -93 dBu
THD + Noise
at +4dB, 1kHz · < 0.008 %
Dimensions (WxHxD)
6.4 × 8.3 × 2 in (162 x 210 x 51 mm)
Weight
2.2 lb (1.00 kg)

Power Requirements

Supply
18 VAC 1000 mA - use only supplied AC/AC ADAPTER
Mains Supply Voltage
110-120 VAC (±10%) 50 / 60 Hz (US plug)
230-240 VAC (±10%) 50 / 60 Hz (EU plug)
240 VAC (±10%) 50 / 60 Hz (UK plug)
Consumption
34 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
