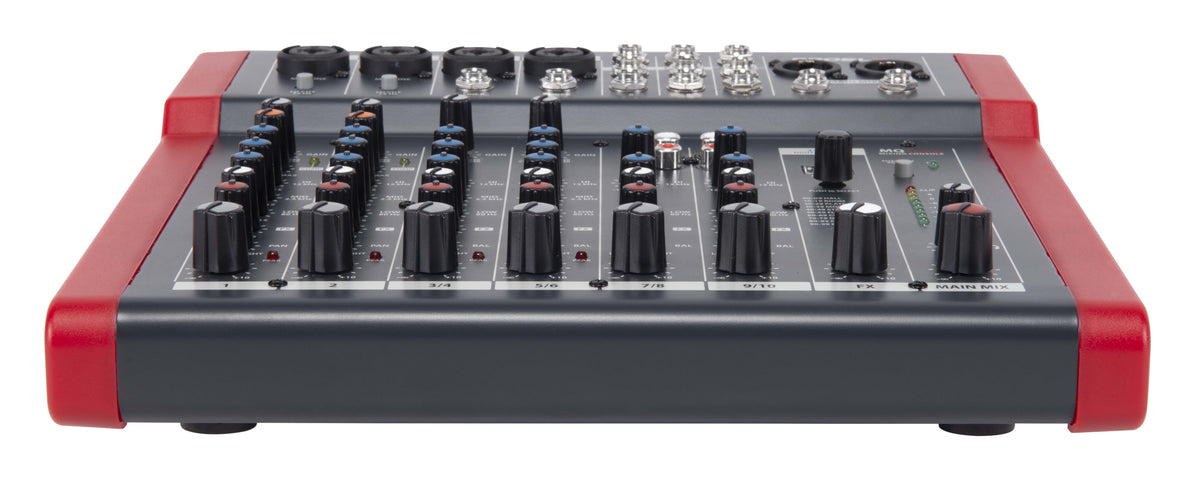

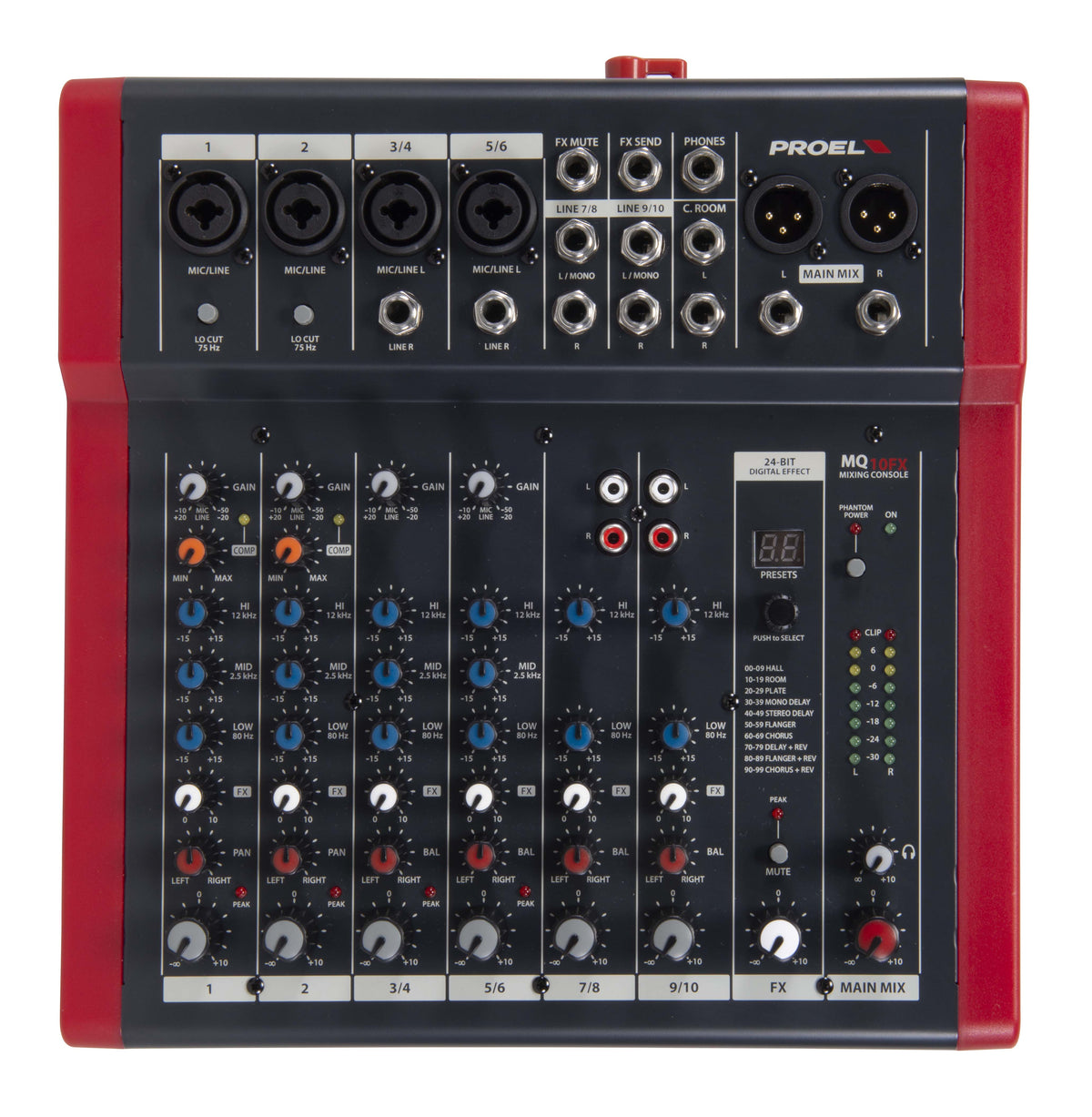

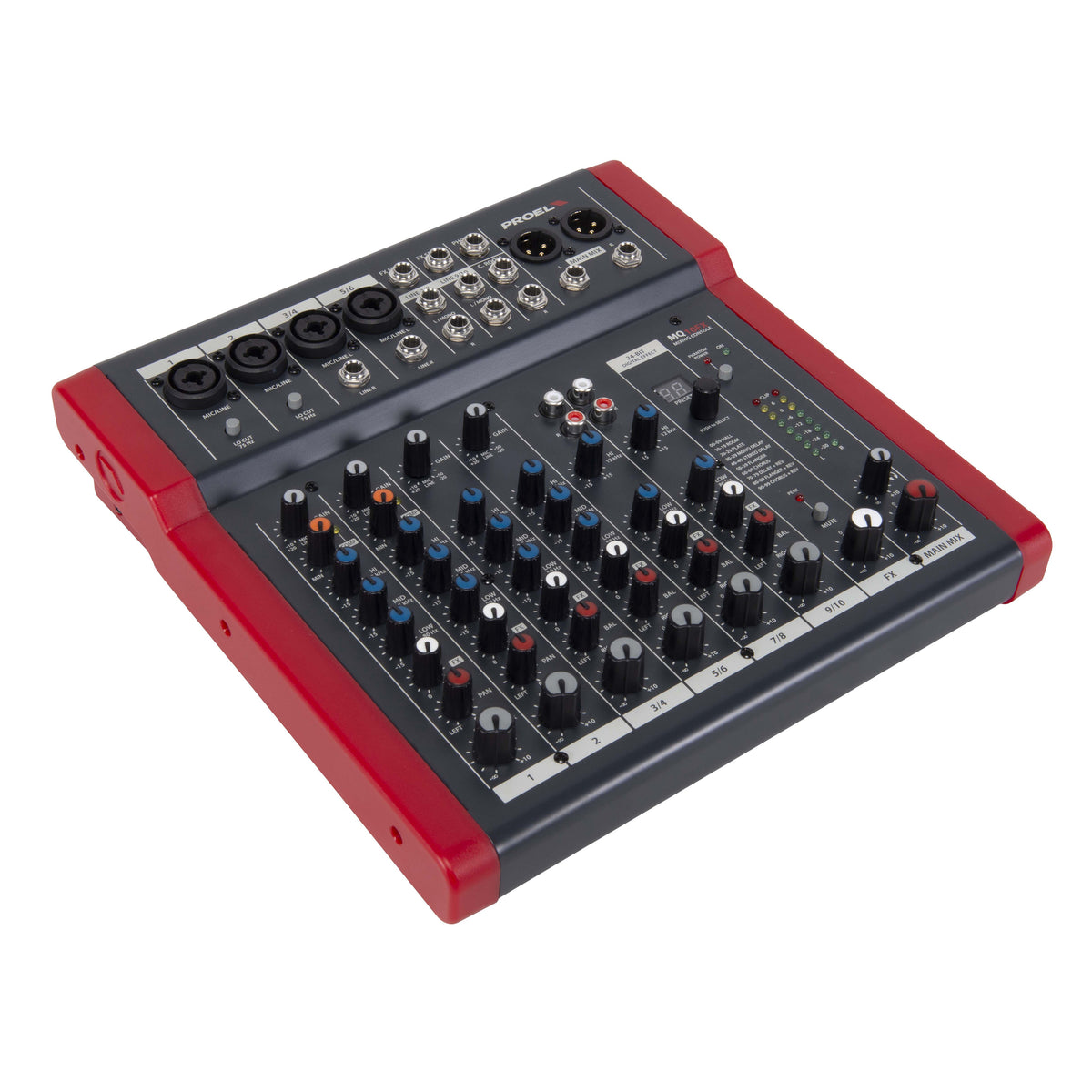

MQ Series 10-Channel Compact Mixer with FX
Final stock
MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with...
Where to buy
Sold through authorized Proel North America dealers in the USA and Canada.
Details
About this product.
MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.
The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects. MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection. MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders. The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders. Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.
Mono Input Channel
- Mic Input
- sensitivity · from -10 to -50 dB · Balanced XLR-F
- impedance
- 2 kΩ
- Line Input
- sensitivity · from +20 to -20 dB · Balanced JACK
- impedance
- 10 kΩ
- Lo cut
- 75Hz, 18dB/oct.
- EQ
- HIGH (shelving) · ±15 dB @ 12 kHz
- MID (peaking)
- ±15 dB @ 2.5 kHz
- LOW (shelving)
- ±15 dB @ 80Hz
- Compressor
- FET · CH 1-2, 1-knob
Stereo Input Channel
- Mic Input
- sensitivity · from -10 to -50 dB · Balanced XLR-F
- impedance
- 2 kΩ
- Line Input
- sensitivity · from +20 to -20 dB · Balanced JACK
- impedance
- 10 kΩ
- Line Input
- sensitivity · -10 dB · Balanced JACK, RCA
- impedance
- 10 kΩ
- EQ
- HIGH (shelving) · ±15 dB @ 12 kHz
- MID (peaking)
- ±15 dB @ 2.5 kHz
- LOW (shelving)
- ±15 dB @ 80Hz
Master Section
- Main Mix
- nom. out level · +4 dBu · Balanced JACK and XLR-M
- C. ROOM output
- nom. out level · 0 dBu · Unbalanced JACK
- FX/AUX output
- nom. out level · 0 dBu · Unbalanced JACK
- Headphones
- min. impedance · 32 ohm
- max. out level
- (2x) 193 mW · Stereo JACK
Digital Effect Processor
- Effects
- 100 presets
- A/D and D/A converters
- 24 bit
- DSP resolution
- 24 bit
- Controls
- 2-DIGIT display, DIAL, PEAK LED, MUTE switch, MUTE footswitch
General Specifications
- Maximum level
- all outputs · +22 dBu
- Crosstalk
- meas. at 1 kHz · > 82 dBu
- HUM & Noise
- unweighted · < -93 dBu
- THD + Noise
- at +4dB, 1kHz · < 0.008 %
- Dimensions (WxHxD)
- 10.8 × 11 × 3.2 in (275 x 279 x 81 mm)
- Weight
- 5.5 lb (2.50 kg)

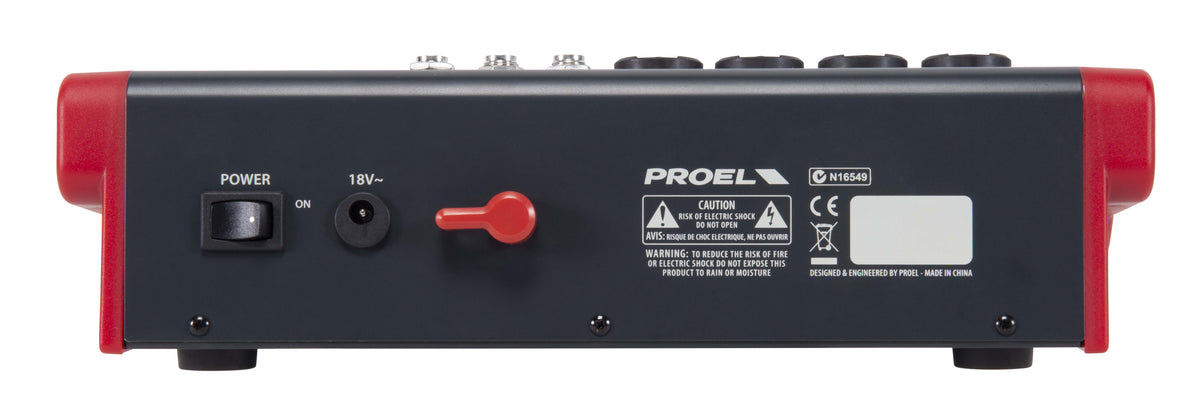

Power Requirements
- Supply
- 18 VAC 1000 mA - use only supplied AC/AC ADAPTER
- Mains Supply Voltage
- 110-120 VAC (±10%) 50 / 60 Hz (US plug)
- 230-240 VAC (±10%) 50 / 60 Hz (EU plug)
- 240 VAC (±10%) 50 / 60 Hz (UK plug)
- Consumption
- 34 W
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 2 more years (4 in total) when registered on proel.com within 6 months of purchase
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
