Proel · Sound Systems

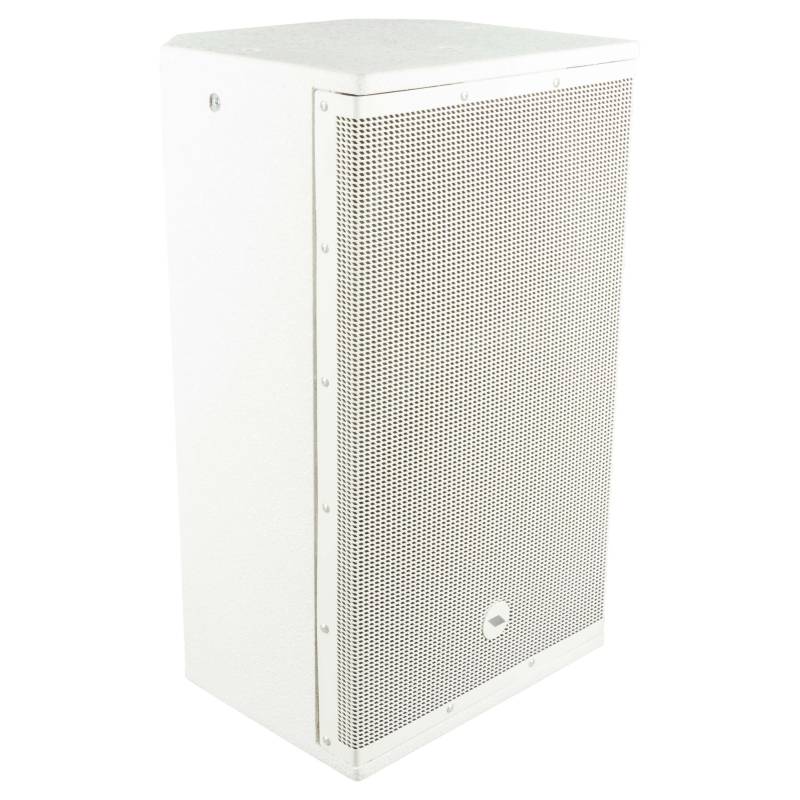

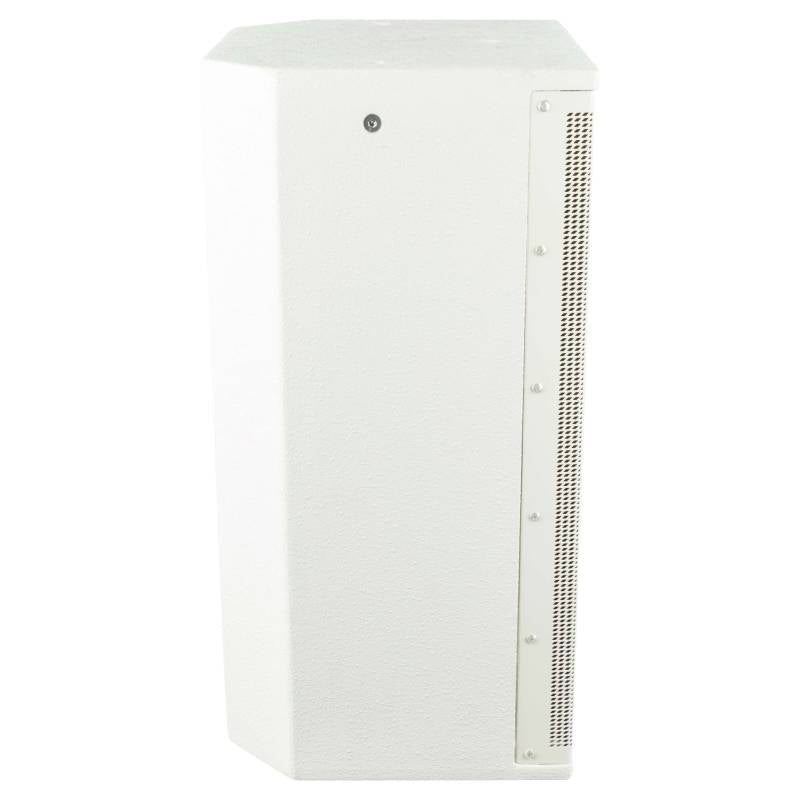

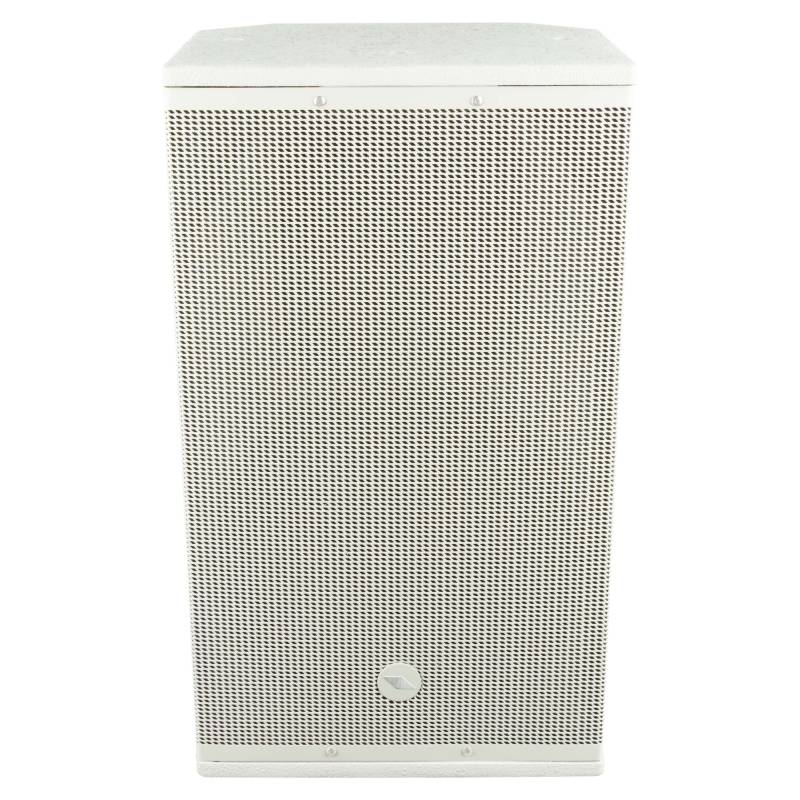

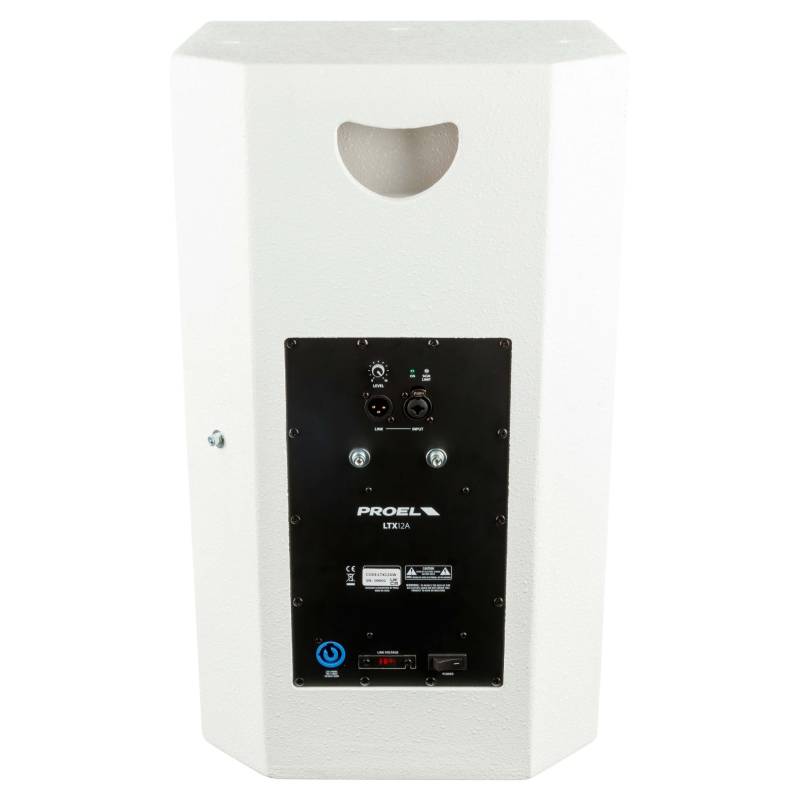

Active 2-Way 12" Loudspeaker (White)
A white active 2-way 12-inch installation loudspeaker with 600 W peak power and 90 x 90-degree coverage.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
Sound and coverage
The LTX12AW pairs a 12" woofer with a 2.5" voice coil and a 1" compression driver. Coverage is 90° x 90°, and response runs from 50 Hz to 20 kHz with up to 124 dB maximum SPL.
Amplifier
A switch-mode power supply feeds a 250 W Class D stage for the woofer and a 50 W Class AB stage for the driver, for 600 W peak. Processing is analog, with a LEVEL control, a combo input and an XLR link output.
Cabinet and mounting
The white plywood cabinet is made for commercial and residential installs, with multiple flying points and a rear handle. A pole socket allows portable use on a floor stand, and tilt-and-swivel or C-shape brackets are optional.
Specifications
The details that matter.
- System type
- 2-way vented enclosure
- High Frequency Device
- 1" compression driver with 1" VC
- Low Frequency Device
- 12" woofer with 2.5" voice coil
- Angular Coverage
- 90° H x 90° V
- Total peak power
- 600 W
- HF Amplifier Continuous Power
- 50 W Class AB
- LF Amplifier Continuous Power
- 250 W Class D
- Power Supply
- SMPS
- Processing
- Analog
- Frequency Response
- 50 Hz - 20 kHz
- Max SPL
- 124 dB
- Connectors
- IN: COMBO, LINK: XLR M
- Controls
- LEVEL
- Flying System
- 4 x M8, 2 x M6
- Construction
- Plywood
- Cabinet Color
- White
- Handles
- 1 x rear
- Mounting Pole
- 1 x bottom
- Mounting Bracket
- Tilt and swivel bracket (optional), C-shape bracket (optional)
- Mains Power
- 230 or 115 VAC 50/60 Hz with LINE VOLTAGE selector
- Dimensions (W x H x D)
- 13.6 × 23.4 × 11.8 in (345 x 595 x 300 mm)
- Weight
- 33.1 lb (15 kg)
-
