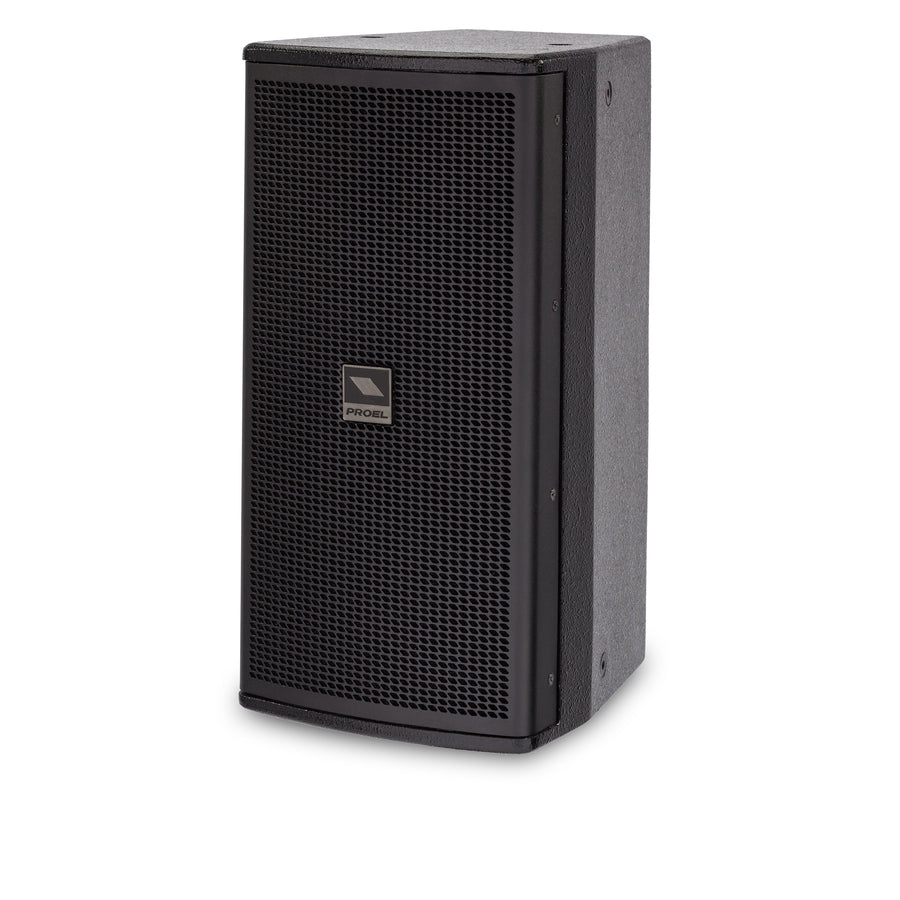

LITE Series Passive 2-way 8" Loudspeaker
A passive 2-way 8-inch plywood loudspeaker rated 150 W continuous, with a 60° x 40° horn and built-in flying points.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.
About the LITE Series
The LITE Series by PROEL is a range of active and passive speakers with plywood cabinets. They deliver PROEL sound and high performance in a reliable package. Plywood is light and durable, so moving and installing these speakers is quick and easy.
Tough anti-scratch paint and steel grilles with an internal foam layer protect the cabinet for years of service. The 8", 10", 12" and 15" models have a dual-angle pole holder for more even audience coverage.
Wide-dispersion horns give constant coverage of large audiences with detailed, low-distortion high frequencies. High-excursion woofers in carefully tuned vented cabinets deliver extended response with deep, tight bass.
Passive models
The LITE Series includes 4 passive models with carefully designed crossovers and HF electronic protection. Black or white cabinets, built-in flying points and a wide range of accessories make them suitable for any fixed installation.
Key features
- 1" compression driver with 1" voice coil on a constant-coverage 60° x 40° horn
- 8" woofer with 1.5" voice coil
- 150 W continuous power rating
- Frequency response 70 Hz - 20 kHz
- Lightweight plywood cabinet with one rear handle
- 4 x M10 flying points
Specifications
The details that matter.
- Version
- Passive (needs an external amplifier). The P in the model number means Passive; the active version is LT8A.
- System type
- 2-way vented enclosure
- High Frequency Device
- 1” compression driver with 1" VC
- Low Frequency Device
- 8” woofer with 1.5” VC
- Angular Coverage
- 60° H x 40° V
- Power Rating Continuous
- 150W
- Power Rating Program
- 300 W
- Power Rating Peak
- 600 W
- Impedance
- 8 ohm
- Frequency Response
- 70 Hz - 20 kHz
- SPL (1w / 1m)
- 92
- Connectors
- 2 x SPEAKON
- Flying System
- 4 x M10 top/bottom, 3 x M5 rear
- Construction
- Plywood
- Cabinet Color
- Black
- Handles
- 1 x rear
- Mounting Pole
- 1 x bottom, dual angle
- Dimensions (W x H x D)
- 8.7 × 17.4 × 10.2 in (220 x 442 x 260 mm)
- Weight
- 7.5 kg / 16.5 lbs.
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 2 more years (4 in total) when registered on proel.com within 6 months of purchase
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
