Proel · Sound Systems

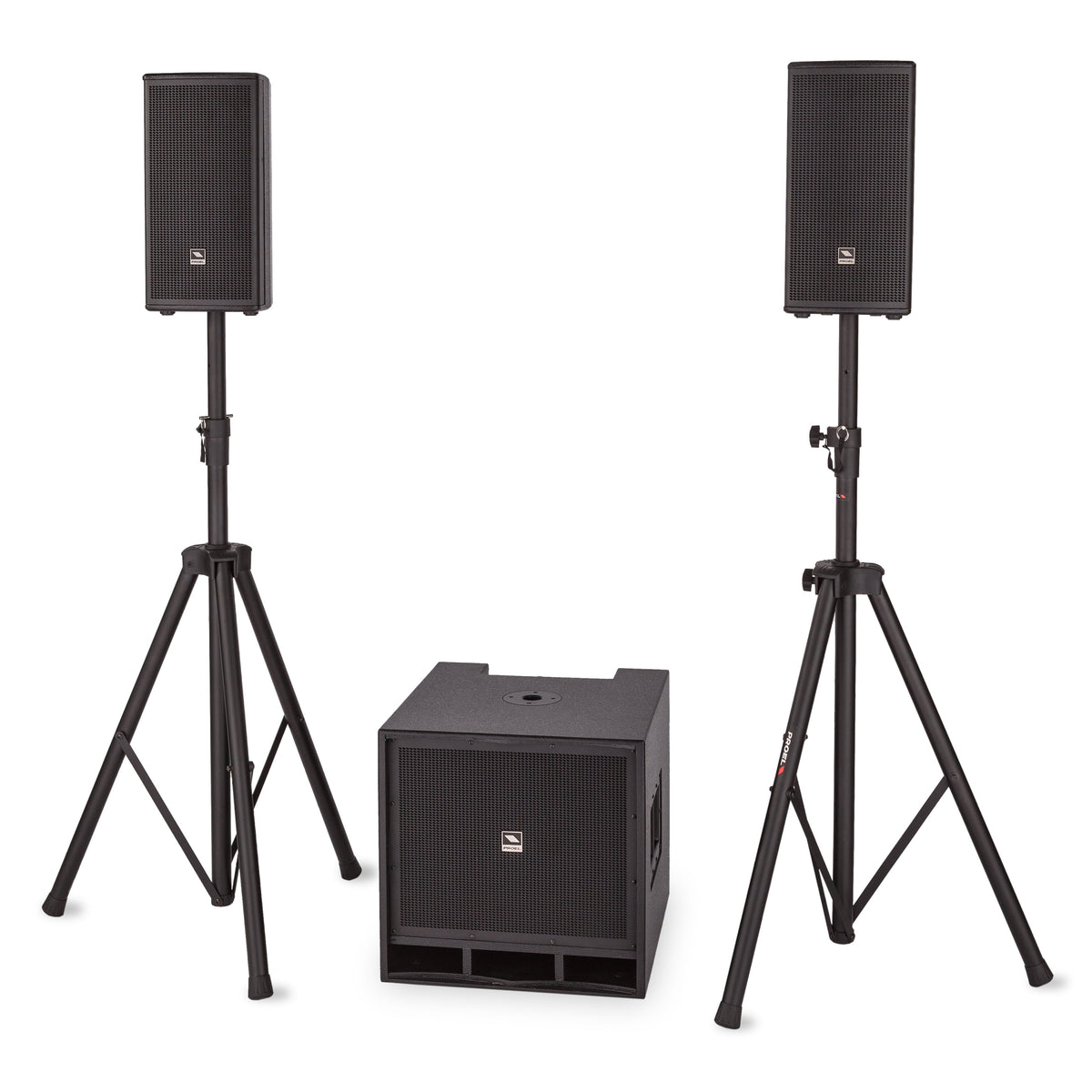

LITE Series Active 2 x 8" Satellite and 12" Subwoofer System

Item LT812A · Designed in Italy

Final Stock

An active 3-way system with two 8-inch satellites and a 12-inch subwoofer, delivering 1600 W peak power for portable PA use.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

About the LITE Series

The LITE Series by PROEL is a range of active and passive speakers with plywood cabinets. They deliver PROEL sound and high performance in a reliable package. Plywood is light and durable, so moving and installing these speakers is quick and easy.

Tough anti-scratch paint and steel grilles with an internal foam layer protect the cabinet for years of service. The 8", 10", 12" and 15" models have a dual-angle pole holder for more even audience coverage.

Wide-dispersion horns give constant coverage of large audiences with detailed, low-distortion high frequencies. High-excursion woofers in carefully tuned vented cabinets deliver extended response with deep, tight bass.

Active electronics

The LITE Series includes 6 active models with woofers from 6.5" to dual 15", plus one satellite and subwoofer system. Their light power modules use switch-mode power supplies and Class D output stages for high power at low weight. Each module sits in a fully sealed die-cast aluminum box for protection, insulation and efficient cooling.

The preamp section includes phase-aligned crossover filters up to 24 dB/oct and active EQ for fine tuning. A DUAL LIMITER circuit keeps the sound undistorted at the loudest levels and protects the speakers.

LT speakers can be paired with the SW subwoofers, offered in 5 models to extend the low end of every LT model.

Key features

  • Satellites: 1" compression driver and 8" woofer with 1.5" voice coil
  • Subwoofer: 12" woofer with 3" voice coil
  • 1600 W peak power: 2 x 200 W RMS Class AB for satellites, 400 W RMS Class D for subwoofer
  • Switch-mode power supply (SMPS) and SUB LEVEL control
  • Maximum SPL 121 dB (satellite) and 124 dB (subwoofer)
  • Frequency response 45 Hz - 20 kHz
  • Plywood cabinets with anti-scratch paint
  • Satellites with dual-angle speaker stand adapter and one rear handle
  • Subwoofer with 4 wheels, 2 aluminum side handles and room to carry the satellites on top
  • Two SPEAKON power cables included

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active.

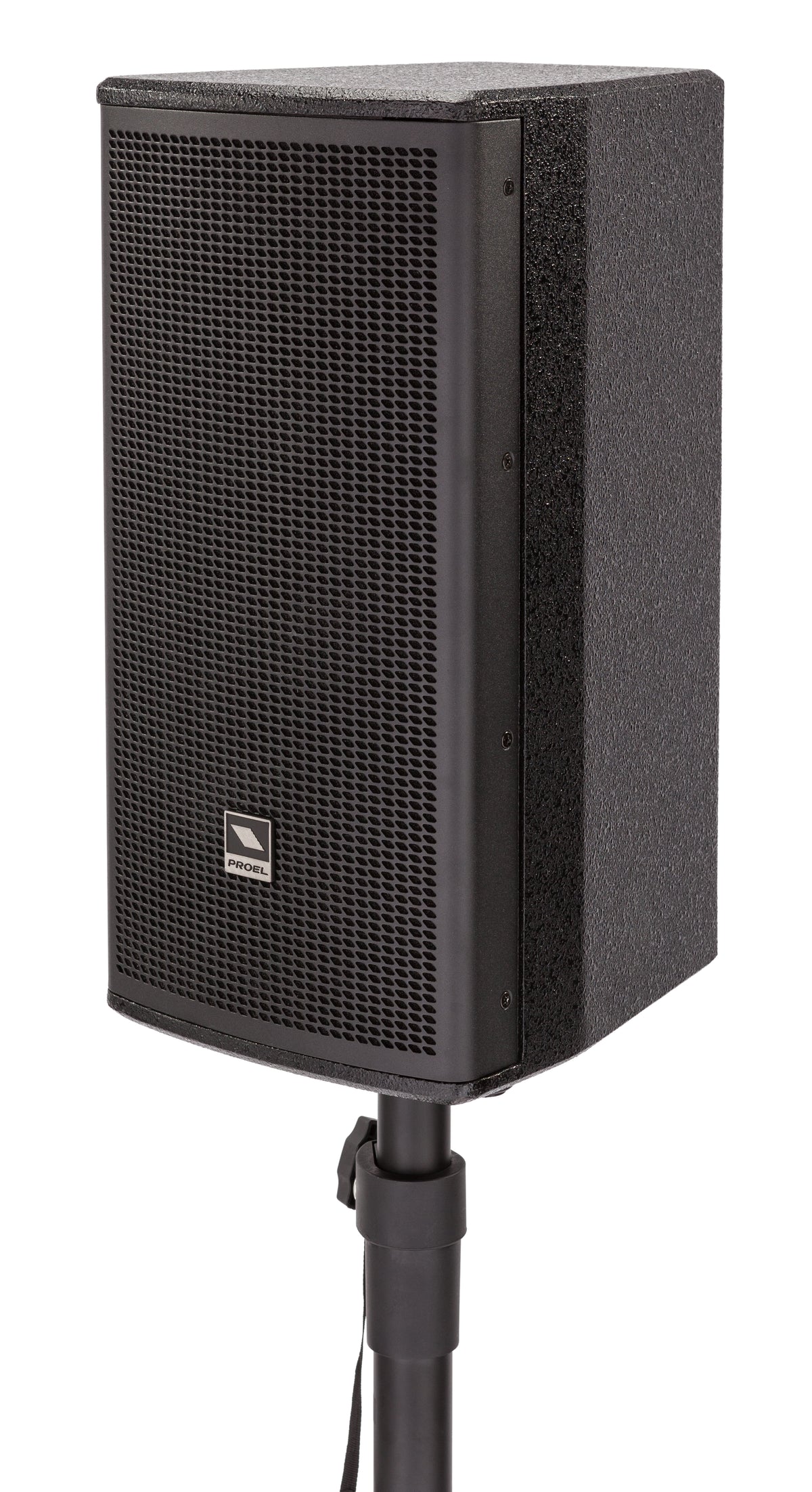

LT812SAT
System type
2-way vented enclosure
High Frequency Device
1” compression driver with 1" VC
Low Frequency Device
8” woofer with 1.5” VC
Angular Coverage
60° H x 40° V
Total peak power
1600 W
Amplifier Continuous Power
2 x 200 W Class AB
Power Supply
SMPS
Processing
Analog
Frequency Response
45 Hz - 20 kHz
Max SPL
121
Connectors
1 x SPEAKON
Construction
Plywood
Cabinet Color
Black
Handles
1 x rear
Mounting Pole
1 x bottom, dual angle
Dimensions (W x H x D)
8.7 × 17.4 × 10.2 in (220 x 442 x 260 mm)
Weight
7.5 kg / 16.5 lbs.

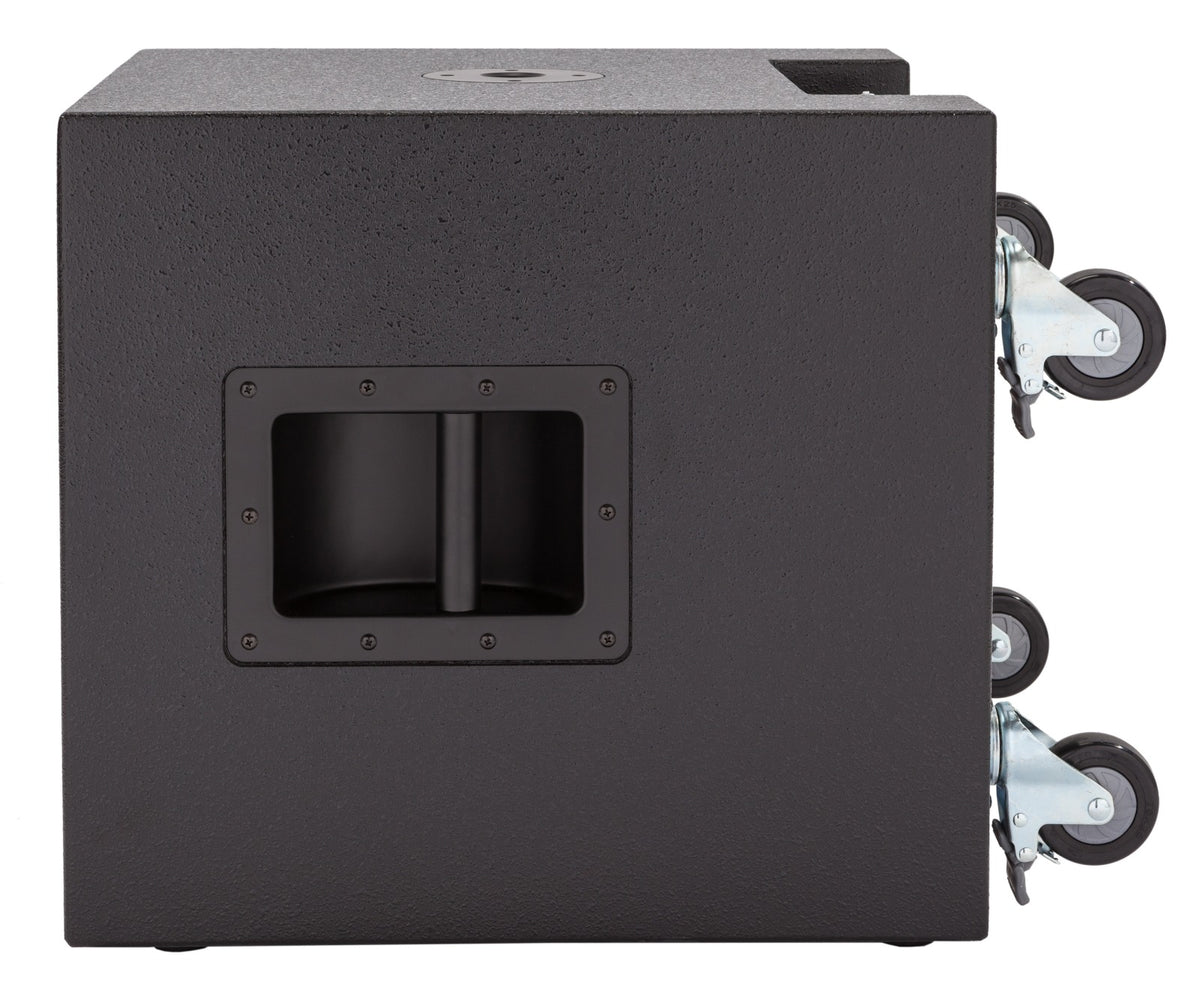

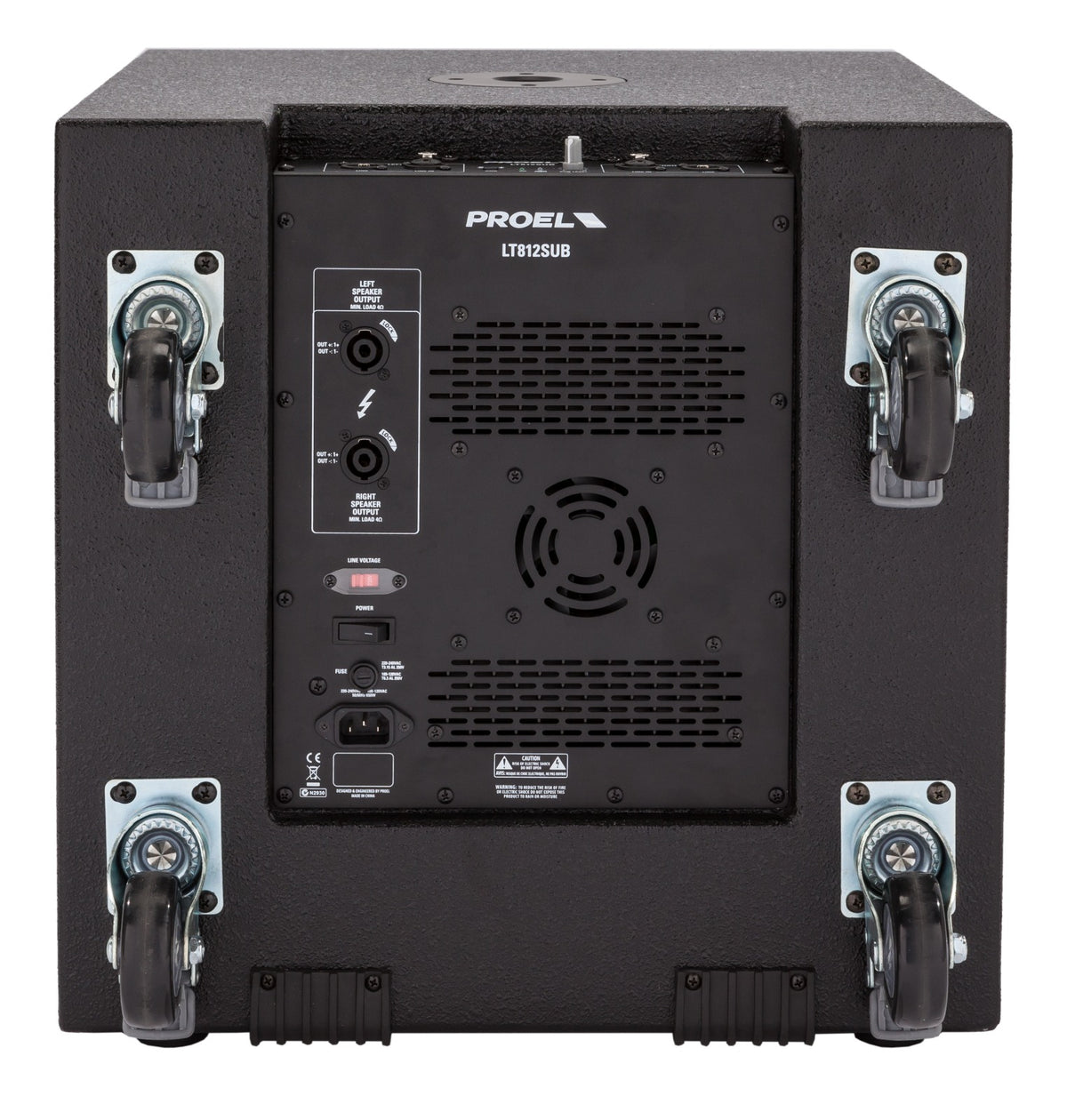

LT812SUB
System type
Vented sub-woofer
Low Frequency Device
12” woofer with 3” voice coil
Total peak power
1600 W
Amplifier Continuous Power
400 W Class D
Power Supply
SMPS
Processing
Analog
Frequency Response
45 Hz - 20 kHz
Max SPL
124
Connectors
IN: 2 x COMBO, LINK: 2 x XLR M; OUT: 2 x SPEAKON
Controls
SUB LEVEL, GND LIFT
Construction
Plywood
Cabinet Color
Black
Handles
2 x sides
Mounting Pole
1 x top
Power Supply
230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D)
18.7 × 18.2 × 24 in (475 x 462 x 610 mm)
Weight
34 kg / 74.9 lbs.
