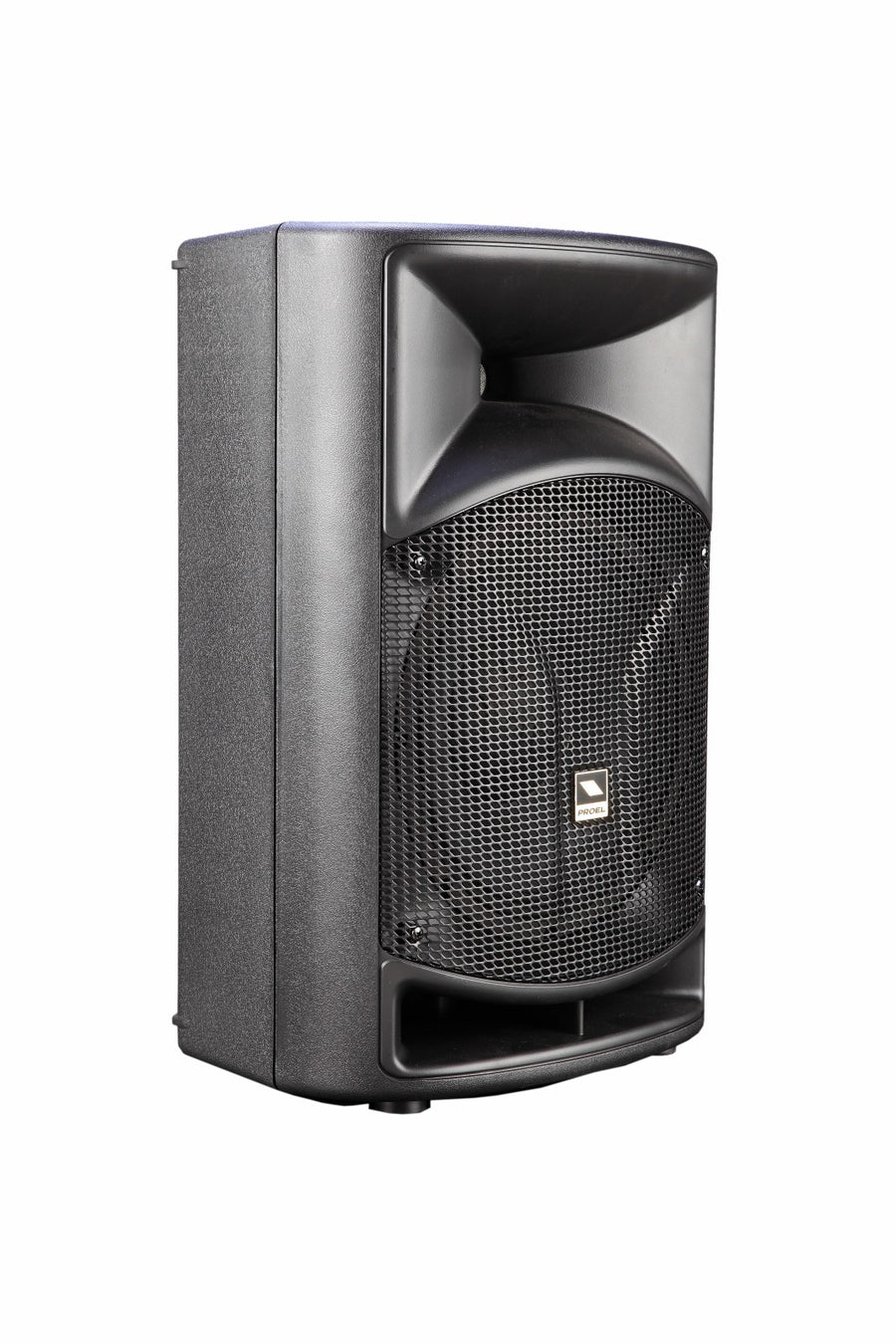

• Proel FREEPASS10USB FREE Series All-In-One Portable Sound System

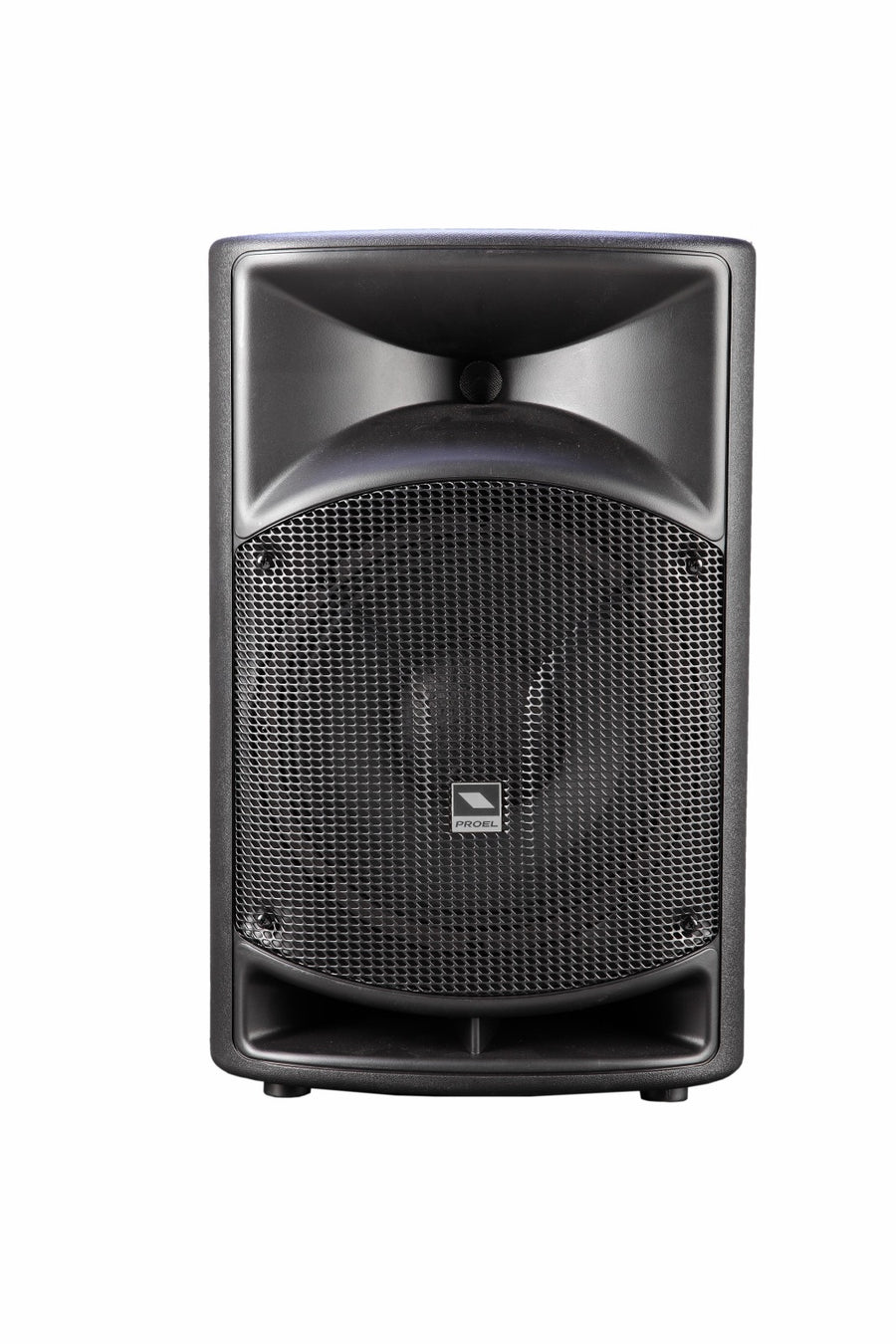

  • Proel FREEPASS10USB FREE Series All-In-One Portable Sound System – view 2
  • Proel FREEPASS10USB FREE Series All-In-One Portable Sound System – view 3
  • Proel FREEPASS10USB FREE Series All-In-One Portable Sound System – view 4
  • Proel FREEPASS10USB FREE Series All-In-One Portable Sound System – view 5

Proel · Sound Systems

FREE Series All-In-One Portable Sound System

Item FREEPASS10USB · Designed in Italy

An all-in-one portable PA with an 8-channel 2 x 250 W powered mixer, MP3 player and two 10-inch speakers with cables.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.

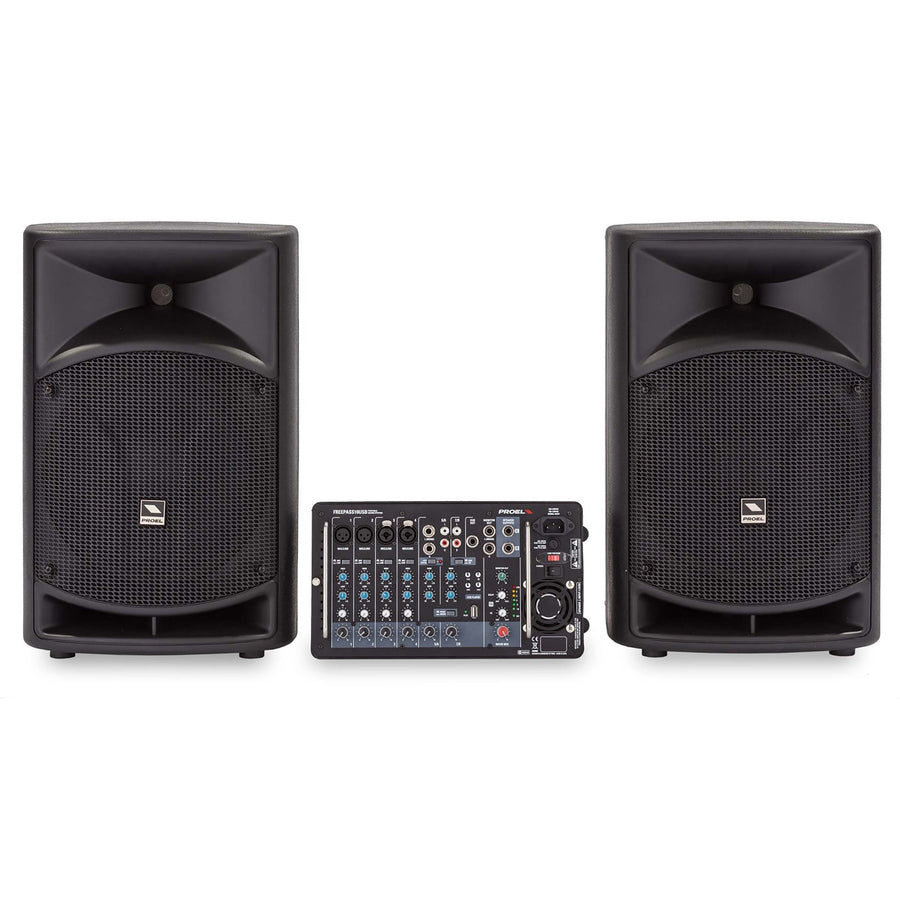

Complete PA in one package

The FREEPASS10USB packs everything musicians and other PA users need into one portable system. It includes a full-featured mixer, an MP3 player, a Class D amplifier, two full-range speakers and connection cables. It is compact, quick to set up and simple to use.

Mixer and amplifier

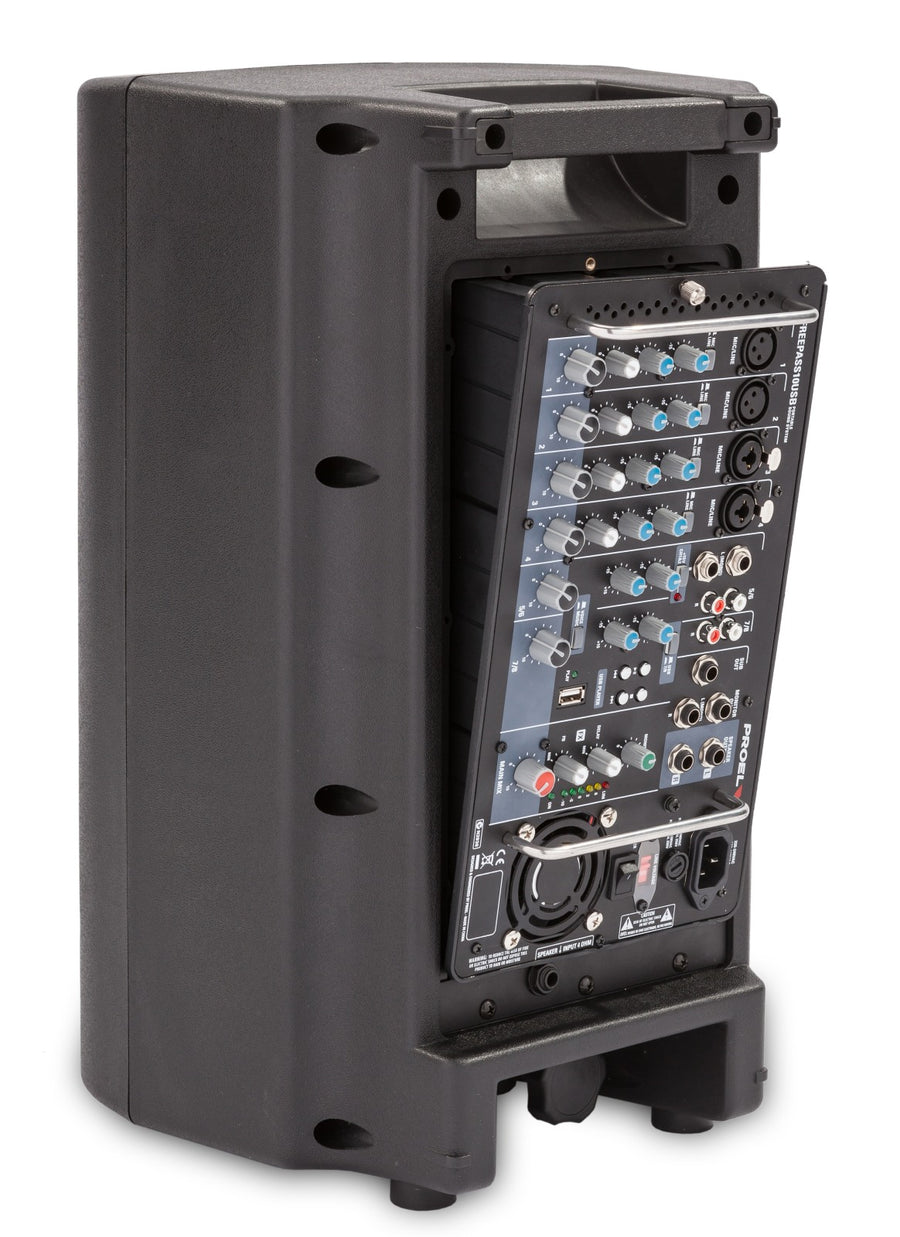

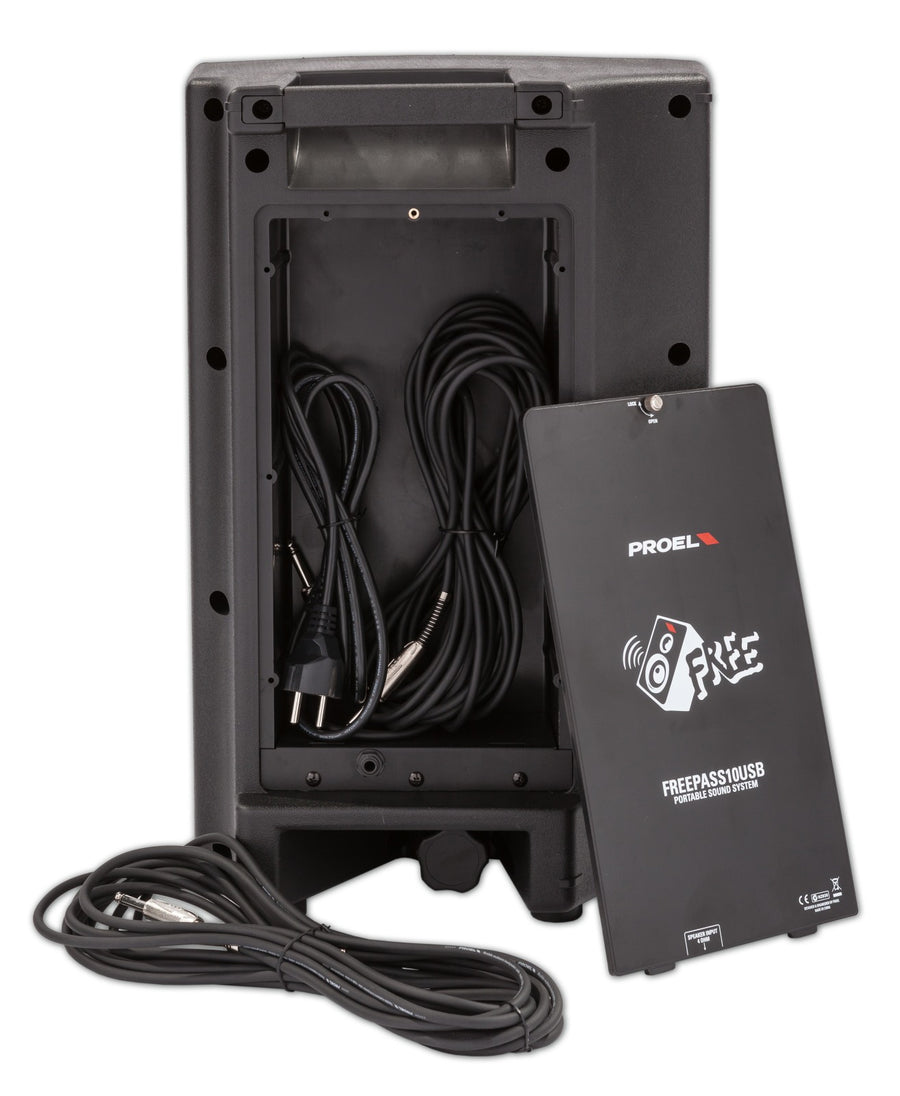

The 8-channel, 2 x 250 W powered mixer fits into one of the two speakers. Use it in place or detach it in one simple step. The second speaker has a large compartment for cables and accessories.

Speakers

  • Horn-loaded compression driver with 1.35" voice coil and 10" woofer in each speaker
  • Lightweight polypropylene cabinets
  • Large top handle and bottom pole holder for quick transport and setup
  • Two PROEL speaker cables with durable 1/4" metal jack connectors included

Use it for live gigs by singers or small bands, education, sporting events, seminars and presentations.

Specifications

The details that matter.

Manuals & Downloads

MIXER Section

MONO inputs
(4) MIC/LINE IN (COMBO)
STEREO inputs
(2) STEREO LINE IN (2xJACK / 2xRCA)
Input EQ
HIGH: +/-15dB 10 kHz, LOW: +/- 15dB 100 Hz
PHANTOM power
+ 15 V (CH 1-4)
Internal Effect
ECHO (CH 1-4)
Outputs
MONITOR OUT (2xJACK), SUB OUT (1xJACK), SPEAKER OUT (2xJACK)
Main EQ
VOICE / MUSIC selector
Metering
6-LED VU-METER
MULTIMEDIA Section
Player Type
USB
Compatible File Formats
MP3
Control Interface
Control buttons
AMPLIFIER Section
Amplifier Type
Class D with SMPS (Switch Mode Power Supply)
Maximum Output Power
2 x 250 W @ 4 ohm (1 kHz, 1% THD)
Frequency Response
MUSIC: 20 Hz - 20 kHz, VOICE: 80 Hz - 20 kHz
LOUDSPEAKER Section
Loudspeaker System
2-way system vented
High Frequency Device
1” compression driver 1.35" VC - horn loaded
Low Frequency Device
10” woofer with 2" VC
Angular Coverage
90° H x 60° V
Impedance
4 ohm
Frequency Response
65 Hz - 20 kHz (-10 dB)
SPL 1W 1m
95 dB
Construction
Black polypropylene, metal grille
Handles
1 top
Pole Holder
1 bottom
GENERAL Specifications
Dimensions (WxHxD)
Speaker: 12.6 × 19.7 × 11.4 in (32x50x29 cm) / Mixer: 12.6 × 7.1 × 3.5 in (32x18x9 cm)
Weight
System: 55.1 lb (25 kg) / Speaker: 23.4 lb (10.6 kg) / Mixer: 5.3 lb (2.4 kg)
Power Supply
230/115 VAC (switchable) 50/60 Hz
Power consumption
400 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
