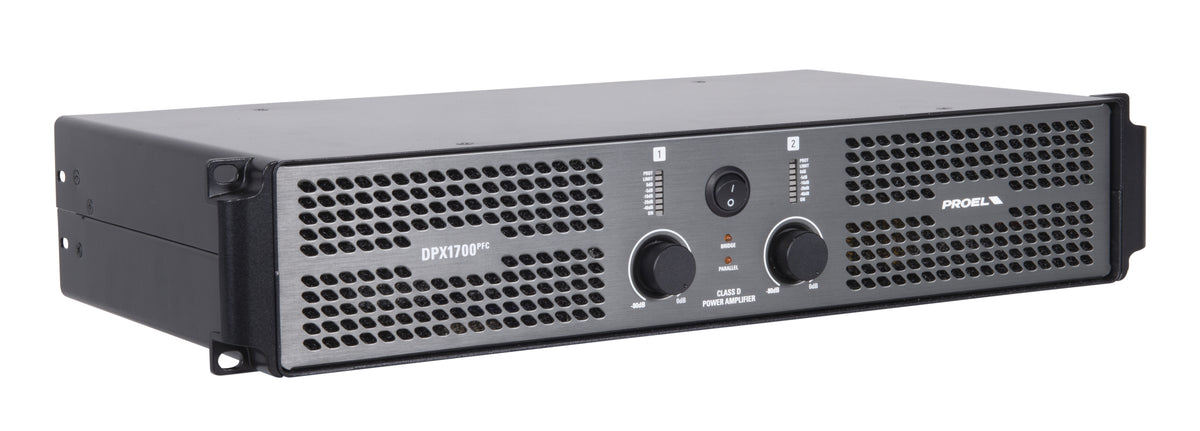

Proel · Sound Systems

Class D Power Amplifier with SMPS and PFC

Item DPX1700PFC · Designed in Italy

Final Stock

A lightweight Class D power amplifier delivering 500 W per channel at 8 ohms and 1700 W bridged, with a PFC switch-mode power supply.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Power in a light package

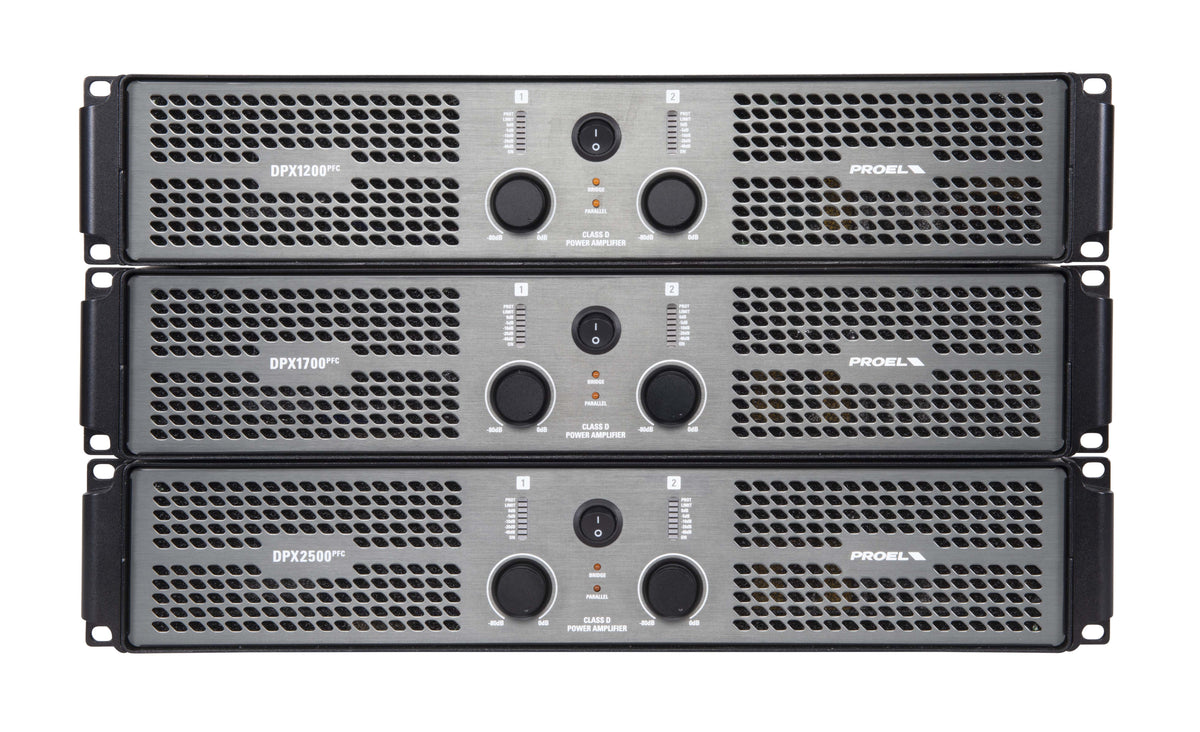

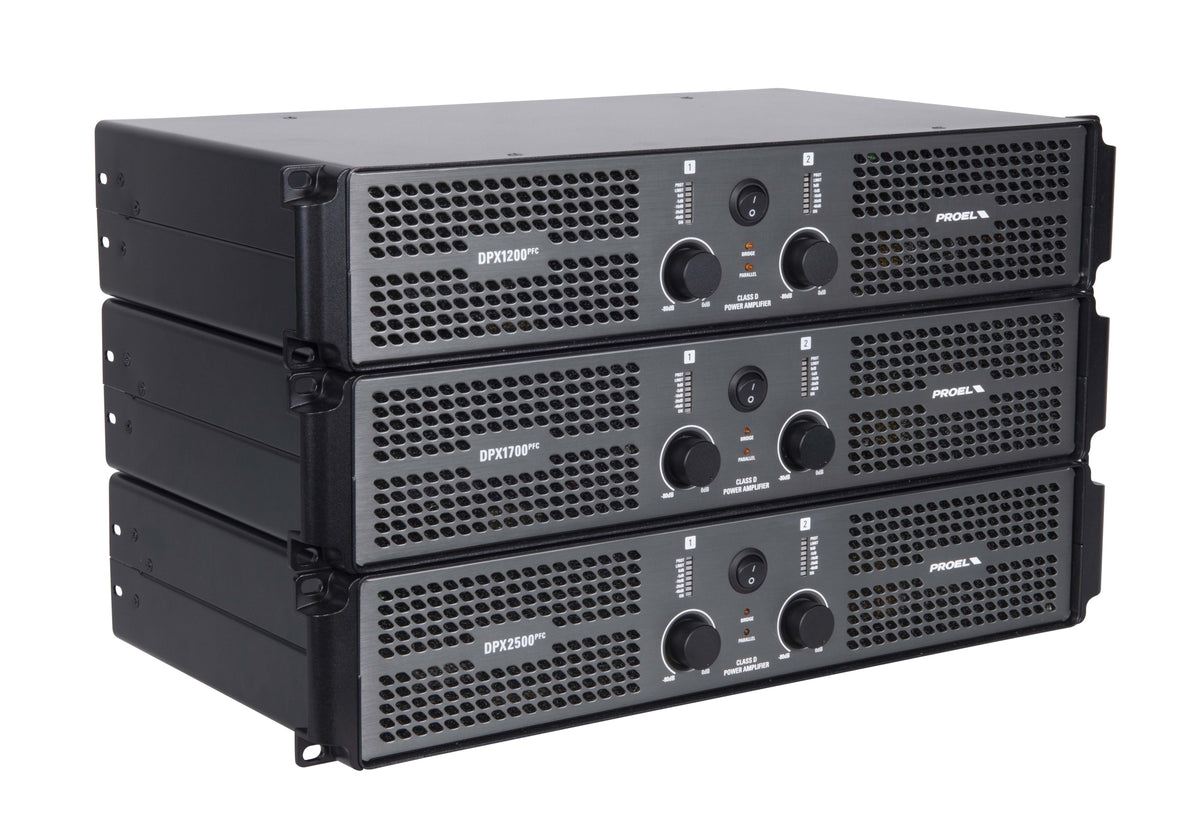

DPX PFC amplifiers deliver high power for mobile and fixed professional PA systems. High-density Class D output stages keep them compact and very light. The DPX1700PFC delivers 500 W per channel at 8 ohms, 850 W at 4 ohms and 1700 W bridged at 8 ohms.

Universal power supply

The efficient switch-mode power supply (SMPS) with power factor correction (PFC) reduces weight further. It runs on any mains voltage from 100 to 240 VAC. It delivers constant energy to the loudspeakers regardless of line voltage fluctuations, so no market-specific power supply is needed.

Built-in crossover and protection

  • 24 dB/octave stereo crossover with BI-AMP and HIGH-PASS modes for 2-way systems, with no outboard gear
  • Fast-attack clip limiters for maximum output without distortion
  • Protection against AC low power, DC, overheating, short circuits and VHF
  • All-aluminum case for efficient cooling and long-term durability, weighing 8.4 lb (3.8 kg)

DPX PFC amplifiers suit professional entertainers, DJs and sound engineers who need high output and easy portability.

Specifications

The details that matter.

Manuals & Downloads

Power 8 ohm *
500 W
Power 4 ohm *
850 W
Power BRIDGE 8 ohm **
1700 W
Output Stage
Class D
Frequency response (+0.5/-0.5 dB)
20 Hz - 20 kHz
Input Sensitivity
+2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed)
38.2 dB
Input Connectors / Impedance
XLR-F (INPUT), XLR-M (LINK) / 20 kΩ (balanced), 10 kΩ (unbalanced)
Output Connectors
SPEAKON and Binding Post
Damping Factor
> 500
S/N Ratio (unweighted)
> 100 dB
THD+N
< 0.15%
Controls
INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators
7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling
Variable speed DC fan, air flow from front to rear
Protections
AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage
100-240 VAC 50/60 Hz (±10%)
Dimensions (W x H x D)
483 x 89 x 255 mm (19" x 3.5" x 10")
Weight
8.4 lb (3.8 kg)
* Power per channel tested under EIA standard
** Power tested under the condition of 40ms burst, 1 kHz sine wave and 1% THD.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
