Proel · Recording Gear

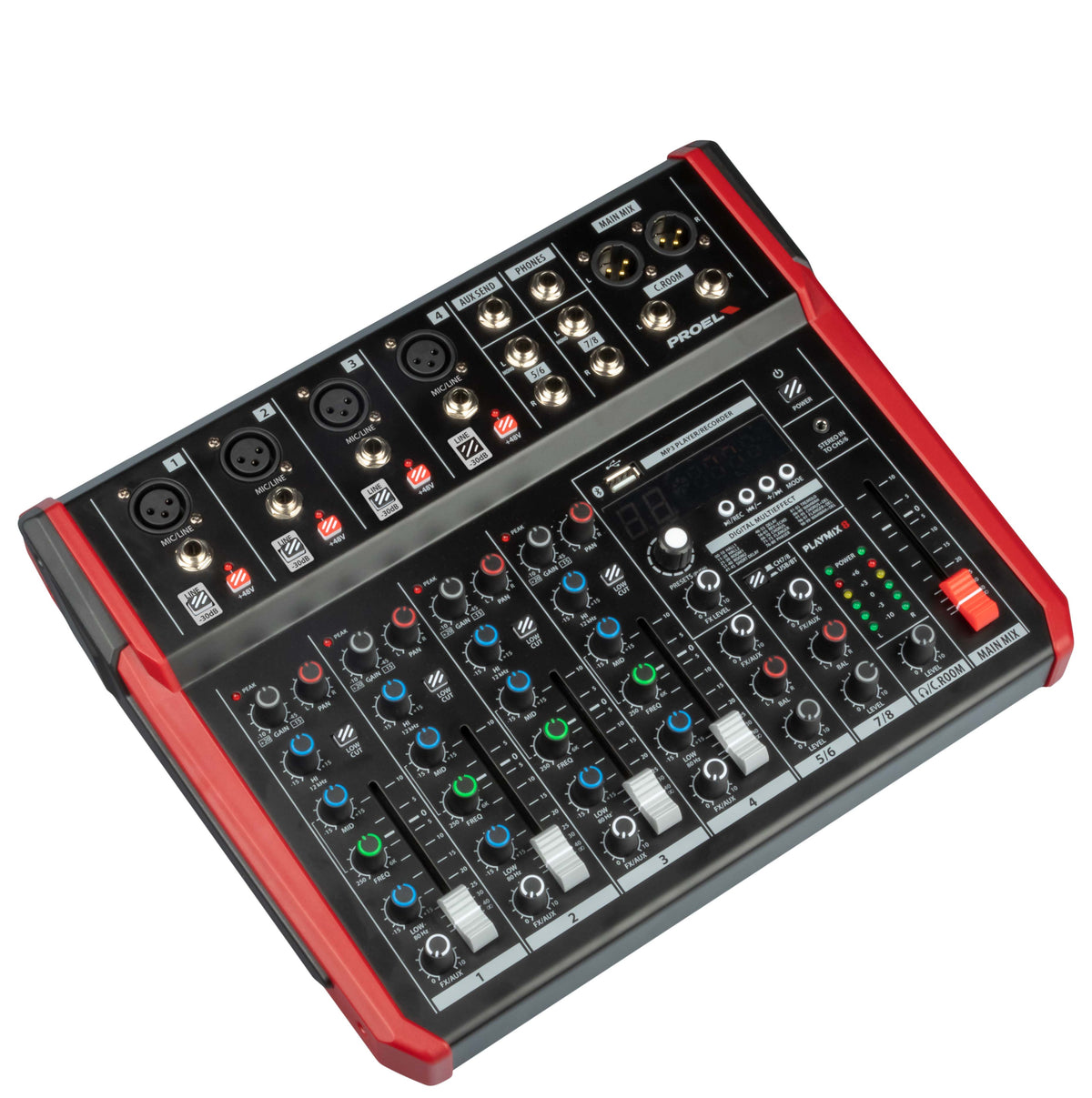

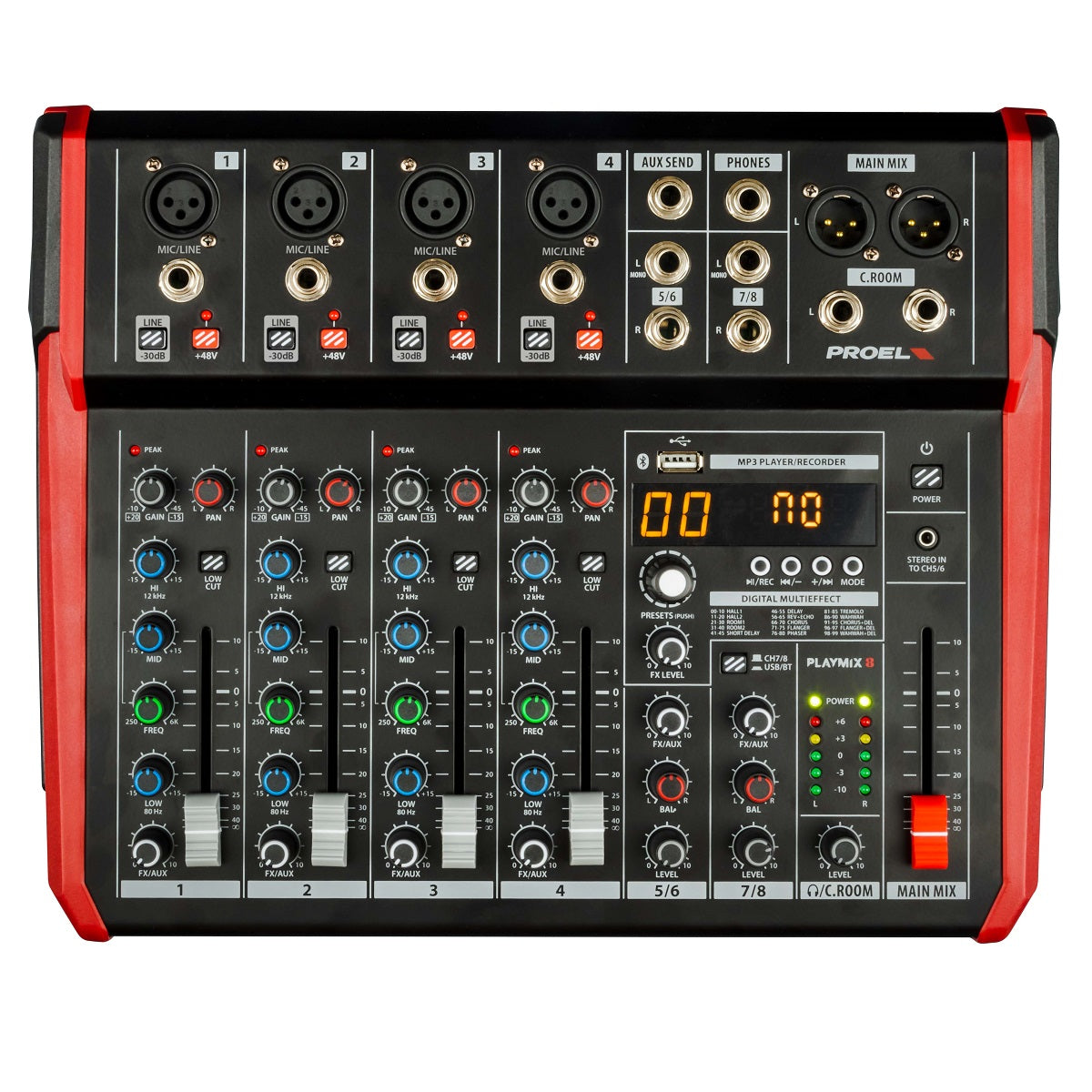

Mixer with FX and USB

New · Item PLAYMIX8 · Designed in Italy

A compact 8-input mixer with low-noise mic preamps, 100 built-in effects, a USB audio interface, Bluetooth playback and USB recording.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

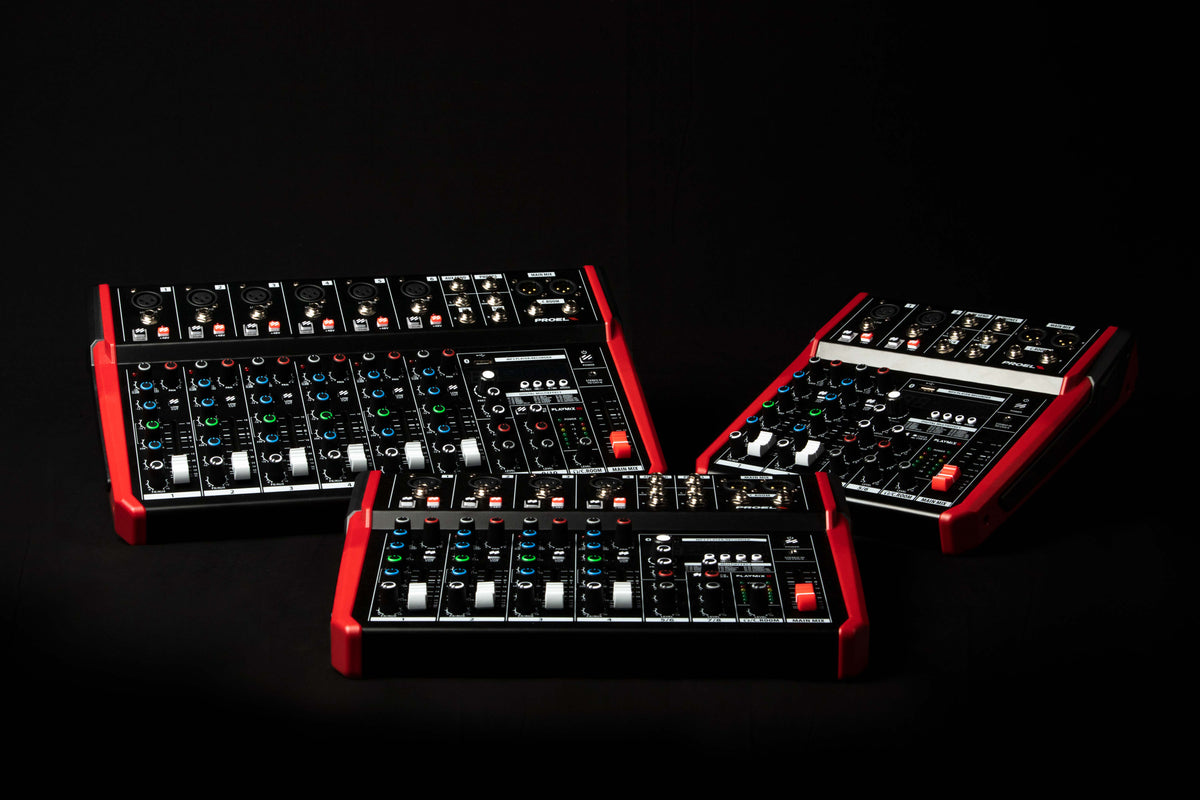

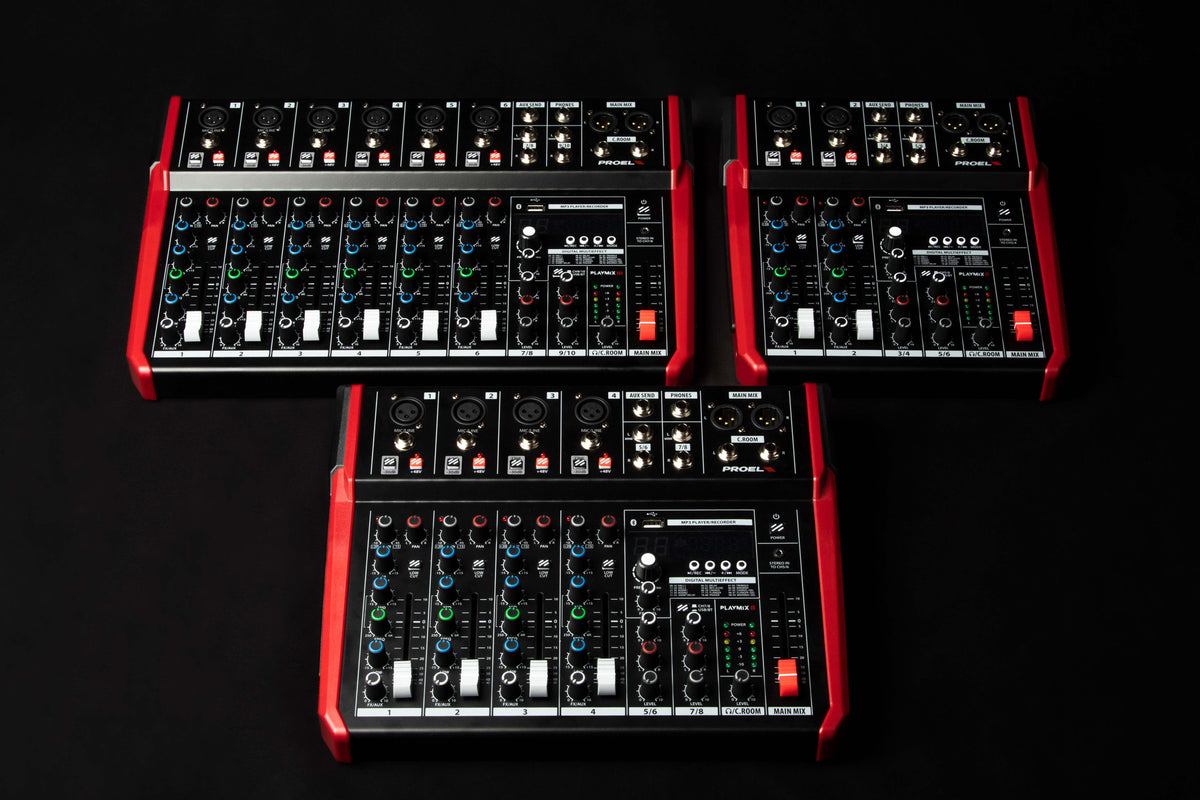

PLAYMIX series

PLAYMIX mixers pack high input density and a full feature set into a compact, stylish package. The series has three models with the same channel and master functions, offering 6, 8 or 10 inputs.

Channels

Mono mic/line channels feature low-noise, high-headroom mic preamps. Each has a 3-band EQ with sweepable mid, a high-pass filter and a 60 mm fader.

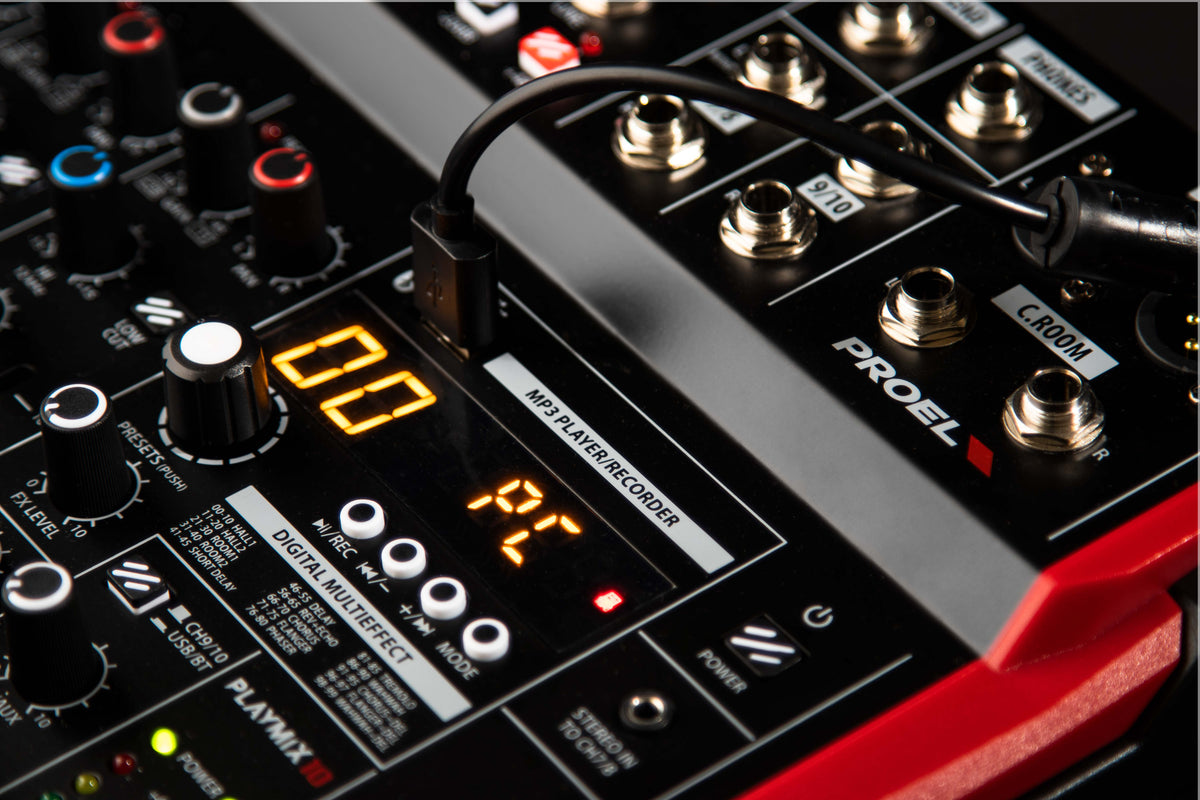

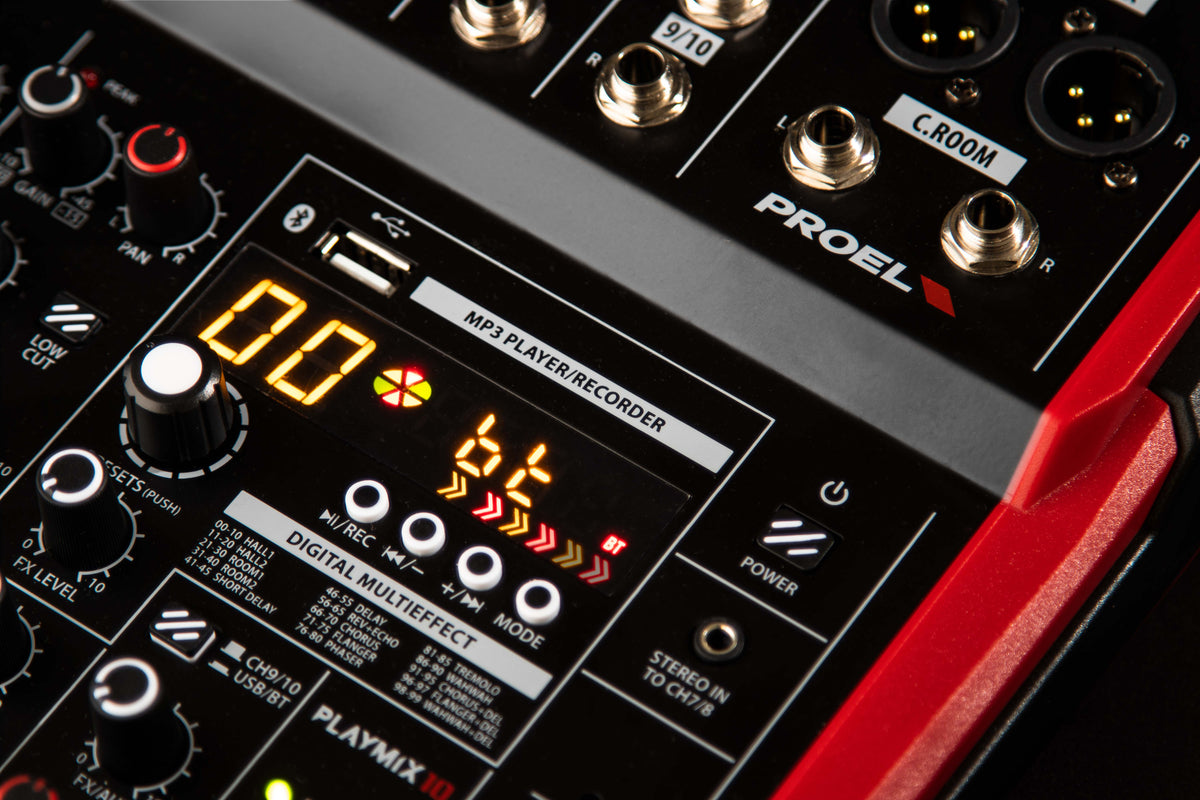

Digital section

  • 24-bit DSP with 100 studio-grade single and combined effects (reverbs, delays, modulations)
  • 2-digit display, dial and level control for the effects
  • 48 kHz stereo USB audio interface for playback and recording with a computer
  • Built-in MP3 player from a USB drive or via Bluetooth
  • Stereo recording to a USB drive

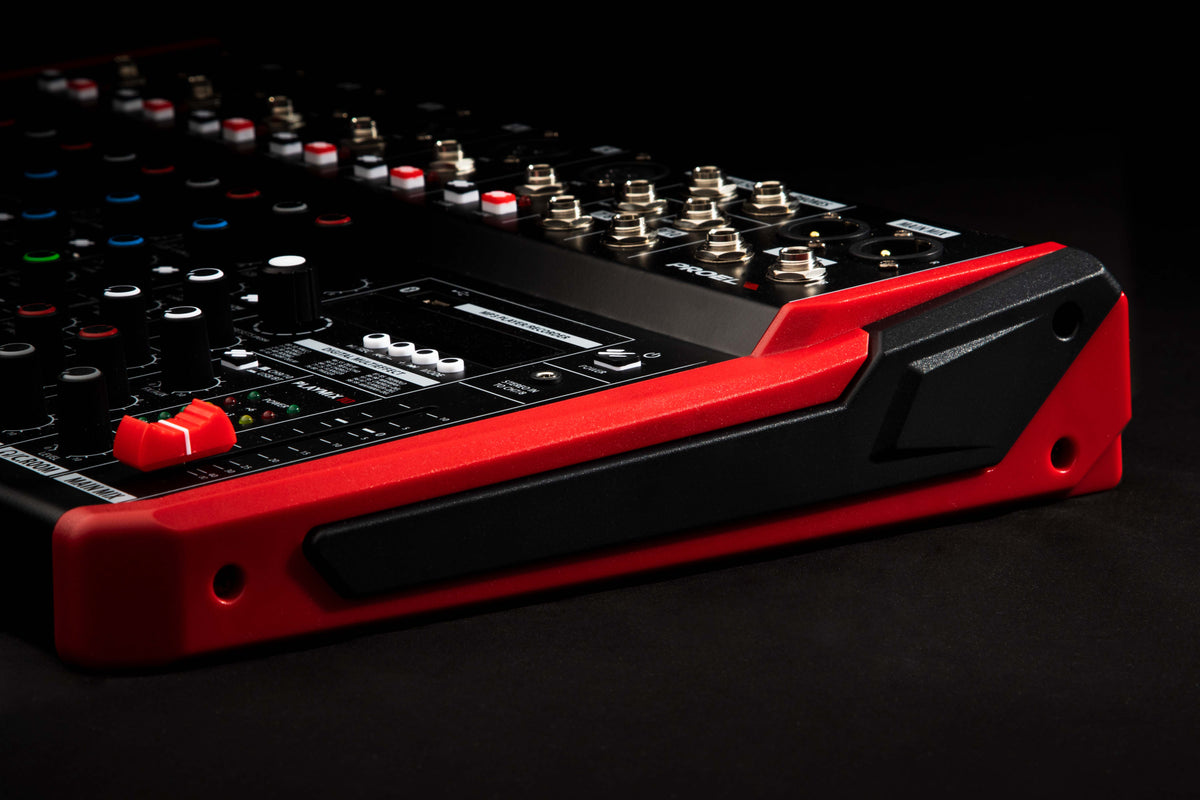

Built for the stage

PLAYMIX mixers are designed and engineered in Italy by PROEL. Rugged cases give them stage-ready durability. They deliver clean, accurate sound for a wide range of applications.

Specifications

The details that matter.

Manuals & Downloads

Mono Input Channel

Mic Input
sensitivity · from -10 to -45 dB · Balanced XLR-F
impedance
1 kΩ
Line Input
sensitivity · from +20 to -15 dB · Balanced JACK
impedance
20 kΩ
Lo cut
80Hz, 6dB/oct.
EQ
HIGH (shelving) · ±15 dB @ 12K Hz
MID (peaking)
±12 dB @ 250-6K Hz
LOW (shelving)
±15 dB @ 80 Hz

Stereo Input Channel

Line Input
sensitivity · from +12 to -15 dB · Balanced JACK
impedance
20 kΩ · Stereo Mini JACK

Master Section

Main Mix
nom. out level · +4 dBu · Unbalanced XLR-M
C. ROOM output
nom. out level · +4 dBu · Unbalanced JACK
SEND output
nom. out level · +4 dBu · Unbalanced JACK
Headphones
min. impedance · 64 ohm · Stereo JACK
Bluetooth
Version 5.0, Audio Streaming
USB Audio Interface
Stereo IN/OUT, 16-bit converter
44.1 kHz (PENDRIVE) / 48 kHz (PC) sample rate · Type A

Digital Effect Processor

Effects
100 presets
A/D and D/A converters
24 bit
DSP resolution
24 bit
Controls
2-DIGIT display, DIAL, LEVEL

General Specifications

Maximum level
all outputs · +15 dBu
Crosstalk
meas. at 1 kHz · > 75 dB
HUM & Noise
unweighted · < 90 dB
THD + Noise
at +4dB, 1kHz · < 0.009 %
Dimensions (WxHxD)
13 × 10.8 × 2.4 in (331 x 274 x 61 mm)
Weight
5.5 lb (2.50 kg)

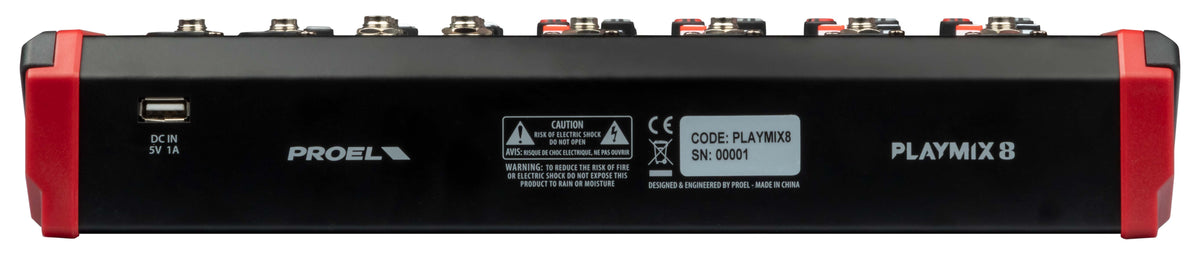

Power Requirements

Supply
use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage
100-240 VAC (±10%) 50/60 Hz
Consumption
15 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
