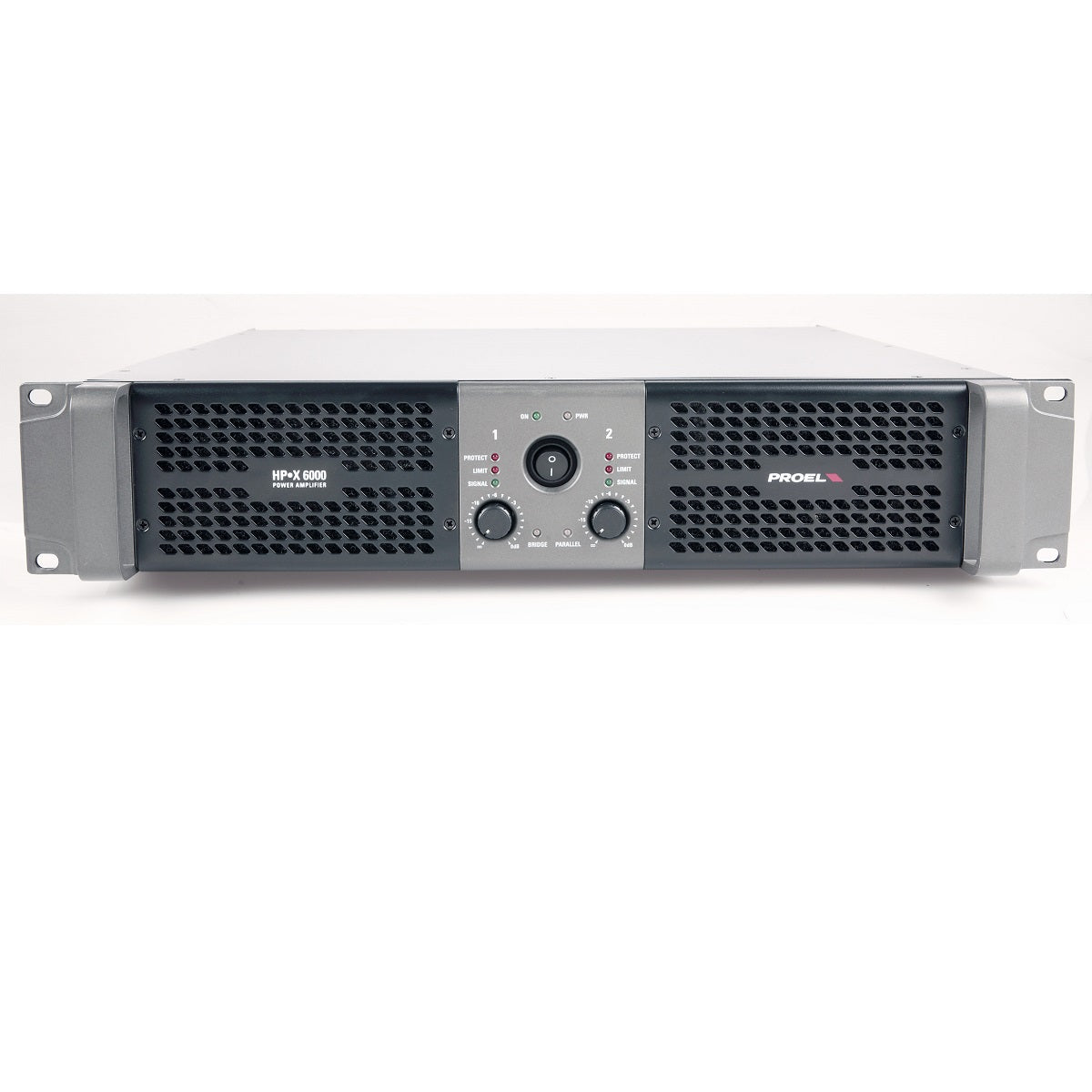

• Proel HPX6000 Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter
  • Proel HPX6000 Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter – view 2

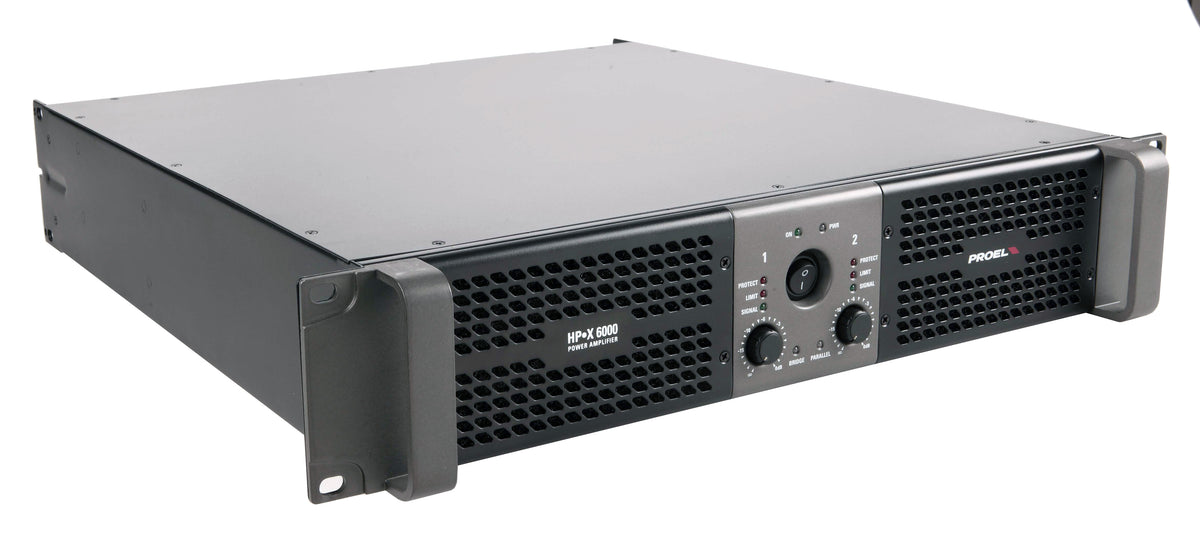

  • Proel HPX6000 Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter – view 3

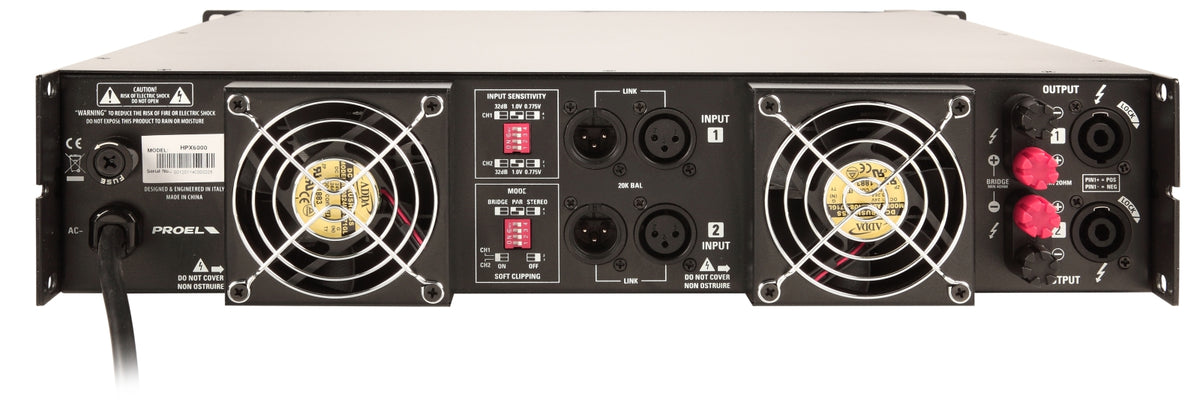

  • Proel HPX6000 Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter – view 4

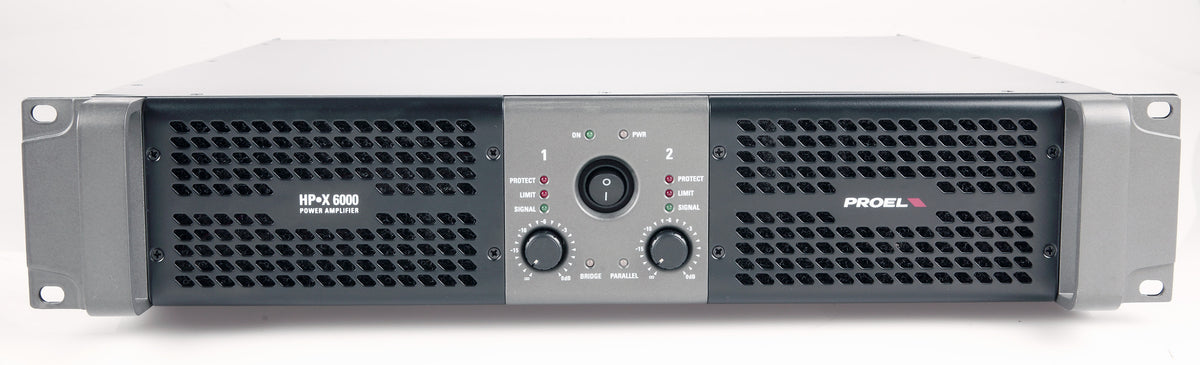

  • Proel HPX6000 Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter – view 5

Proel · Sound Systems

Stereo Power Amplifier 2 x 2300 W at 2 ohm with Switchable CLIP Limiter

Item HPX6000 · Designed in Italy

A lightweight stereo power amplifier with a 3-tier Class H output stage and switch-mode power supply, delivering 6000 W total at 2 ohms.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Design

HPX series amplifiers are built for practicality. Switch-mode power supplies and efficient cooling suit compact, portable systems. They stay reliable and durable through years of heavy use.

Power and efficiency

Overall efficiency is higher than 75%. That makes the HPX6000 a strong choice for large sound reinforcement systems that need very high power levels.

Controls

Controls include a 3-position gain selector and switchable soft clip limiters. The front panel has die-cast handles, a removable dust filter, LED status indicators and indexed level controls.

Specifications

The details that matter.

Manuals & Downloads

Power 8 ohm *
1200W
Power 4 ohm *
2000W
Power 2 ohm **
3000W
Power BRIDGE 8 ohm *
4100W
Power BRIDGE 4 ohm **
6000W
Output Stage
3-tiers CLASS H
Frequency response (+0/-0.5 dB)
20 Hz - 20 kHz
Input Sensitivity (nominal)
0 dBu / 0.775Vrms: 42 dB
1.0 Vrms (0 dBV): 40 dB
+10 dBu/2.45Vrms: 32 dB
Input Sensitivity (fixed gain)
GAIN (nominal/fixed)
Input Connectors / Impedance
XLR M (with XLR F LINK), 20 kΩ (balanced), 10 kΩ (unbalanced)
Output Connectors
SPEAKON and Binding Post
Damping Factor
> 200
Slew Rate
> 20 V/uS
S/N Ratio (unweighted)
> 90 dB
THD+N
< 0.1%
Controls
INPUT LEVEL, INPUT SENSITIVITY, STEREO/BRIDGE/PARALLEL, LOW PASS NOTCH (LPN), GND LIFT
LED Indicators
POWER, ON, PARALLEL, BRIDGE, SIGNAL, LIMIT, PROTECT
Cooling
Variable speed DC fan
Protections
AC low power, DC, thermal, short circuit, VHF, CLIP limiter, SOFT CLIP limiter
Mains Supply Voltage
230 VAC (±10%) 50/60 Hz or 120VAC (±10%) 50/60 Hz
Maximum Consumption
3320 VA
Rated Consumption ***
830 VA
Standby Consumption
6 VA
Dimensions (W x H x D)
483 x 89 x 505 mm
19" x 3.5" x 19.9"
Weight
29.9 lb (13.6 kg)
* RMS both channel THD < 1%
** 40 ms burst
*** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
