PROEL Stereo Volume Control pedal

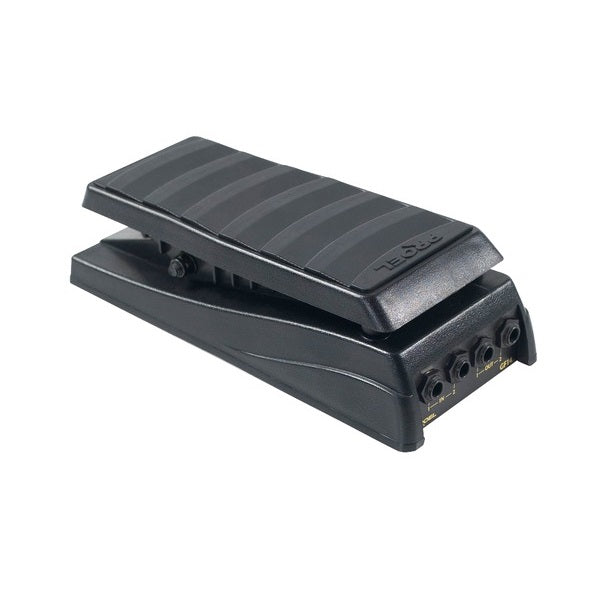

A stereo volume pedal for guitars with two independent inputs and outputs and a side control that sets the maximum output level.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
The pedal drives a 100k ohm potentiometer for accurate volume control. A second potentiometer on the side sets the maximum output level. Inputs and outputs are 1/4-inch (6.3 mm) mono jacks.
Specifications
The details that matter.
- Construction materials
- Thermoplastic ABS with rubber covered galvanized weighted base
- Width
- 3.7 in (93 mm)
- Height
- 2.4 in (61 mm)
- Depth
- 8.3 in (212 mm)
- Weight
- 1.4 lb (0.635 kg)
- Inputs
- 2 mono jack female sockets ø 1/4 in (6.3 mm)
- Input Impedance
- 2 x 100K Ohm (2 'long-life' linear guitar potentiometers)
- Outputs
- 2 mono jack female sockets ø 1/4 in (6.3 mm)
- Controls
- Volume adjustment
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
