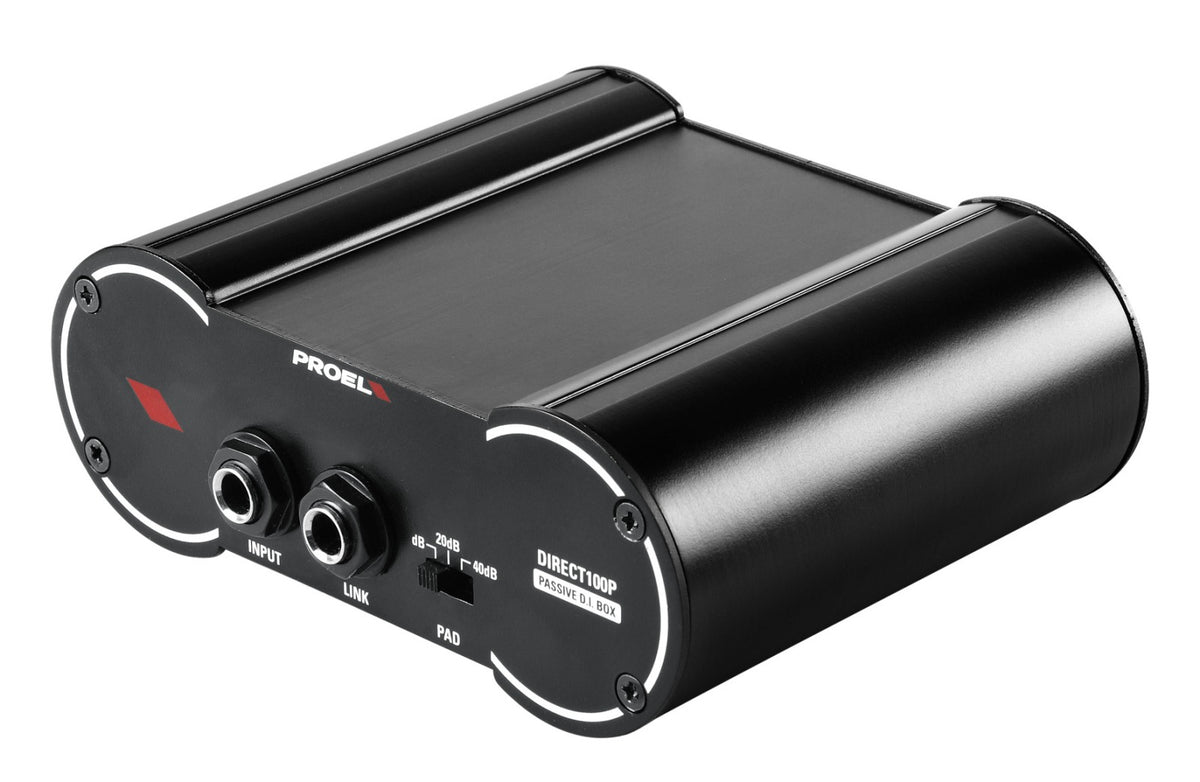

• Proel DIRECT100P Passive 1-Channel Direct Injection Box
  • Passive Direct Injection Box DIRECT100P
  • Passive Direct Injection Box DIRECT100P
  • Passive Direct Injection Box DIRECT100P

Proel · Recording Gear

Passive 1-Channel Direct Injection Box

Item DIRECT100P · Designed in Italy

Final Stock

A passive single-channel DI box from the 100 Series that needs no power, with a 0/-20/-40 dB pad and ground lift.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

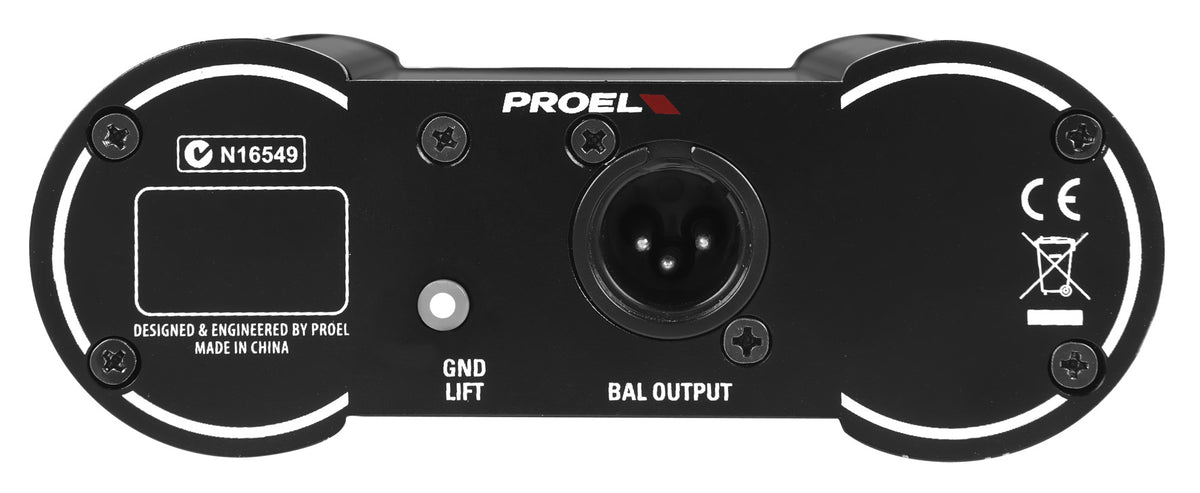

The DIRECT100P belongs to the 100 Series of DI boxes and headphone amps for stage, studio and fixed installations. It needs no power and uses a shielded, isolated transformer for its balanced XLR output.

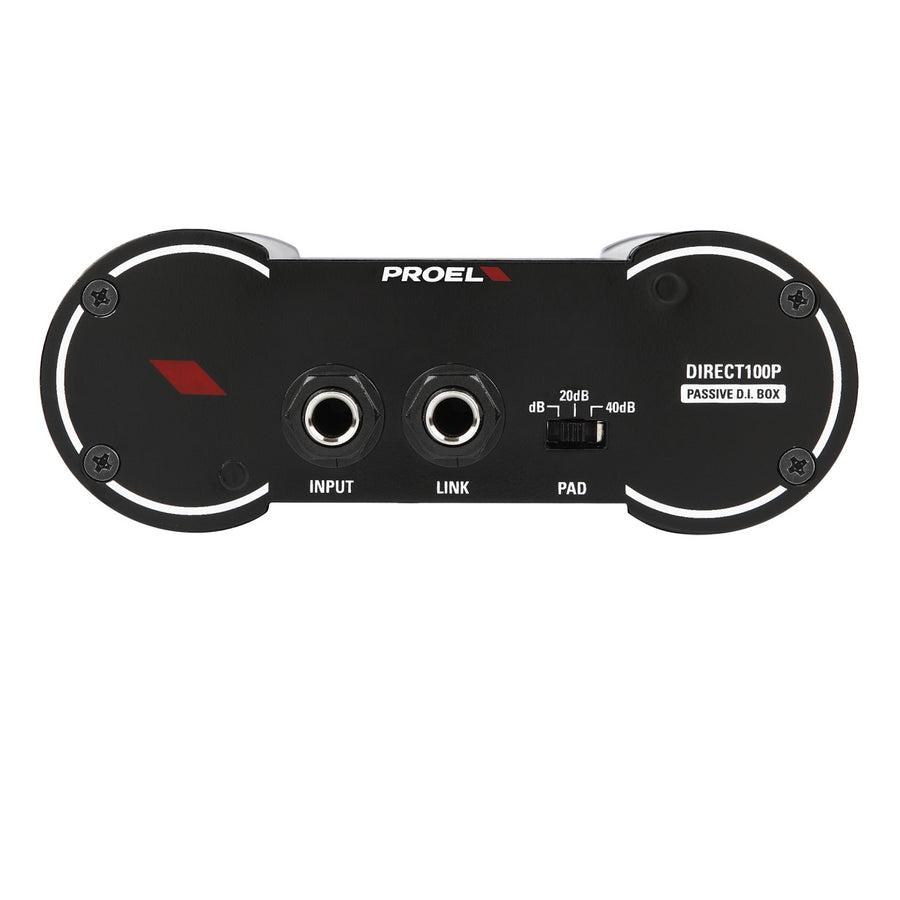

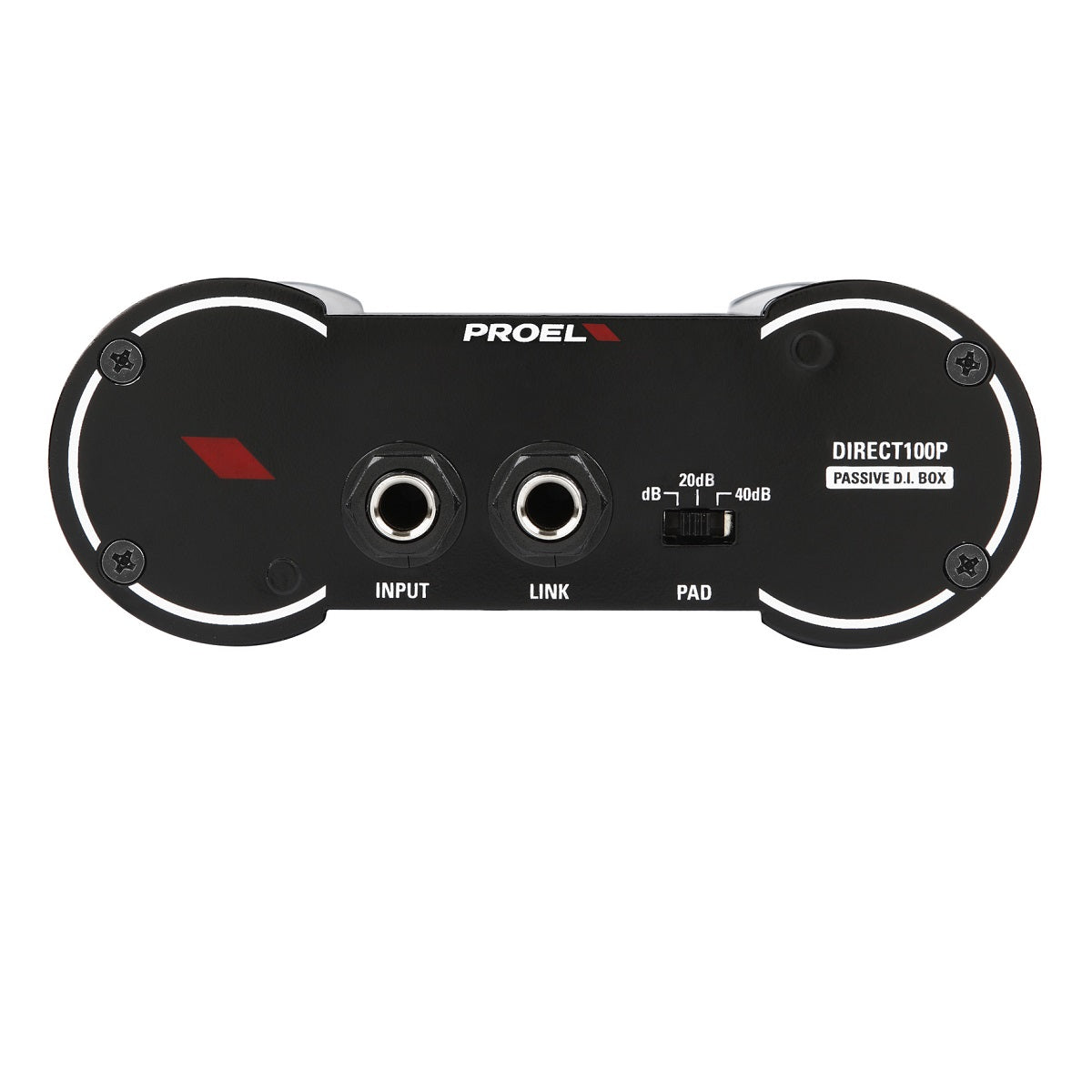

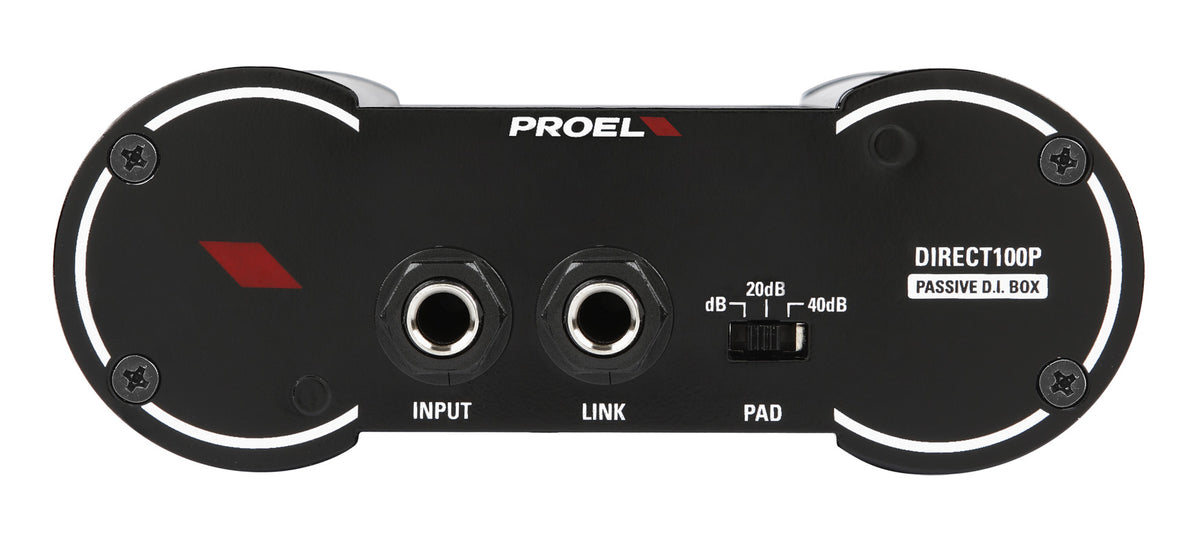

The unbalanced 1/4" input has a parallel link jack and an input impedance above 250 kΩ. A 0/-20/-40 dB pad handles hot sources, and a ground lift helps remove hum. Response runs from 40 Hz to 20 kHz (-3 dB).

Specifications

The details that matter.

Manuals & Downloads

Version
Passive DI (no power needed). The P in the model number means Passive; the active version is DIRECT100A.

Input Section

Input Impedance
>250 kΩ
Max Input Level
+10 (PAD at 0) / +30 (PAD at 20) / +50 (PAD at 40) dBu
Connectors
1 x 1/4" jack unbalanced
Link
1 x 1/4" jack unbalanced
Output Section
Output
Transformer Balanced (isolated with shielding)
Insertion Loss
26 dB
Load Impedance
600 Ohms or greater
Connector
XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu
< 0.007 %
Frequency Response
40 Hz to 20 kHz (-3 dB)
General
Controls
PAD 0 / -20 / -40, GND LIFT
Dimensions (W x H x D)
5.3 × 2 × 4.1 in (134 x 50 x 105 mm)
Weight
1.2 lb (0.55 Kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
