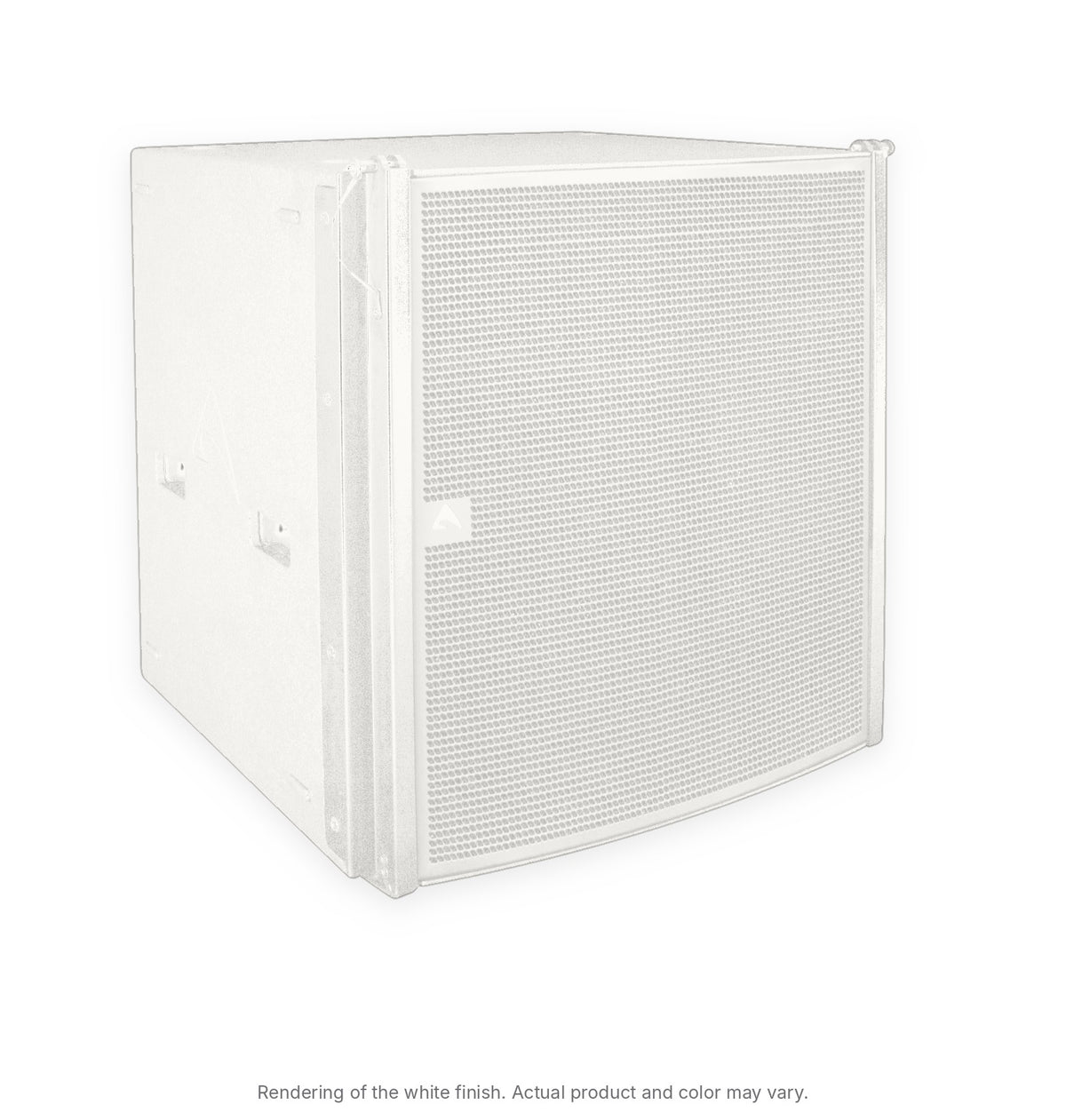

• Axiom SW36XFPWH white finish (rendering; actual product and color may vary)

Axiom · Stage Equipment

Dual 18" Very High-Output, Manifolded Bandpass, Flyable Subwoofer (White)

Item SW36XFPWH · Made in Italy

A white passive, flyable dual-18 in subwoofer with Tetracoil drivers that rigs atop Axiom AX2010P arrays for 143 dB peak output.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

The SW36XFP is designed to fly with AX2010P line array modules, with usable response down to 36 Hz. At the top of the array, its integrated rigging mates with the AX2010P. Its curved grille matches the AX2010 for a neat, unobtrusive cluster.

Manifold and bandpass loading reach 143 dB peak output from a compact cabinet. Two 18 in drivers use 4 in Tetracoil dual voice coils, equivalent to a single 6 in voice coil.

Product image is a rendering of the white finish. Actual product and color may vary.

Specifications

The details that matter.

System

System’s Acoustic Principle
Manifolded Band Pass
Frequency Response (±3dB)
36 Hz - 100Hz (Processed)
Frequency Range (±10dB)
28 Hz - 300Hz (Unprocessed)
Nominal Impedance
8 Ω + 8 Ω
Maximum Peak SPL @ 1m
143 dB

Transducers

Type
Two 18” (460mm), 4” (100mm) VC
Cone
Water repellent cone and epoxy coated plates
Voice Coil Type
4 in (100 mm) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 6 in (152 mm)
Suspension
Ultra linear suspension behavior

Input Connections

Connector Type
Neutrik® Speakon® NL4 x 2
Input Wiring
LF1 = Pin 1+/-; LF2 = Pin 2+/-

Power Handling

Continuous AES Pink Noise Power
1800W + 1800W
Program Power
3600W + 3600W
Peak Power
7000W + 7000W
Power Compression @ -10dB
0.6dB
Power Compression @ -3dB
2.0dB
Power Compression @ 0dB
3.4dB

Enclosure & Construction

Width
29.3 in (74.5 cm)
Height
32.5 in (82.5 cm)
Depth
23.6 in (60 cm)
Depth Including Wheels
28.5 in (72.5 cm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Side Suspension
High Strength Steel with ¼ Fast Pin
Back Suspension
High Strength Steel with ¼ Fast Pin
Wheels
4 heavy-load 3.9 in (100 mm) ø
Net Weight
192.7 lb (87.4 kg) without heavy duty wheels
Color
White

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
