Axiom · Stage Equipment

Dual 18" (457mm) Active, High Output, Powered, CORE Processed, Manifolded Bandpass Subwoofer

Item SW1800A · Made in Italy

A powered dual-18 in manifolded band-pass subwoofer with 2,000 W Class D power and CORE DSP, built to support the AX800A line array.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design

The SW1800A is a compact powered subwoofer that adds sub-bass to the AX800A compact line array. Its manifolded band-pass design couples the front of both cones for maximum mutual coupling. Small cavities, not one large resonant cavity, improve definition at the lowest end and in the upper bass.

Drivers and sound

Two high-power 18 in (460 mm) drivers use 3 in voice coils on aluminum formers for heat dissipation. Humidity-resistant cones suit outdoor concert touring.

The design gives solid low-end definition and a punchy upper bass, with fast, accurate response. It complements the AX800A at about a 4:1 ratio.

Cabinet

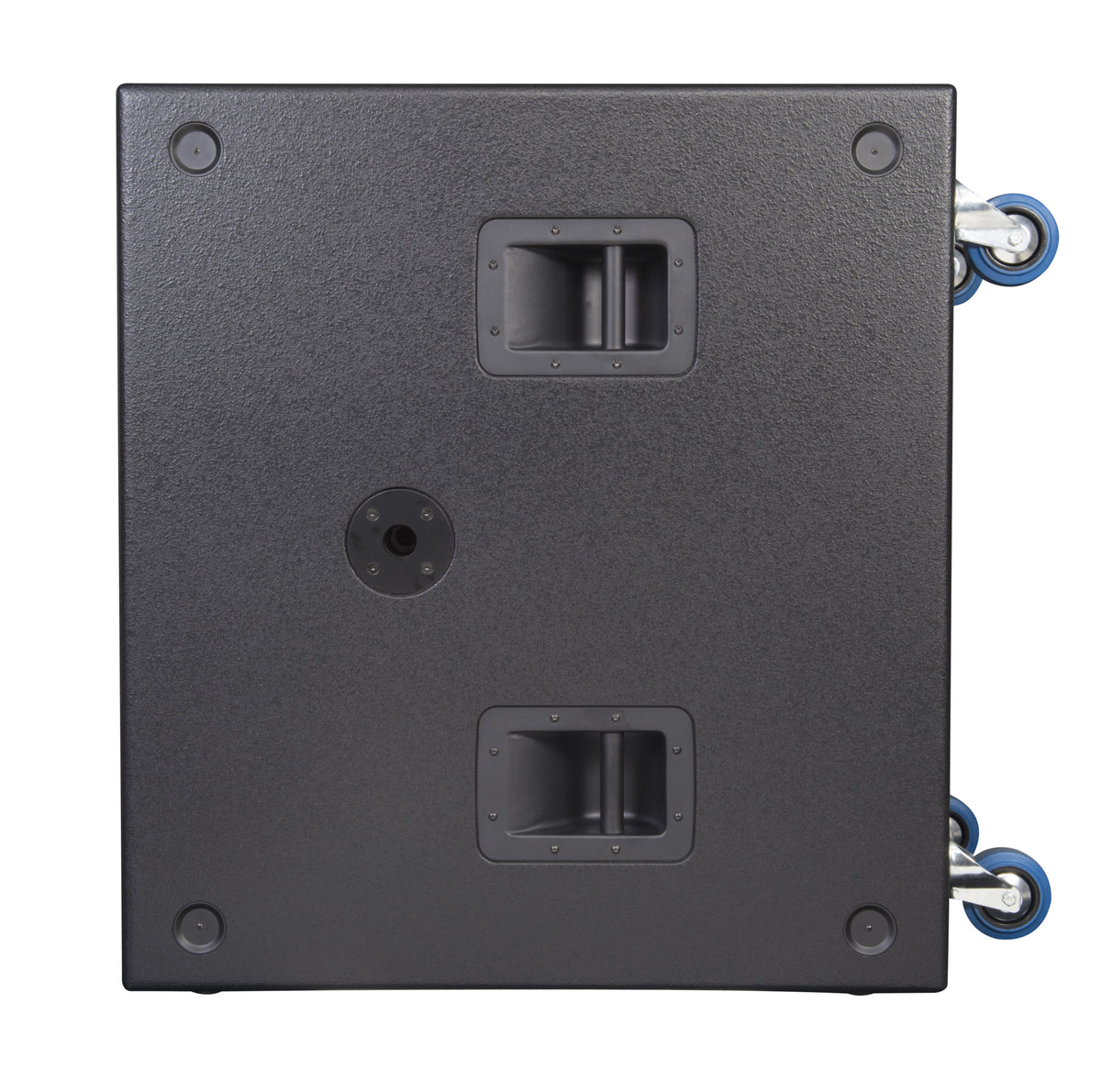

The 15 mm birch plywood enclosure has two 35 mm pole sockets, one on top and one on the side. AX800A elements or ED Series speakers can pole-mount above it at the right height. Heavy-duty wheels, flush handles, stacking recesses and feet make transport and ground stacking easy.

Processing and amplifier

Processing runs on the CORE DSP platform designed by PROEL R&D, using a SHARC DSP. It works at 40-bit, 96 kHz floating point with 24-bit AD/DA converters. Dynamic range exceeds 110 dB.

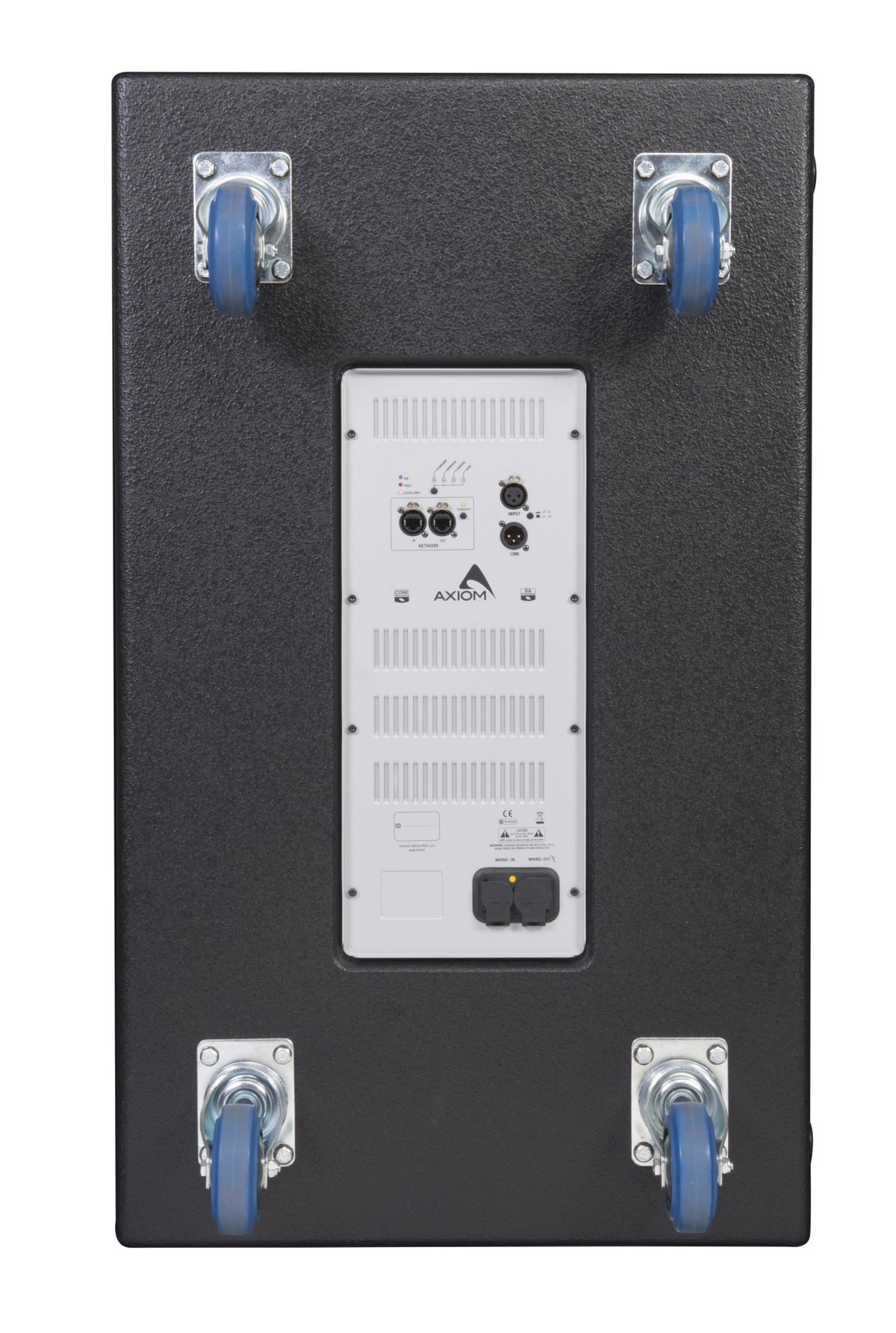

PRONET software, on a CANBUS network, controls the whole system through the rear etherCON RJ45 connectors. It handles EQ, delay and protection settings, and monitors amplifier status.

Four presets cover offline use: Standard for general use, Infra Sub for very low frequencies or effects, Cardioid for directional bass arrays, and User for custom PRONET settings.

A DA Series Class D power module with a digitally controlled switch-mode power supply drives the system. Its variable switching frequency gives clear sound at every frequency, strong low-level dynamics and very low distortion at full power. Efficiency exceeds 90% in a compact, lightweight module.

The amplifier delivers 1,000 W to each driver. Balanced 3-pin XLR input and link connectors and a ground lift switch are provided.

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active.

System

System’s Acoustic Principle
Manifolded Band Pass
Frequency Response (±3dB)
36 Hz – 115 Hz (Processed)
Maximum Peak SPL @ 1m
139 dB

Transducers

Type
Two 18” (460mm) woofers, 3” (75mm) VC
Cone
High stiffness, water repellent

Electrical

Input Impedance
20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity
+4dBu / 1.25 V
Signal Processing
CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls
4 Presets (Standard/InfraSub/Cardioid/User), Network Termination, GND Link
Remote Controls
PRONET control software
Network protocol
CANBUS
Amplifier Type
Class D with SMPS, Variable Switching Frequency
Output Power
1000W + 1000W
Mains Voltage Range (Vac)
230V ±15% - 115 ±15% 50/60Hz (internally selectable)
IN / OUT Connectors
Neutrik XLR-M / XLR-F
IN / OUT Network Connectors
ETHERCON®(NE8FAV)
Mains Connectors
PowerCon® TRUE1 - NAC3PX (In/Out)
Cooling
Variable speed DC fan

Enclosure & Construction

Physical Dimensions

Width
22.4 in (570 mm)
Height
37.8 in (960 mm)
Depth
34.65 in (880 mm)
Depth Including Wheels
39.7 in (1008 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Transport
4 heavy duty 4 in (100 mm) castors, 6 handles
Net Weight
154.3 lb (70 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
