8" Two-Way Powered Point Source Loudspeaker
A compact powered two-way point source loudspeaker with an 8-inch neodymium woofer and 1-inch compression driver, for portable or installed use.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Design and use
The FL80A provides full-range response and controlled dispersion from an easy-to-handle enclosure. It suits many foreground sound reinforcement applications that call for high-quality sound, repeatable performance and easy operation.
Drivers and amplification

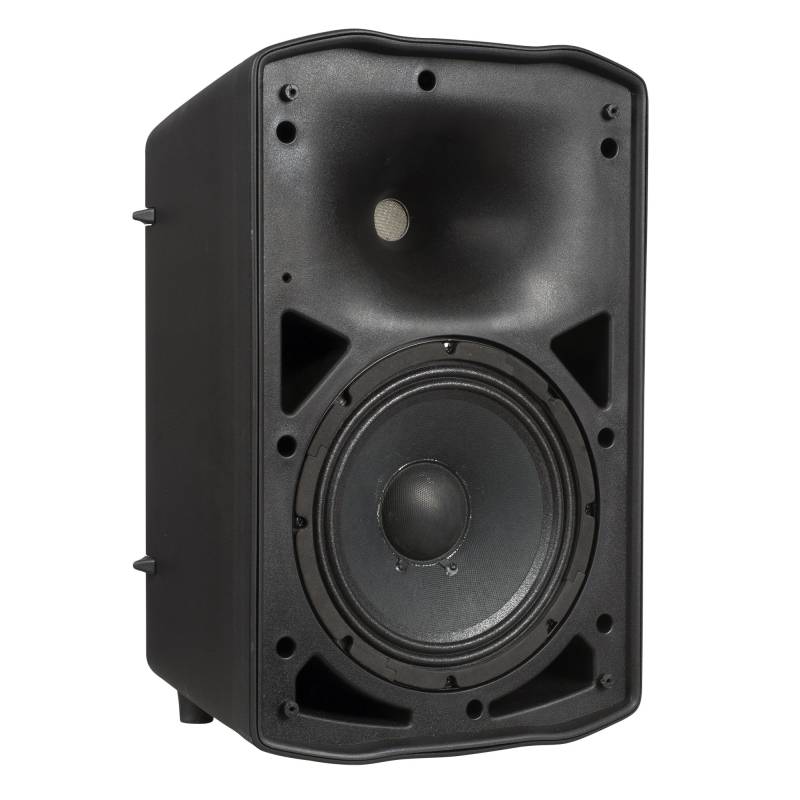

The 8" neodymium woofer is matched to a 1" compression driver with a 1" aluminum voice coil, for low weight and good transient response. Each driver runs on its own channel of a Class D amplifier module. A custom HF horn provides wide, accurate coverage of a typical auditorium.
Flexible mounting

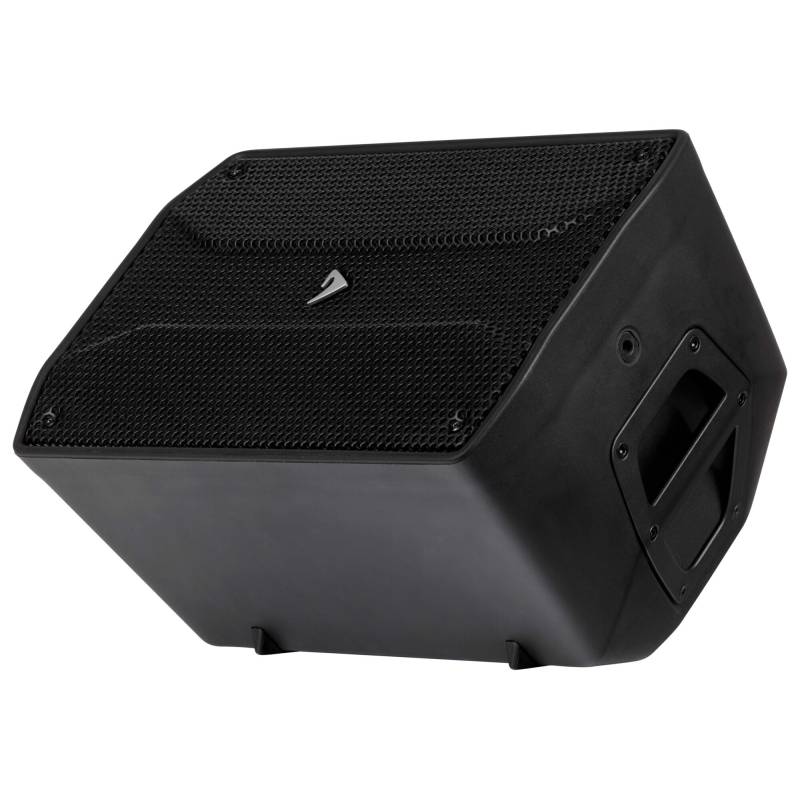

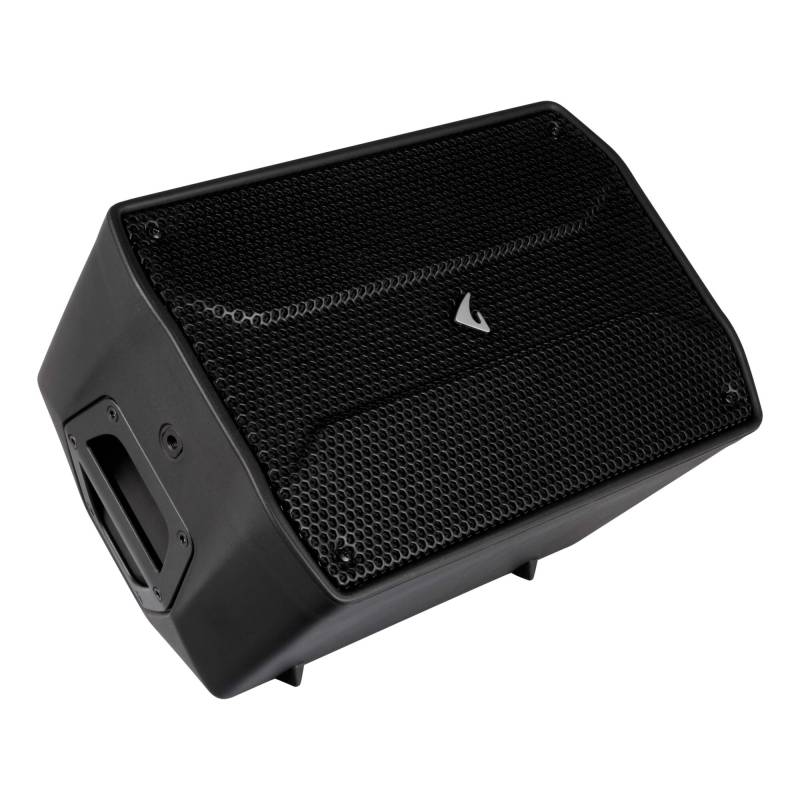

The symmetrical vented enclosure works on a speaker stand for front-of-house or pole-mounted on a subwoofer. Its 42° wedge angle also lets it serve as a stage monitor.
The lightweight high-density polypropylene cabinet has a 35 mm pole mount and three recessed aluminum handles. M8 rigging points allow fixed installation with optional mounting brackets. For extended low end, pair it with an Axiom SW series subwoofer such as the SW18A.
Specifications
The details that matter.
- Version
- Active (powered, built-in amplifier). The A in the model number means Active; the passive version is FL80P.
System
- System’s Acoustic Principle
- 2-way vented enclosure
- Frequency Response (-6dB)
- 65 Hz - 20 kHz (Processed)
- Coverage Angle
- 90° H x 60° V
- Maximum (peak) Output
- 125 dB SPL @ 3.3 ft (1m)
Transducers
- LF
- 8" neodymium magnet low frequency woofer - 2" VC
- HF
- 1" exit compression driver - 1" aluminum VC
Electrical
- Input Impedance
- 30 kΩ balanced, 15 kΩ unbalanced
- Input Sensitivity
- +4dBu / 1.25 V
- Signal Processing
- DSP with FIR filters
- Controls
- Presets (STANDARD/LIVE/MUSIC/MONITOR/STANDARD LOW CUT)
- Amplifier Type
- Class D with SMPS
- Output Power
- 250W + 50W
- Mains Voltage Range (Vac)
- 100-250 VAC 50/60 Hz
- IN / OUT Connectors
- XLR-M / XLR-F
- Mains Input Connector
- PowerCon® (NAC3MPA)
- Mains Link Connector
- PowerCon® (NAC3MPB)
- Cooling
- Passive
Enclosure & Construction
- Width
- 10.6 in (270 mm)
- Height
- 16.6 in (422 mm)
- Depth
- 9.8 in (250 mm)
- Monitor Taper
- 42°
- Enclosure Material
- Hi Density Polypropylene with Metal Grid
- Flying system
- 3 x M8 flying points
- Net Weight
- 17.6 lb (8 kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 2 more years (4 in total) when registered on proel.com within 6 months of purchase
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
