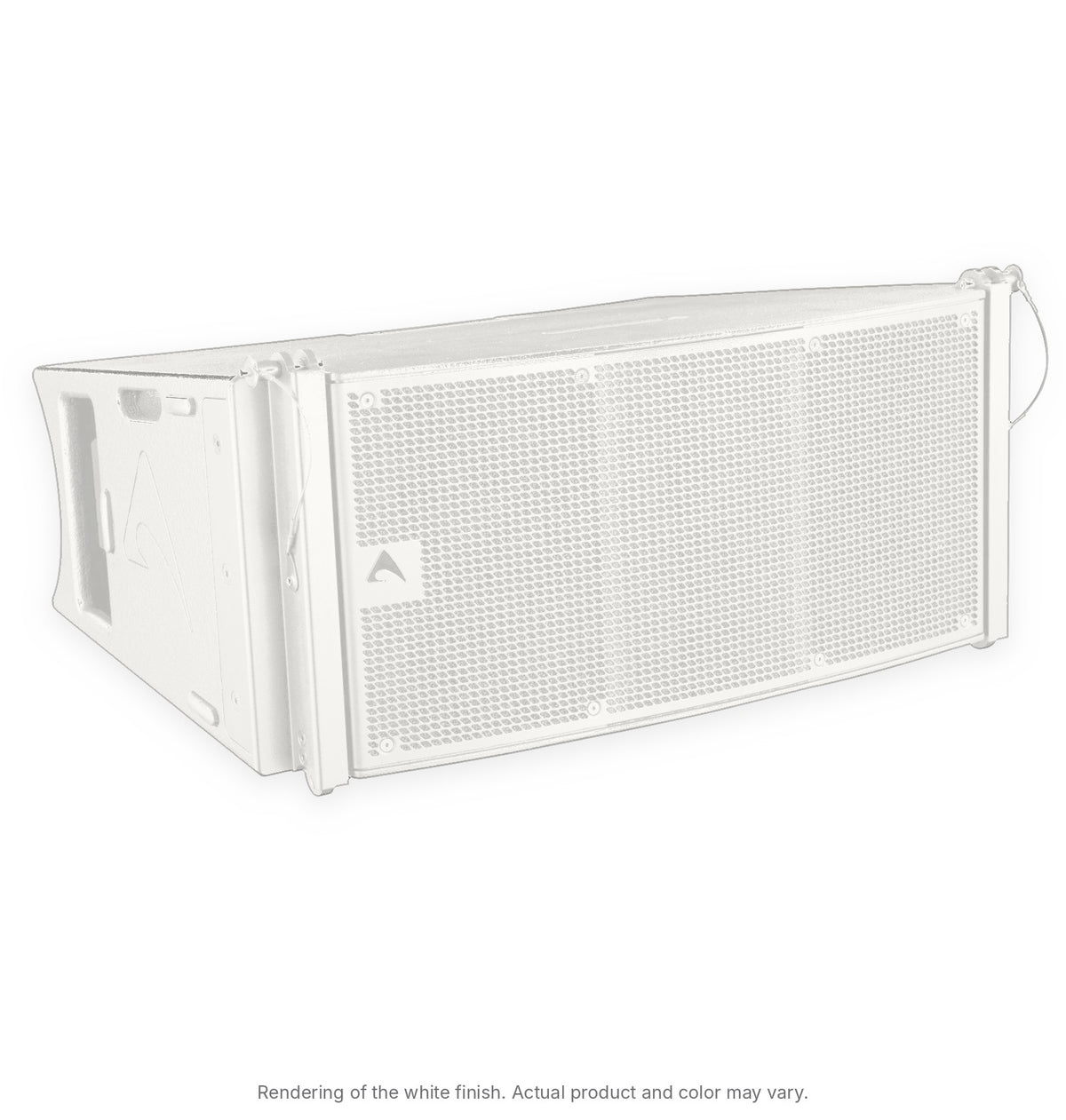

• Axiom AX2010PWH white finish (rendering; actual product and color may vary)

Axiom · Stage Equipment

Dual 10", Passive, High-Output, Vertical Array Element (White)

Item AX2010PWH · Made in Italy

A passive dual 10-inch line array element with two 1.4-inch compression drivers and 110° x 10° coverage for touring and installs (white).

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Overview

The AX2010P combines strong sound quality with simple, flexible setup. It is built for rental live sound and fixed installations.

  • High-output line array element
  • Compact size and high output-to-weight ratio
  • High-quality, low-compression, low-distortion HF drivers
  • Very stable horizontal coverage
  • Transmission line back loading for clean mid-bass
  • Transmission line HF waveguide for natural sound projection

Transducers

Two low-distortion compression drivers with very light diaphragms reproduce the high frequencies. Two transmission line waveguides load them for detailed, natural sound and long HF throw.

Two 10" woofers with light cones and aluminum voice coils handle the mid-bass. The aluminum coils speed up midrange response, improve thermal capacity and control power compression.

A short hybrid transmission line back-loads the woofers. It reduces box resonances and avoids the boxy mid-bass of typical bass-reflex enclosures.

System design

The symmetrical woofer-tweeter-woofer layout is engineered to minimize beaming around the crossover. The HF diaphragms' low resonance allows a crossover point near 900 Hz.

Woofer orientation reduces interference between the two woofers, and a polyurethane acoustic filter further limits midrange beaming. A constant power crossover keeps horizontal coverage and the off-axis image very stable.

Phase linearization adds a linear phase response and coherent time response. Acoustic instruments and voices sound natural, with better depth in the sound image.

Product image is a rendering of the white finish. Actual product and color may vary.

Specifications

The details that matter.

ACOUSTICAL
System’s Acoustic Principle
Line Array Element, Short Transmission Line LF Back Loading, Acoustic Transmission Line HF Waveguide
Frequency Response (±3dB)
75 Hz – 18kHz (Processed)
Nominal Impedance
8ohm (LF) + 8ohm (HF)
Minimum Impedance
7.5ohm@ 300Hz (LF) 7ohm@2.5kHz (HF)
Sensitivity (2.83V @ 1m, 2Pi)
99dBSPL (LF) 108dBSPL (HF)
Horizontal Coverage Angle
110° (-6dB)
Vertical Coverage Angle
10° (-6dB)
Maximum Peak SPL @ 1m
138 dB
TRANSDUCERS
LF
Two 10”(260mm), 2.5” (64mm) aluminum voice coil, 16ohm each, paralleled
HF
Two 1.4” drivers, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 16ohm each, paralleled
INPUT CONNECTIONS
Connector Type
Neutrik® Speakon® NL4 x 2
Input Wiring
LF = Pin 1+/- HF = Pin 2+/-)
POWER HANDLING
Continuous AES Pink Noise Power
700W + 150W
Program Power
1400W + 300W
LF Power Compression
@ -10dB Power (70W)
0.5dB
@ -3dB Power (350W)
1.5dB
@ 0dB Power (700W)
3.2dB
ENCLOSURE & CONSTRUCTION
Physical Dimensions
Width
29.37 in (746 mm)
Height
13.42 in (341 mm)
Depth
20.86 in (530 mm)
Enclosure Material
0.59 in (15mm), reinforced Phenolic Birch
Paint
High resistance, water based paint
Suspension system
Front Suspension
Aluminum Fast Link structure
Back Suspension
High Strength Steel with ¼ Fast Pin Net
Weight
87.96 lb (39.9 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
