Axiom · Stage Equipment

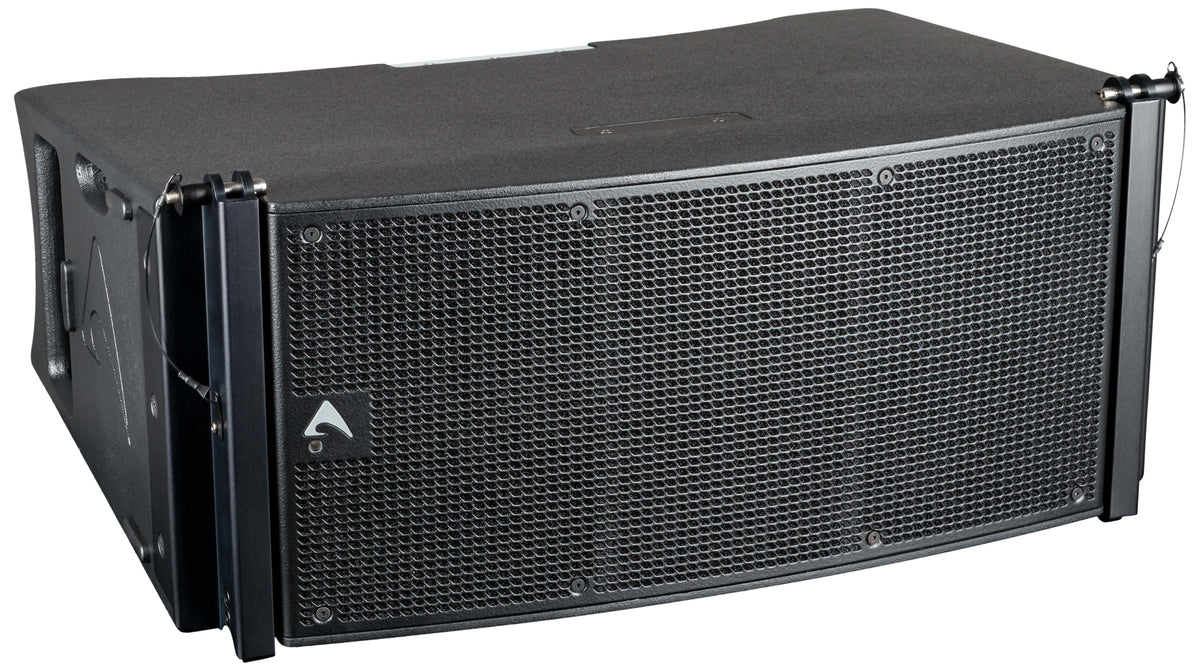

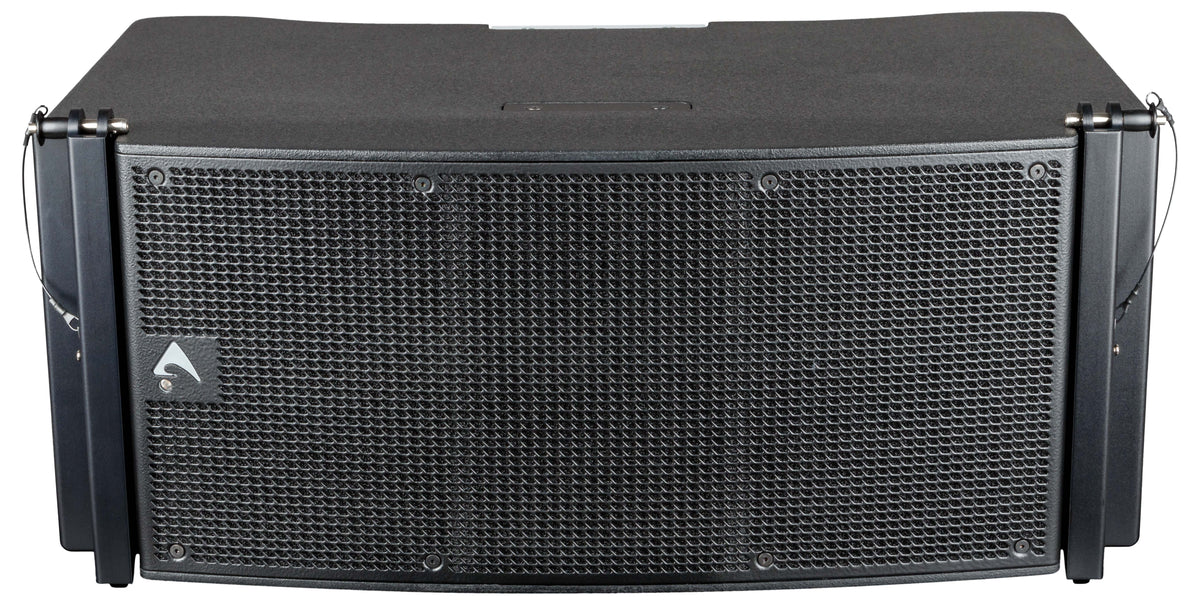

Dual 10" Powered Vertical Array Element

Item AX2010AV2 · Made in Italy

A powered line array element with two 10-inch woofers, two 1.4-inch HF drivers, CORE2 DSP and 1,400 W + 1,400 W Class D amplification.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design and use

The AX2010AV2 is an update of the AX2010A and is mechanically and electroacoustically compatible with it. It is built for both rental and fixed installation work. Setup is quick, with flying hardware built into the cabinet.

Acoustic design

  • Two 10" woofers with aluminum voice coils, back-loaded by a short transmission line
  • Two 1.4" titanium-diaphragm compression drivers on transmission-line waveguides
  • Symmetrical woofer-tweeter-woofer layout with a crossover near 900 Hz
  • 110° x 10° coverage and 138 dB maximum peak SPL

Processing and amplification

CORE2 processing runs on a 40-bit floating-point SHARC DSP with 24-bit converters. Four presets cover standard, long-throw, down-fill or single-box use, and a user setting. PRONET AX software controls each unit over a CANBUS network.

Class D amplifier modules with switch-mode power supply and power factor correction deliver 1,400 W + 1,400 W.

Construction

The 15 mm reinforced phenolic birch cabinet has an aluminum Fast Link front suspension and a steel rear suspension with 1/4" Fast Pin. Net weight is 90.4 lb (41 kg).

Specifications

The details that matter.

System

Acoustic principle
Line array element; short transmission-line LF loading; transmission-line HF waveguide
Frequency response (±3 dB)
75 Hz – 18 kHz (processed)
Coverage angle (-6 dB)
110° H x 10° V
Maximum peak SPL @ 3.3 ft (1 m)
138 dB

Transducers

LF
2 x 10 in (260 mm), 2.5 in (64 mm) aluminum voice coil, 16 ohm each, paralleled
HF
2 x 1.4 in drivers, 2.5 in (64 mm) edgewound voice coil, titanium diaphragm, 16 ohm each, paralleled

Electronics

Input impedance
20 kohm balanced / 10 kohm unbalanced
Input sensitivity
+4 dBu / 1.25 V
Signal processing
CORE2, 40-bit floating-point SHARC DSP, 24-bit AD/DA
Direct controls
4 presets (Standard, Long Throw, Down Fill/Single Box, User), network termination, GND link
Remote control
PRONET AX software
Network protocol
CANBUS
Amplifier
Class D with SMPS and PFC
Output power
1,400 W + 1,400 W
Mains voltage
100–240 V~ ±10%, 50/60 Hz
Cooling
Variable-speed DC fan

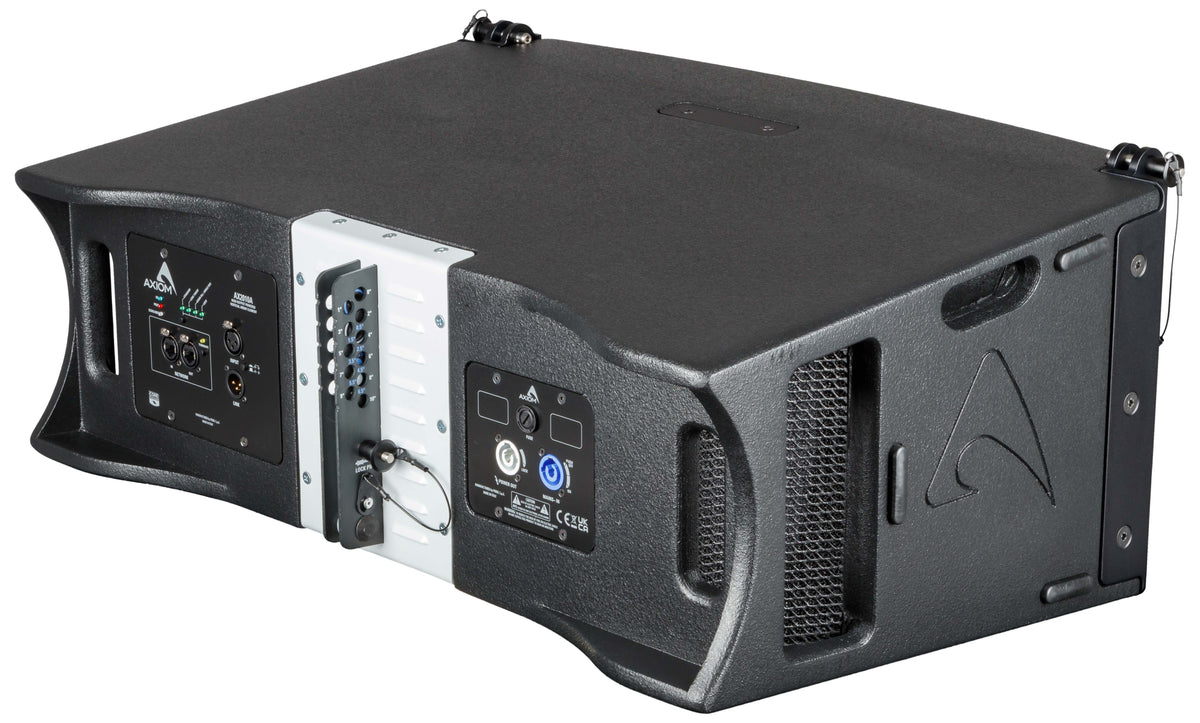

Connectors

Audio
Neutrik XLR-M / XLR-F
Network
etherCON (NE8FAV)
Mains in
powerCON (NAC3MPA)
Mains link
powerCON (NAC3MPB)

Enclosure

Dimensions (W x H x D)
29.37 x 13.42 x 20.86 in (746 x 341 x 530 mm)
Enclosure material
15 mm reinforced phenolic birch
Paint
High-resistance, water-based

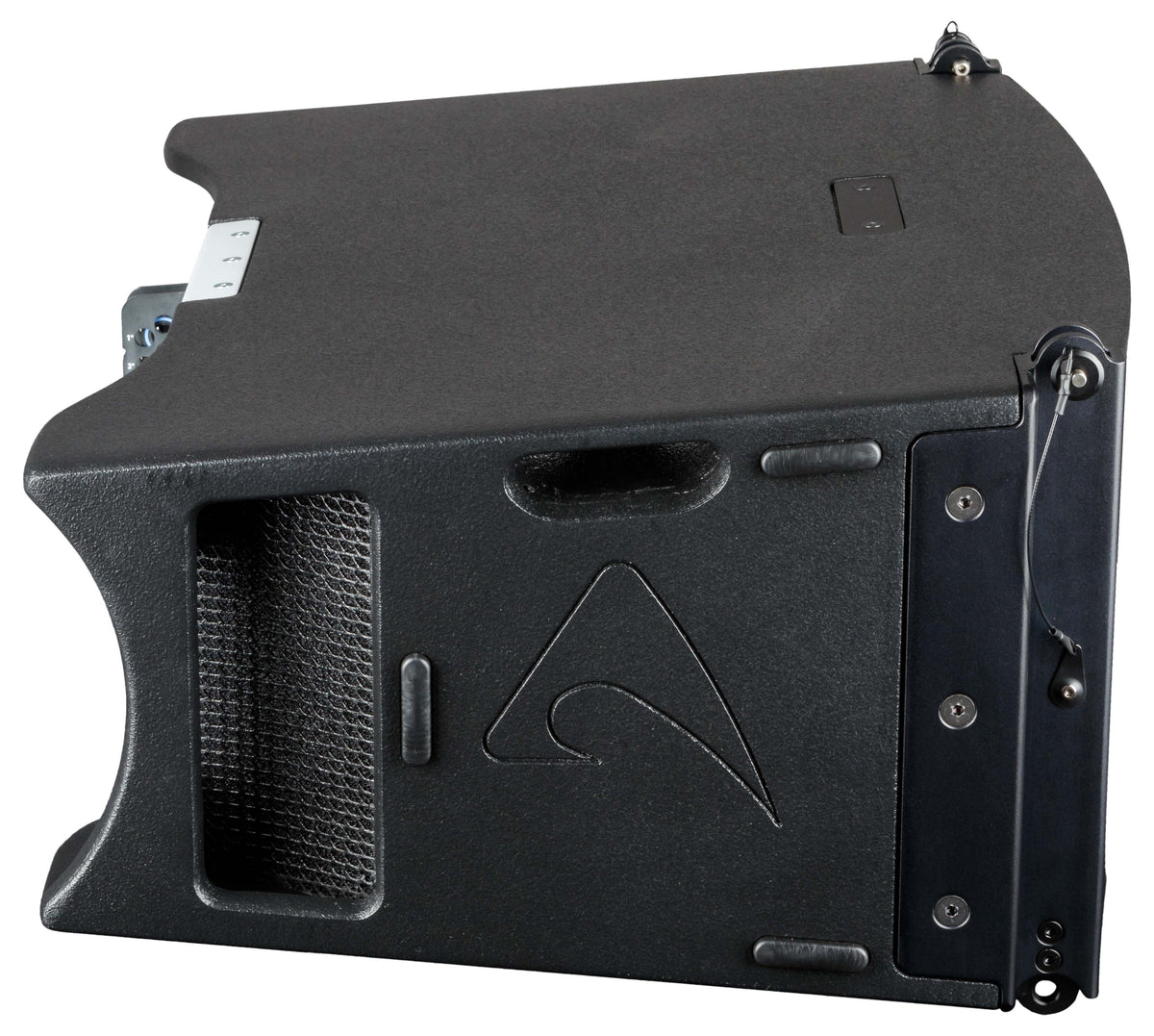

Front suspension
Aluminum Fast Link structure
Rear suspension
High-strength steel with 1/4 in Fast Pin
Net weight
90.4 lb (41 kg)
