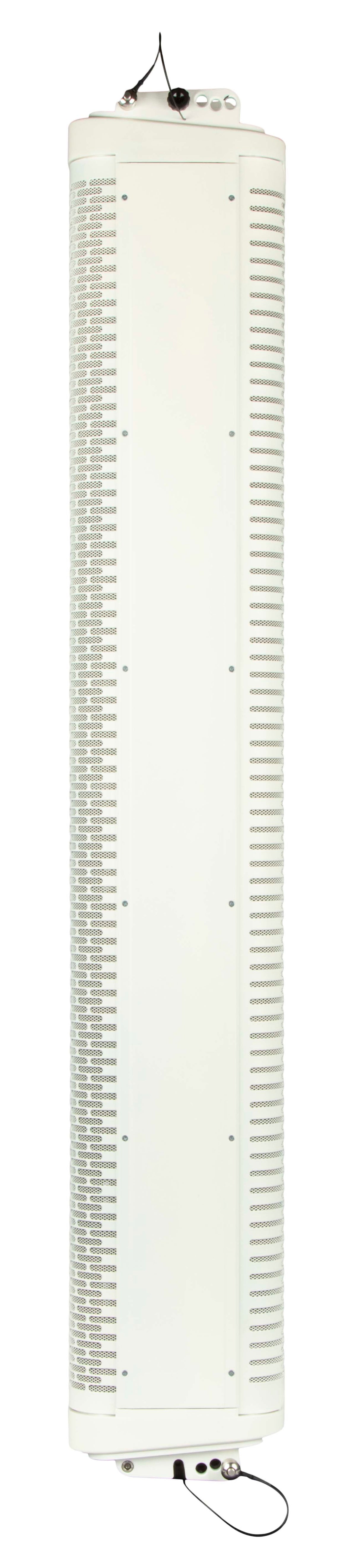

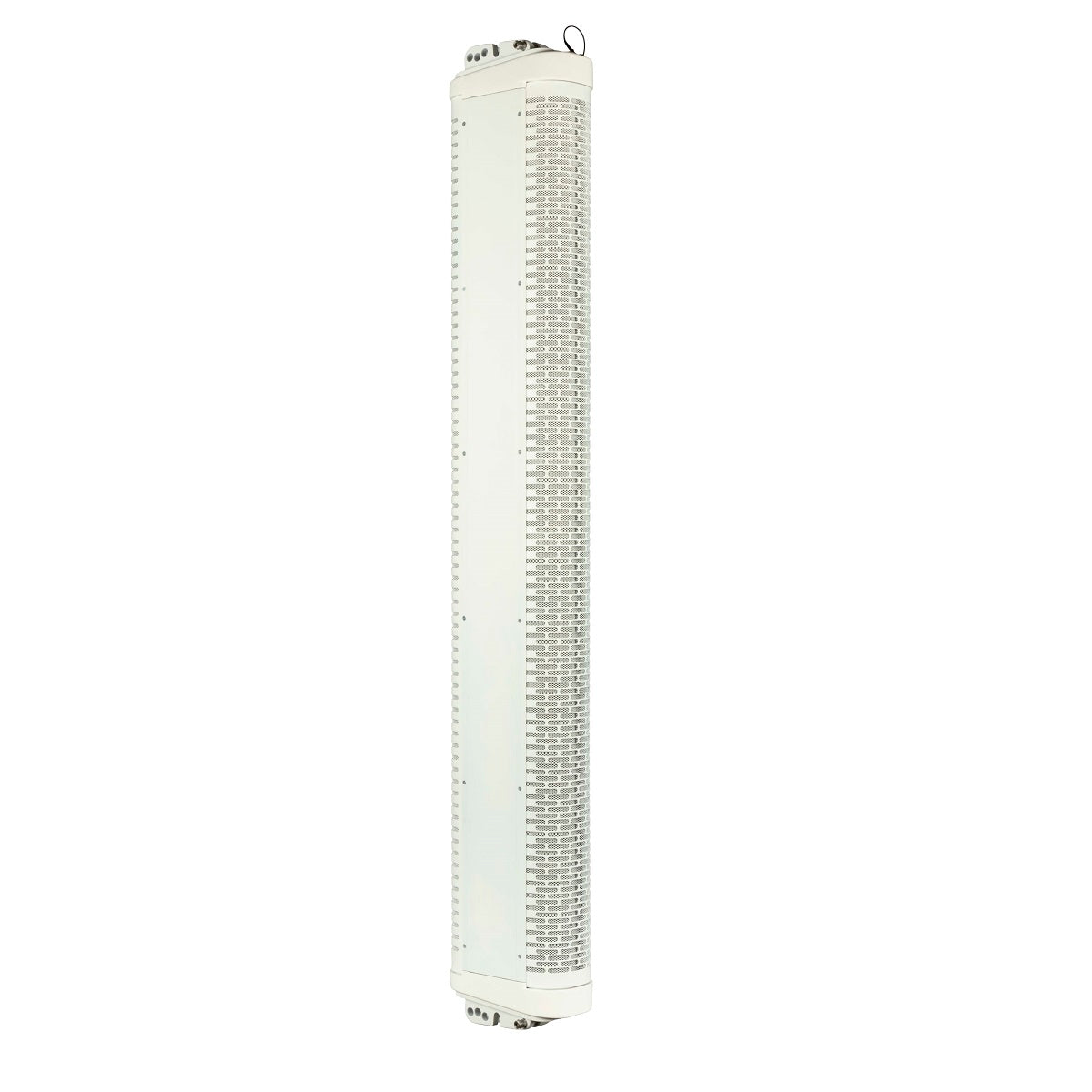

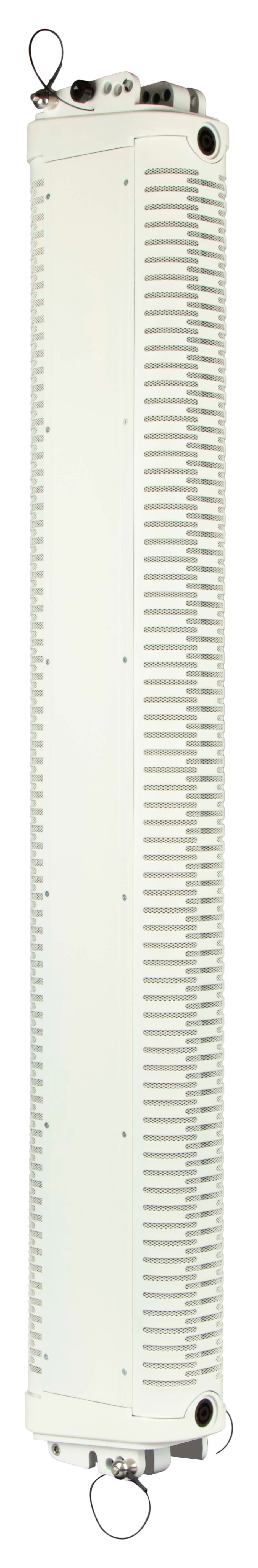

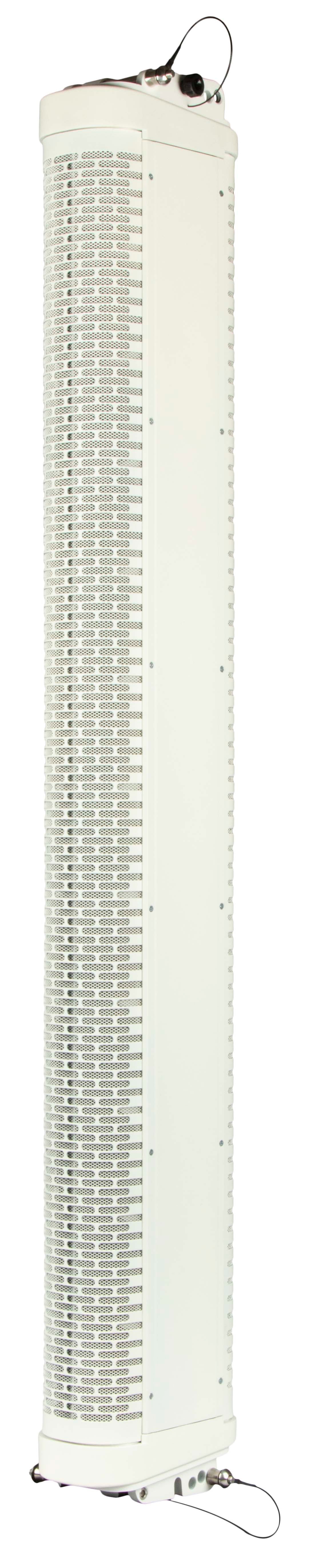

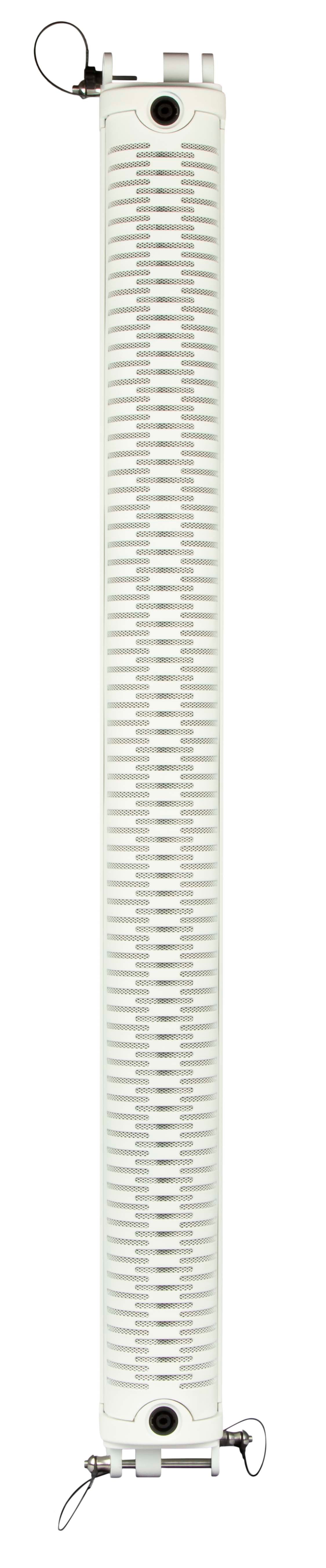

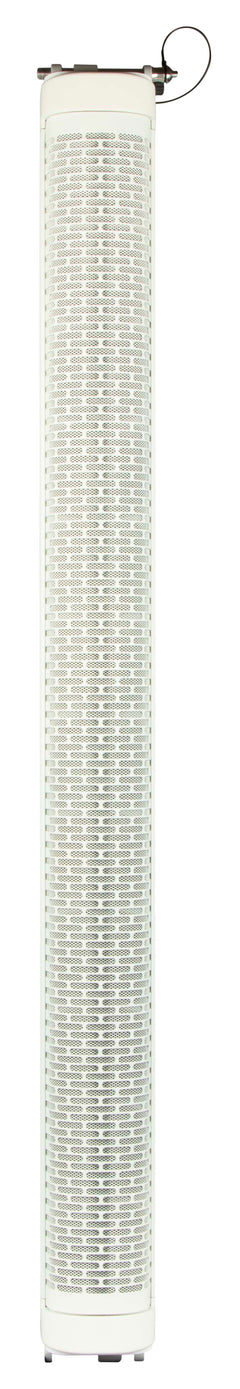

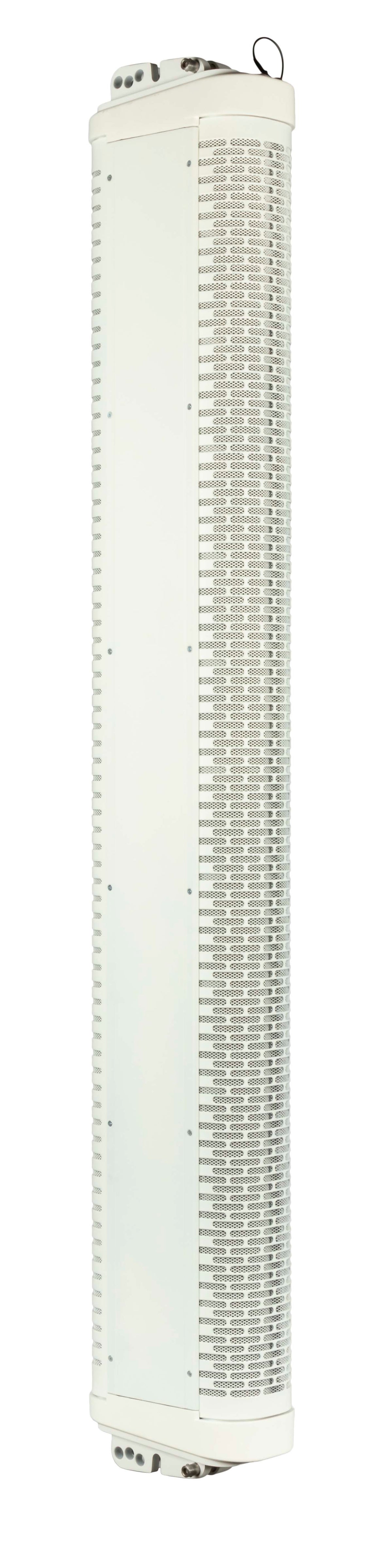

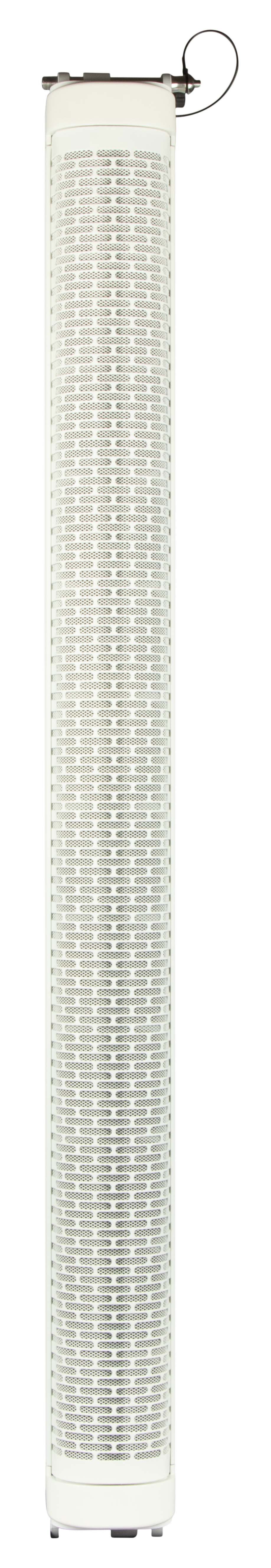

12 x 3.5", Passive, High-Power, Portable Line Array Element (White)
A passive portable line array element with twelve 3.5-inch neodymium drivers, 360 W continuous power and wide horizontal dispersion, in a white finish.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Overview
Twelve 3.5" neodymium transducers with waterproof cones suit portable and installed systems that need high power and clarity. The aluminum frame keeps the box light and strong.
A back-loaded transmission line gives clean mid-bass and natural cardioid behavior. The Front Diffraction Waveguide (FDW) delivers wide horizontal dispersion for many applications.
The system
The AX12C pairs with the SW2100A, a compact 21" band-pass/bass-reflex subwoofer. The sub has a 4000 W Class D amplifier with power factor correction and Proel's 96 kHz / 40-bit CORE DSP.
One SW2100A amplifier channel drives up to four AX12C modules. The CORE DSP, also remote-controlled through PRONET AX, has presets for 1, 2 or 4 columns plus one user preset.
The standard system of four AX12C modules and two SW2100A subs delivers 8000 W total with line array dispersion, for high-performance portable sound reinforcement.
Rigging and accessories
The AX12C is easy to transport, and its integrated suspension system makes setup fast. Each unit comes with two aluminum brackets and four pins to join elements to each other or to the SW2100A. The brackets offer 0° and 2° inter-cabinet angles.
- KPTAX12C flybar for suspending up to 4 units
- KPTWAX12C wall bracket for up to 2 units
- KPTFAX12C floor stand
- KPTPOLEAX12C pole adapter
- KPTFAXC foam adapters for stage monitor or front-fill use
- AXCASE09 flight case for two AX12C and accessories
- AXCASE10 flight case for four AX12C and accessories
- COVERAX12C cover and carry bag for one AX12C
- PLG716 galvanized steel shackle
- ESO2500LU025 25 cm 4 x 4 mm speakON linking cable
Features and applications
- High-power passive portable line array element
- 360 W continuous, 720 W program power
- Transmission line back loading for clean mid-bass and natural cardioid behavior

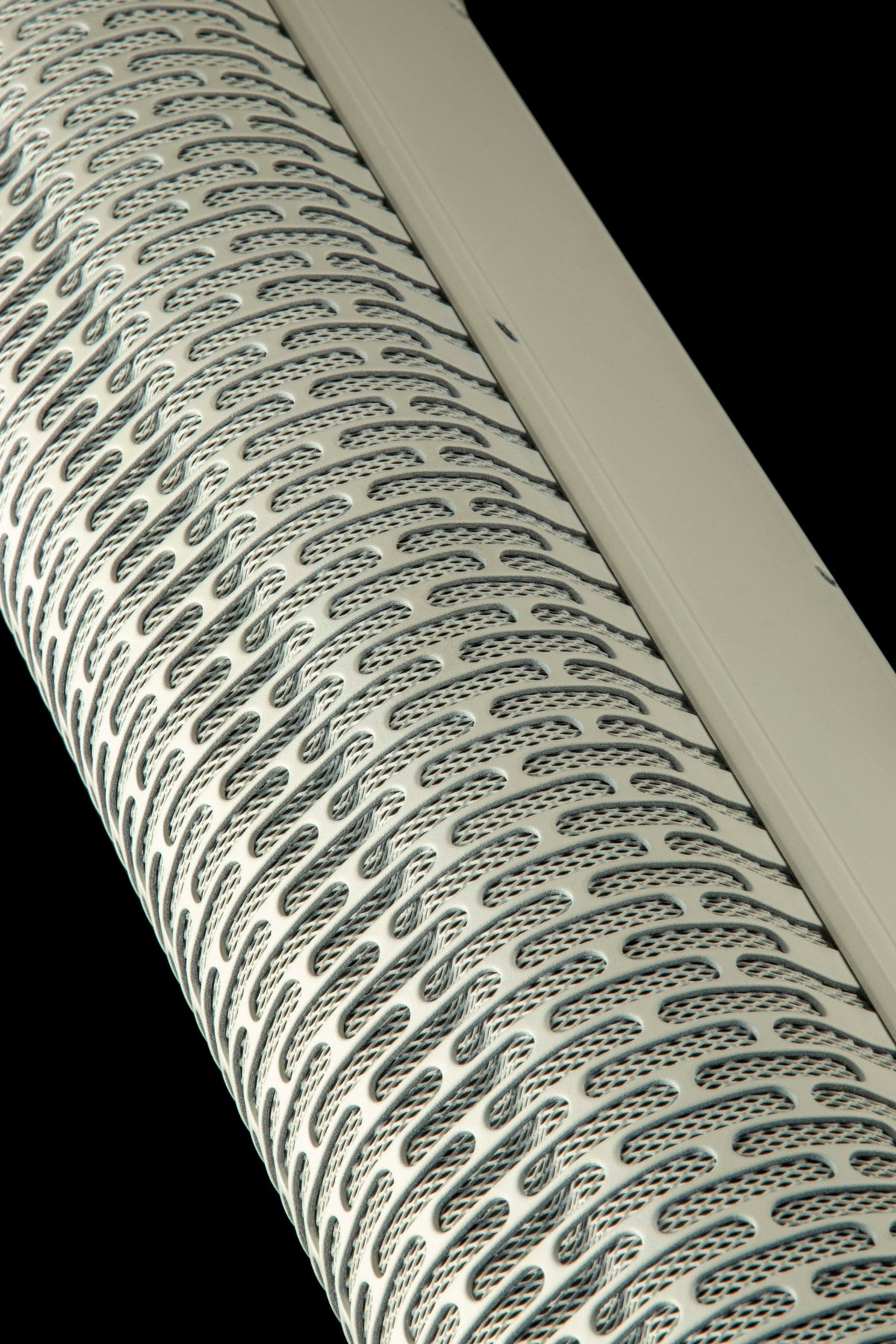

- Wide horizontal dispersion from the Front Diffraction Waveguide
- Fast integrated suspension system
- Black or white finish
- Portable systems for live bands and mobile DJs
- Installed systems for theaters, clubs, houses of worship and conference rooms
- Portable AV for corporate events
Specifications
The details that matter.
System
- System’s Acoustic Principle
- Line Array Element
- Short Transmission Line Back Loading
- Acoustic Diffractor
- Frequency Response (-6dB)
- 180 Hz - 16 kHz (Processed)
- Nominal Impedance
- 16 Ohm
- Horizontal Coverage Angle
- 100°
- Sensitivity (4V)
- 105 dB SPL @ 3.3 ft (1m)*
- Maximum (peak) SPL
- 130 dB SPL @ 3.3 ft (1m)*
Transducers
- Type
- 12 x 3.5" (88mm) Neodymium magnet woofers, 1" (25mm) VC
- Cone
- Waterproof Cone
- Voice Coil Type
- Ventilated voice coil
Input Connections
- Connector Type
- Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru)
Power Handling
- Continuous AES Pink Noise Power
- 360 W
- Program Power
- 720 W
Enclosure & Construction
- Width
- 4.2 in (107 mm)
- Height
- 45.9 in (1166 mm) - without flying system
- 47.7 in (1212 mm) - with flying system
- Depth
- 7.6 in (193 mm)
- Enclosure Material
- Aluminum
- Finishing
- Black anodization, black epoxy paint
- Flying system
- Aluminum Fast Link structure with dedicated pins
- Net Weight
- 28.6 lb (13 kg)
- *measured @13.1 ft (4 m) and scaled @3.3 ft (1 m)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
