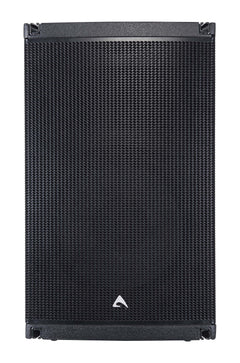

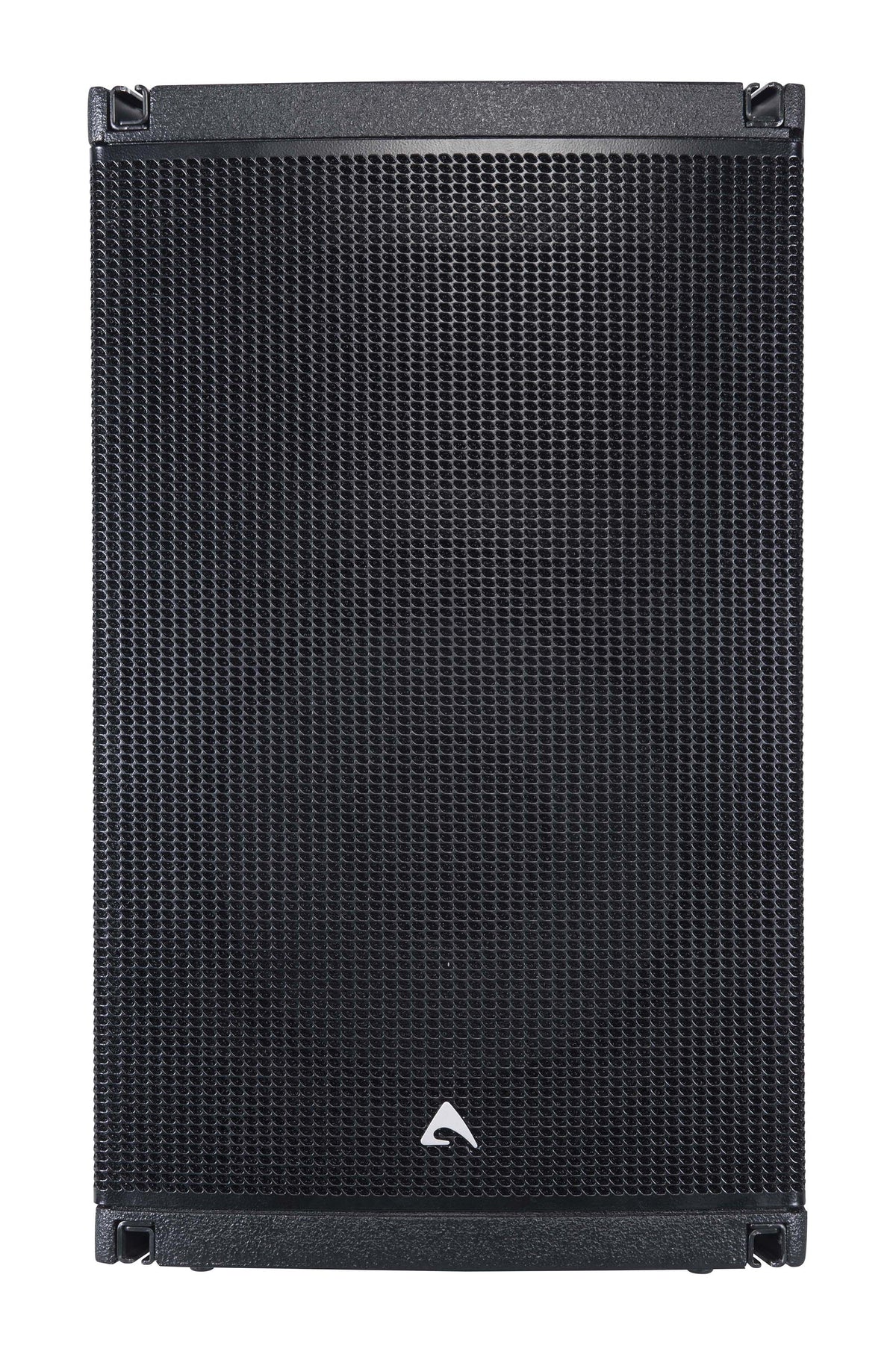

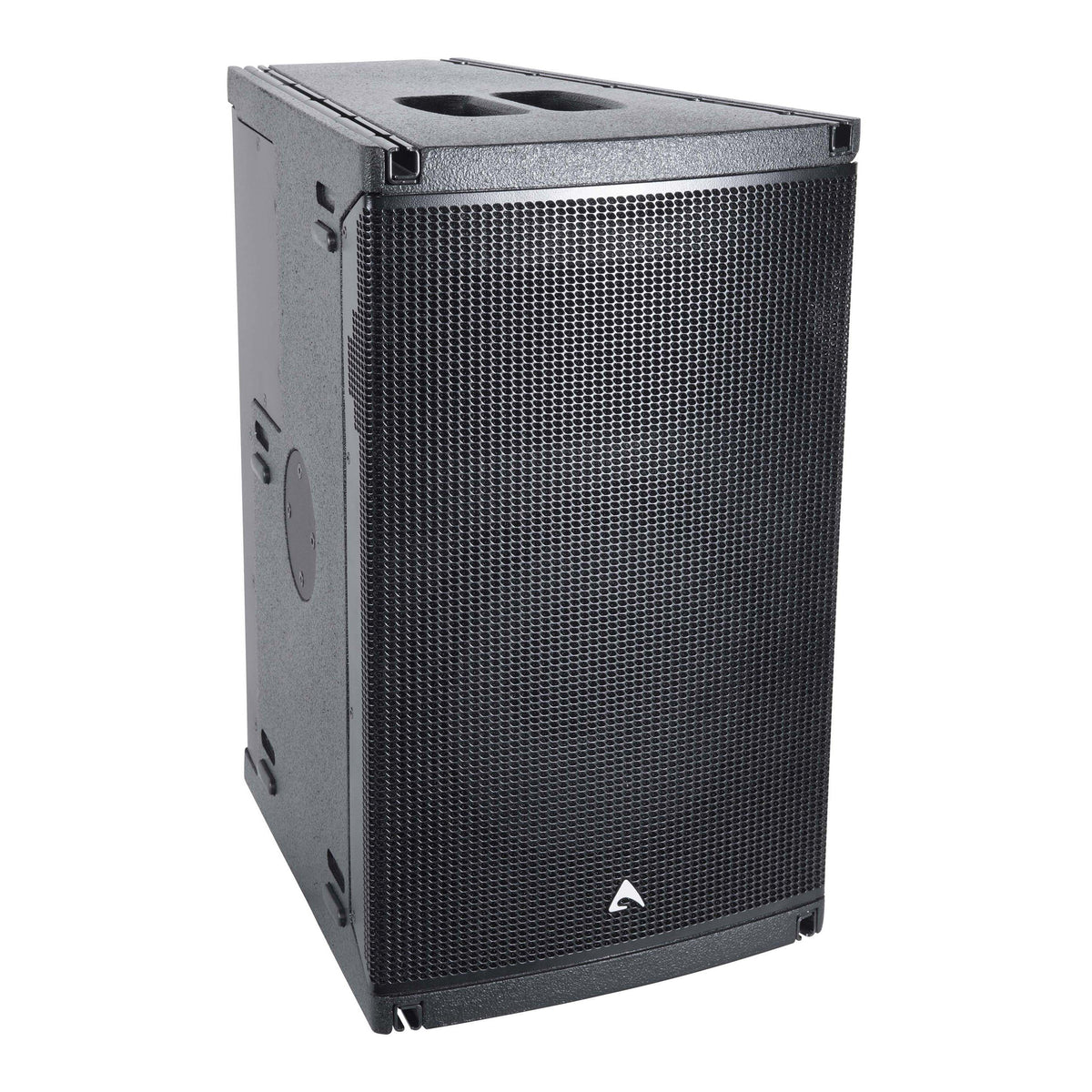

• Axiom AX1012P 12", Passive, 2-way, Full-Range, Constant Curvature Array Element
  • Axiom AX1012P 12", Passive, 2-way, Full-Range, Constant Curvature Array Element – view 2
  • Axiom AX1012P 12", Passive, 2-way, Full-Range, Constant Curvature Array Element – view 3
  • Axiom AX1012P 12", Passive, 2-way, Full-Range, Constant Curvature Array Element – view 4
  • Axiom AX1012P 12", Passive, 2-way, Full-Range, Constant Curvature Array Element – view 5

Axiom · Stage Equipment

12", Passive, 2-way, Full-Range, Constant Curvature Array Element

Item AX1012P · Made in Italy

A passive 12-inch, 2-way constant curvature array element with 100° x 20° coverage for horizontal or vertical line source arrays.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Key features

The AX1012P builds vertical or horizontal line source arrays and also works as a high-directivity point-source loudspeaker.

  • Constant curvature array element
  • 12" woofer and 1.4" neodymium HF compression driver
  • Seamless Transition Waveguide (STW) with 100° H x 20° V dispersion

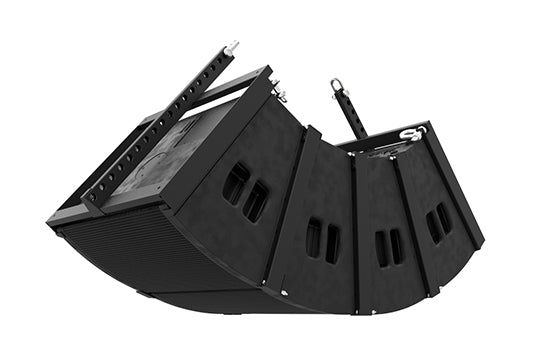

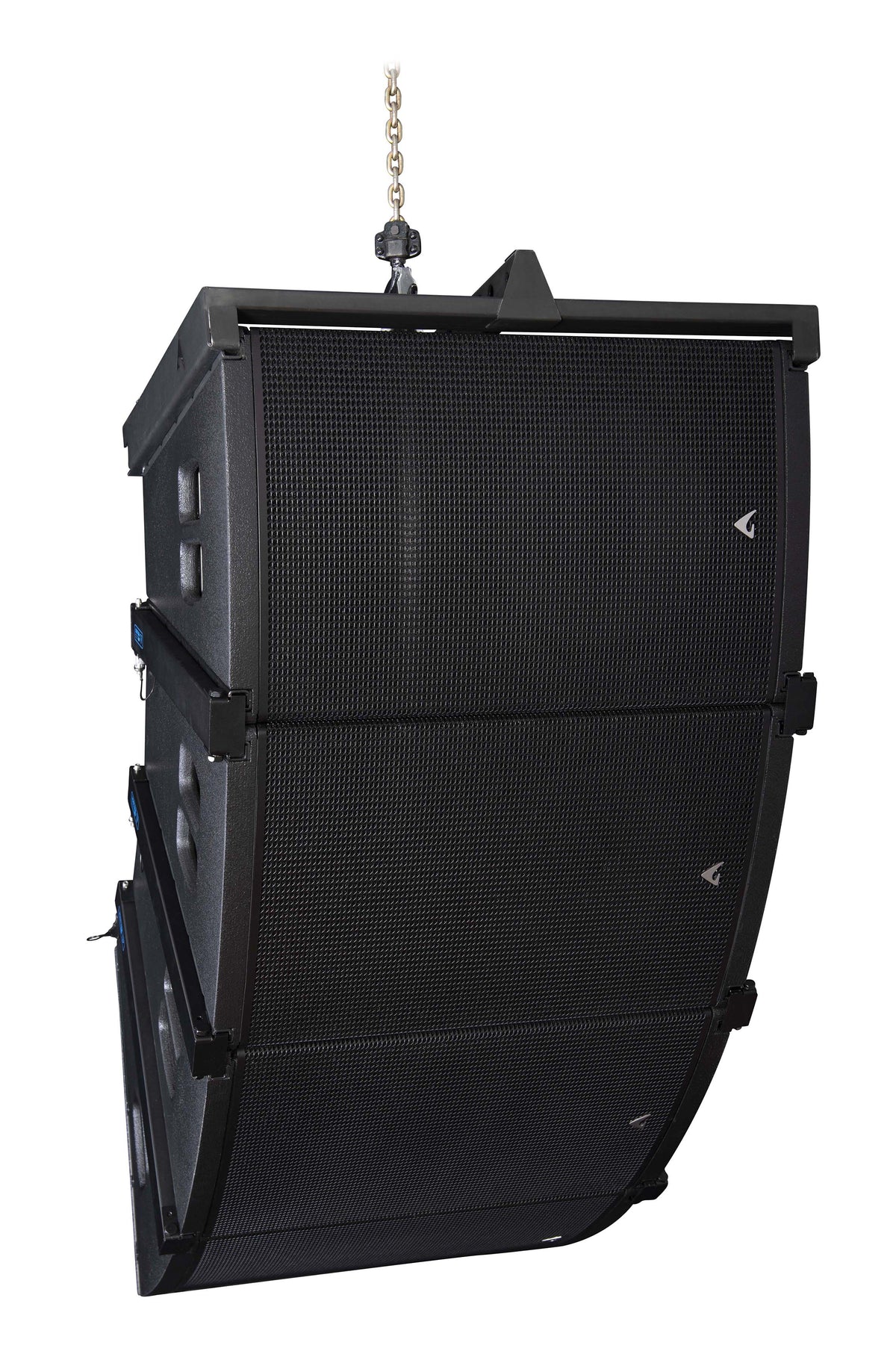

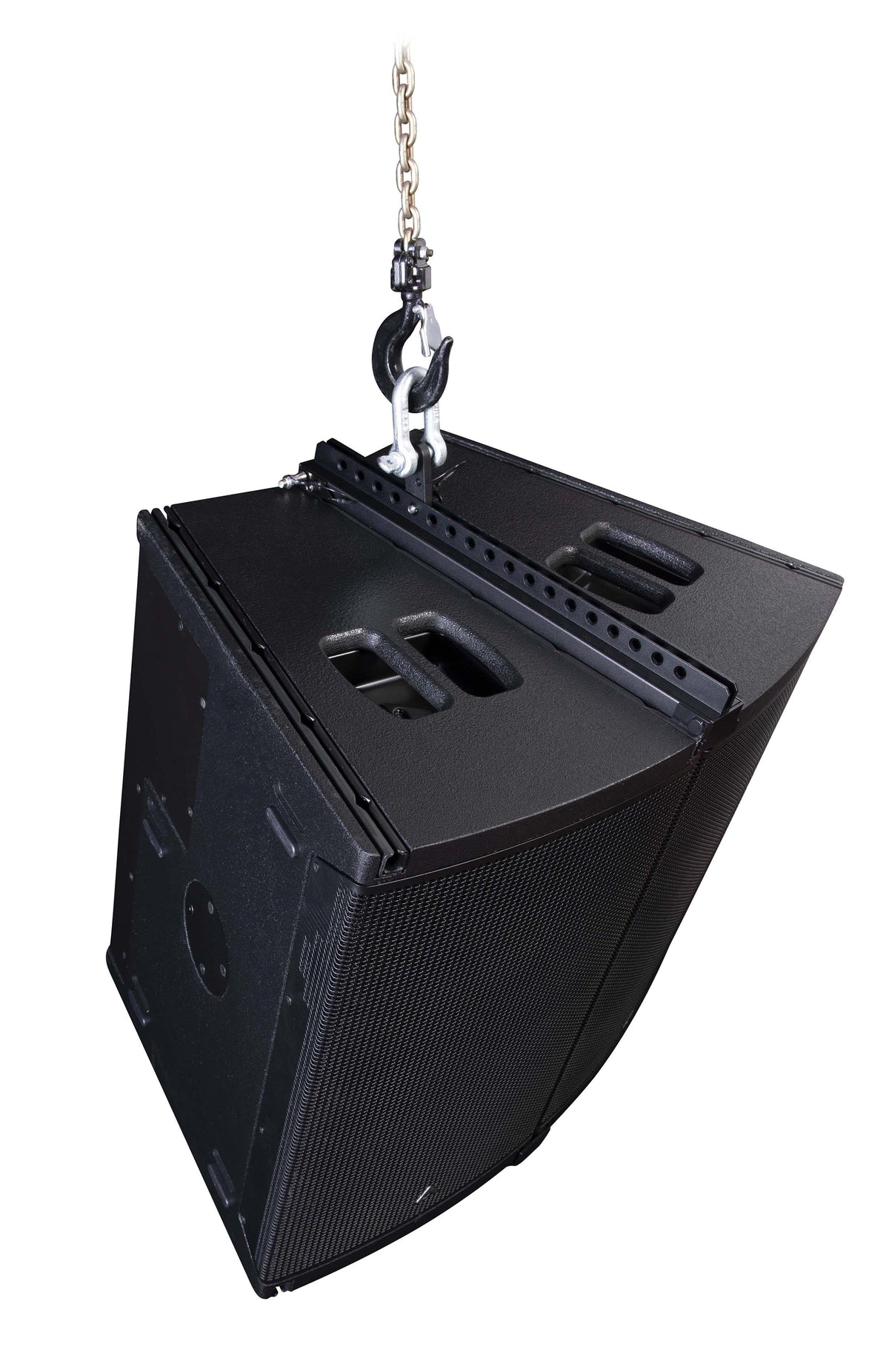

  • Integral suspension hardware for horizontal or vertical arrays
  • Pole mounting for free-standing use

Waveguide and coverage

The 1.4" compression driver is coupled to a constant curvature precision waveguide. It precisely controls mid and high frequencies on both axes for tight acoustic coupling between cabinets. The horizontal pattern holds down to about 950 Hz.

Music and vocals reach the audience evenly, without hot spots or dead spots. Sharp off-axis rejection keeps sound away from reflective surfaces. You can build true horizontal or vertical line source arrays in seamless 20° blocks.

Construction and applications

The tour-grade 15 mm phenolic birch plywood cabinet has four integrated steel rails for aluminum coupling bars. Accessories cover horizontal and vertical arrays, ground stacking, and pole mounting of one or two units.

Add Axiom SW series subwoofers such as the SW18P to extend the low end. It suits indoor left-center-right systems, medium outdoor events, and out-fill, in-fill or distributed fill for larger systems.

  • Live venues, small to medium size
  • Side-fill, out-fill or in-fill
  • Delay systems in stadiums and arenas
  • Theaters
  • Corporate A/V
  • Theme parks
  • Houses of worship
  • Leisure and fitness

Specifications

The details that matter.

Manuals & Downloads

Version
Passive (needs an external amplifier). The P in the model number means Passive; the active version is AX1012A.

System

System’s Acoustic Principle
Constant Curvature Array Element
Frequency Response (-6dB)
65 Hz – 17 kHz (processed)
Nominal Impedance
8 Ω (LF) + 8 Ω (HF)
Horizontal Coverage Angle
100° (-6dB)
Vertical Coverage Angle
20° (-6dB)
Sensitivity 2.83V
101 dB SPL @ 3.3 ft (1m) (LF) - 106 dB SPL @ 3.3 ft (1m) (HF)
Maximum (peak) Output
134 dB SPL @ 3.3 ft (1m)

Transducers

LF
12" ferrite magnet low frequency woofer - 3" aluminum VC
HF
1.4" exit, neodymium magnet compression driver - 2.4" Aluminum VC

Input Connections

Connector Type
Neutrik® speakON™ NL4MP x 2
Input Wiring
LF = Pin 1+/1- HF = Pin 2+/2-

Power Handling

Input Power Rating (AES)
600W + 75W
Input Power Handling (Program)
1200W + 150W

Enclosure & Construction

Width
9.7 in (246 mm)
Height
24 in (611 mm)
Depth
19.7 in (500 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Flying system
Captive suspension system
Net Weight
63.9 lb (29 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
