Axiom · Stage Equipment

8 x 2.5" High-Power, Passive, Portable Line Array Element

New · Item AX8CL · Made in Italy

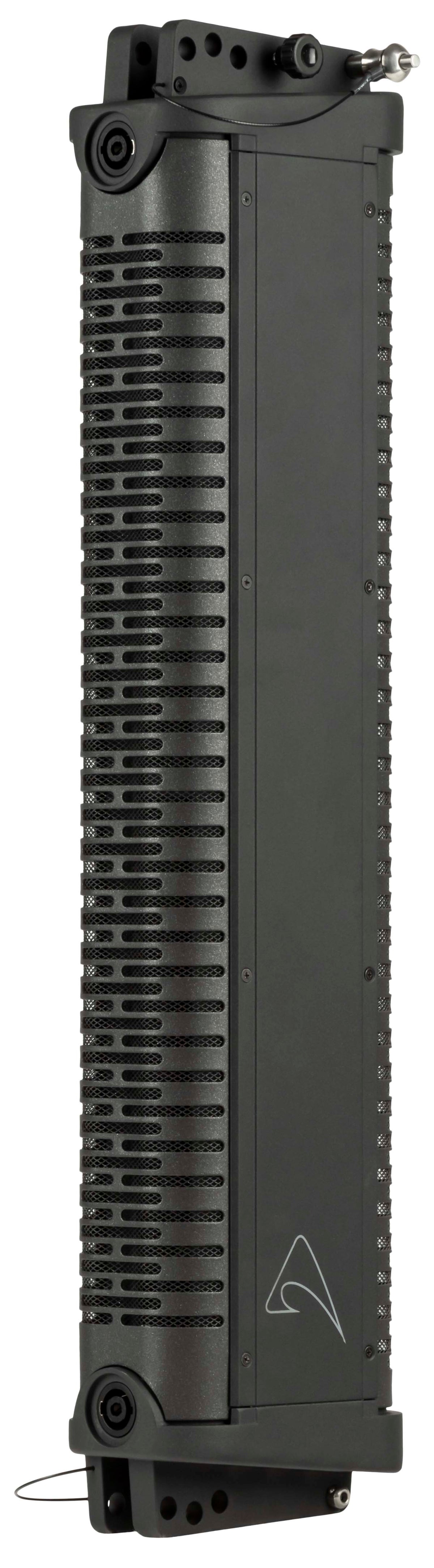

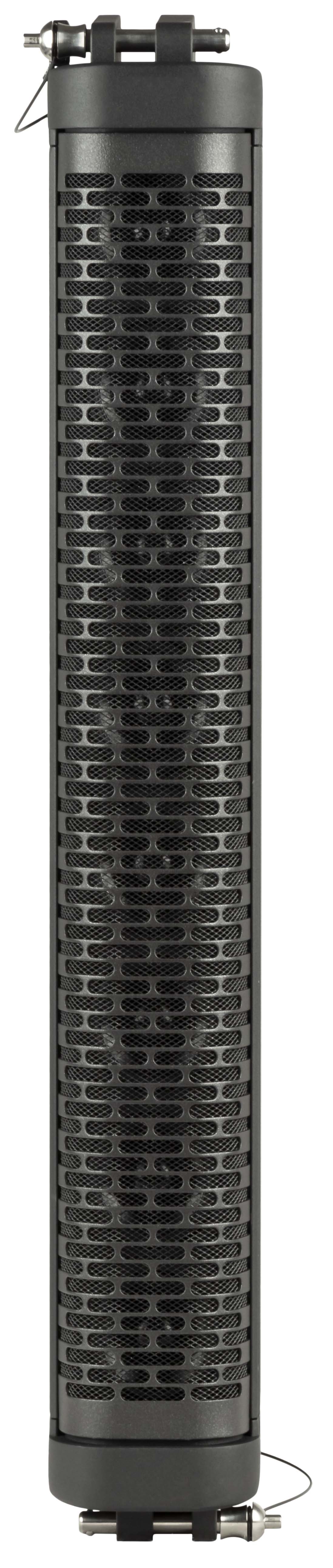

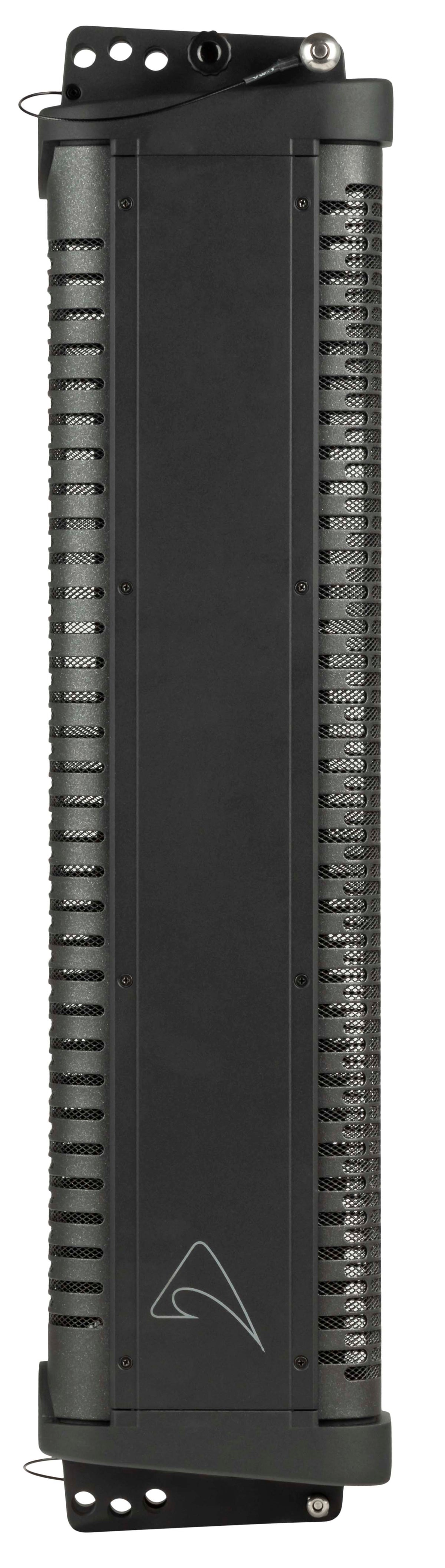

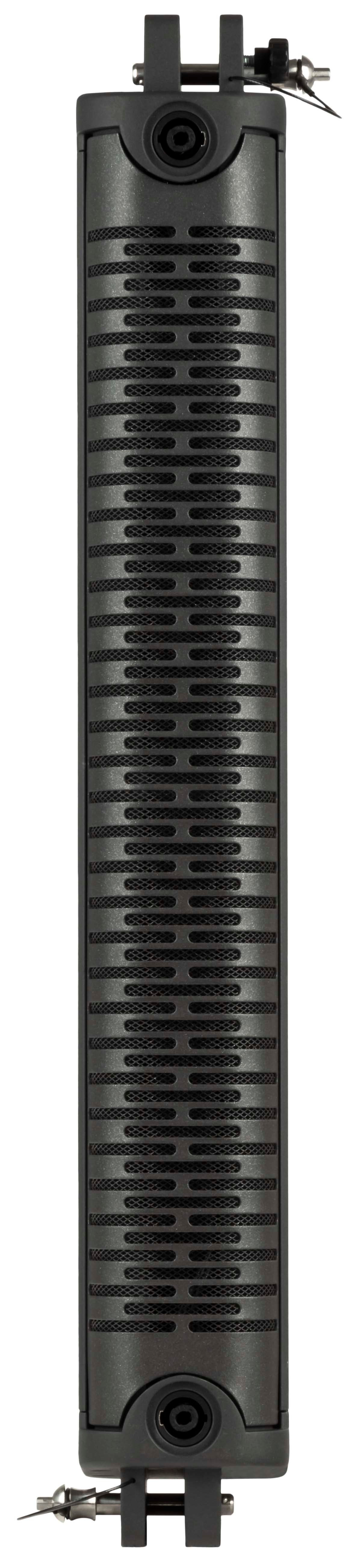

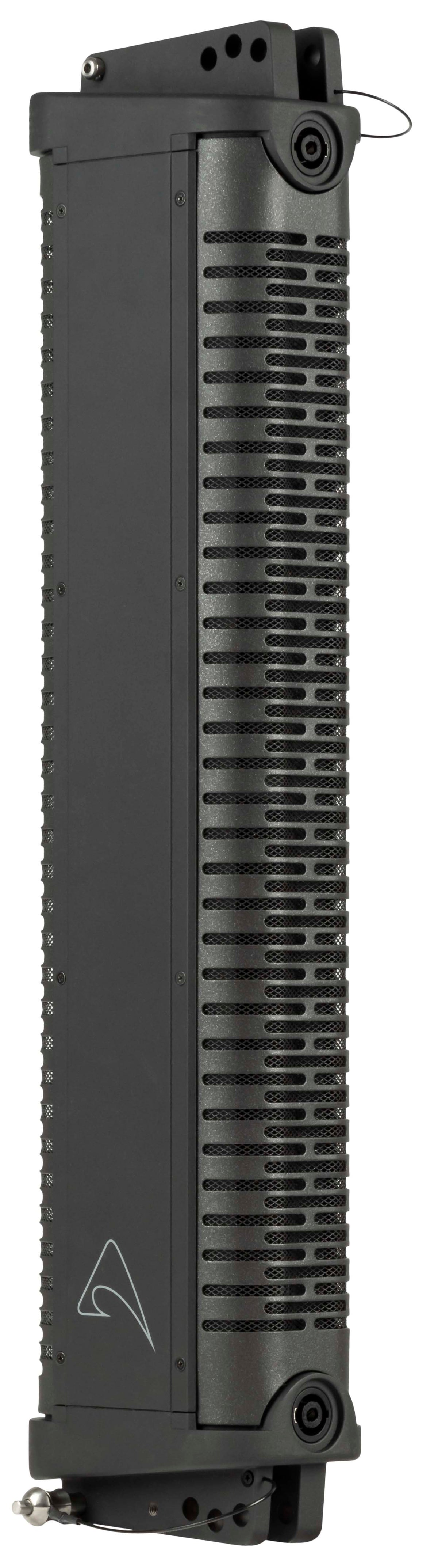

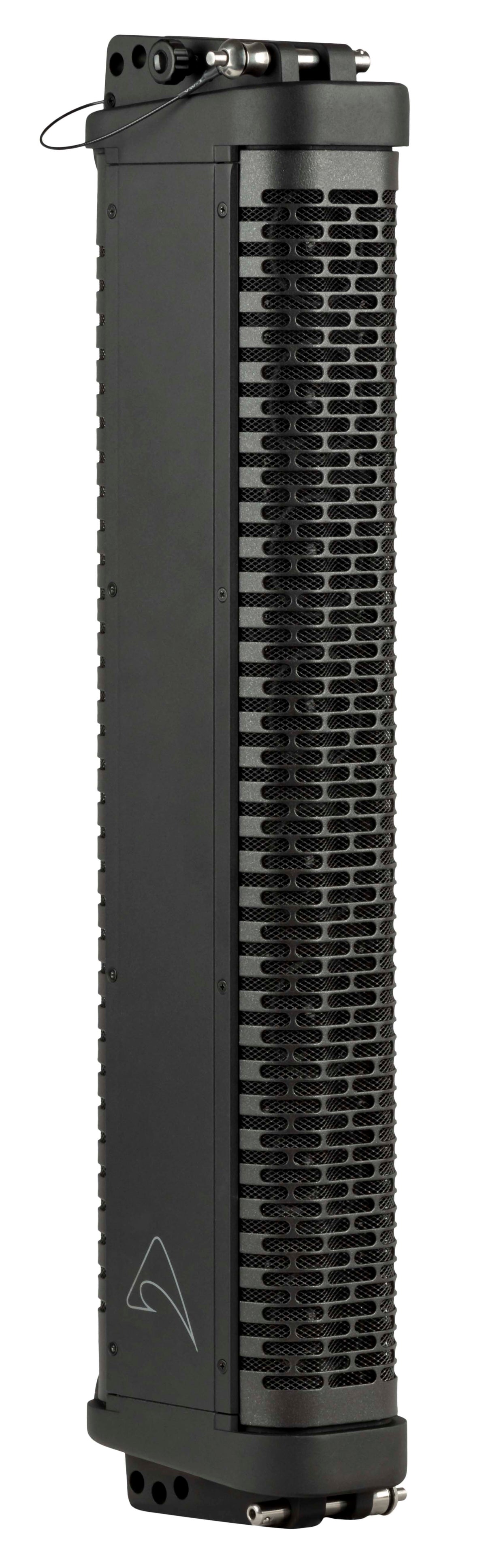

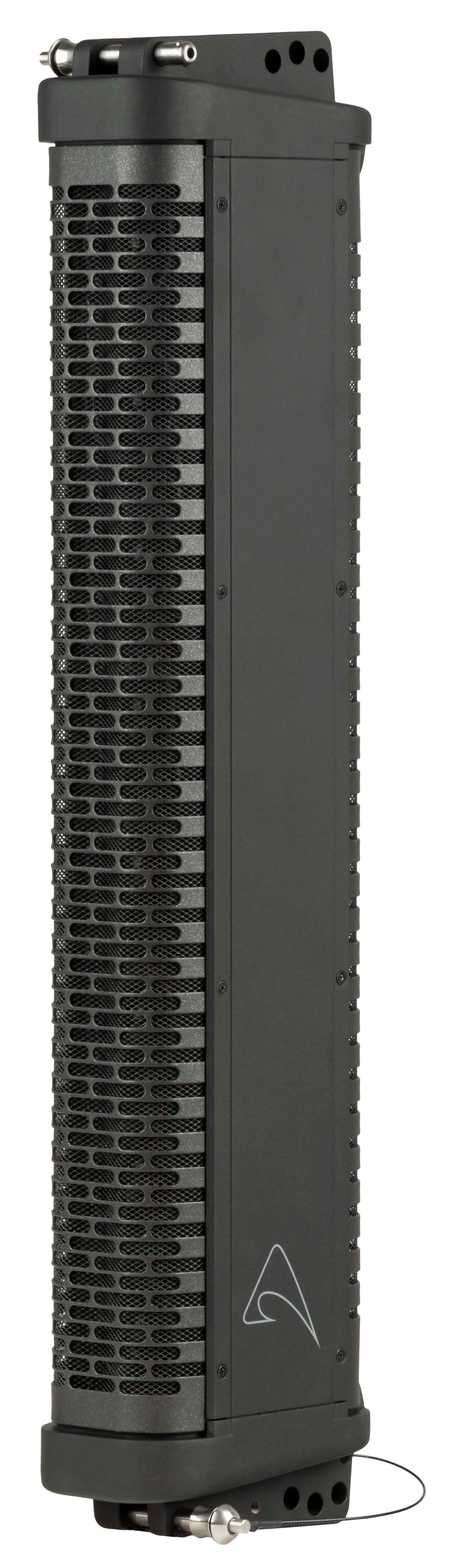

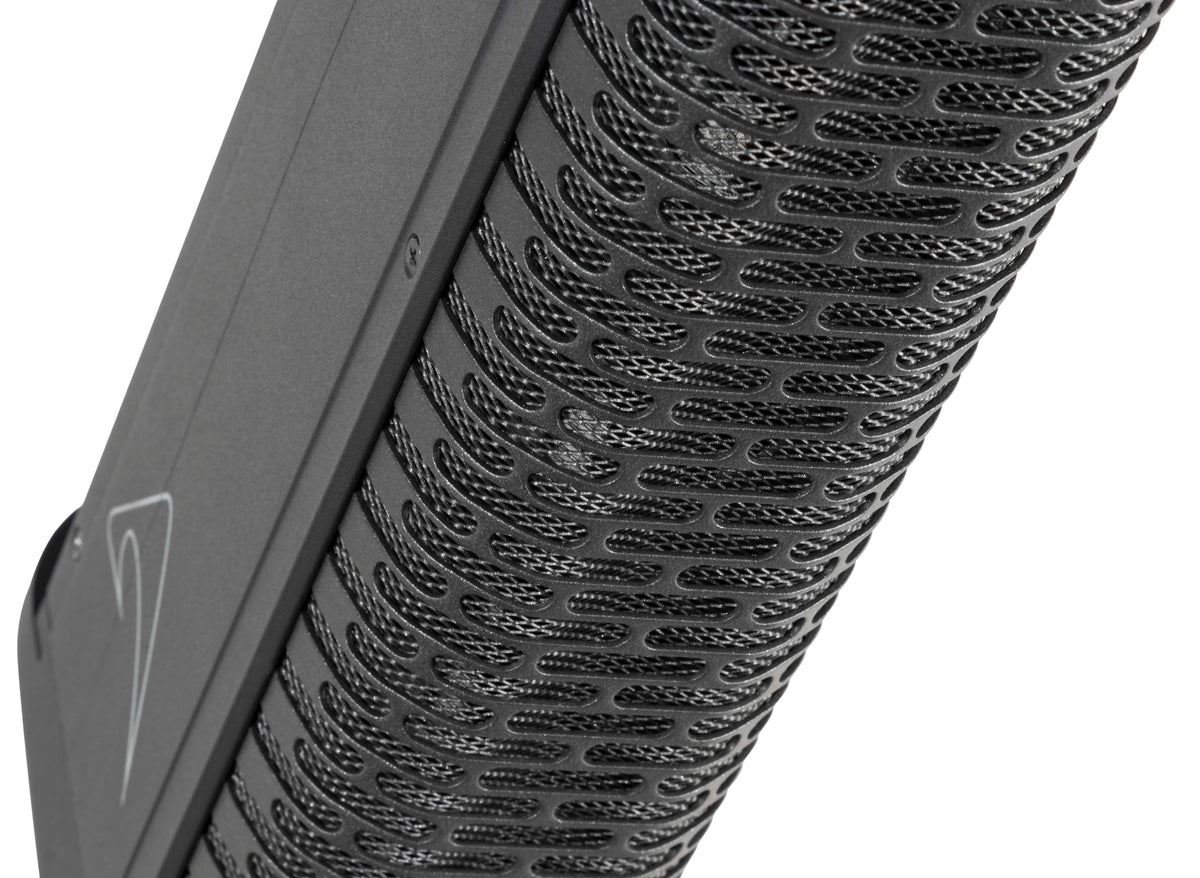

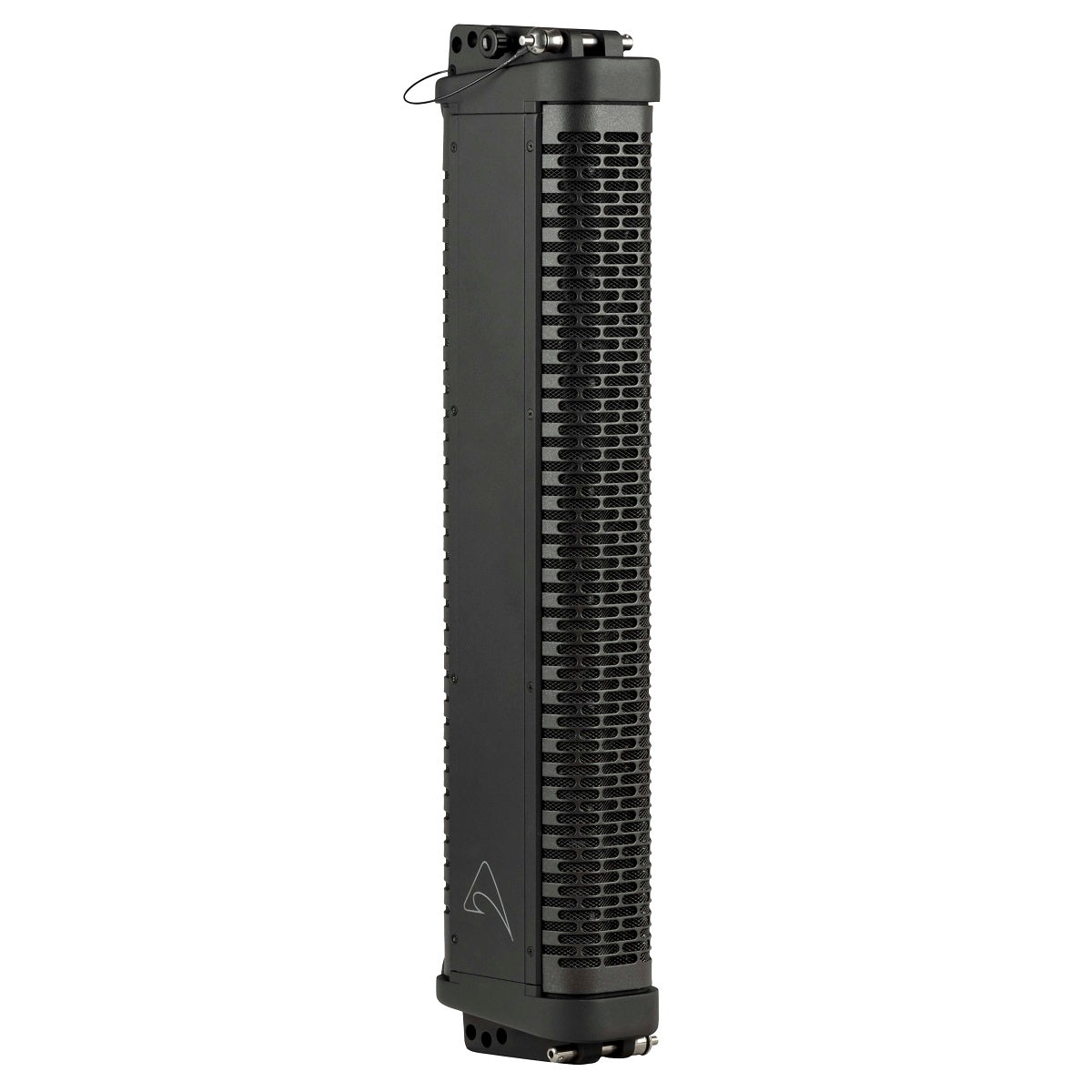

A passive, portable column line array element with eight 2.5-inch neodymium woofers, 320 W program power and an aluminum enclosure.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design and use

The AX8CL is a passive column module for portable and permanent installations. It works alone or in multi-column arrays. Typical uses include fixed installs, front fill, under-balcony coverage and low-profile stage monitoring.

Drivers

Eight 2.5" (66 mm) neodymium woofers have waterproof cones and ventilated voice coils. Horizontal coverage is 80°, with a maximum peak SPL of 122 dB at 1 m. Program power is rated at 320 W.

Rigging and system use

Each unit comes with two aluminum brackets and two pins, for inter-cabinet angles of 0°, 2° or 4°. The AX8CL pairs with AX16CL columns and the SW212A subwoofer. One SW212A channel can drive up to eight AX8CL modules.

Specifications

The details that matter.

Manuals & Downloads

System

System’s Acoustic Principle
Line Array Element
Short Transmission
Line Back Loading
Frequency Response (±3dB)
200 Hz – 16kHz (Processed)
Nominal Impedance
64 Ohm
Minimum Impedance
49 Ohm
Horizontal Coverage Angle
80° (-6dB)
Sensitivity (4V)
94 dB SPL @ 3.3 ft (1m)*
Maximum Peak SPL @ 1m
122 dB

Transducers

Type
8 x 2.5" (66mm) Neodymium magnet woofers, 0.8" (20mm) VC
Waterproof Cone
Waterproof Cone
Ventilated voice coil
Ventilated voice coil

Input Connections

Connector Type
Neutrik® Speakon® NL4 x 2
(1+/1- signal IN & LINK ; 2+/2- thru)

Power Handling

Continuous AES Pink Noise Power
160 W
Program Power
320 W

Enclosure & Construction

Dimensions (W x H x D)
3.54 in (90 mm) x 25.76 in (654 mm) x 6.06 in (154 mm)
Enclosure Material
Aluminum
Paint
High resistance, water based paint, black or white finish
Flying system
Aluminum Fast Link structure with dedicated pins
Net Weight
12.2 lb (6 kg)
*measured @13.1 ft (4 m) and scaled @3.3 ft (1 m)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
