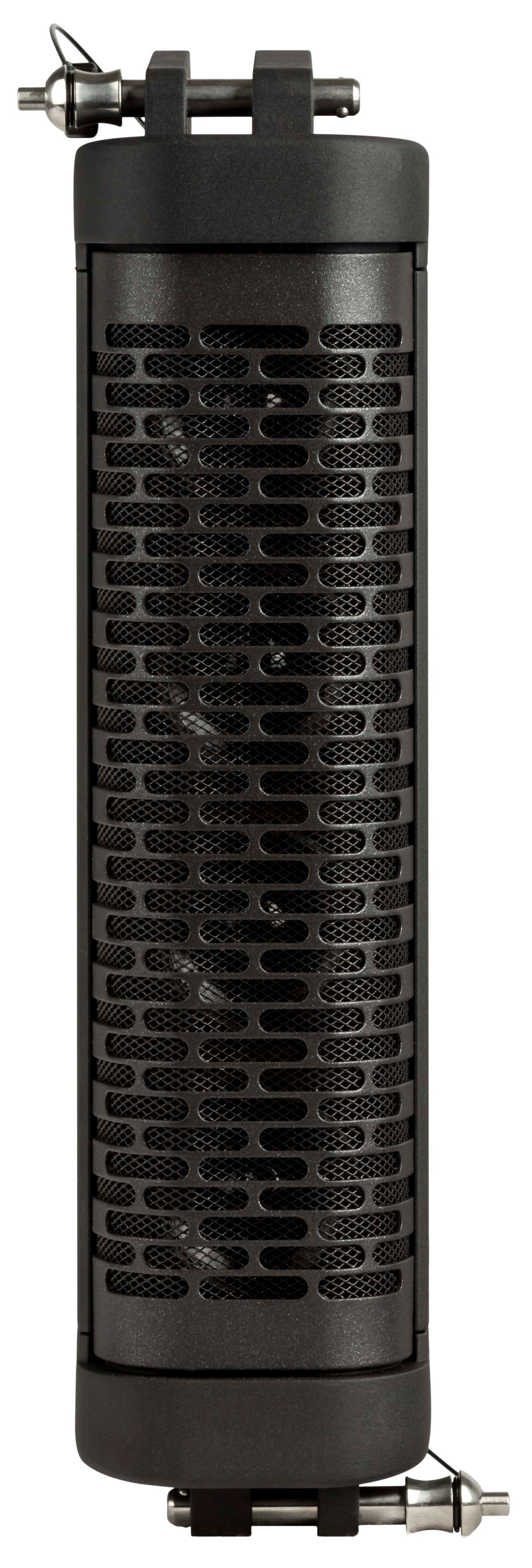

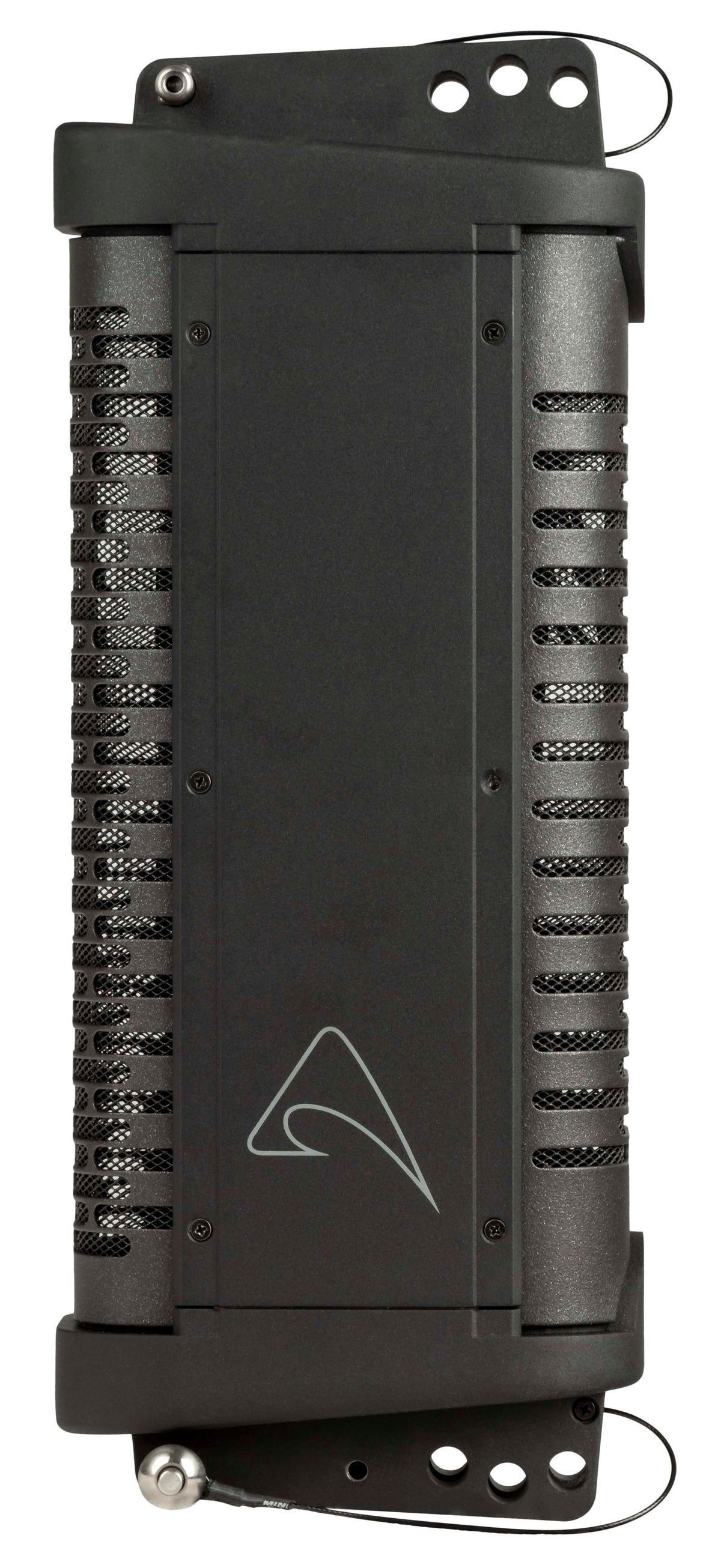

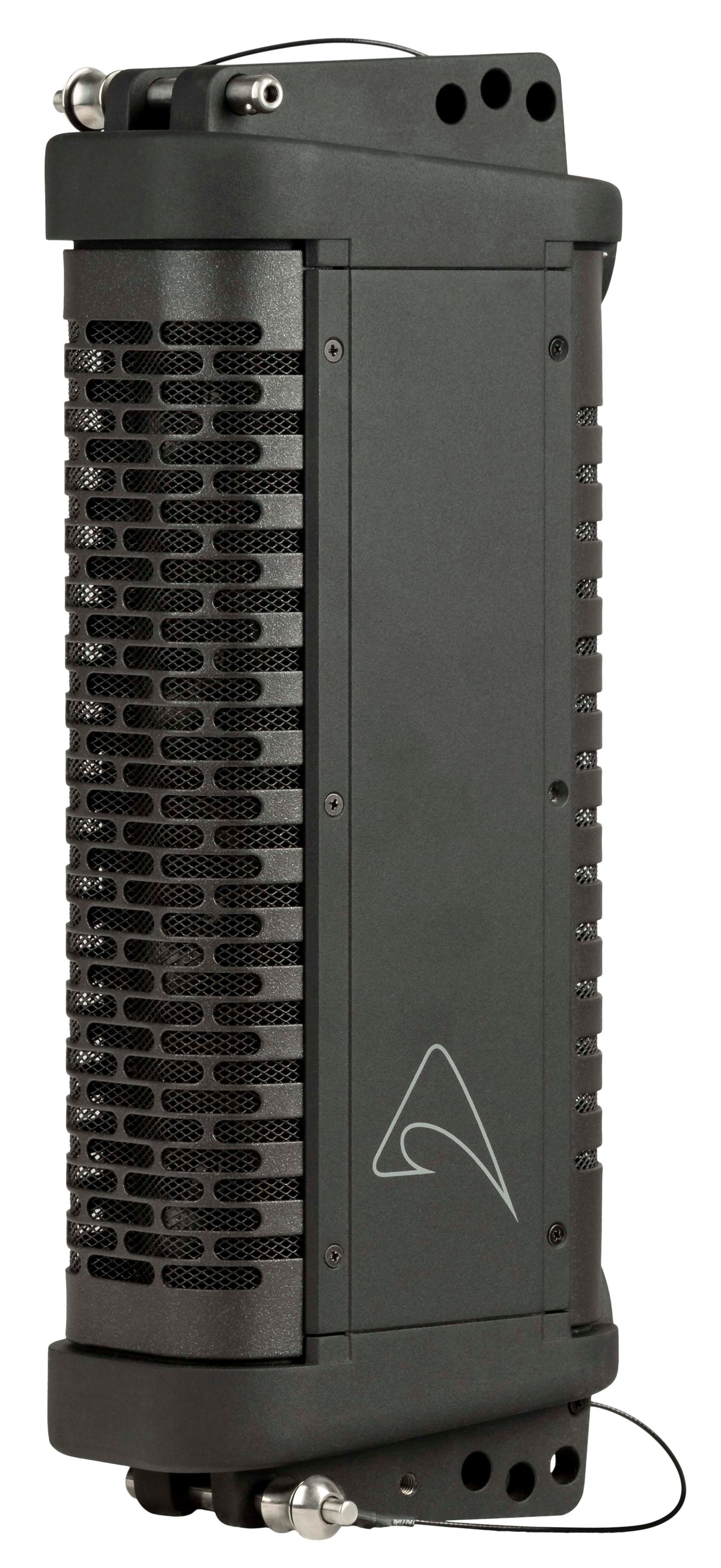

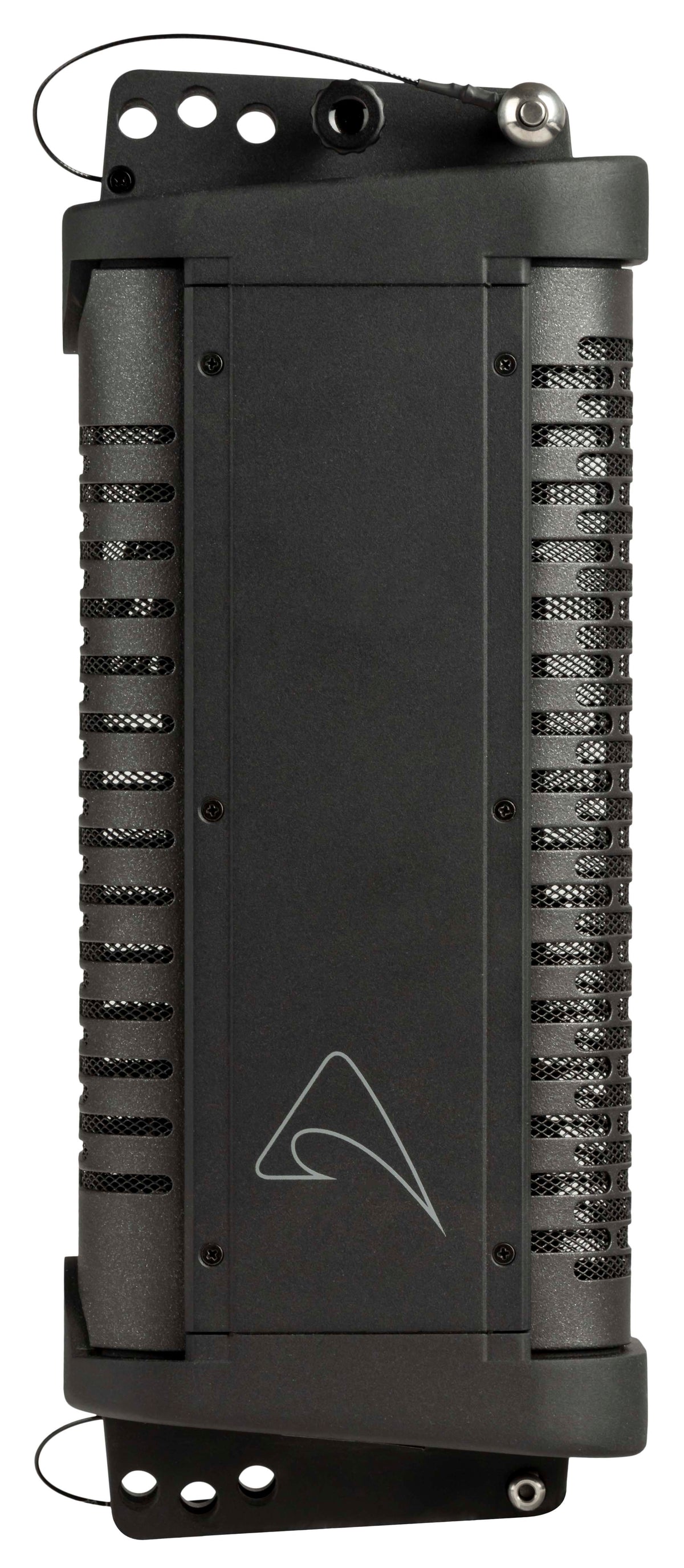

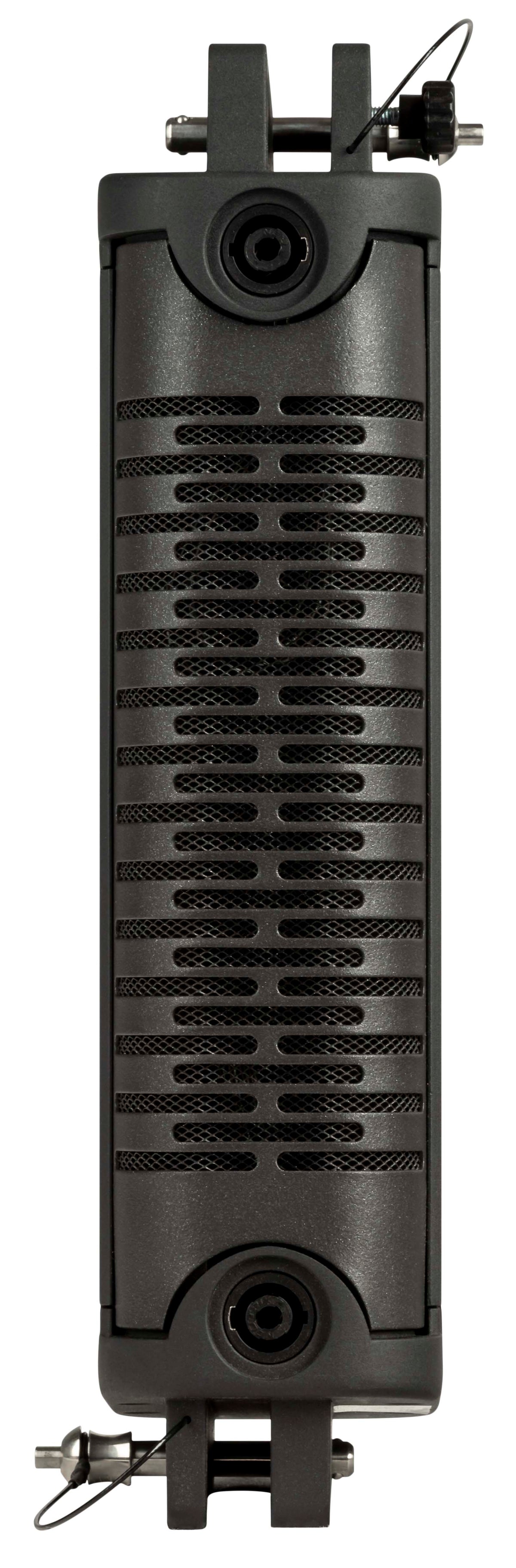

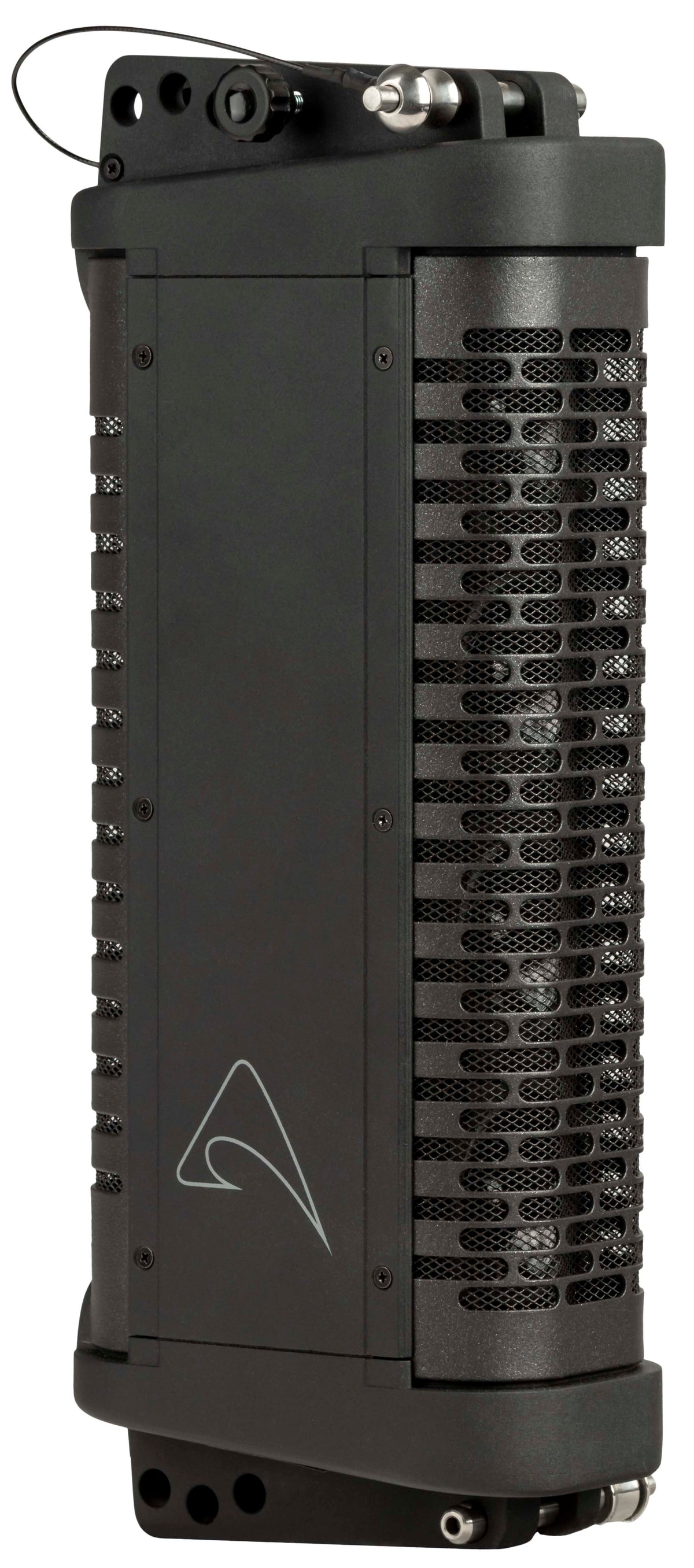

AXIOM 4 x 2.5" High Power, Passive, Portable Line Array Element

System

System’s Acoustic Principle

Line Array Element
Short Transmission
Line Back Loading

Frequency Response (±3dB)

200 Hz – 16kHz (Processed)

Nominal Impedance

32 Ohm

Minimum Impedance

23.7 Ohm

Horizontal Coverage Angle

80° (-6dB)

Sensitivity (4V)

91 dB SPL @ 3.3 ft (1m)*

Maximum Peak SPL @ 1m

116 dB

Transducers

Type

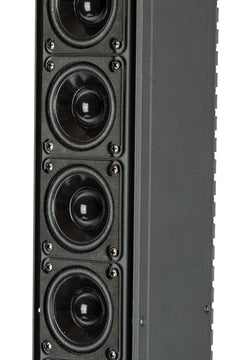

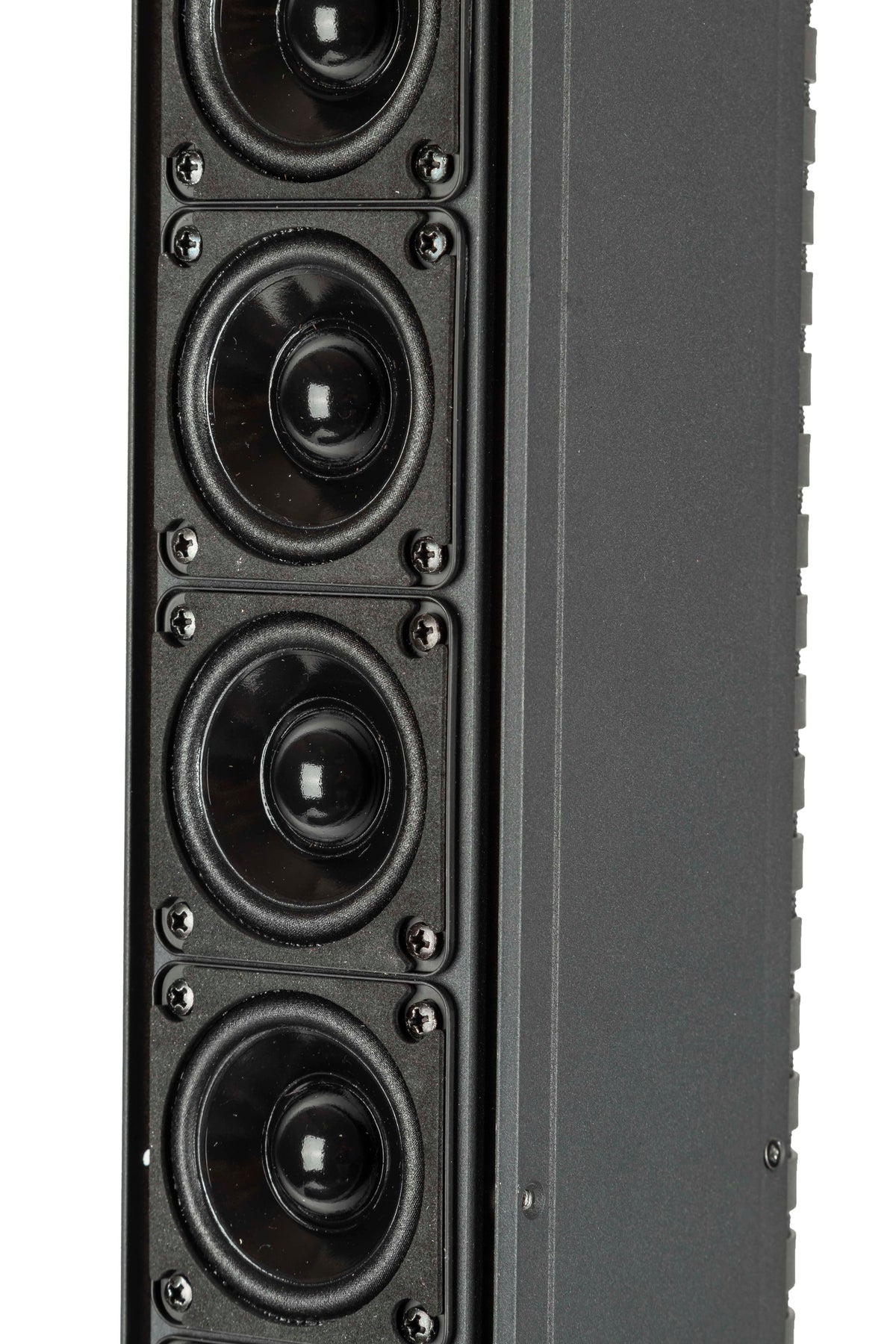

4 x 2.5" (66mm) Neodymium magnet woofers, 0.8" (20mm) VC

Waterproof Cone

Waterproof Cone

Ventilated voice coil

Ventilated voice coil

Input Connections

Connector Type

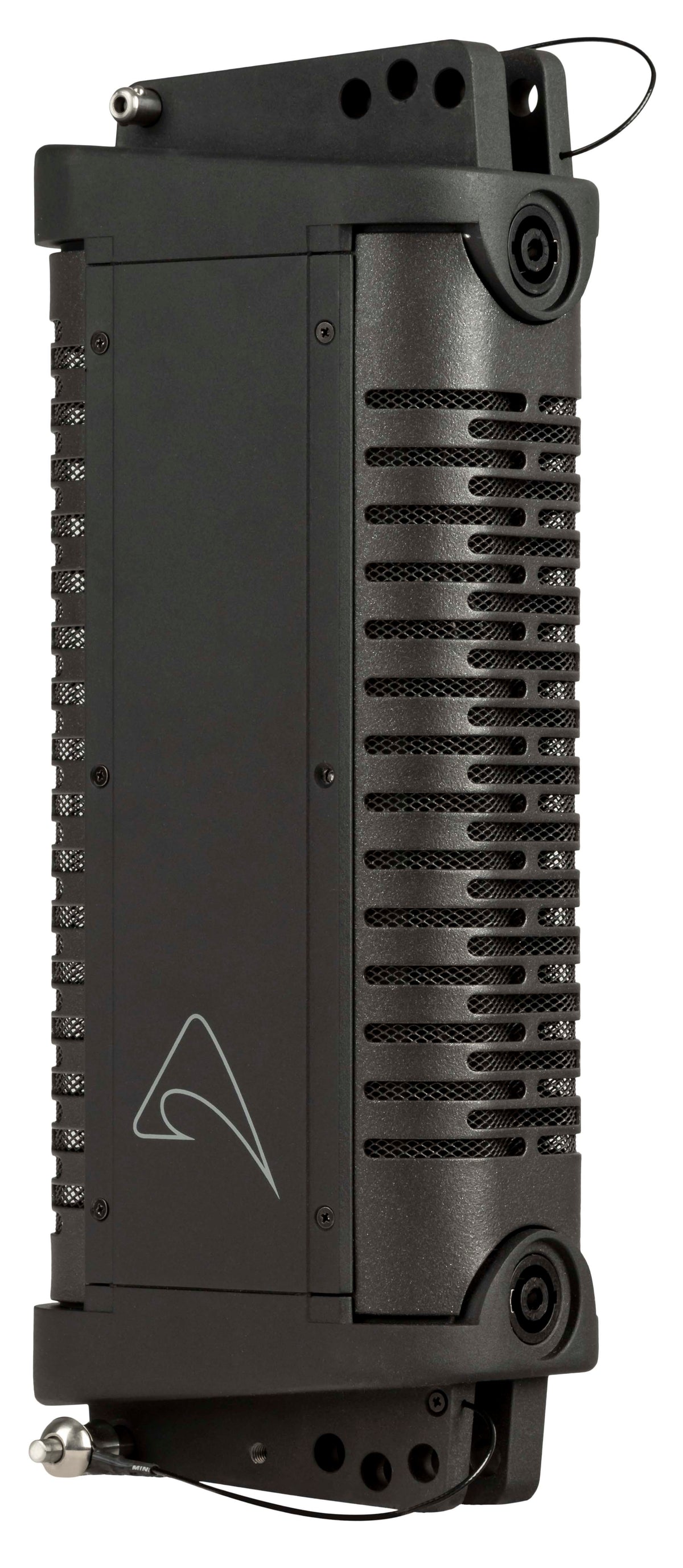

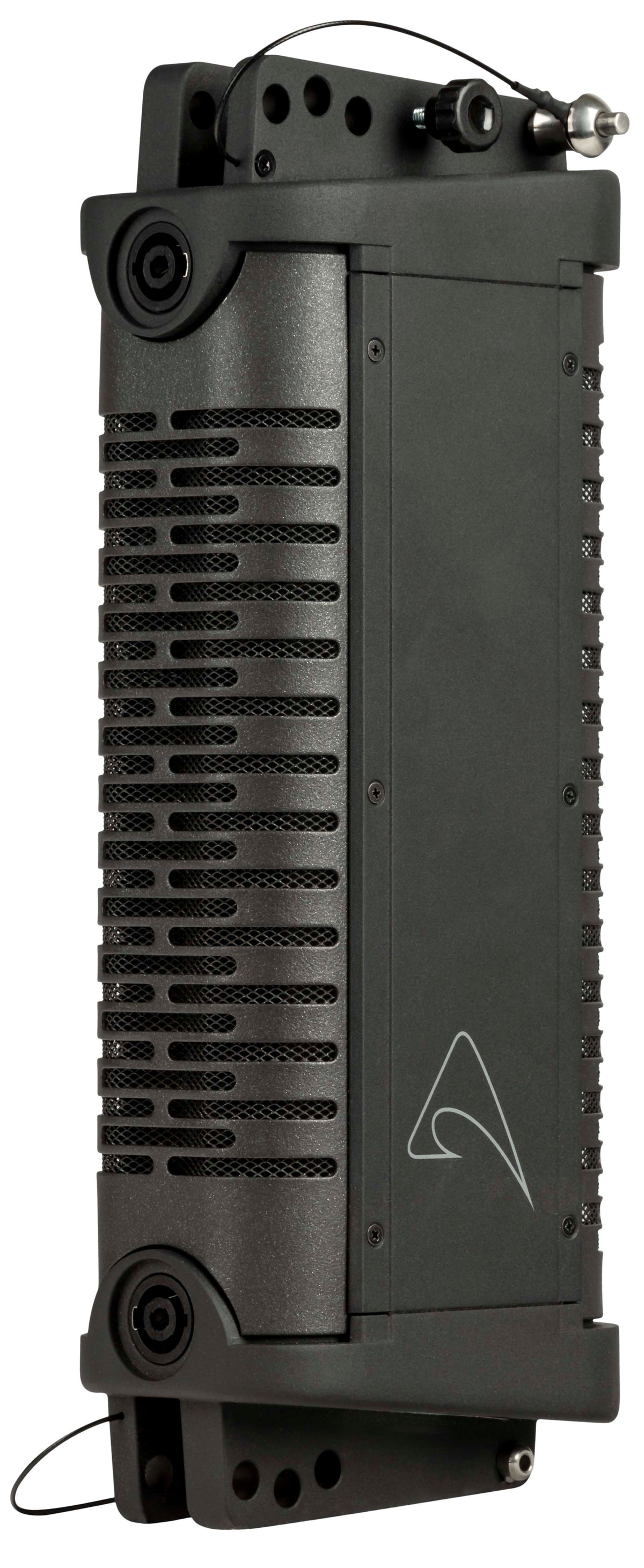

Neutrik® Speakon® NL4 x 2
(1+/1- signal IN & LINK ; 2+/2- thru)

Power Handling

Continuous AES Pink Noise Power

80 W

Program Power

160 W

Enclosure & Construction

Dimensions (W x H x D)

3.54 in (90 mm) x 15.3 in (390 mm) x 6.06 in (154 mm)

Enclosure Material

Aluminum

Paint

High resistance, water based paint, black or white finish

Flying system

Aluminum Fast Link structure with dedicated pins

Net Weight

8.8 lb (4 kg)

*measured @13.1 ft (4 m) and scaled @3.3 ft (1 m)

Warranty

Standard

2 years from the date of purchase at an authorized Proel North America dealer
