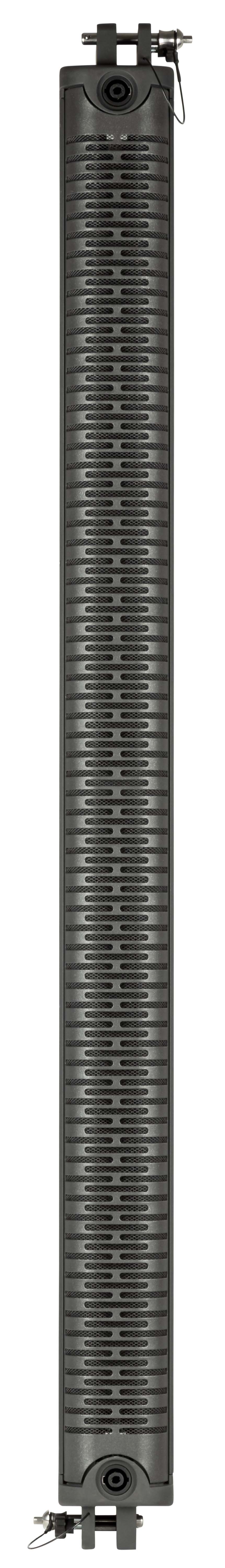

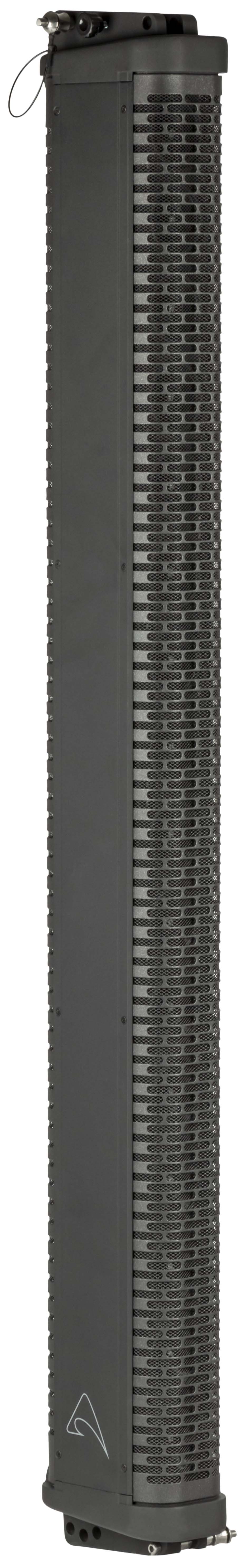

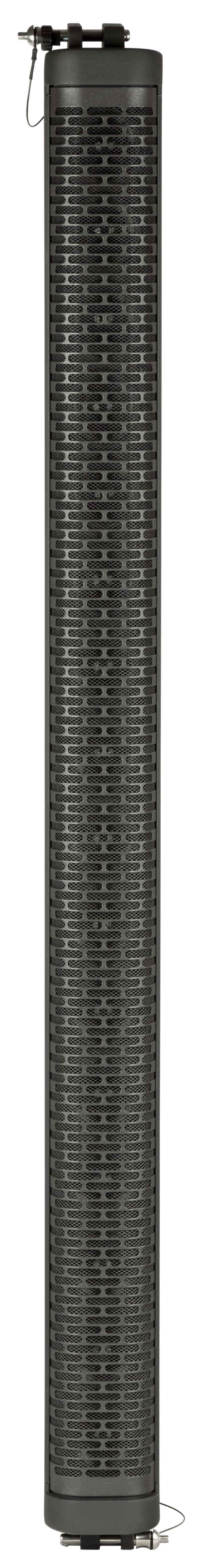

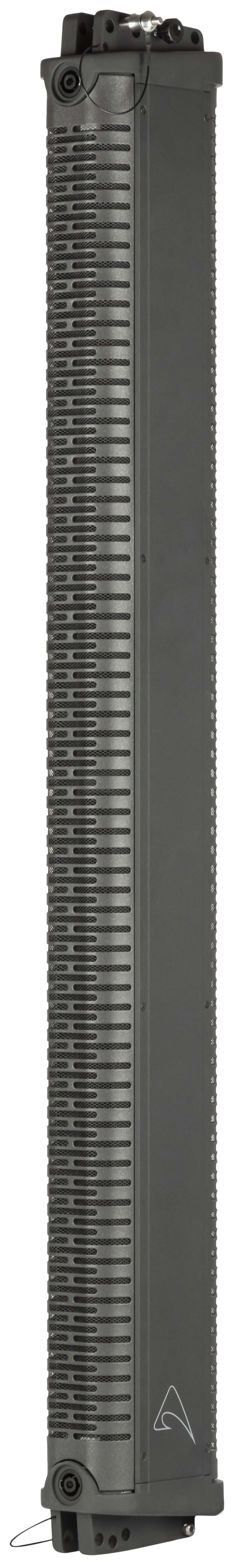

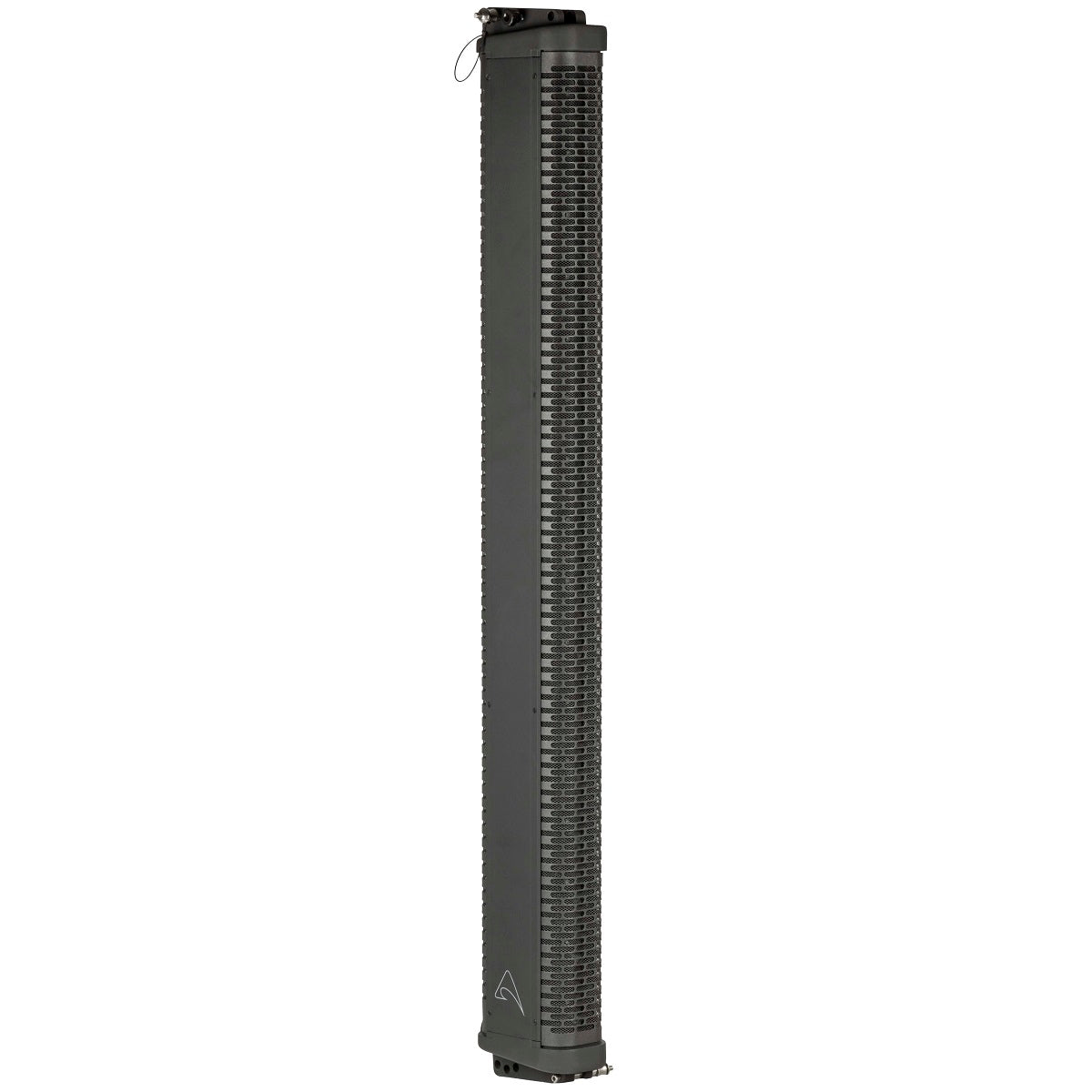

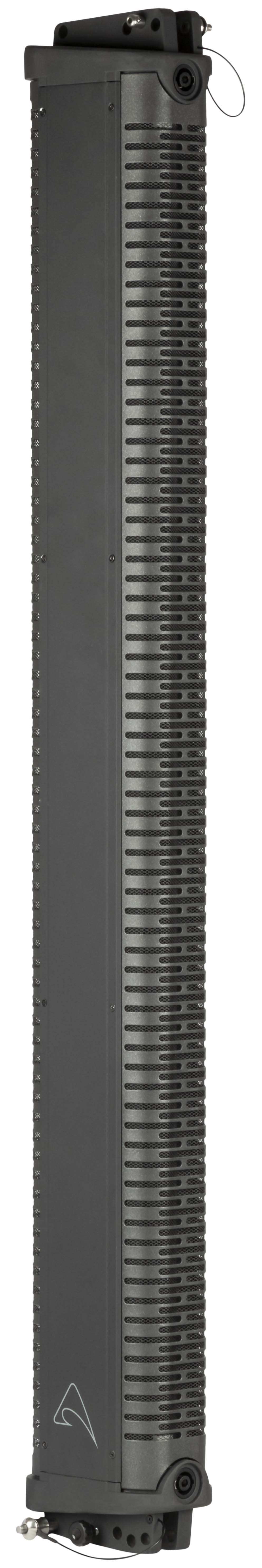

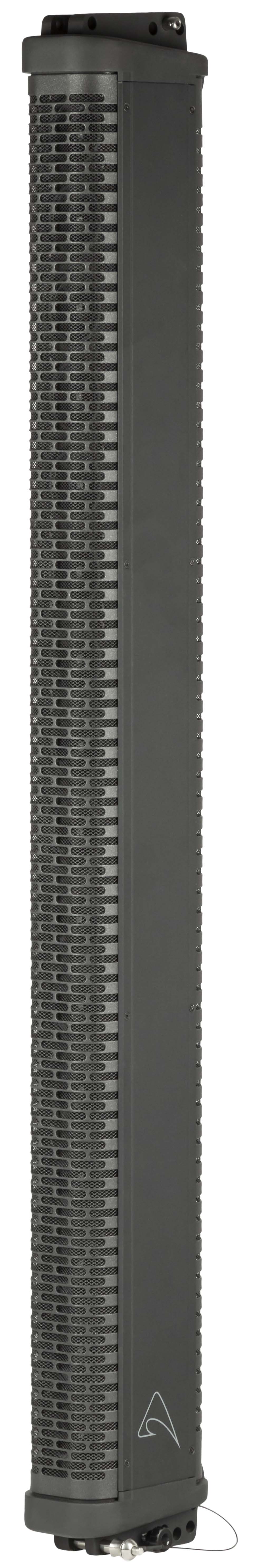

16 x 2.5" High-Power, Passive, Portable Line Array Element
A passive, portable column line array element with sixteen 2.5-inch neodymium woofers, 640 W program power and a lightweight aluminum enclosure.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Design and use

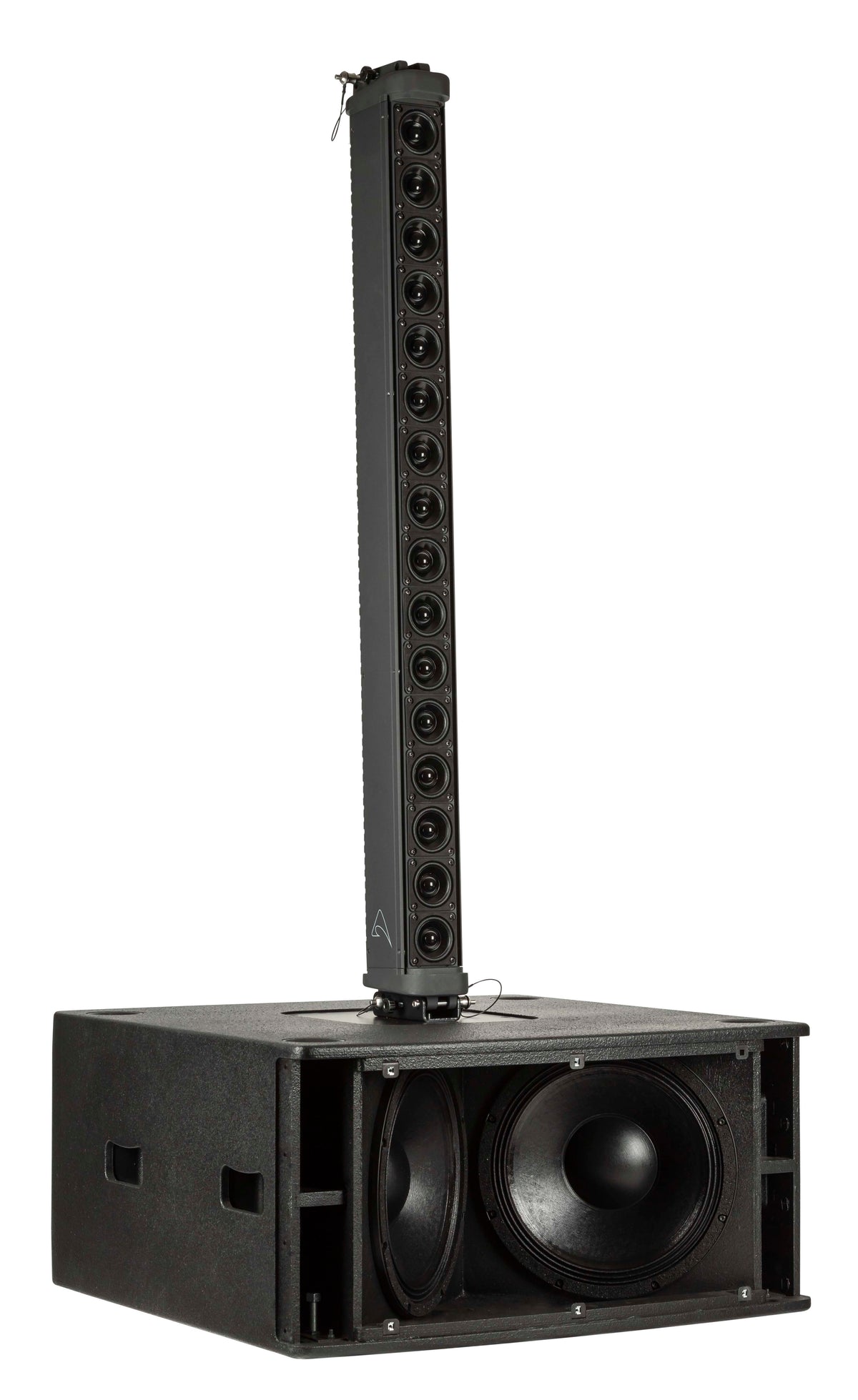

The AX16CL is the tallest column in the Axiom AXCL family, for portable and permanently installed systems. It works alone or in multi-column arrays, and combines with AX8CL and AX4CL modules. It pairs with the SW212A subwoofer.
Drivers
Sixteen 2.5" (66 mm) neodymium woofers have waterproof cones and ventilated voice coils. Horizontal coverage is 80°, with a maximum peak SPL of 128 dB at 1 m. Program power is rated at 640 W.
Construction and rigging
The aluminum enclosure keeps net weight to 25.4 lb (11.5 kg). Each unit comes with two aluminum brackets and two pins for joining array elements. Dedicated accessories include a flying bar, floor stand, stand plate, pole adapter and wall brackets.
Specifications
The details that matter.
System
- System’s Acoustic Principle
- Line Array Element
Short Transmission
Line Back Loading - Frequency Response (±3dB)
- 200 Hz – 16kHz (Processed)
- Nominal Impedance
- 32 Ohm
- Minimum Impedance
- 23.7 Ohm
- Horizontal Coverage Angle
- 80° (-6dB)
- Sensitivity (4V)
- 103 dB SPL @ 3.3 ft (1m)*
- Maximum Peak SPL @ 1m
- 128 dB SPL
Transducers
- Type
- 16 x 2.5" (66mm) Neodymium magnet woofers, 0.8" (20mm) VC
- Waterproof Cone
- Waterproof Cone
- Ventilated voice coil
- Ventilated voice coil
Input Connections
- Connector Type
- Neutrik® Speakon® NL4 x 2
(1+/1- signal IN & LINK ; 2+/2- thru)
Power Handling
- Continuous AES Pink Noise Power
- 320 W
- Program Power
- 640 W
Enclosure & Construction
- Dimensions (W x H x D)
- 3.54 in (90 mm) x 46.85 in (1190 mm) x 6.06 in (154 mm)
- Enclosure Material
- Aluminum
- Paint
- High resistance, water based paint, black or white finish
- Flying system
- Aluminum Fast Link structure with dedicated pins
- Net Weight
- 25.4 lb (11.5 kg)
- *measured @13.1 ft (4 m) and scaled @3.3 ft (1 m)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
