Dexibell · Digital Piano

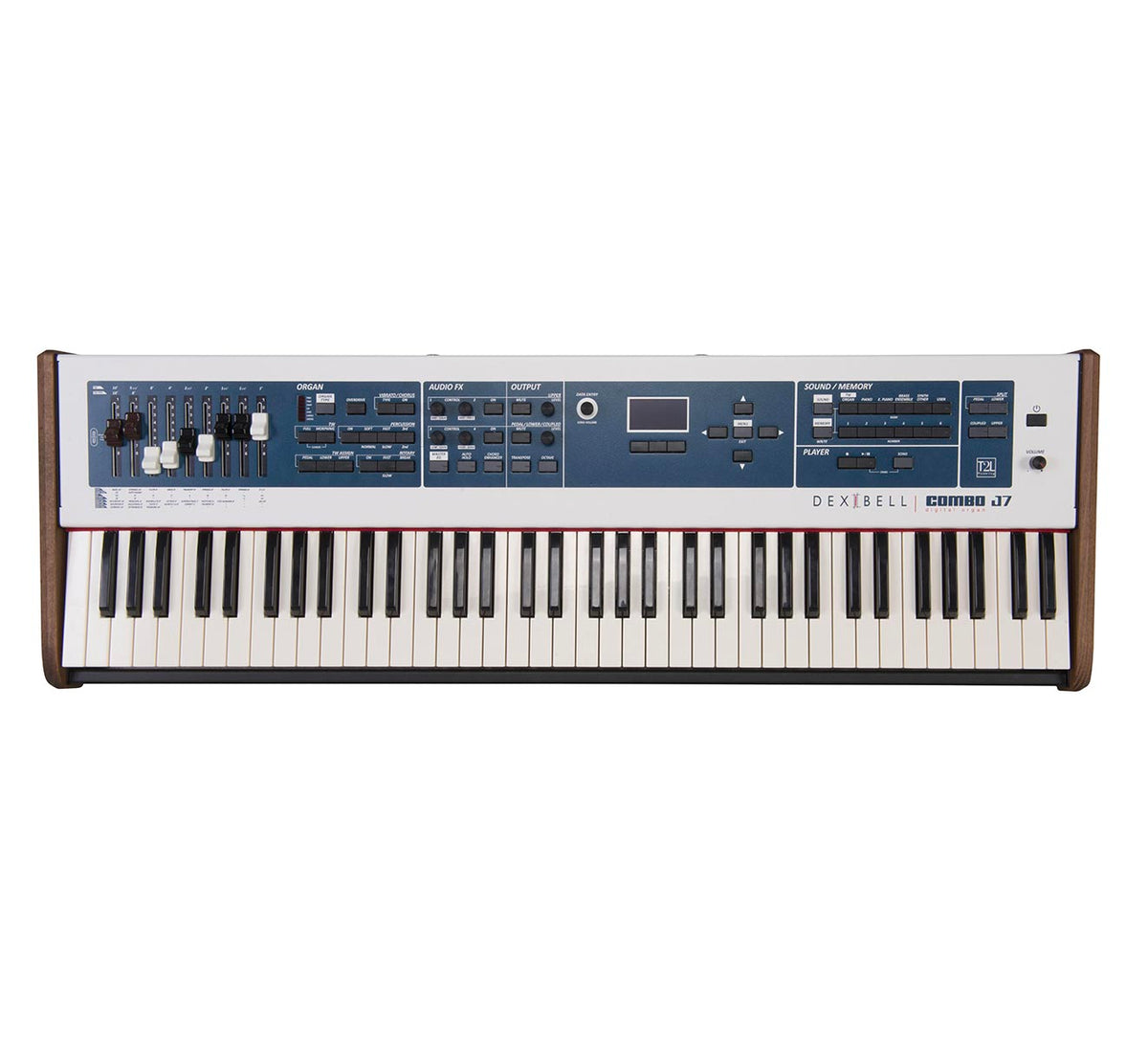

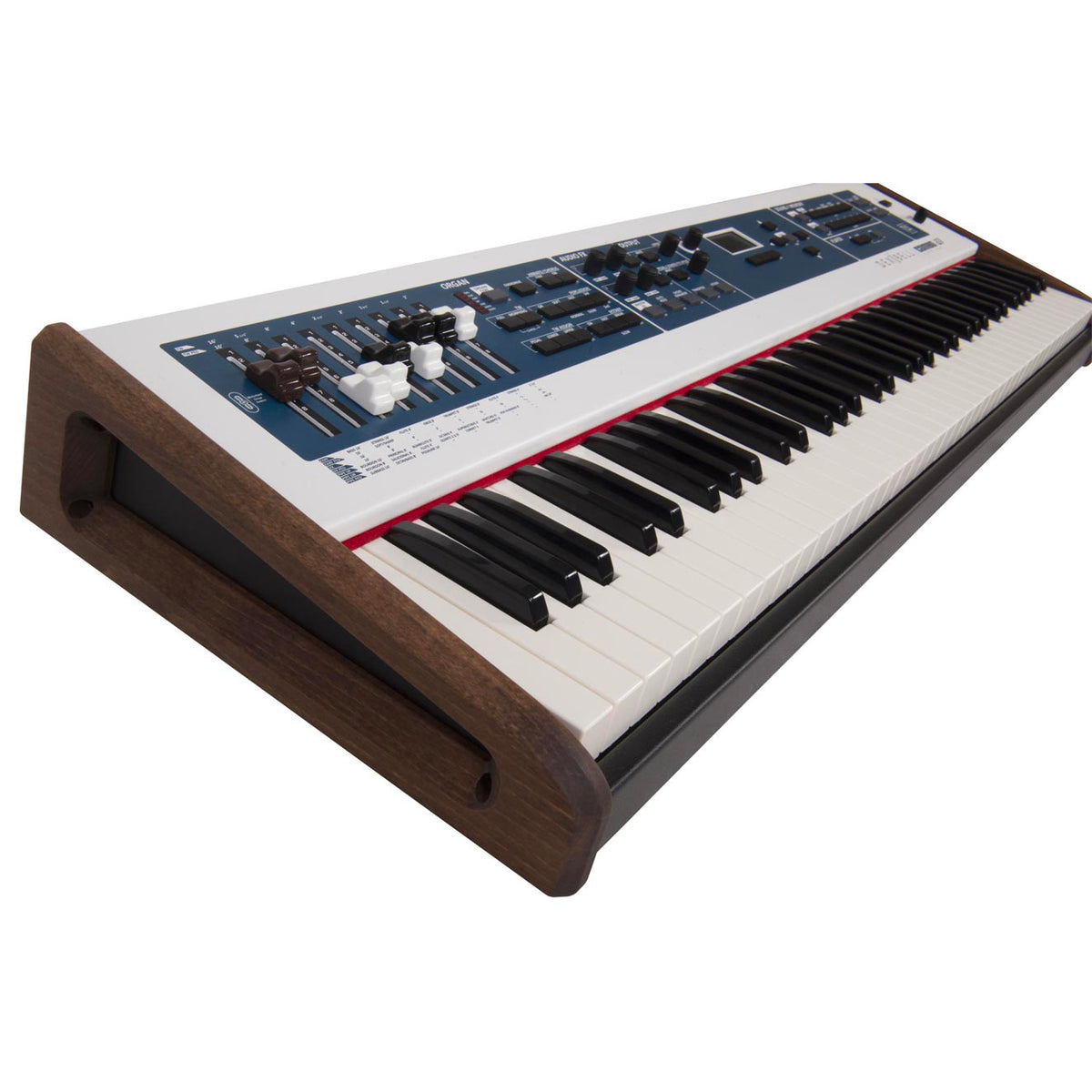

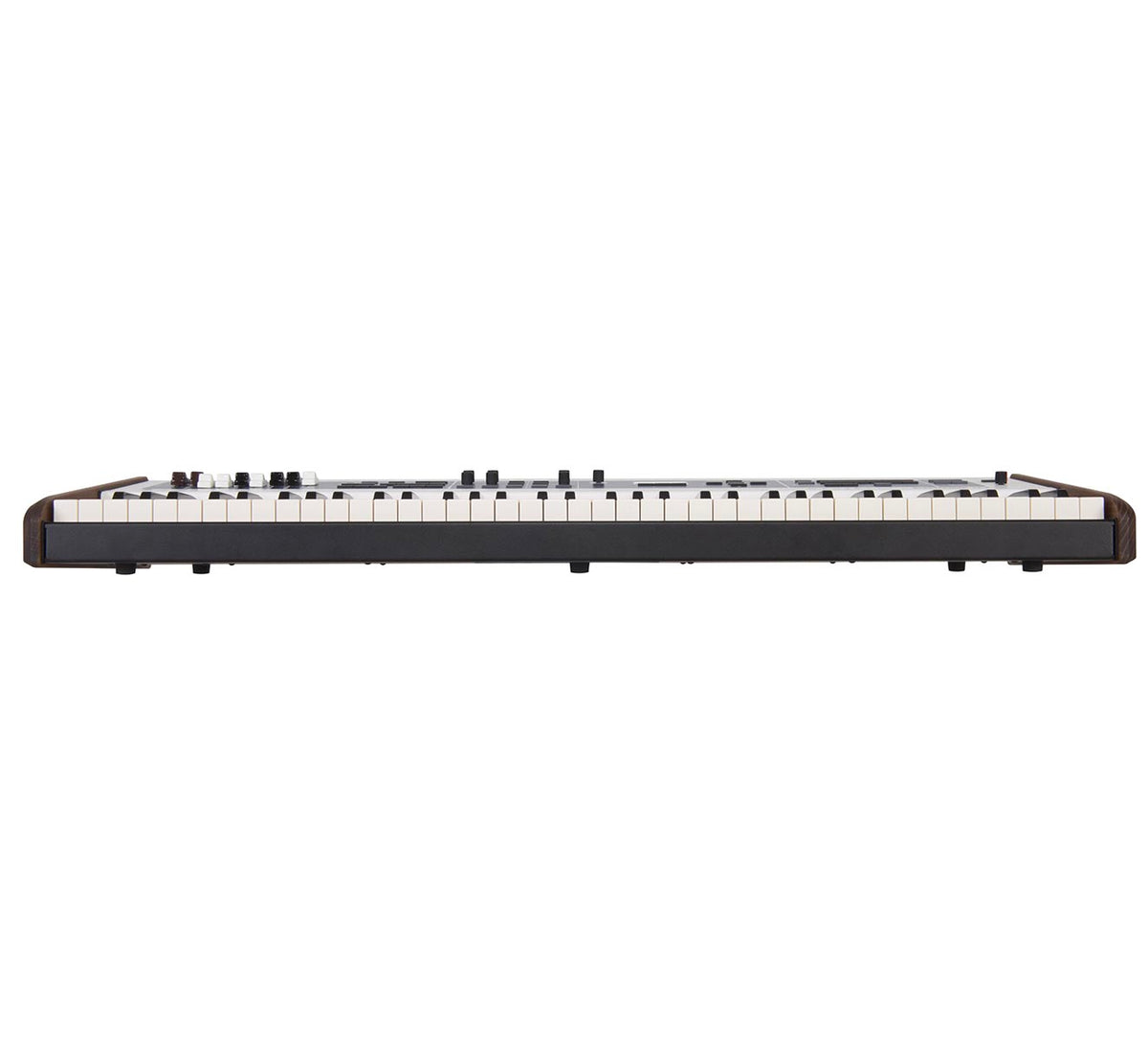

COMBO J7 73-Key Digital Organ
A portable 73-key digital organ with nine motorized draw-faders, tone-wheel and transistor organ tones, and Dexibell's T2L sound engine.
Where to buy
Buy online
Find a local dealer to try it in person
Details
About this product.
No longer in production. This page is kept for reference: specifications, manuals and support. For help with this product, call (888) 588-4099.
Motorized draw-faders
The COMBO J7 was the first digital organ with motorized draw-faders. Changing footage settings morphs smoothly from one sound to the next, and a pedal can control the morphing.
T2L sound engine
- Unlimited polyphony
- 24-bit, 48 kHz audio
- Samples up to 15 seconds long, recorded in 3D surround
- Sampling and modeling combined with Dexibell's own algorithms
Sounds and effects
The 73 waterfall keys are velocity sensitive, with four simultaneous parts. Over 100 organ presets sit alongside 105 sounds, including acoustic and electric pianos from the VIVO range. You can load new sounds from the Dexibell library or standard SoundFont files.
Rotary, vibrato and overdrive effects recreate vintage organ sounds. Eight more effects, two per part, offer 17 types. Sounds and effects change seamlessly when you switch patches or recall memories.
Specifications
The details that matter.
- Keyboard
- 73 Keys water fall type with dynamic
- Tone Generator
- T2L: Sampling and Modeling Technology
- Sampling
- XXL wave size, up to 15 seconds on lower piano notes
- Sound Wave Format
- 24 bit linear - 48 kHz (Internal processing and DSP at 32 bit floating)
- Digital Analog Conversion (DAC)
- 24 bit linear - 48 kHz, Dynamic Range, S/N:106dB
- Maximum Polyphony
- Unlimited with 320 Oscillator
- Organ Type
- TW1, TW2, FARF, VX, PIPE + User1, User2 downloadable from website
- Sounds
- over 100 Organ Preset + 105 Sounds + User downloadable from website
- Tone Wheel
- 9 MOTORIZED draw faders
Memory
- Internal
- 36
- User
- Unlimited loadable from USB Memory
- Wave Memory
- 1.5 GB fully changeable by the user with DEXIBELL and Sound Font format
- Keyboard Mode
- 4 Parts (UPPER, LOWER, COUPLED, PEDAL)
- Touch Sensitivity
- 5 Types + Fixed
- Reverb
- 24 Types
- Effects
- Rotary, Overdrive, Vibrato/Chorus for Organ + 8 Independent DSP x 17 types (2 x Main, 2 x Couples, 2 x Lower, 2 x Pedal) using "seamless changes" technology at effect recall
- Master Equalizer
- 3-band Digital Equalizer
- Chord Enhancer
- YES
Controllers
- Part Level Encoder x 2
- EQ/FX Encoder x 4
- Data Entry/Song Level Encoder x 1
- Master Volume Knob
- Player
- .wav, .aiff, .mp3, in all format, frequency and bit rate
- Recorder
- .wav (48 kHz, 32-bit floating) on USB Memory
- Master Tuning
- 415.4 Hz to 466.1 Hz (adjustable increments of 0.1 Hz) + 2 Preset (440 Hz, 442 Hz)
- Temperament
- 9 Types
- User Temperament
- YES: 3 User
- Rhythm Patterns
- X MURE APP for iPhone and iPad (FREE) with multitrack audio patterns

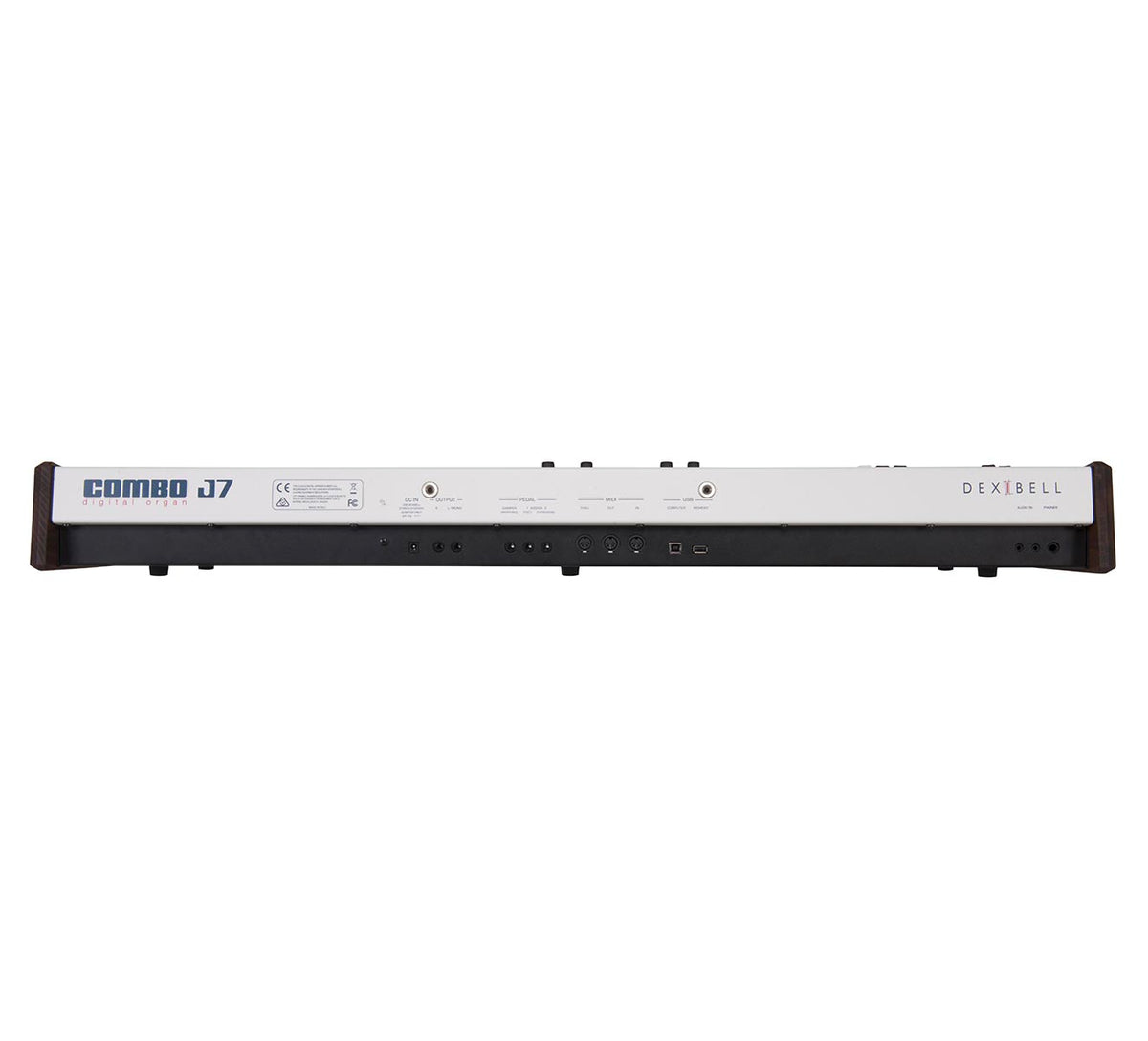

Connectors
- Output
- OUTPUT jacks (L/MONO, R): 1/4-inch phone type
- Phones
- 2: 1 Jack 1/4 -inch phone type, 1 mini jack
- Foot 1
- DAMPER/MORPHING ASSIGNABLE
- Foot 2
- ASSIGNABLE
- FOOT 3; EXPRESSION/ASSIGNABLE
- MIDI
- IN, OUT, THRU
- USB
- TO HOST (MIDI & DIGITAL AUDIO IN/OUT), TO DEVICE (MEMORY & MIDI)
- Aux In
- 1 jack (stereo mini-jack)
- Bluetooth
- Streaming Audio Input
- Display
- Graphic LCD 128 x 64 dots Organic LED, high contrast type
Power Consumption
- Stand By
- < 0.2 W
- Maximum
- 15 W
- "ErP" LEVEL VI for Eco efficiency on stand-by consumption
Dimensions
- Width
- 41.7 in (1060 mm)
- Depth
- 13.3 in (338 mm)
- Height
- 4.4 in (112 mm)
- WEIGHT 22 lb (10 Kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 5 years when registered on My Dexibell within 3 months of purchase (dexibell.com/en/my-dexibell)
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
