• Eikon WM700DMA Dual-Channel PLL UHF Wireless Handheld Microphone System, US Version 512-562 MHz
  • Eikon WM700DMA Dual-Channel PLL UHF Wireless Handheld Microphone System
  • Eikon WM700DMA Dual-Channel PLL UHF Wireless Handheld Microphone System
  • Eikon WM700DMA Dual-Channel PLL UHF Wireless Handheld Microphone System
  • Eikon WM700DMA Dual-Channel PLL UHF Wireless Handheld Microphone System
  • 4-Year Warranty

Eikon · Recording Gear

Dual-Channel PLL UHF Wireless Handheld Microphone System, US Version 512-562 MHz

Item WM700DMA

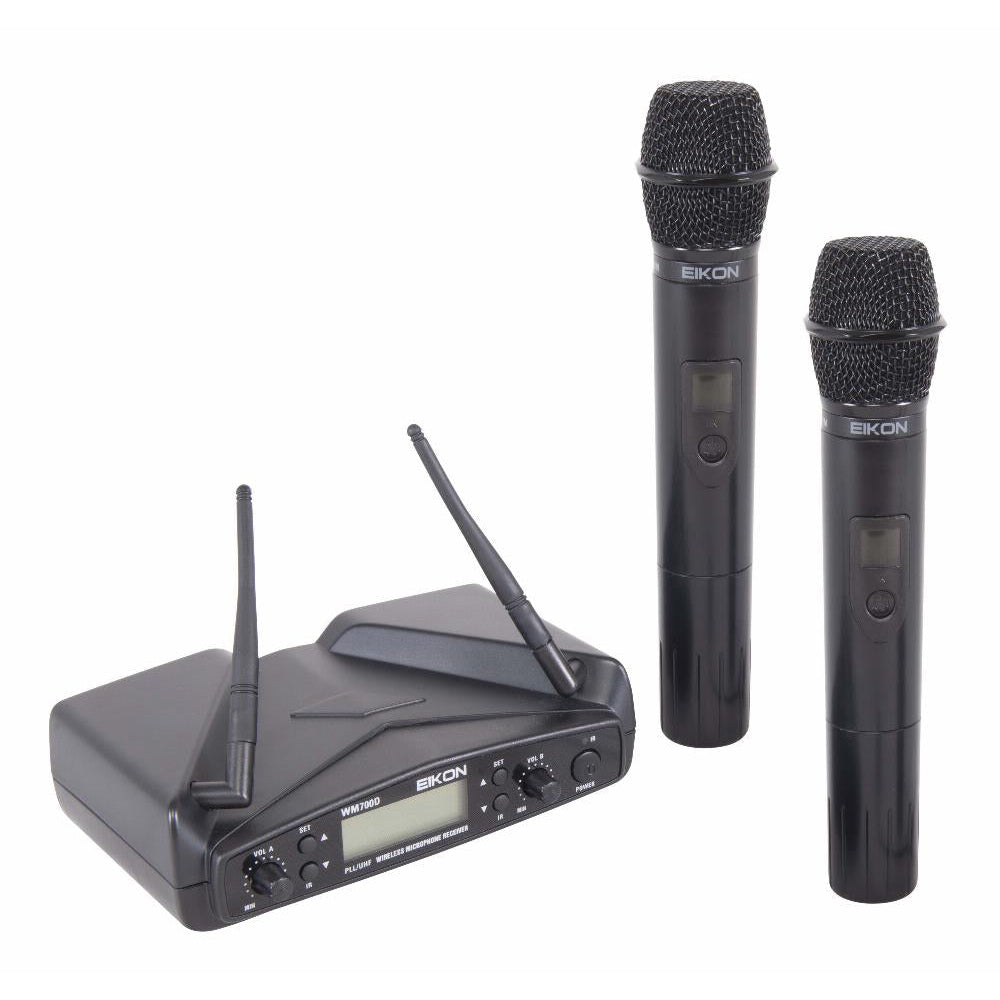

A dual-channel PLL UHF wireless system with two handheld cardioid dynamic microphones, operating on the US 512–562 MHz band.

Where to buy

Street price $269.99 Sold by authorized dealers. Prices may vary.
Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Reliable wireless

The WM700 is a PLL-controlled UHF system for reliable, high-quality transmission. A 32 kHz digital tone pilot further secures the signal. Up to 4 systems can be used in the same location.

Key features

  • Dual-channel receiver with 16 selectable frequencies
  • 512–562 MHz band (US version)
  • Range up to 100 feet (30 m)
  • 50 Hz–15 kHz frequency response
  • 105 dB signal-to-noise ratio

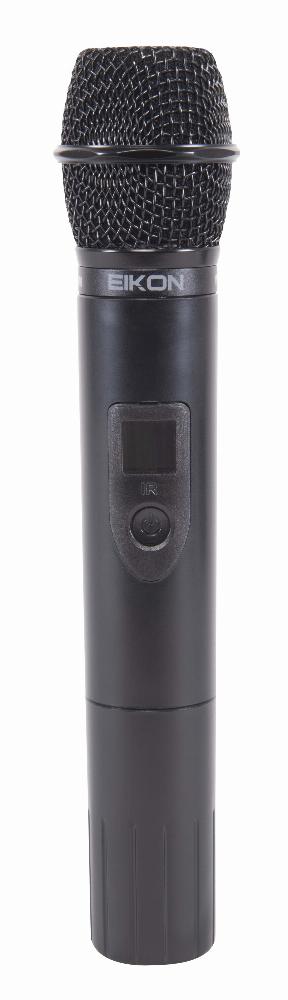

  • Two handheld transmitters with cardioid dynamic capsules
  • Durable finish and universal USB power adapter
  • ABS carrying and storage case

Specifications

The details that matter.

Manuals & downloads

Version
US version. The A in the model number marks Proel's North American frequency band: 512–562 MHz, inside the US-legal UHF TV band.

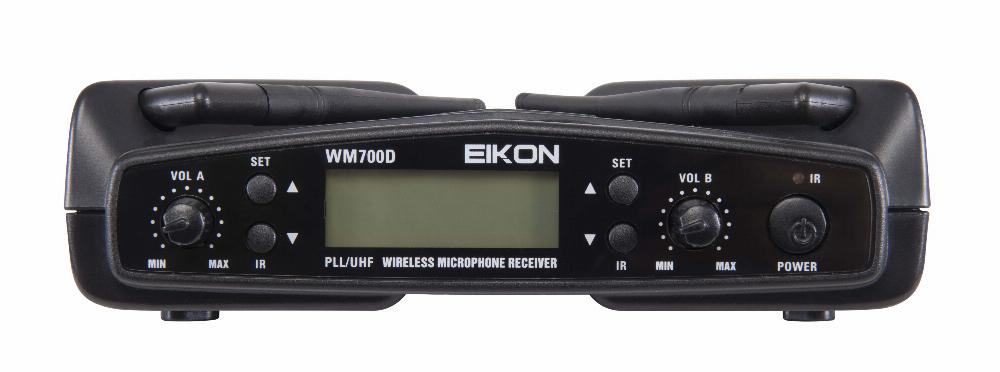

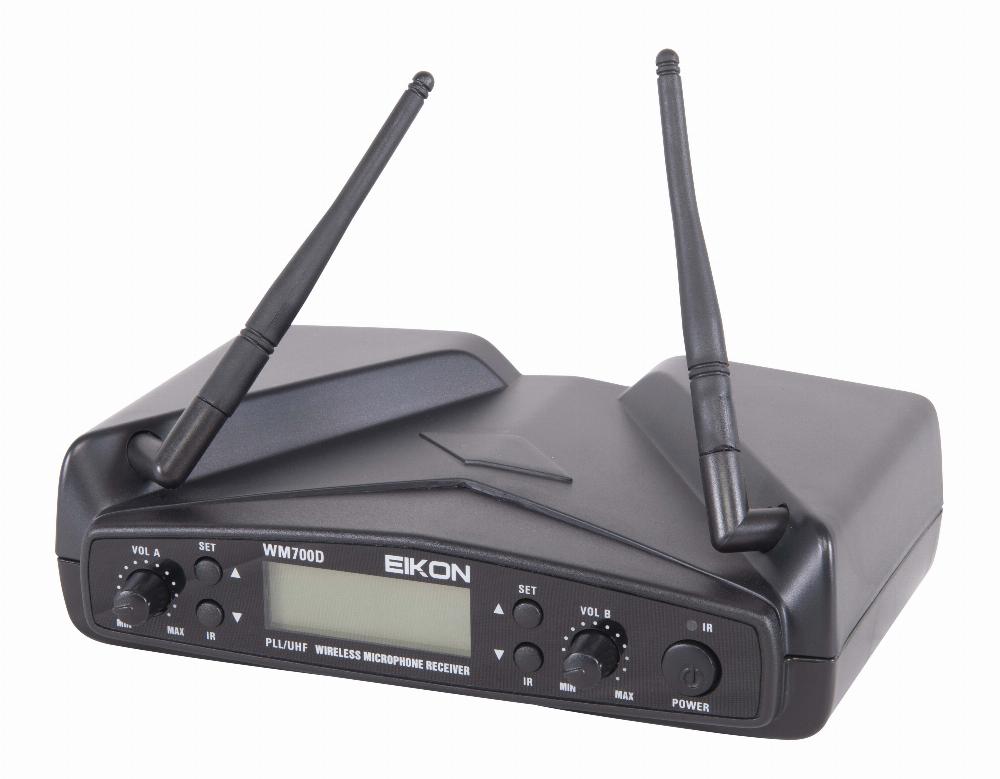

Receiver

Frequency Band
512–562 MHz (US version)
RF Sensitivity
-105 dBm
RF Image/Spurious Rej.
>70 dB
RF Interference Reject.
>70 dB
RF Frequency Stability
±0.002%
THD Distortion
<1%
S/N Ratio
>105 dB
Frequency Response
50 Hz – 15 kHz (±3 dB)
Power Supply
5 V DC 500 mA
Dimensions
6.9 × 5.3 × 1.8 in (175 x 135 x 45 mm)

Handheld Transmitter

RF Frequency Band
512–562 MHz (US version)
RF Power
<10 dBm
Modulation method
FM (F3E)
RF Max deviation
±40 kHz
RF Frequency Stability
±0.002%
Spurious Emission
under limits EN 300422
Frequency Response
50 Hz – 15 kHz (±3 dB)
Power Supply
2x1.5V AA alkaline bat
Dimensions
9.3 × 2 × 2 in (235 x 50 x 50 mm)

Shipping

Carton (L x W x H)
10.2 x 7.9 x 14.6 in (26 x 20 x 37 cm)
Shipping weight
4.1 lb (1.9 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
