Proel · Recording Gear

Active Direct Injection Box 1Channel

Item DIRECT100A · Designed in Italy

Final stock

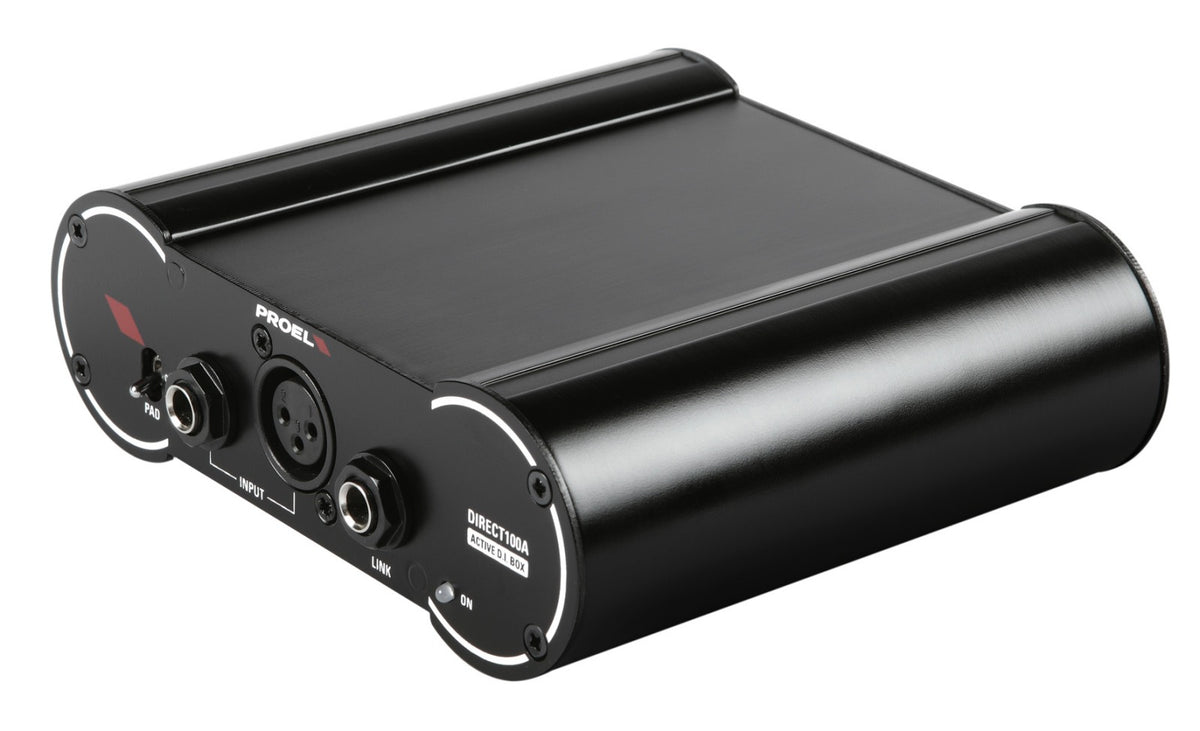

An active single-channel DI box from the 100 Series that runs on phantom power or a 9 V battery, with pad and ground lift.

Where to buy

Street price $94.99 Sold by authorized dealers. Prices may vary.
Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

The 100 Series is a range of DI boxes and headphone amps for stage, studio and fixed installations. Each unit comes in a stylish, stackable extruded aluminum shell or a sturdy metal chassis.

The series is built for sound quality, versatility and stage-proof reliability.

Specifications

The details that matter.

Manuals & downloads

Version
Active DI (runs on phantom power or a 9 V battery). The A in the model number means Active; the passive version is DIRECT100P.

Input Section

Input Impedance
>250 kΩ
Max Input Level
+6 (PAD at 0) / +26 (PAD at 20) dBu

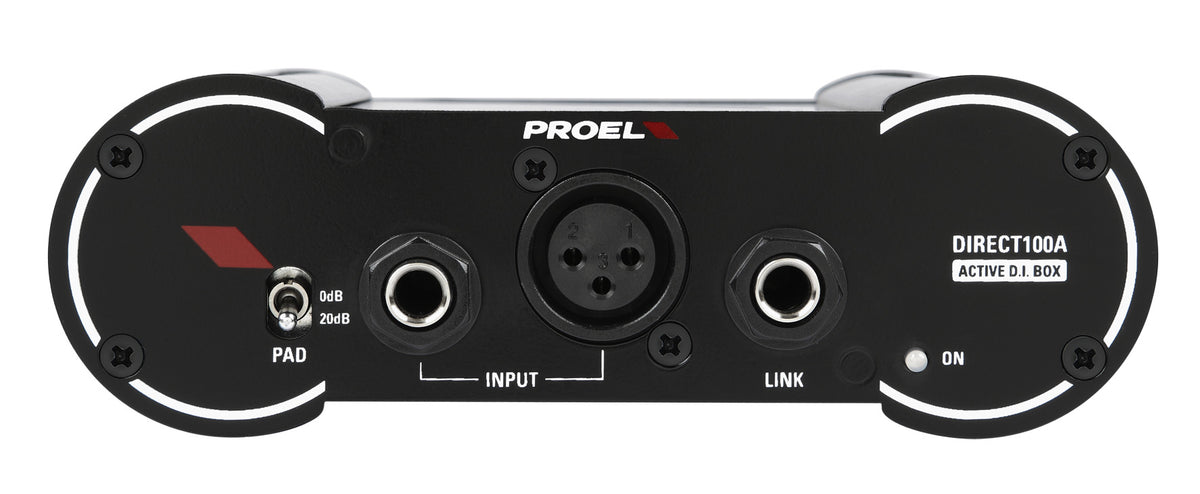

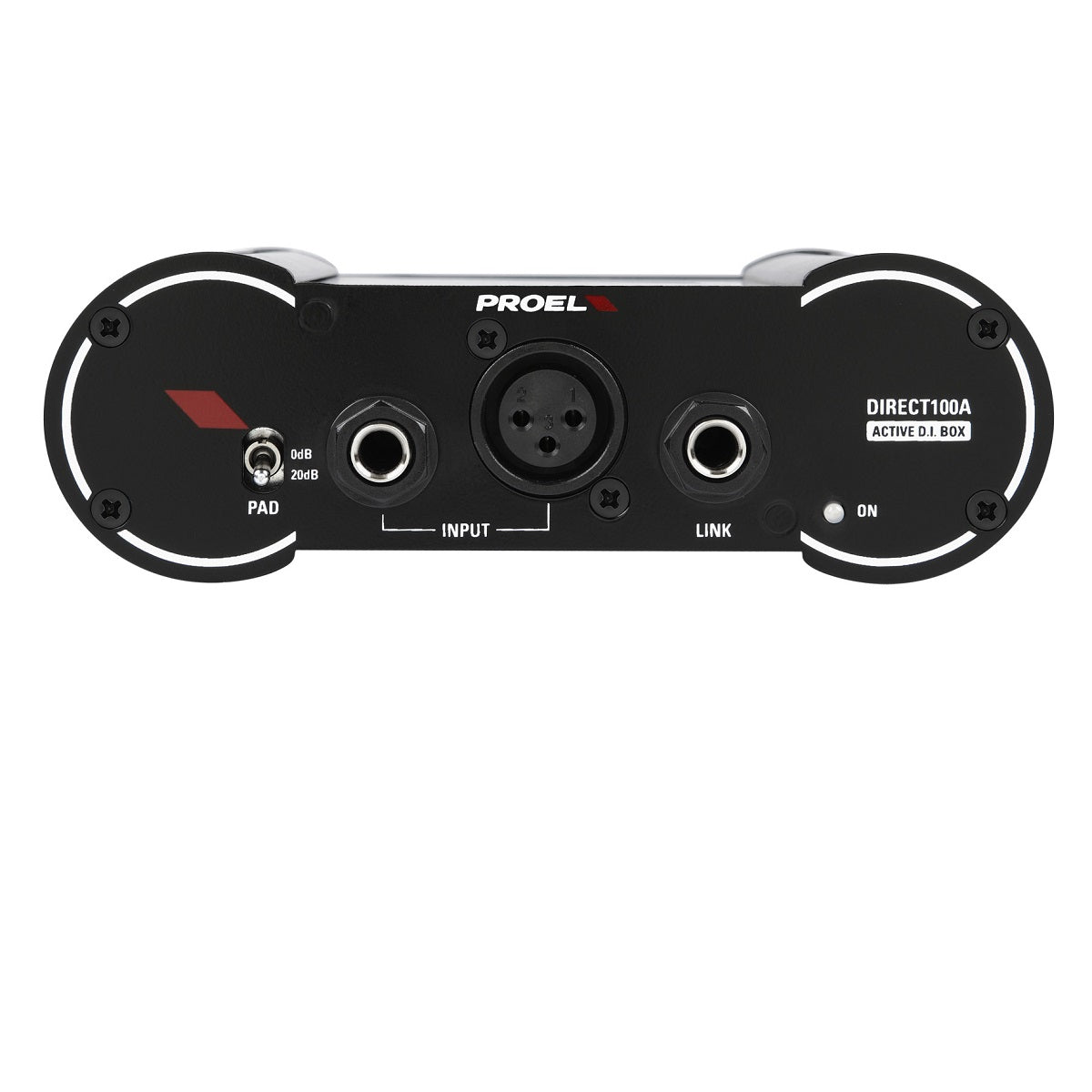

Connectors
1 x XLR-F + 1 x 1/4" jack unbalanced
Link
1 x 1/4" jack unbalanced
Output Section
Output
Transformer Balanced (fully isolated)
Insertion Loss
0 dB
Load Impedance
600 Ohms or greater
Connector
XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu
< 0.005 %
Noise
< -105 dBu unweighted
Frequency Response
10 Hz to 40 kHz (-3 dB)
General

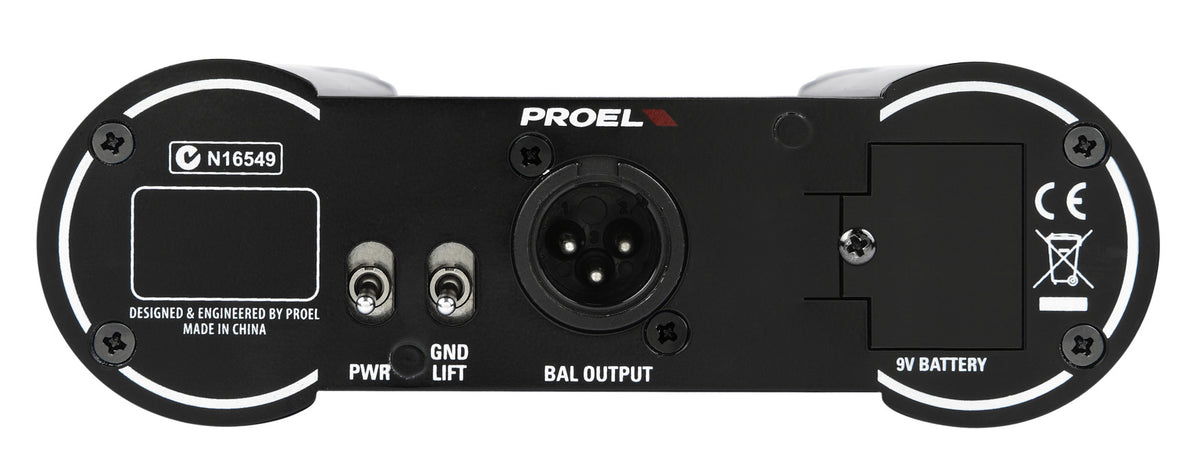

Controls
ON/OFF, PAD -20, GND LIFT
Indicators
Power ON
Phantom Power
+18 volts DC to +48 volts DC
Battery
9 volt PP3 type alkaline
Dimensions (W x H x D)
6 × 2 × 5.3 in (152 x 50 x 134 mm)
Weight (excluding batteries)
1.5 lb (0.70 Kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
