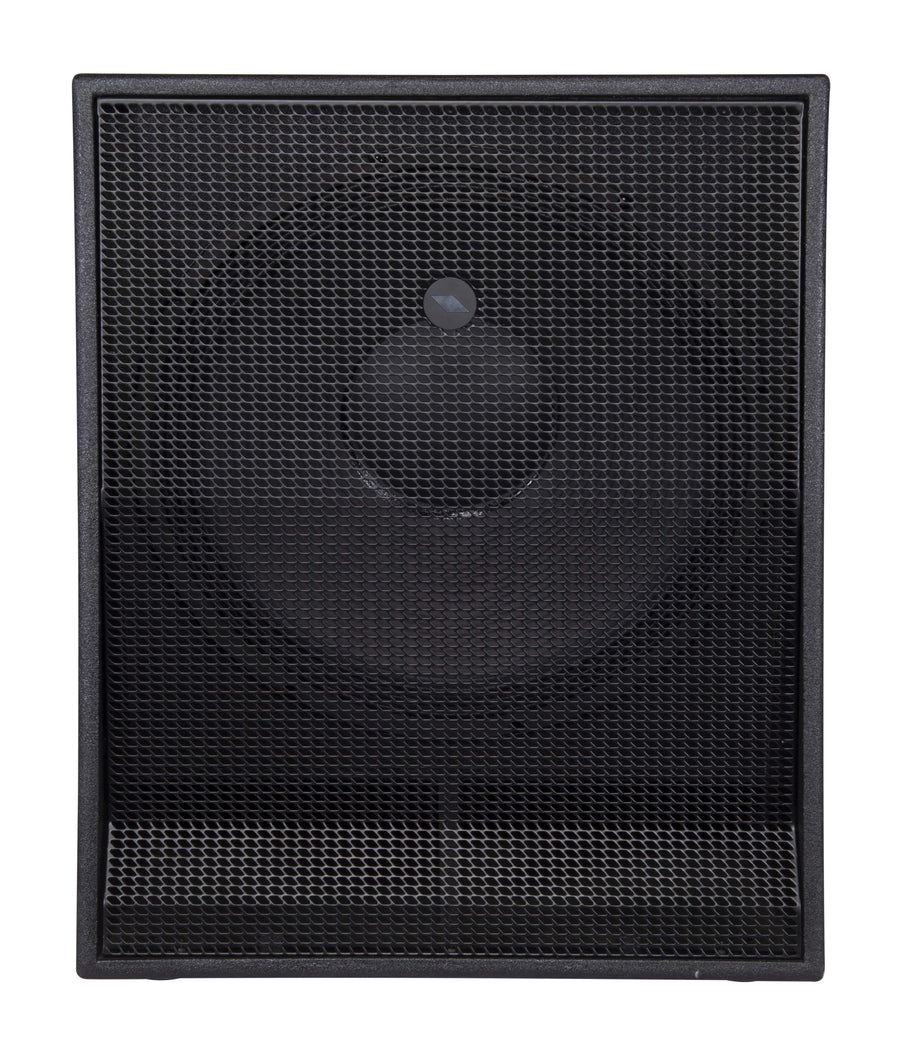

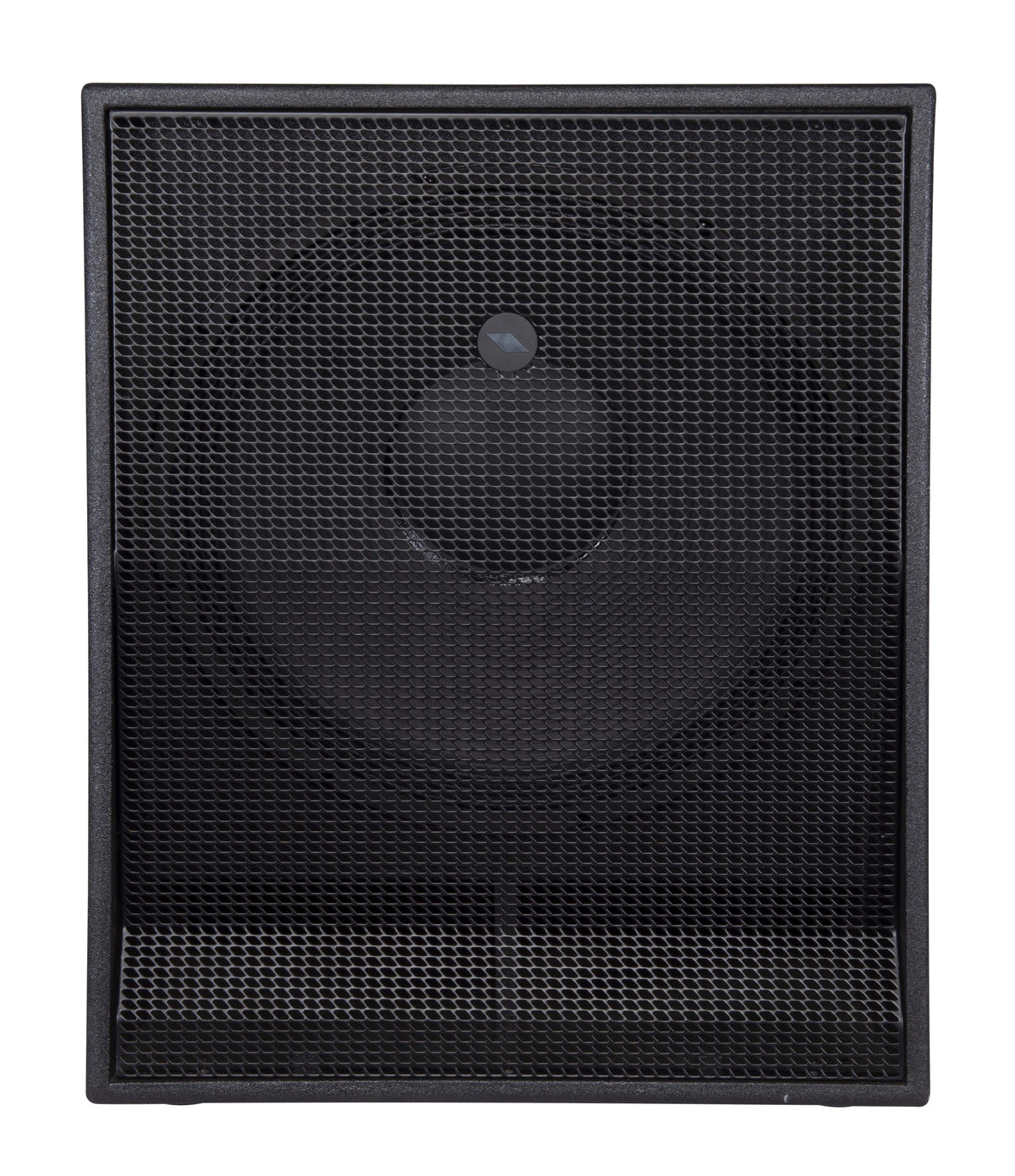

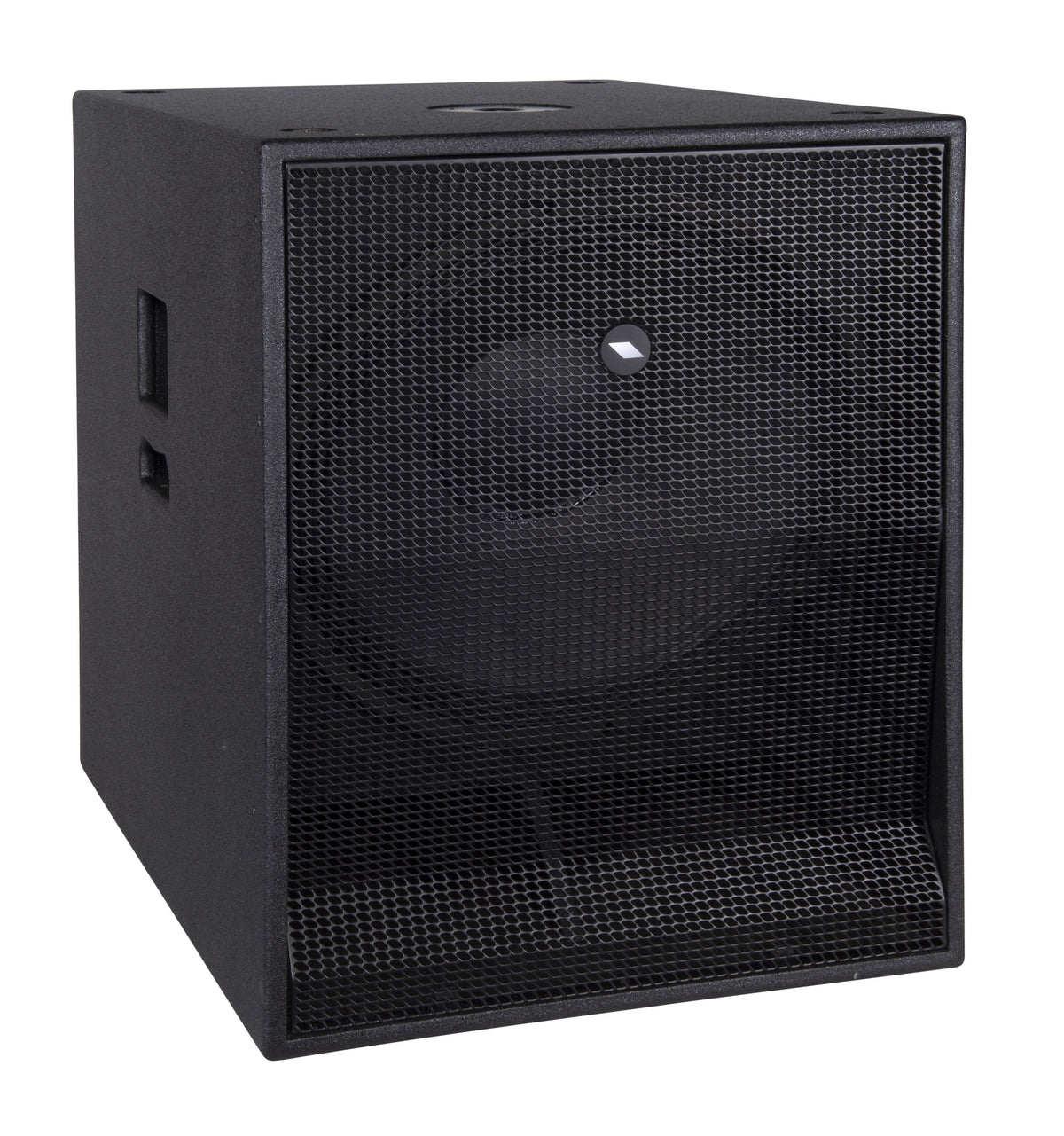

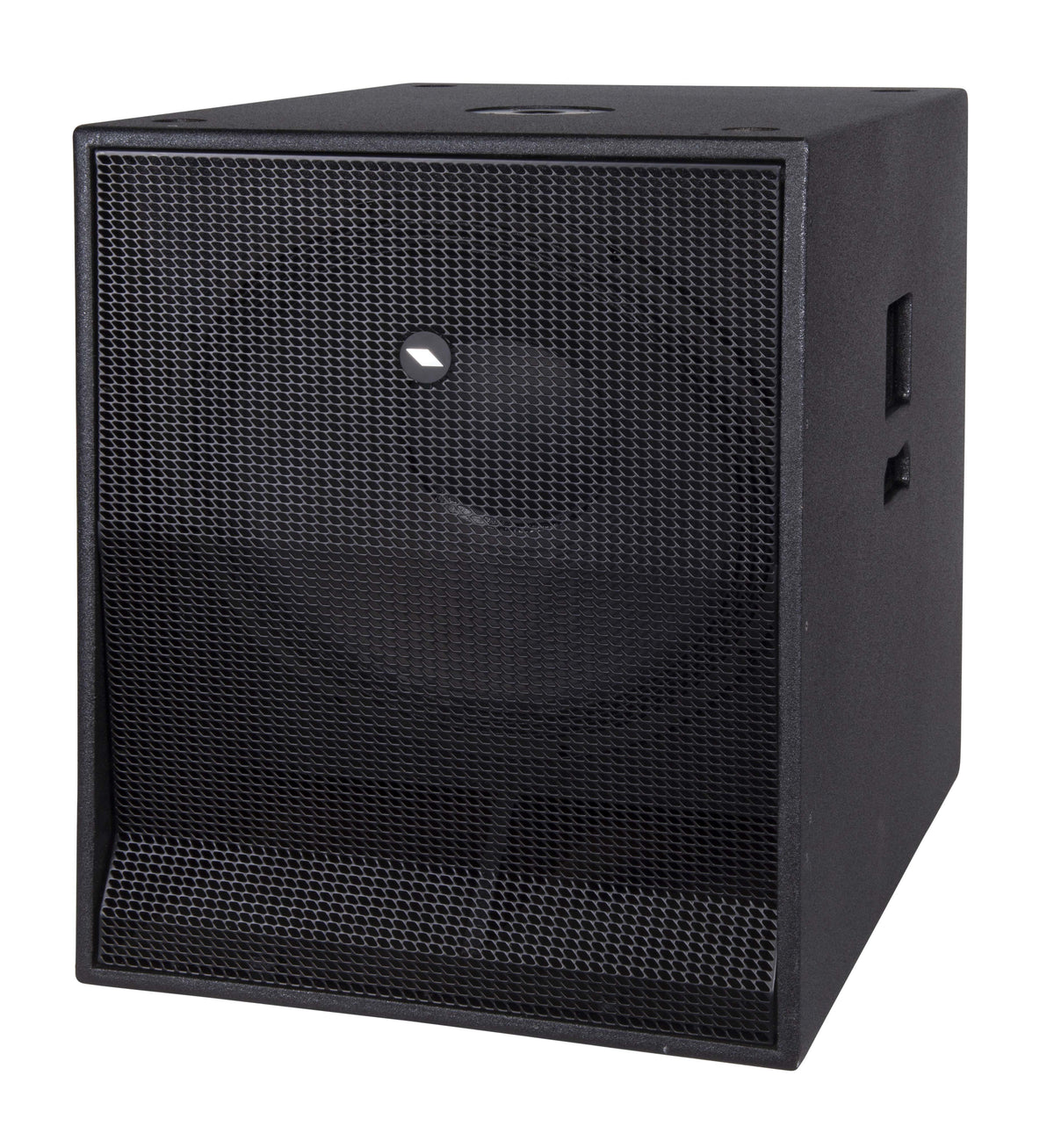

S-Series Passive 18" Subwoofer
A passive 18-inch hybrid band-pass subwoofer rated 500 W continuous, built in a plywood cabinet to pair with an external amplifier.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
Hybrid band-pass design
The S Series is a range of compact, powerful subwoofers designed to complement PROEL full-range speakers. Its sizes, power levels and SPL extend the low end of any speaker in the PROEL range. Every S model uses high-excursion woofers in a Hybrid Band Pass (HBP) configuration.
HBP is more efficient than direct-radiating subwoofers. It also couples the tuning ducts better with the outside air, reducing distortion and turbulence for defined, deep and punchy bass.
This is the passive version and needs an external amplifier.
Cabinet

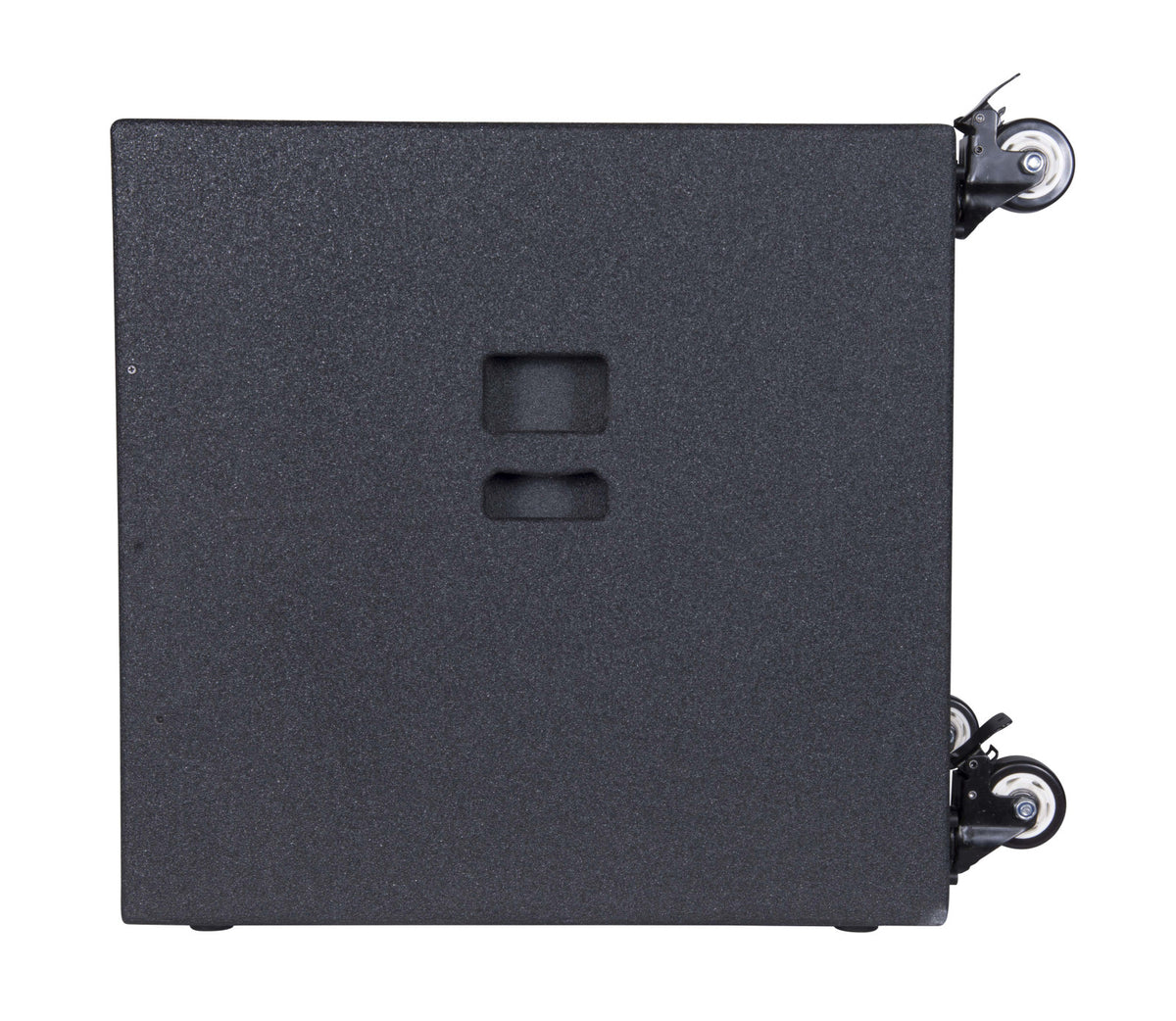

The cabinet is built of 15/18 mm plywood with extra-durable polyurethane paint and has two flush handles. Four sturdy 75 mm wheels make transport easy.
- Version
- Passive (needs an external amplifier). The P in the model number means Passive; the active version is S18A.
- System type
- Hybrid Band Pass subwoofer
- Loudspeaker
- 18'' woofer with 4" VC
- Nominal Impedance
- 8 Ω
- Power Continuous (AES)
- 500 W
- Power Program
- 1000 W
- Power Peak
- 2000 W
- Frequency Response
- 36 Hz - 160 Hz
- Sensitivity
- 98 dB @ 1 W/1 m
- Connectors
- 2 x NEUTRIK SPEAKON (IN/LINK)
- Cabinet
- 15/18 mm plywood
- Black anti-scratch paint
- 0.06 in (1.5 mm) metal grille
- 2 handles
- 1 x pole socket
- 0.16 × 3 in (4 x 75 mm) wheels
- Dimensions (W x H x D)
- 508x630x645 (745 with wheels) mm
- Weight
- 72.7 lb (33 kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 2 more years (4 in total) when registered on proel.com within 6 months of purchase
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
