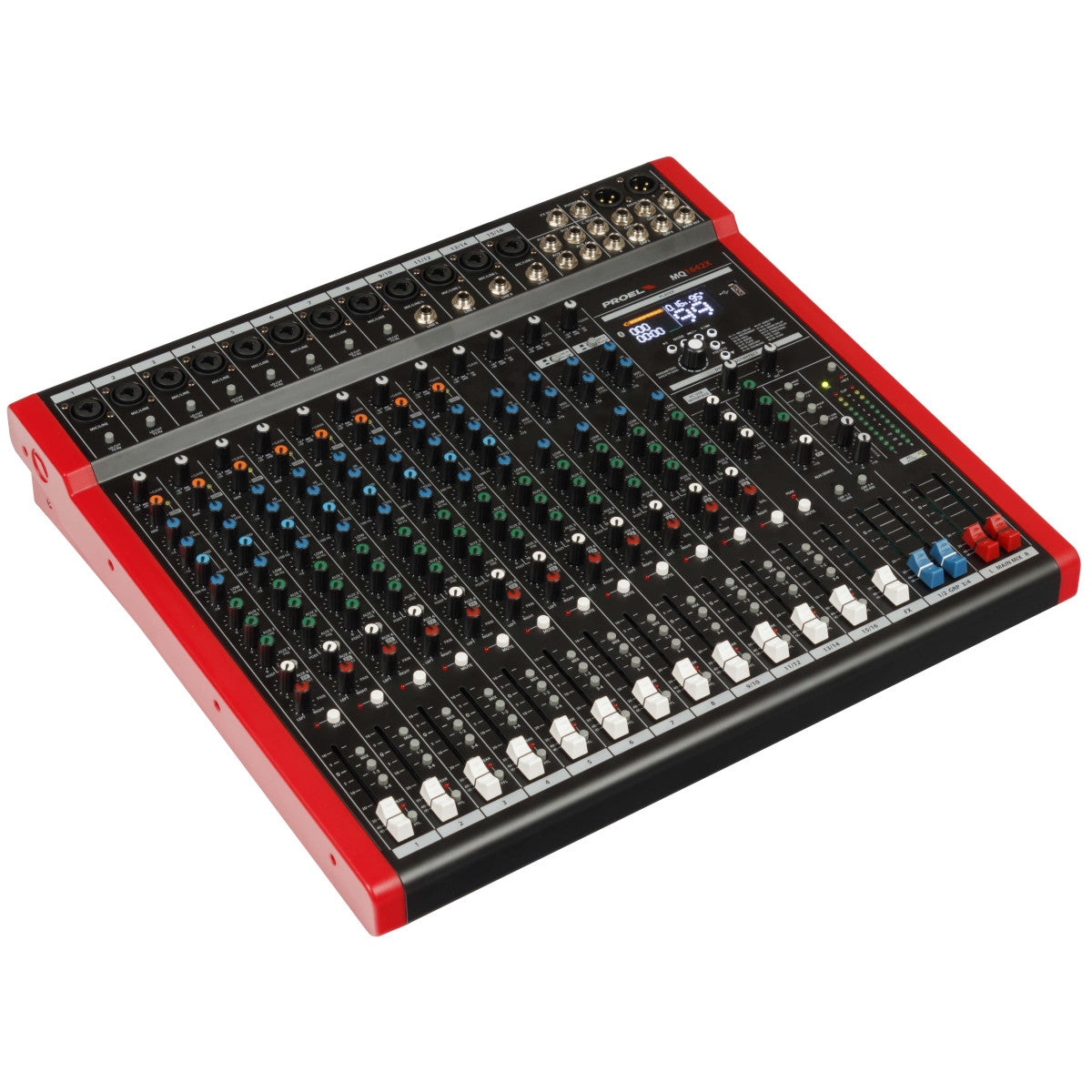

• Proel MQ1642X 16-channel compact mixer with FX, USB and BT

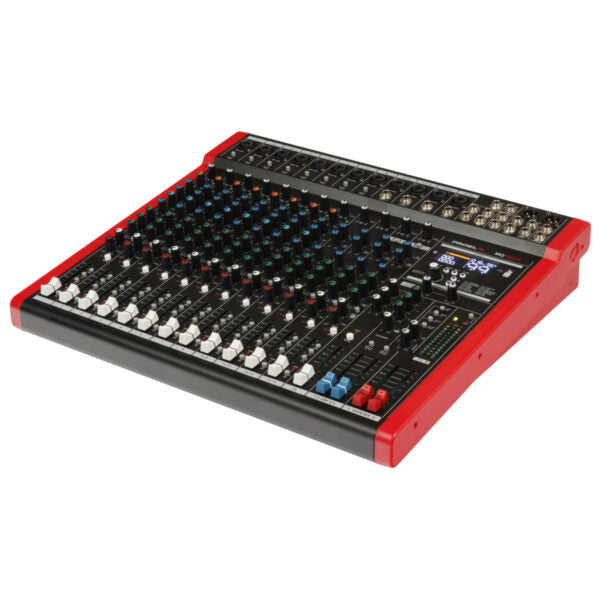

  • Proel MQ1642X 16-channel compact mixer with FX, USB and BT – view 2

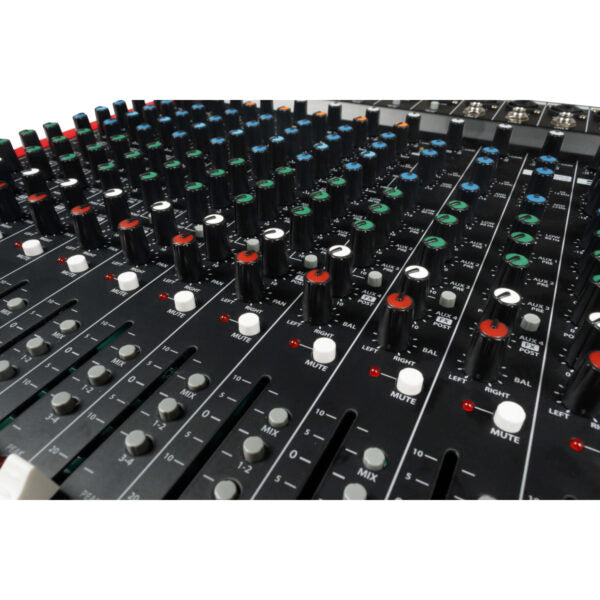

  • Proel MQ1642X 16-channel compact mixer with FX, USB and BT – view 3

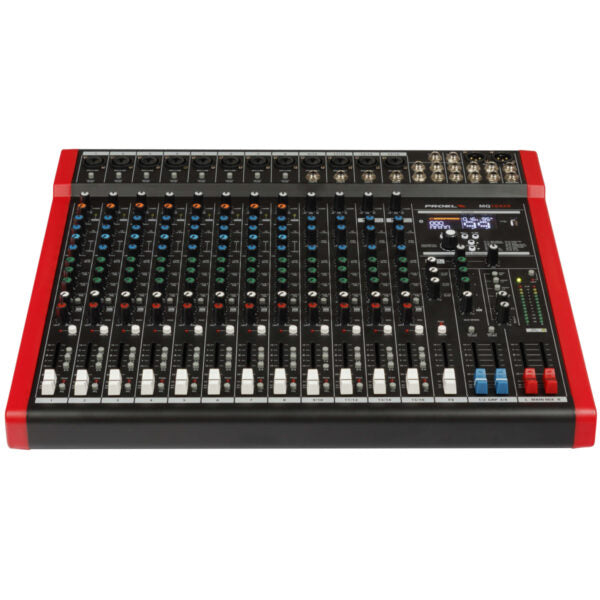

  • Proel MQ1642X 16-channel compact mixer with FX, USB and BT – view 4

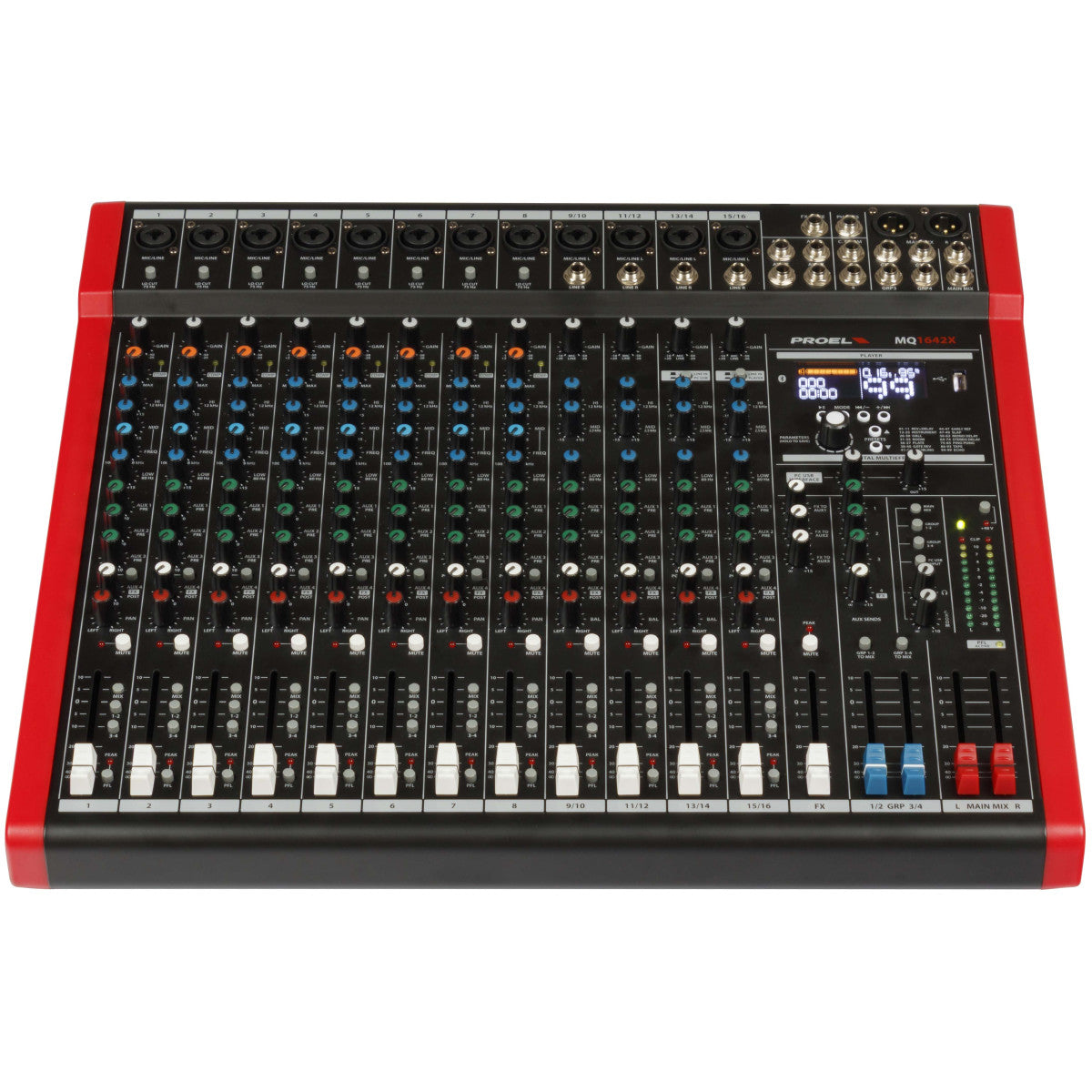

  • Proel MQ1642X 16-channel compact mixer with FX, USB and BT – view 5

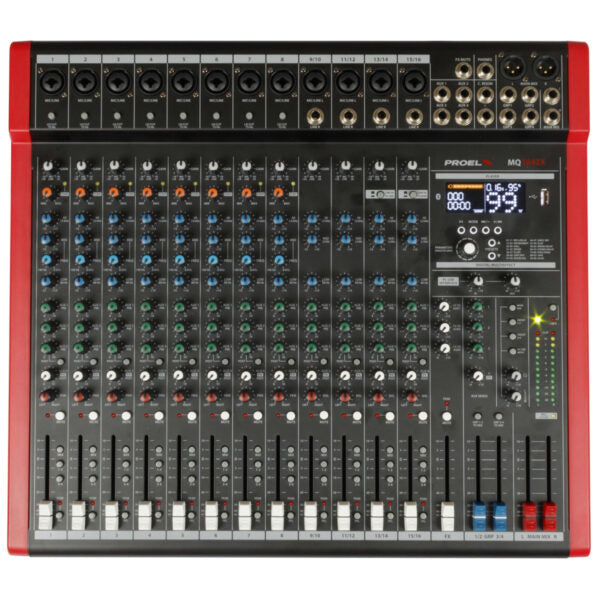

  • Proel MQ1642X 16-channel compact mixer with FX, USB and BT – view 6

Proel · Recording Gear

16-channel compact mixer with FX , USB and BT

Item MQ1642X · Designed in Italy

A 16-input compact analog mixer with 12 mic preamps, sweepable mids, 99 DSP effects, a USB audio interface and Bluetooth playback.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Overview

The MQ Series packs high input density and professional features into a compact, rugged format. It is designed by the Proel R&D team in Italy for musicians, performers and sound engineers.

Effects and playback

  • 24-bit DSP with 99 effect presets and adjustable parameters, shown on an LCD
  • Built-in MP3 player via Bluetooth 5.0, USB drive or computer connection
  • USB-C audio interface for recording your mix on a computer

MQ1642X channels

MQ1642X has 16 inputs with 12 mic preamps. Mono channels have a sweepable mid EQ (100 Hz to 8 kHz), and channels 1 to 8 have one-knob FET compression. Four AUX sends, two stereo group buses and 60 mm faders handle complex live shows.

Built for the road

Rugged enclosures provide long-term, stage-ready reliability. Optional padded carry bags and 19-inch rack-mount kits suit both touring and fixed installations.

Specifications

The details that matter.

Manuals & Downloads

Mono Input Channel

Mic Input
sensitivity · from -10 to -50 dB · Balanced XLR-F
impedance
3 kΩ
Line Input
sensitivity · from +20 to -20 dB · Balanced JACK
impedance
30 kΩ
Lo cut
75Hz, 18dB/oct.
EQ
HIGH (shelving) · ±15 dB @ 12 kHz
MID (peaking)
±15 dB from 100 Hz to 8 kHz
LOW (shelving)
±15 dB @ 80 Hz
Compressor
FET · CH 1-8, 1-knob

Stereo Input Channel

Mic Input
sensitivity · from -10 to -50 dB · Balanced XLR-F
impedance
3 kΩ
Line Input
sensitivity · from +20 to -20 dB · Balanced JACK
impedance
30 kΩ
EQ
HIGH (shelving) · ±15 dB @ 12 kHz
MID (peaking)
±15 dB @ 2.5 kHz
LOW (shelving)
±15 dB @ 80 Hz

Master Section

Main Mix
nom. out level · +4 dBu · Balanced JACK and XLR-M
C. ROOM output
nom. out level · 0 dBu · Unbalanced JACK
GROUP output
nom. out level · +4 dBu · Balanced JACK
FX/AUX output
nom. out level · 0 dBu · Unbalanced JACK
Headphones
min. impedance · 32 ohm
max. out level
(2x) 193 mW · Stereo JACK

Digital Multieffect /Player

Effects
99 presets
FX DSP resolution
24 bit
Bluetooth
Version 5.0, Audio Streaming
PC USB interface
USB 2.0 / 3.0 · Type C
USB player
USB 2.0 / 3.0 · Type C
A/D and D/A converters
24 bit 48 kHz
Controls
LCD, DIAL, PEAK LED, MUTE switch, MUTE footswitch

General Specifications

Maximum level
all outputs · +22 dBu
Crosstalk
meas. at 1 kHz · > 82 dBu
HUM & Noise
unweighted · < -93 dBu
THD + Noise
at +4dB, 1kHz · < 0.008 %
Dimensions (WxHxD)
18.9 × 17 × 4.1 in (481 x 432 x 104 mm)
Weight
13.9 lb (6.30 kg)

Power Requirements

Mains Supply Voltage
110-240 VAC (±10%) 50 / 60 Hz
available with
Europe mains cord (Schuko plug),
US mains cord (NEMA 5-15P plug),
UK mains cord (BS1363 plug)
Consumption
50 W

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
