New
Proel · Sound Systems

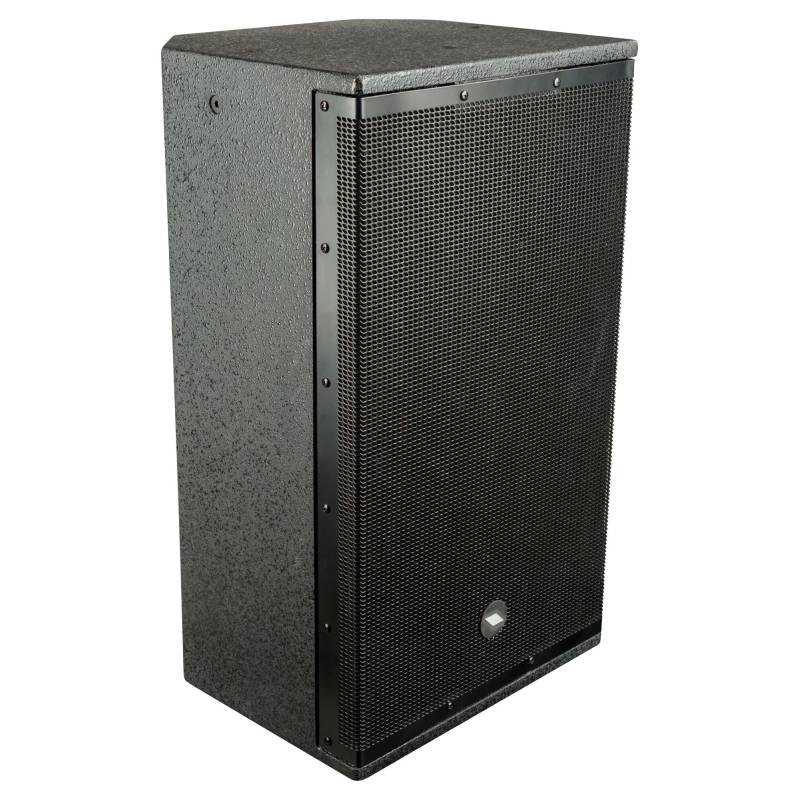

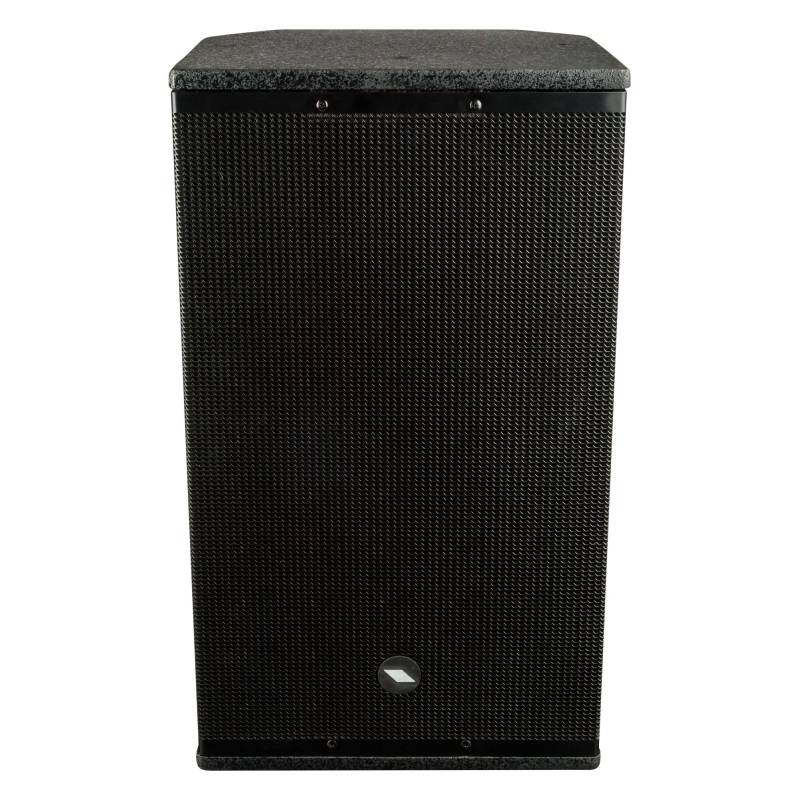

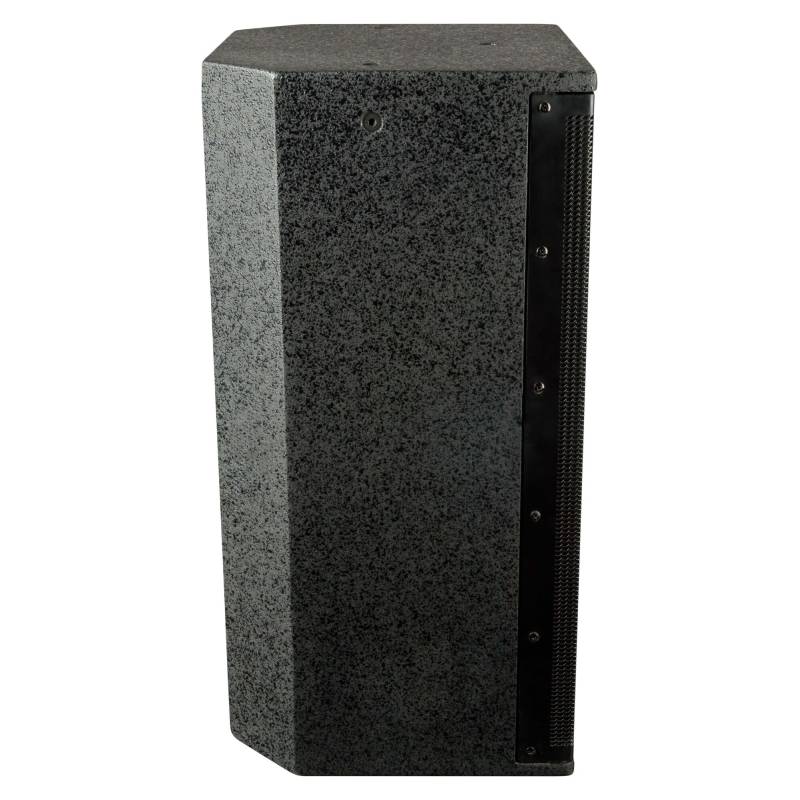

Passive 2-Way 12" Loudspeaker System
A passive 2-way 12-inch installation loudspeaker with 500 W peak handling, 90 x 90-degree coverage and a black plywood cabinet.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
Sound and coverage
The LTX12P pairs a 12" woofer with a 2.5" voice coil and a 1" compression driver. Coverage is 90° x 90°, and response runs from 50 Hz to 20 kHz.

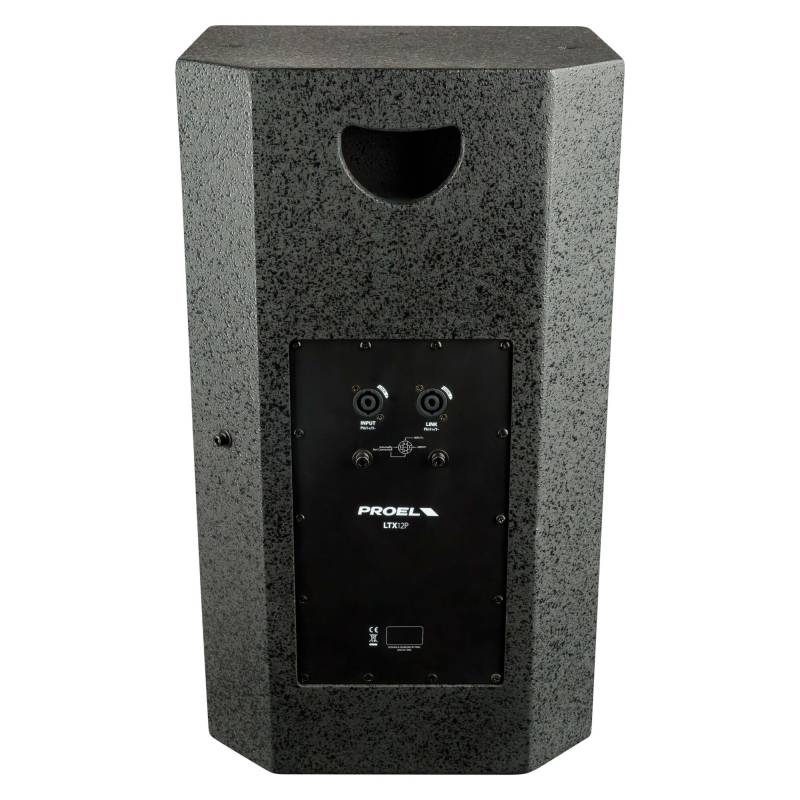

It handles 250 W continuous and 500 W peak at 8 ohms, with 96 dB sensitivity (1 W/1 m). A linear-phase crossover with HF protection feeds two SPEAKON connectors.
Cabinet and mounting
The black plywood cabinet has multiple flying points, a rear handle and a pole socket for floor-stand use. Tilt-and-swivel and C-shape brackets are optional.
Specifications
The details that matter.
- System type
- 2-way vented enclosure
- High Frequency Device
- 1" compression driver with 1" VC
- Low Frequency Device
- 12" woofer with 2.5" voice coil
- Angular Coverage
- 90° H x 90° V
- Power Rating Continuous
- 250 W
- Power Rating Peak
- 500 W
- Impedance
- 8 ohm
- Frequency Response
- 50 Hz - 20 kHz
- SPL (1 W / 1 m)
- 96 dB
- Connectors
- 2 x SPEAKON
- Flying System
- 4 x M8, 3 x M6
- Construction
- Plywood
- Cabinet Color
- Black
- Handles
- 1 x rear
- Mounting Pole
- 1 x bottom
- Mounting Bracket
- Tilt and swivel bracket (optional), C-shape bracket (optional)
- Dimensions (W x H x D)
- 13.6 × 23.4 × 11.8 in (345 x 595 x 300 mm)
- Weight
- 32.6 lb (14.8 kg)
-
