Proel · Sound Systems

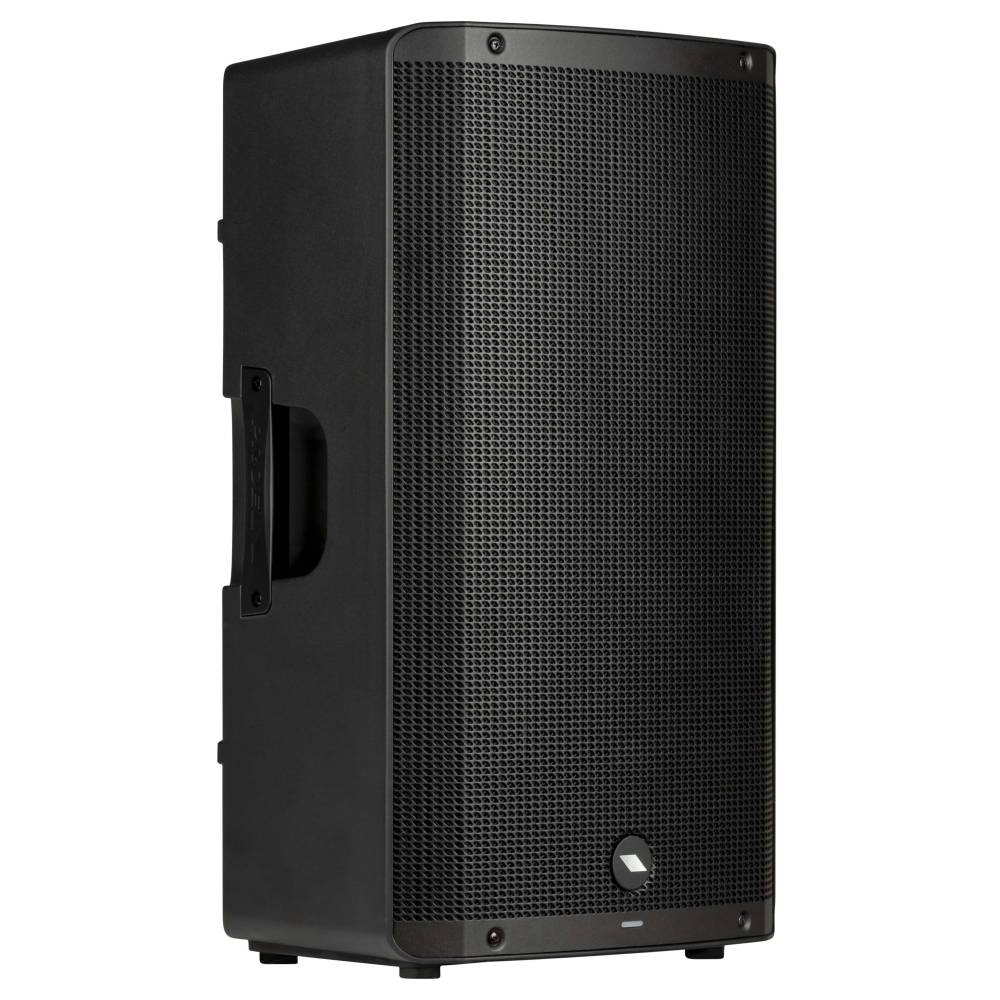

Active 2-Way 12" Loudspeaker with DSP

Item DIVA12A · Designed in Italy

A 2-way active 12-inch loudspeaker with 1000 W peak power, FIR-filtered DSP, a built-in 3-channel mixer and Bluetooth stereo link.

Where to Buy

Find a local dealer to try it in person
Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

Sound and power

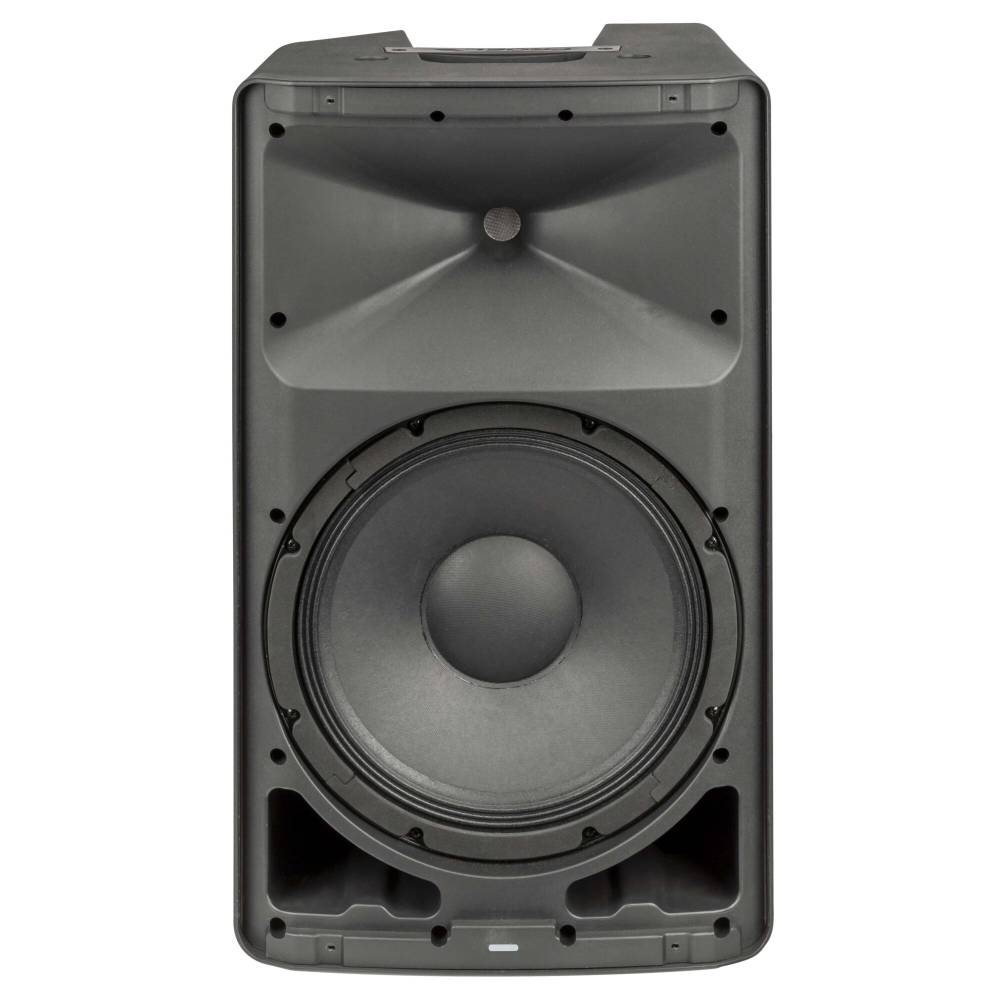

DIVA12A pairs a 12-inch long-excursion woofer with a 1-inch titanium compression driver on a 90 x 60 degree constant-directivity horn. Amplification delivers 1000 W peak, with a Class D stage for the woofer and a Class AB stage for the driver, powered by an SMPS supply.

A high-performance DSP with 24-bit converters and linear-phase FIR filters gives a smooth, detailed response from 50 Hz to 20 kHz, with a maximum SPL of 127 dB.

Mixer and connectivity

  • Built-in 3-channel mixer with mic/guitar/line selection and HIGH and LOW EQ

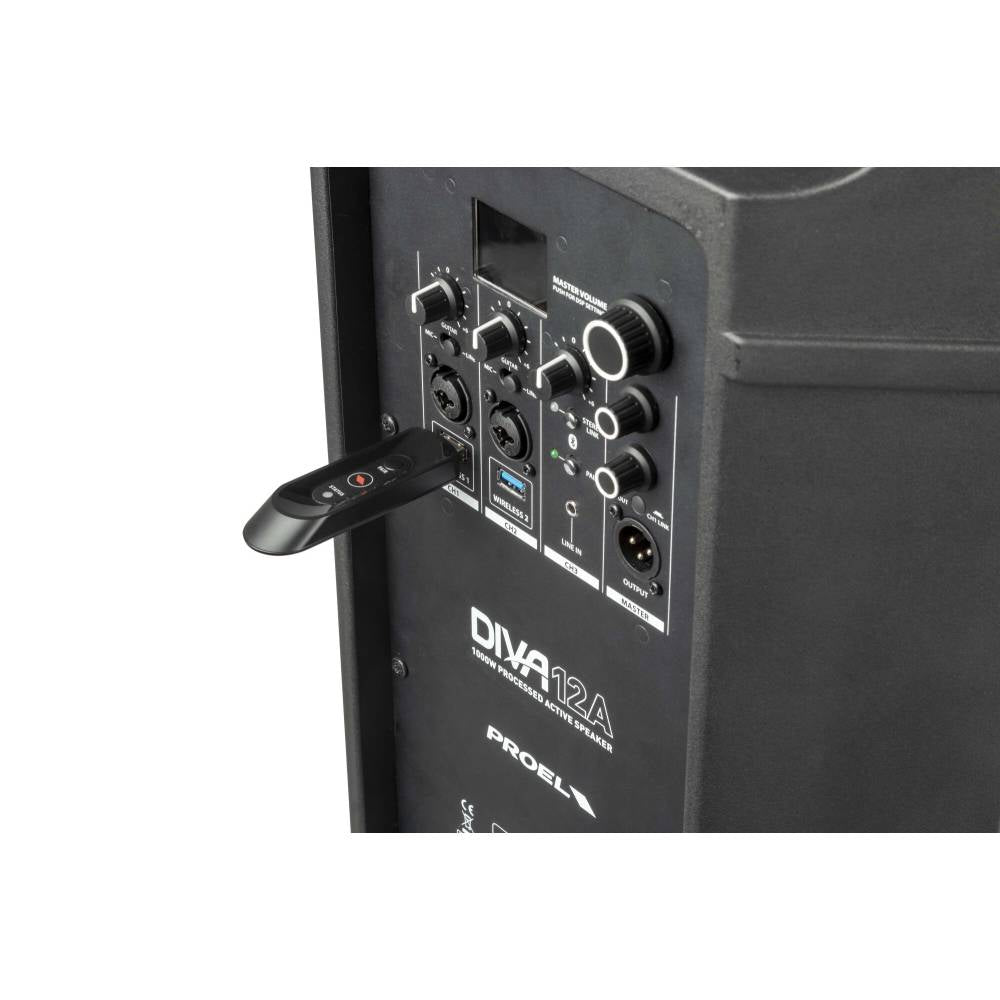

  • Two wireless USB inputs for Proel U24 microphone systems
  • Bluetooth 5.0 for mono streaming, or stereo with two speakers via STEREO LINK (TWS)
  • Color LCD with single-knob control and five presets: MUSIC, LIVE, DJ, MONITOR, SPEECH

Cabinet

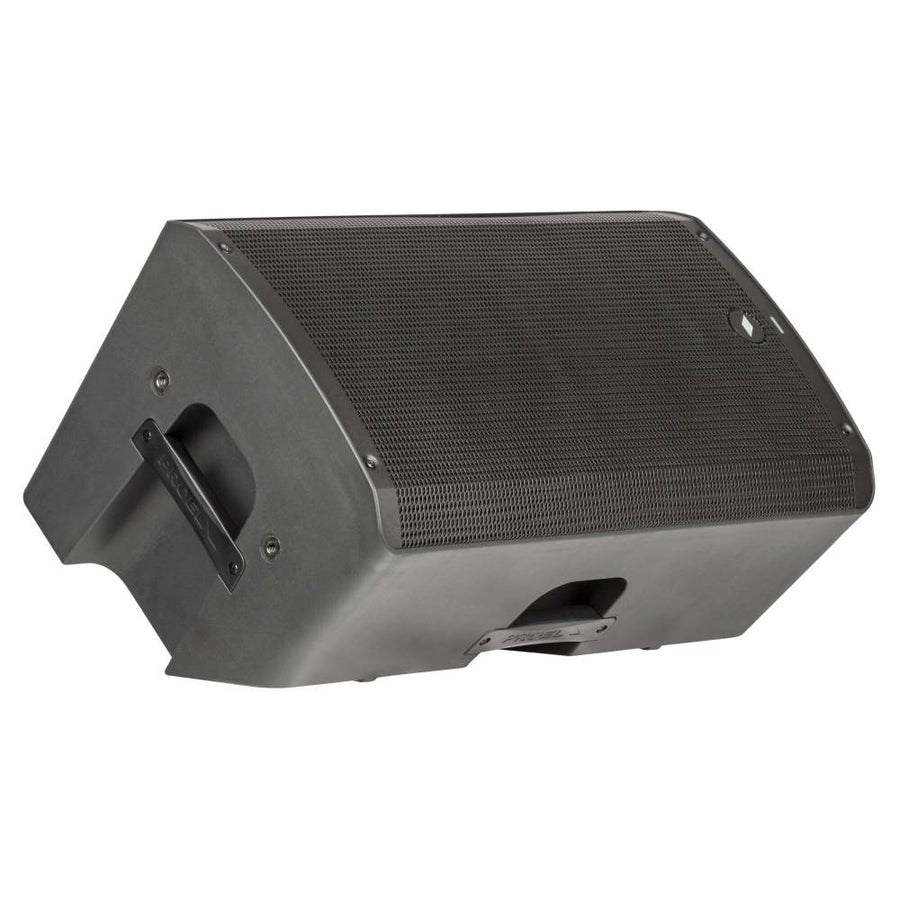

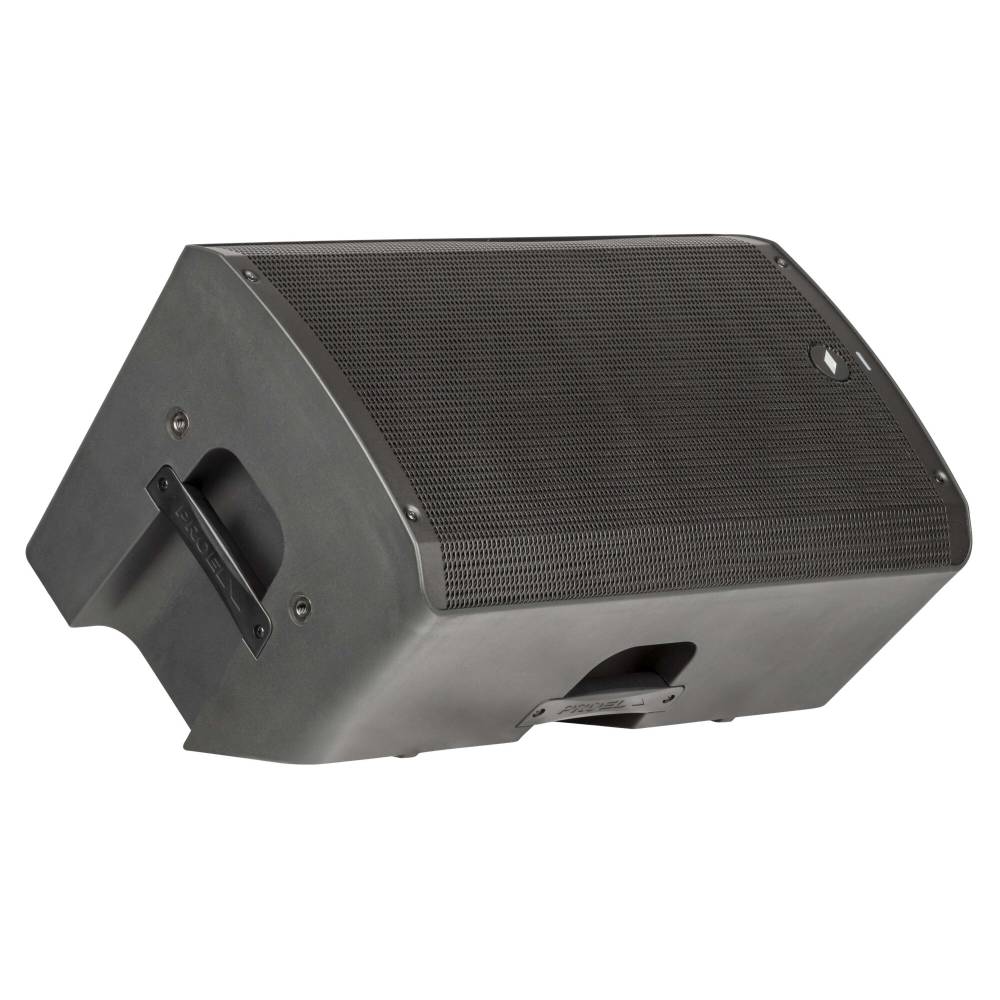

The lightweight, durable polypropylene cabinet has two ergonomic handles and four M10 flying points. Its slanted shape lets it work as a stage monitor.

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active.
System type
2-way vented enclosure
High Frequency Device
1’’ compression driver with 1.35" voice coil and titanium diaphragm
Low Frequency Device
12" woofer with 2" VC
Angular Coverage
90° H x 60° V
Total Peak Power
1000 W
HF Amplifier Continuous Power
100 W Class AB
LF Amplifier Continuous Power
400 W Class D
Power Supply
SMPS
System Processing
DSP
Frequency Response
50 Hz - 20 kHz
Max SPL
127 dB

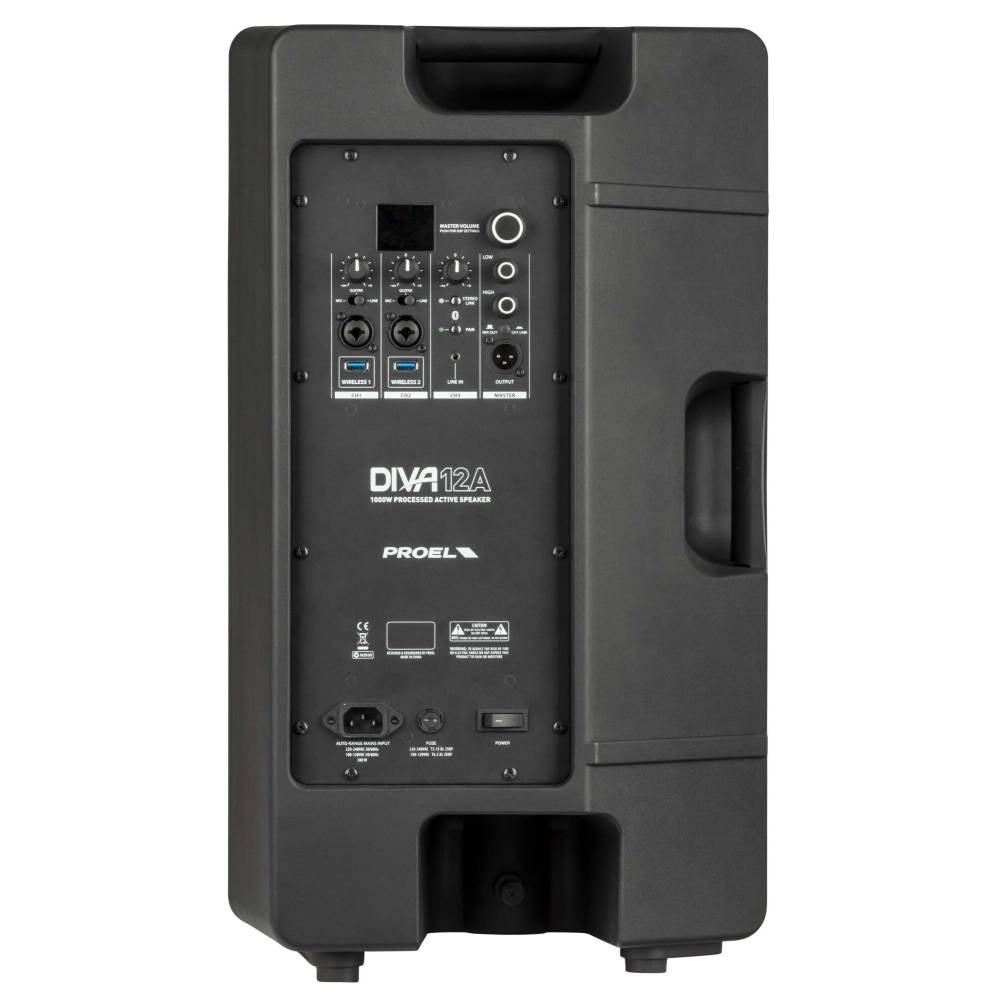

Inputs
2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS
Outputs
1 x selectable MIX OUT / CH1 LINK (M-XLR)
Controls
CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD
Bluetooth
Version 5.0, Audio Streaming, STEREO LINK (TWS)
Power Supply
100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch
Rated Consumption*
300 W
Floor Monitor Angle
45°
Flying System
4 x M10 - top/bottom
Cabinet Material
Polypropylene
Handles
1 x top, 1 x side
Mounting Pole
1 x bottom
Dimensions (W x H x D)
14.3 × 24.3 × 13.6 in (364 x 617 x 346 mm)
Weight
35.3 lb (16.0 kg)
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
