Proel · Recording Gear
8-channel digital mixer

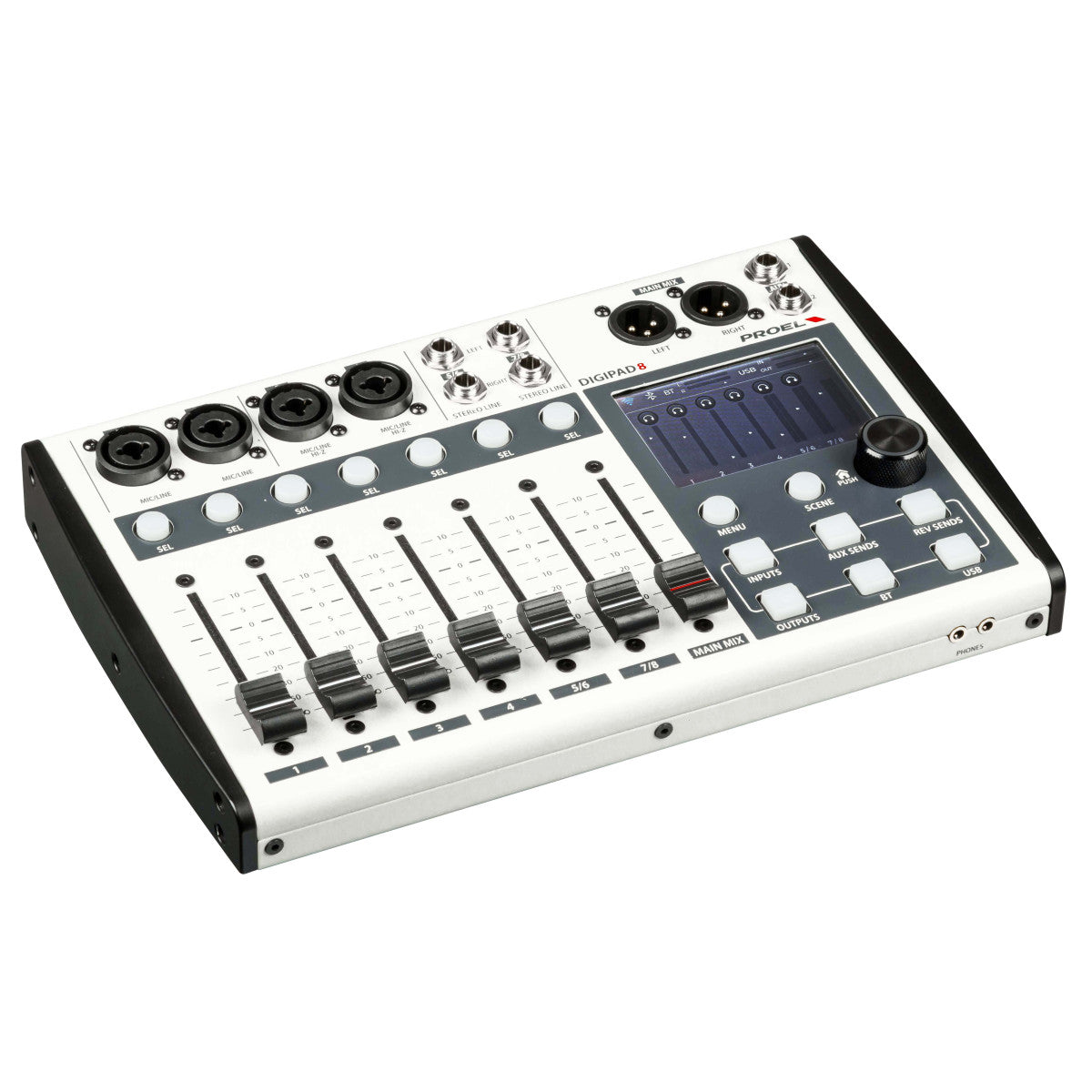

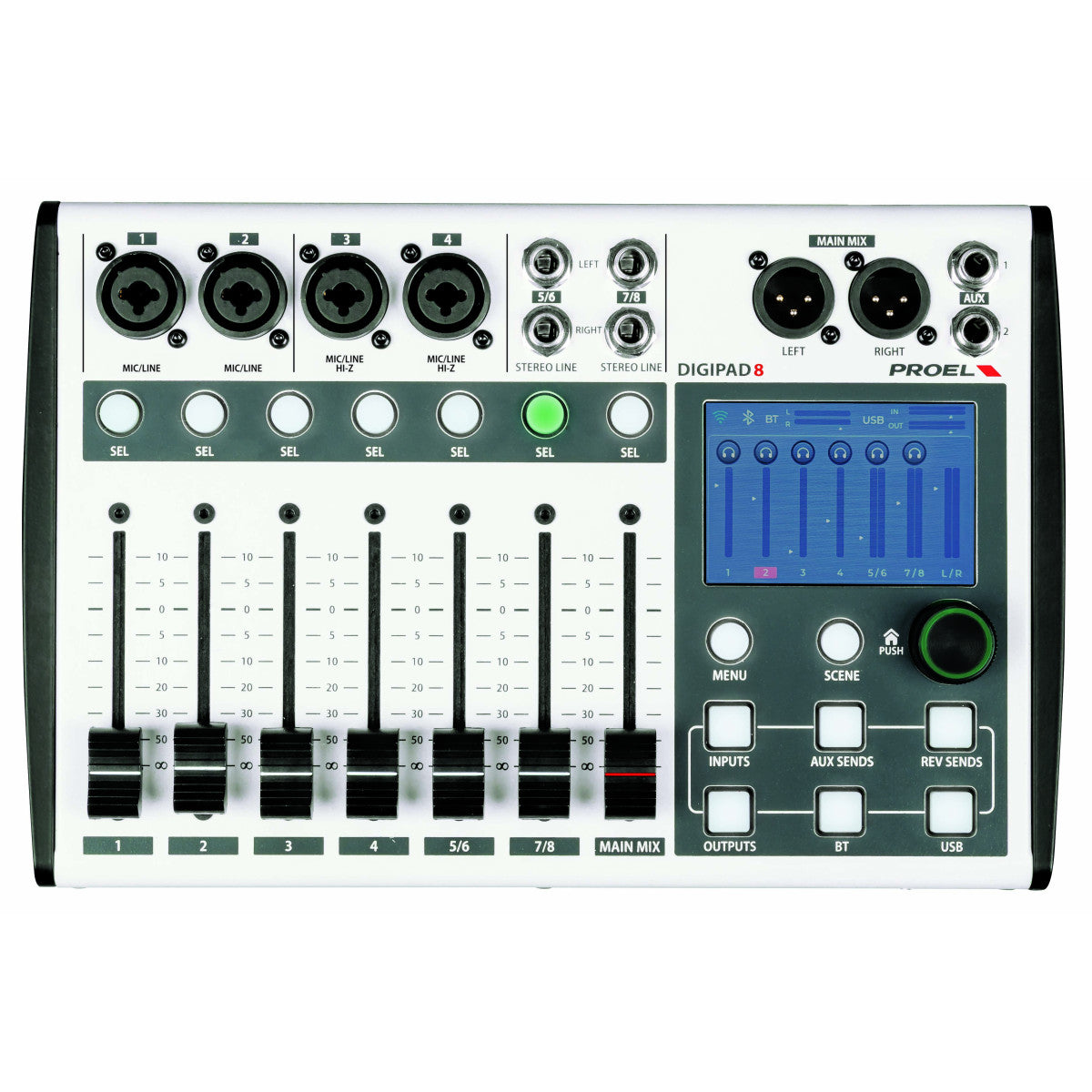

A compact 8-channel digital mixer with seven motorized faders, a touch display, USB audio, Bluetooth and Wi-Fi app control.
Where to Buy
Find a local dealer to try it in person
Details
About this product.
Mixing and control

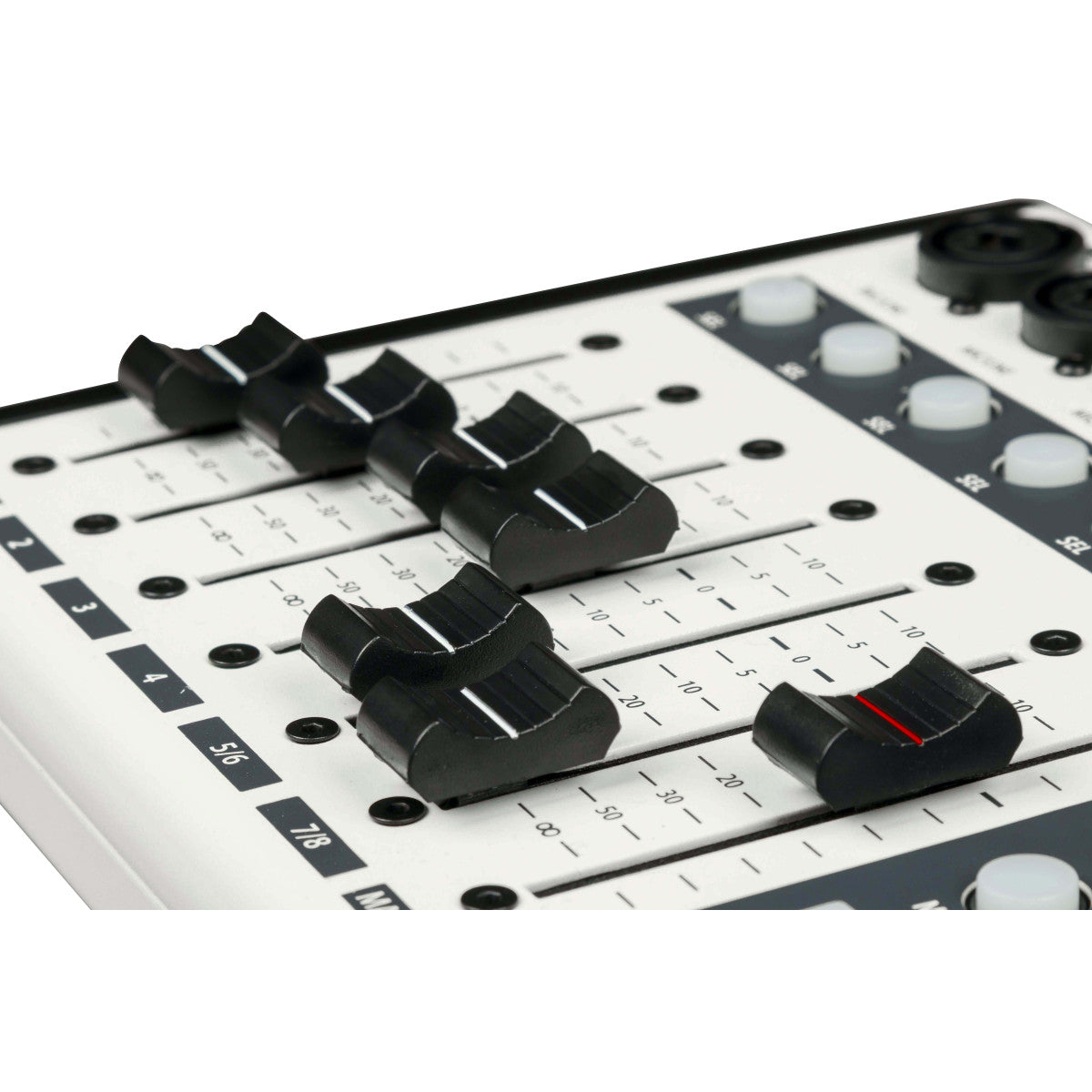

DIGIPAD8 delivers professional mixing features in a portable format for musicians, sound engineers and creators. Seven 60 mm motorized faders give fast, precise recall of saved scenes, even in demanding live situations.

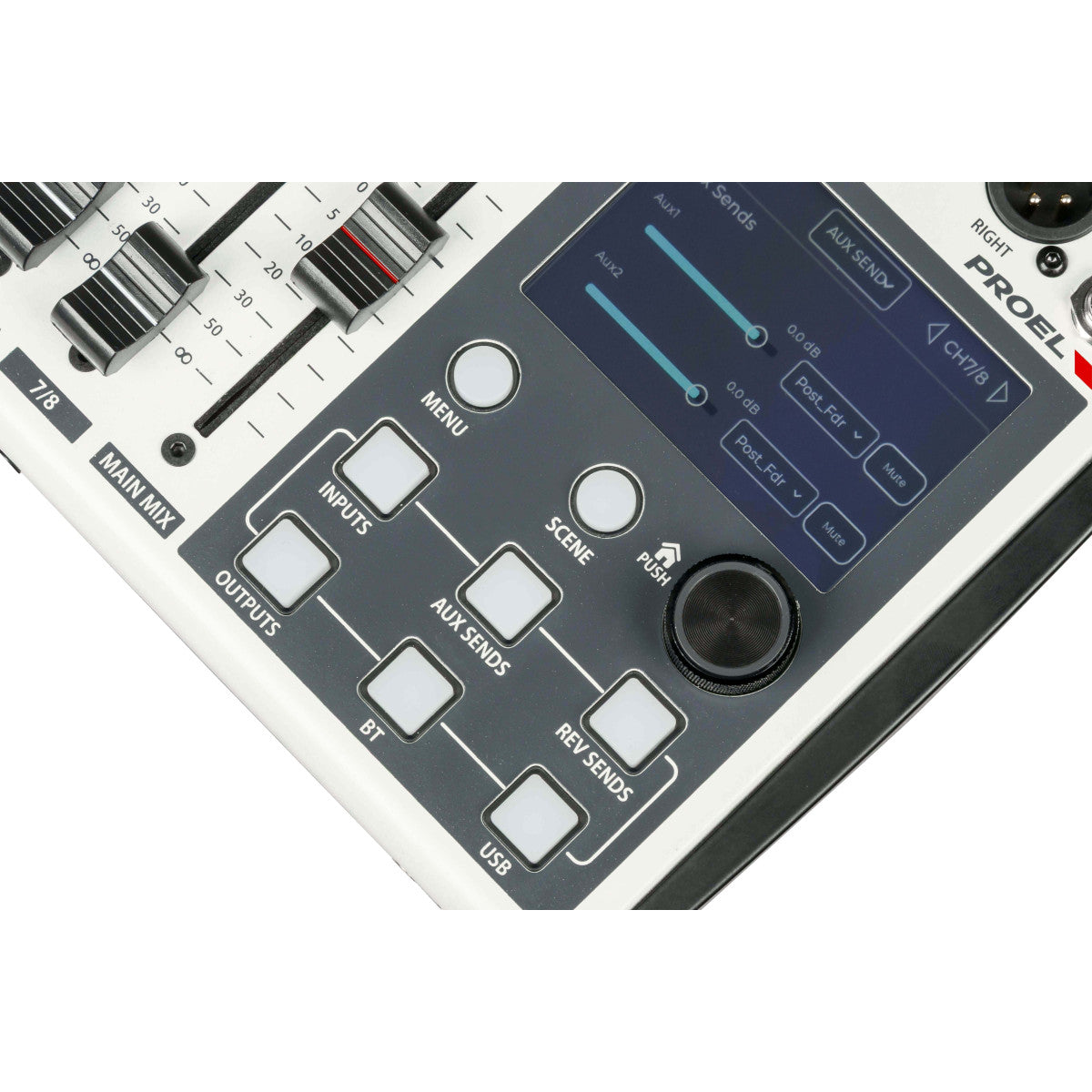

A 3-inch capacitive touch display puts every parameter within reach. Seven direct selection keys, eight direct access keys and a rotary dial complete the controls.
Inputs and effects
- Combo mic/line inputs, Hi-Z instrument inputs and stereo line inputs
- Two independent AUX sends
- Dedicated FX send with studio-grade digital reverb
- 4-band parametric EQ, compressor and gate on the inputs
Recording and streaming
The 24-bit, 48 kHz USB-C audio interface handles recording and playback. A dedicated Bluetooth 5.2 channel streams music wirelessly.
Remote control
Use DIGIPAD8 as a stand-alone console, or control it from a phone, tablet or computer over the built-in Wi-Fi. Apps are offered for iOS, Android, macOS and Windows, and configurations can be saved and recalled in seconds.
Specifications
The details that matter.
Input Channels
- Mic/Line Input 1-2
- sensitivity · from 0 to -45 dB · Balanced XLR-F / Balanced JACK
- impedance
- 10 kΩ
- Mic/Line Input 3-4
- sensitivity · from 0 to -45 dB · Balanced XLR-F
- impedance
- 10 kΩ
- Hi-Z input 3-4
- sensitivity · from 0 to -35 dB · Unbalanced JACK
- impedance
- 1 MΩ
- Stereo Line Input 5-8
- sensitivity · from 0 to -35 dB · Balanced JACK
- impedance
- 10 kΩ
- EQ
- 4-band full parametric EQ with LOW-CUT and HI-CUT
- Compressor
- Threshold/Ratio/Gain/Attack/Release

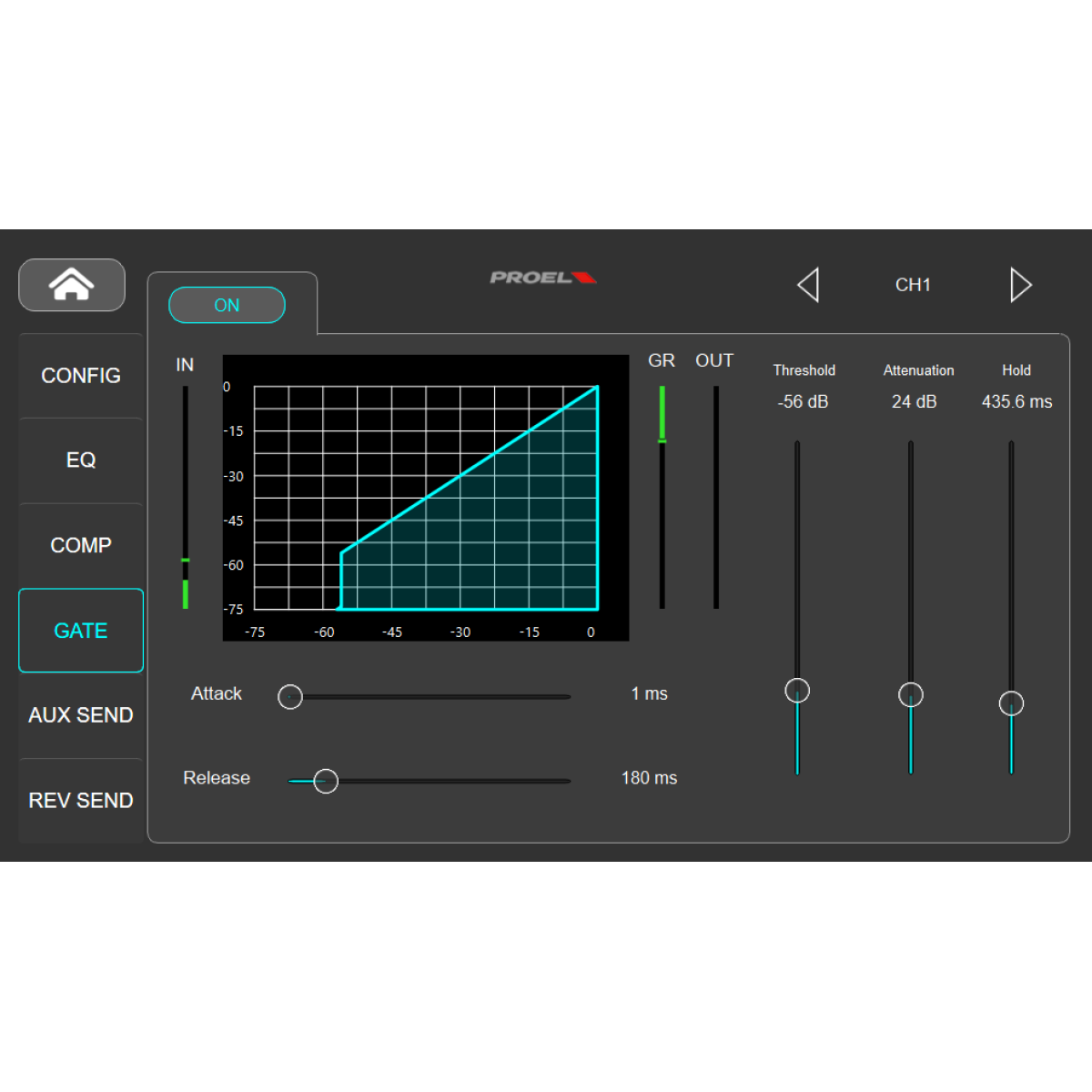

- Gate
- Threshold/Attenuation/Hold/Attack/Release
Master Section
- Main Mix
- nom. out level · 0 dBu · Balanced XLR-M
- Main Mix Eq
- 4-band full parametric EQ with LOW-CUT and Hi-CUT
- MAIN MIX Limiter
- Threshold/Attack/Release
- AUX 1-2 output
- nom. out level · 0 dBu · Balanced JACK
- Aux 1-2 Eq
- 4-band full parametric EQ with LOW-CUT and Hi-CUT
- AUX 1-2 Limiter
- Threshold/Attack/Release
- Headphones
- min. impedance · 32 Ω · 2 x Stereo MINIJACK
- max. out level
- 135 mW
- Reverb
- Reverb Size
USB / Bluetooth Interface
- Bluetooth
- Version 5.2, Audio Streaming
- PC USB interface
- USB 2.0 / 3.0 · Type C
- A/D and D/A converters
- 24 bit - 48 kHz
User Interface
- Onboard controls
- Seven 60mm motor-faders
3" Capacitive Touch Display
Seven DIRECT SELECTION keys
Eight direct access keys
Rotary dial - Remote control
- Integrated WI-FI Interface
Windows App
MacOS
Android App
iOS App
General Specifications
- Maximum level
- all outputs · +18 dBu
- Crosstalk
- meas. at 1 kHz · -105 dB
- HUM & Noise
- unweighted · -85 dBu · A weighted -89 dBu
- THD + Noise
- at +4dB, 1kHz · > 0.002%
- Dimensions (WxHxD)
- 11 × 7.4 × 2.1 in (280 x 187 x 53.5 mm)
- Weight
- 4.6 lb (2.10 kg)
Power Requirements
- Supply
- 5V / 3A · USB Type C
- Mains Supply Voltage
- 100-240 VAC (±10%) 50 / 60 Hz USB power adapter
available with EU / US / UK plug - Consumption
- 15 W
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
