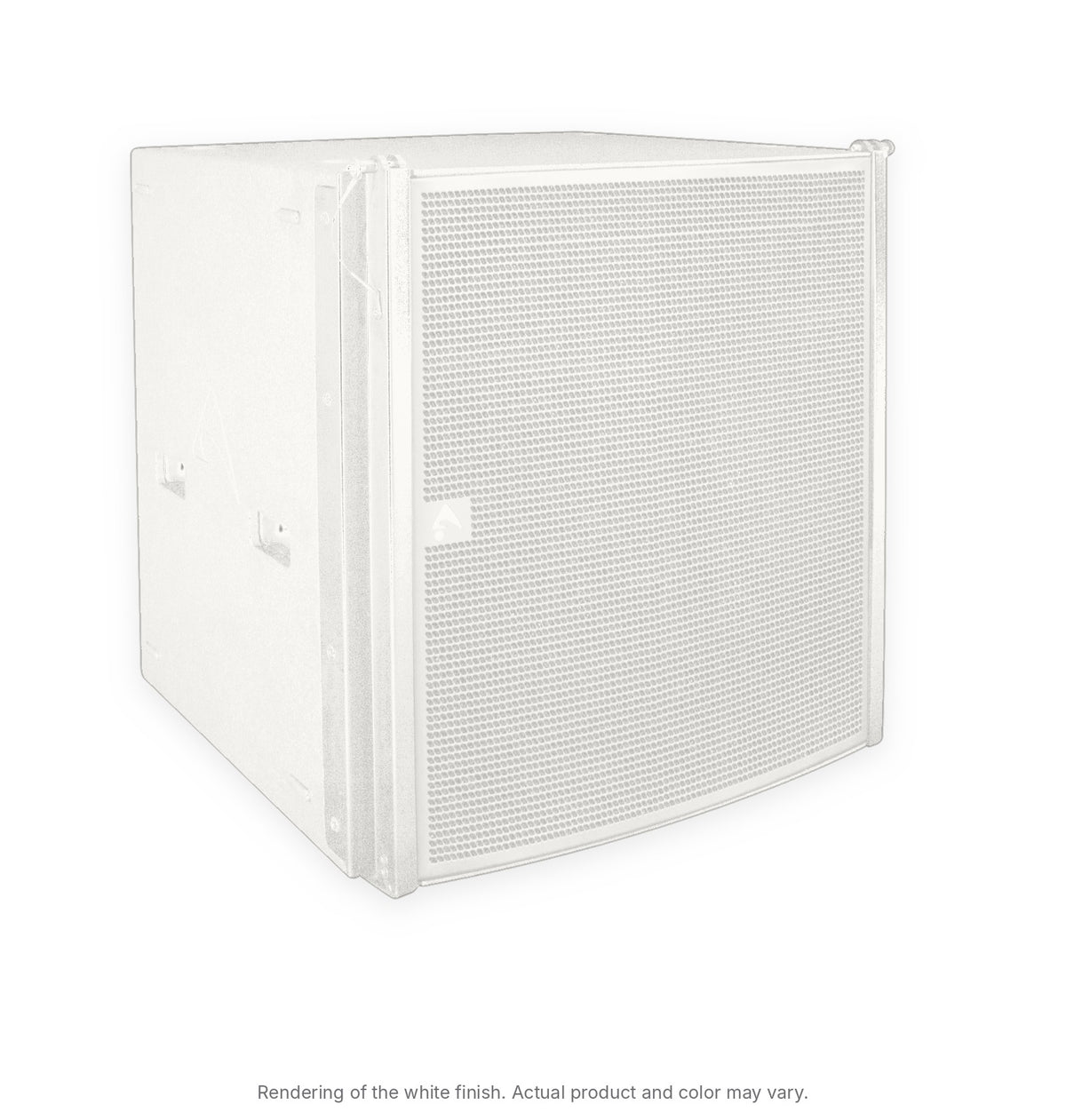

• Axiom SW36XFAWH white finish (rendering; actual product and color may vary)

Axiom · Stage Equipment

Dual 18" Very High-Output, Manifolded Bandpass, Powered, CORE Processed, Flyable Subwoofer (White)

Item SW36XFAWH · Made in Italy

A white powered, flyable dual-18 in subwoofer with a 4,000 W amplifier that rigs atop Axiom AX2010A arrays for 143 dB peak output.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Bass in the air

The SW36XFA is designed to fly with AX2010A line array modules, with usable response down to 36 Hz. At the top of the array, its integrated rigging mates with the AX2010A. Its curved grille matches the AX2010 for a neat, unobtrusive cluster.

Output and drivers

Manifold and bandpass loading reach 143 dB peak output from a compact cabinet. Two 18 in drivers use 4 in Tetracoil dual voice coils, equivalent to a single 6 in voice coil.

Amplifier and processing

An integrated 4,000 W Class D amplifier simplifies connection for touring. It also suits large installs such as dance clubs, sports halls, stadiums and large conference rooms. Ample headroom delivers fast transients for live and electronic music.

PROEL CORE DSP processing provides dynamic range above 110 dB.

Product image is a rendering of the white finish. Actual product and color may vary.

Specifications

The details that matter.

System

System’s Acoustic Principle
Manifolded Band Pass
Frequency Response (±3dB)
36 Hz - 100Hz (Processed)
Maximum Peak SPL @ 1m
143 dB

Transducers

Type
Two 18” (460mm), 4” (100mm) VC
Cone
Water repellent cone and epoxy coated plates
Voice Coil Type
4 in (100 mm) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 6 in (152 mm)
Suspension
Ultra linear suspension behavior

Electrical

Input Impedance
20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity
+4dBu / 1.25 V
Signal Processing
CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls
4 Presets (Standard/InfraSub/Cardioid/ User), Network Termination button, GND Link button
Remote Controls
PRONET control software
Network protocol
CANBUS
Amplifier Type
Class D with SMPS and PFC, Variable Switching Frequency
Output Power
4000W
Mains Voltage Range (Vac)
90 - 260V 50/60Hz
IN / OUT Connectors
Neutrik XLR-M / XLR-F
IN / OUT Network Connectors
ETHERCON®(NE8FAV)
Mains Connector
PowerCon TRUE1 (NAC3PX In/Out)
Cooling
Variable speed DC fan

Enclosure & Construction

Width
29.3 in (74.5 cm)
Height
32.5 in (82.5 cm)
Depth
23.6 in (60 cm)
Depth Including Wheels
28.5 in (72.5 cm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Side Suspension
High Strength Steel with ¼ Fast Pin
Back Suspension
High Strength Steel with ¼ Fast Pin
Wheels
4 heavy-load 3.9 in (100 mm) ø
Net Weight
201.1 lb (91.2 kg) without heavy duty wheels
Color
White

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
