Axiom · Stage Equipment

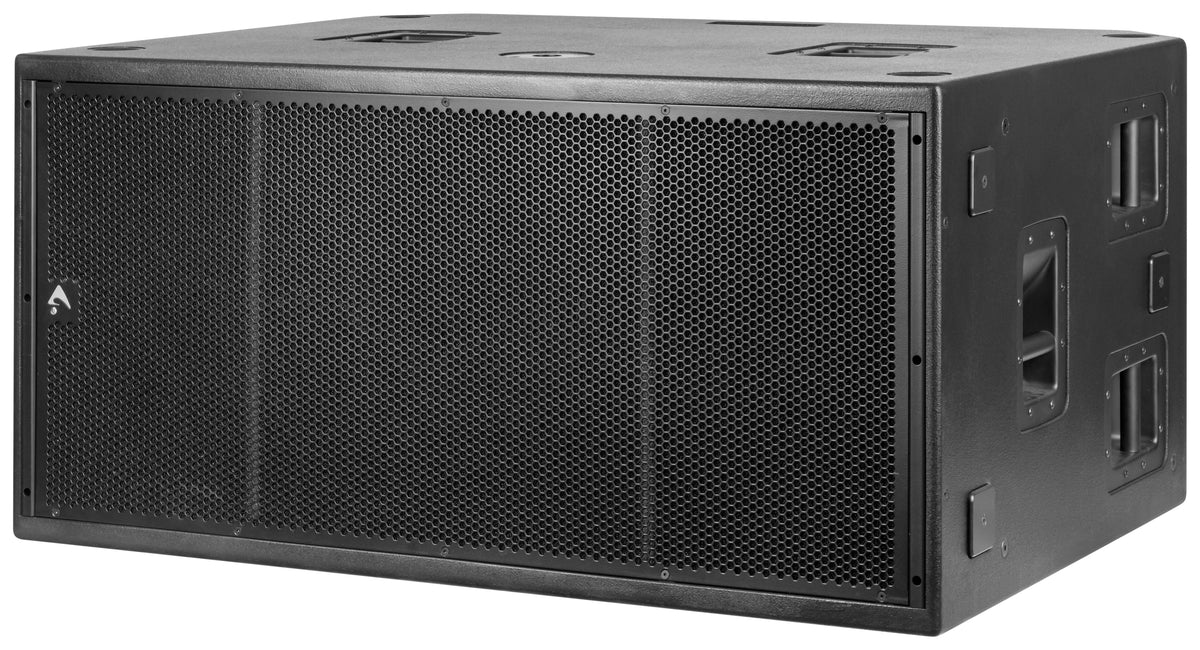

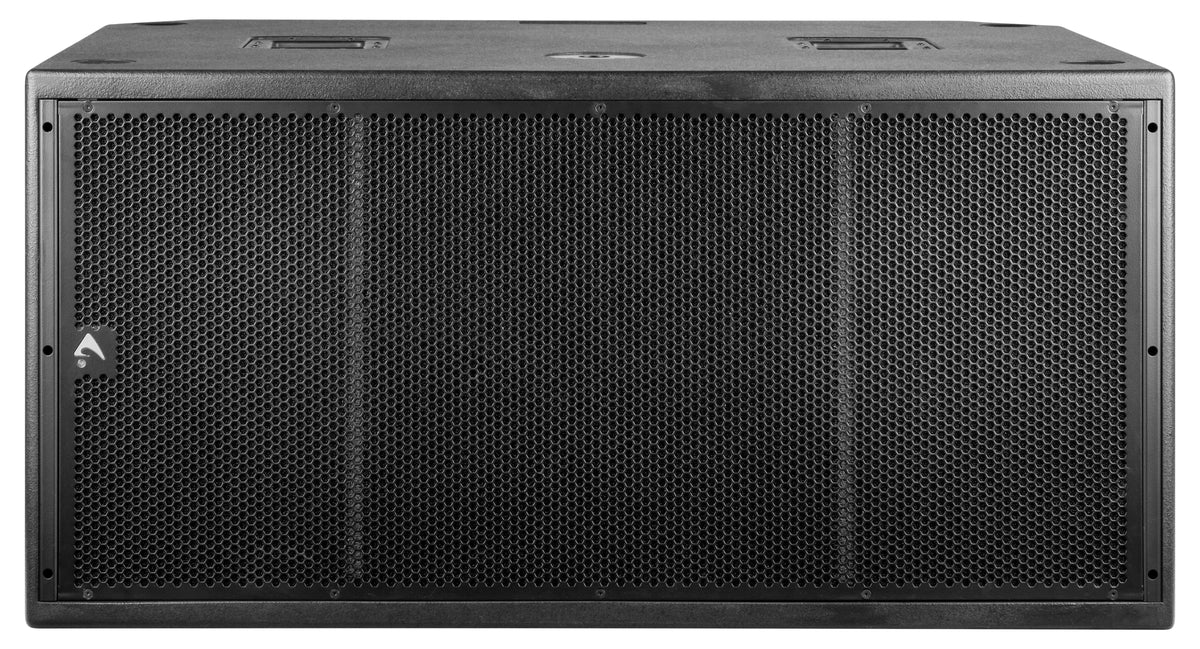

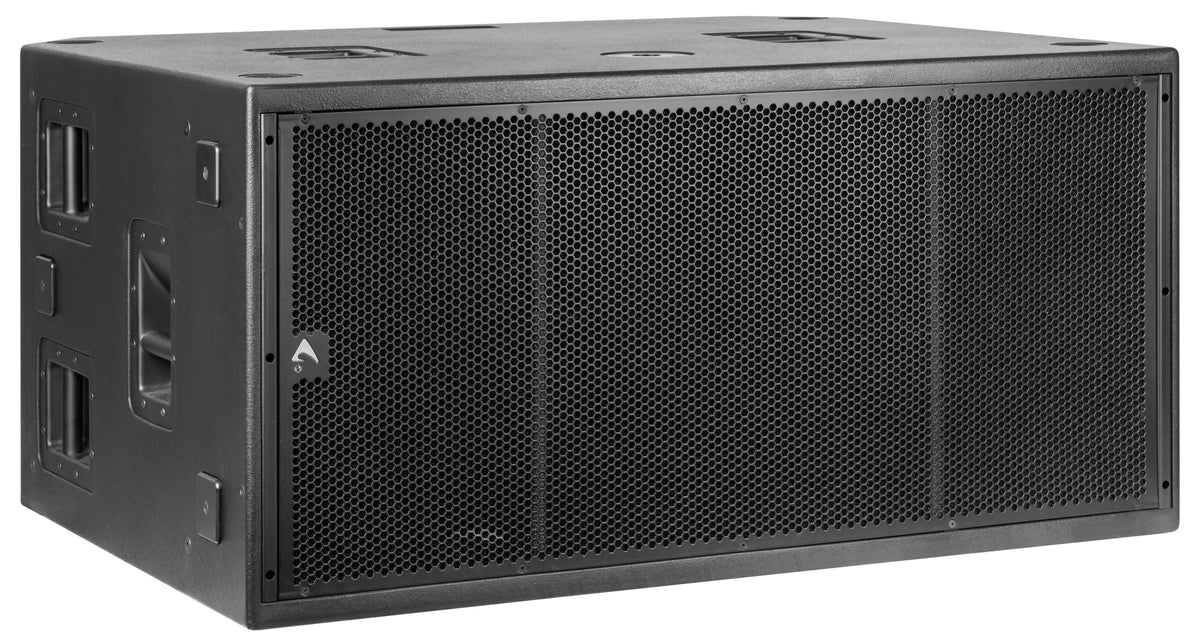

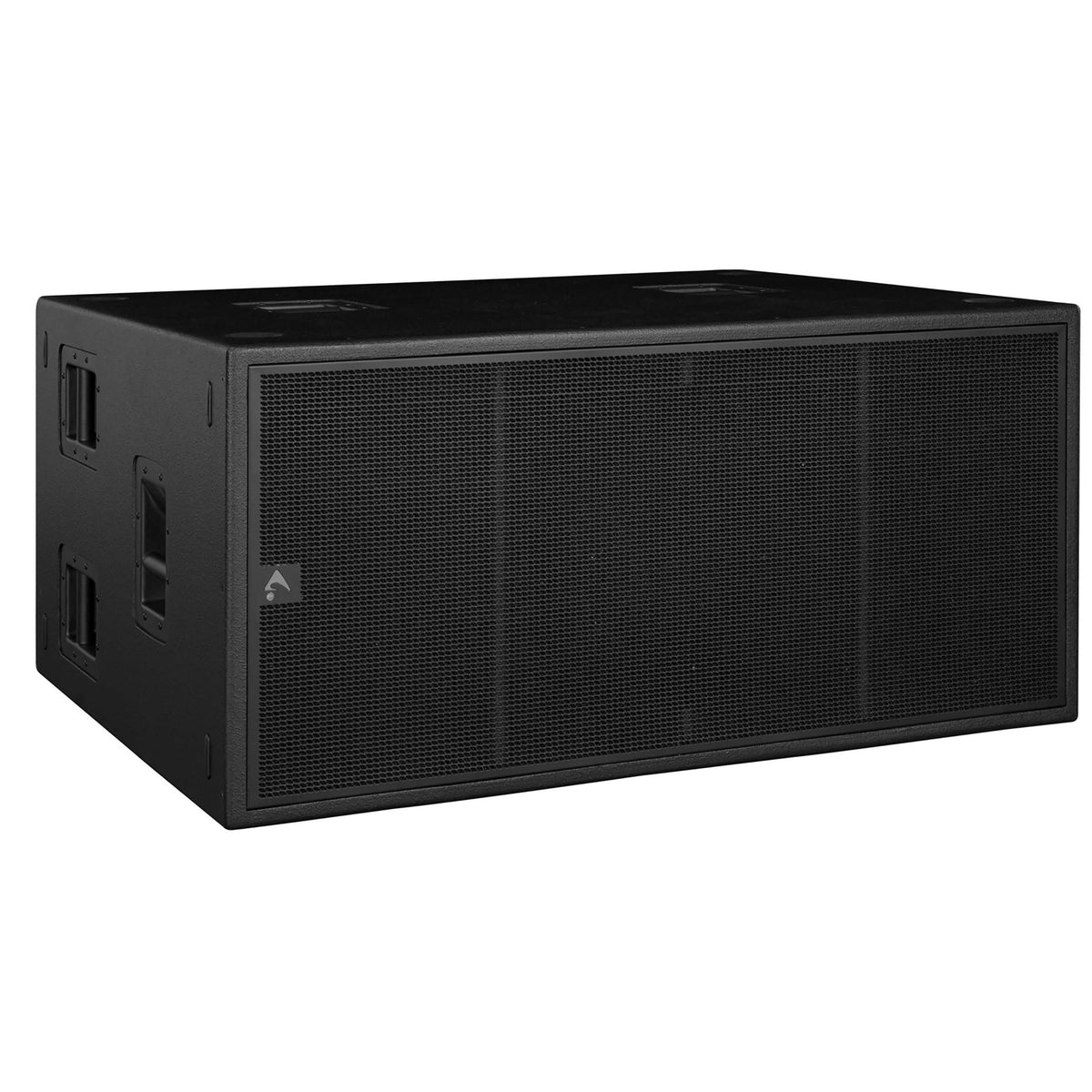

Active, Dual-18" Very High-Output, Manifolded Transmission Line, Powered, CORE Processed, Subwoofer System
Final Stock
A powered dual-18 in transmission-line subwoofer with Tetracoil drivers and a 4,000 W amplifier, reaching 143 dB peak for touring and festivals.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Output
The SW218XA adds 3 dB of peak output, for top-level concert touring and festivals with heavy low-end demands such as hard rock and electronic music. It offers twice the output of the SW218A in the same size enclosure. Rental companies gain more total SPL from the same inventory.
Tetracoil drivers
The 4 in Tetracoil uses two voice coils wound on both sides of one former, in two axially separated magnetic gaps. This allows extreme excursion of the cone and suspension.
Amplifier and build
A 4,000 W Class D amplifier produces up to 143 dB peak with extended low-frequency response. It suits high-level dance clubs and touring systems that need strong sub-bass. CORE DSP processing allows remote control of key parameters and full system monitoring.

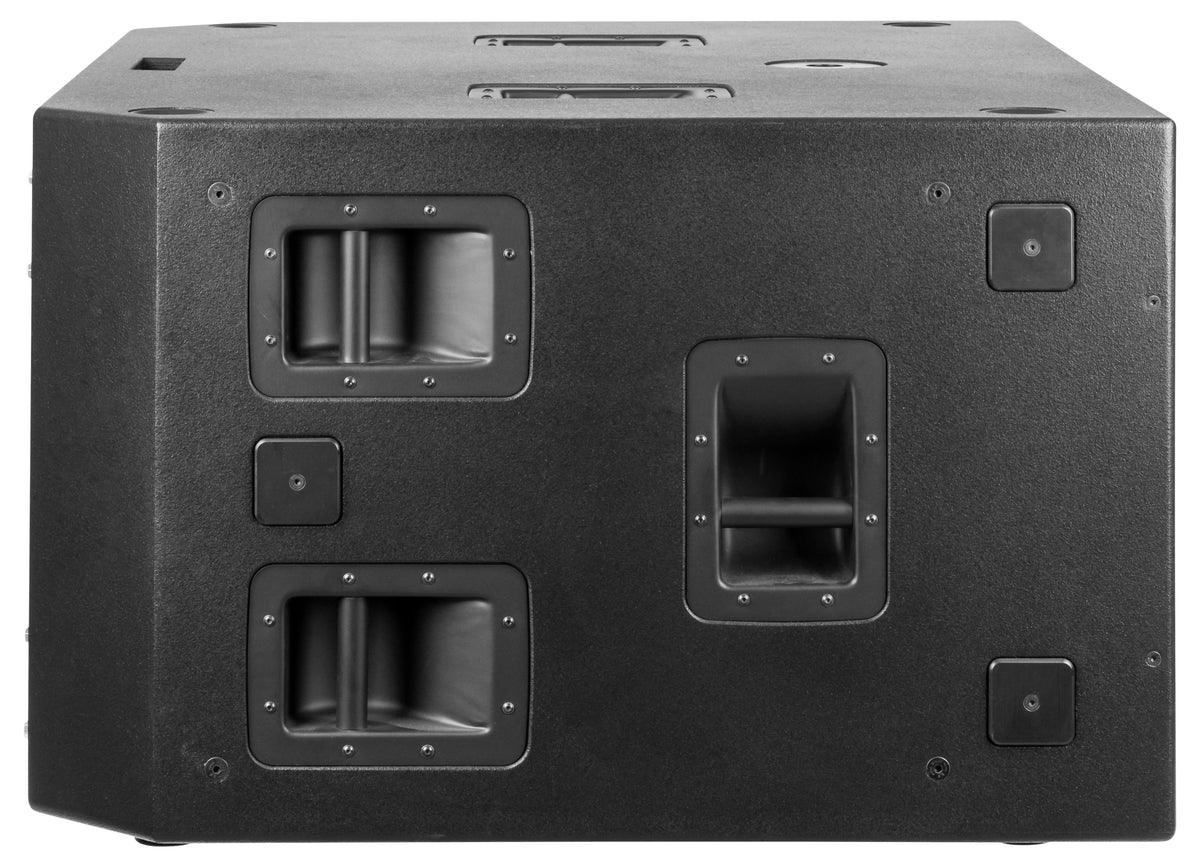

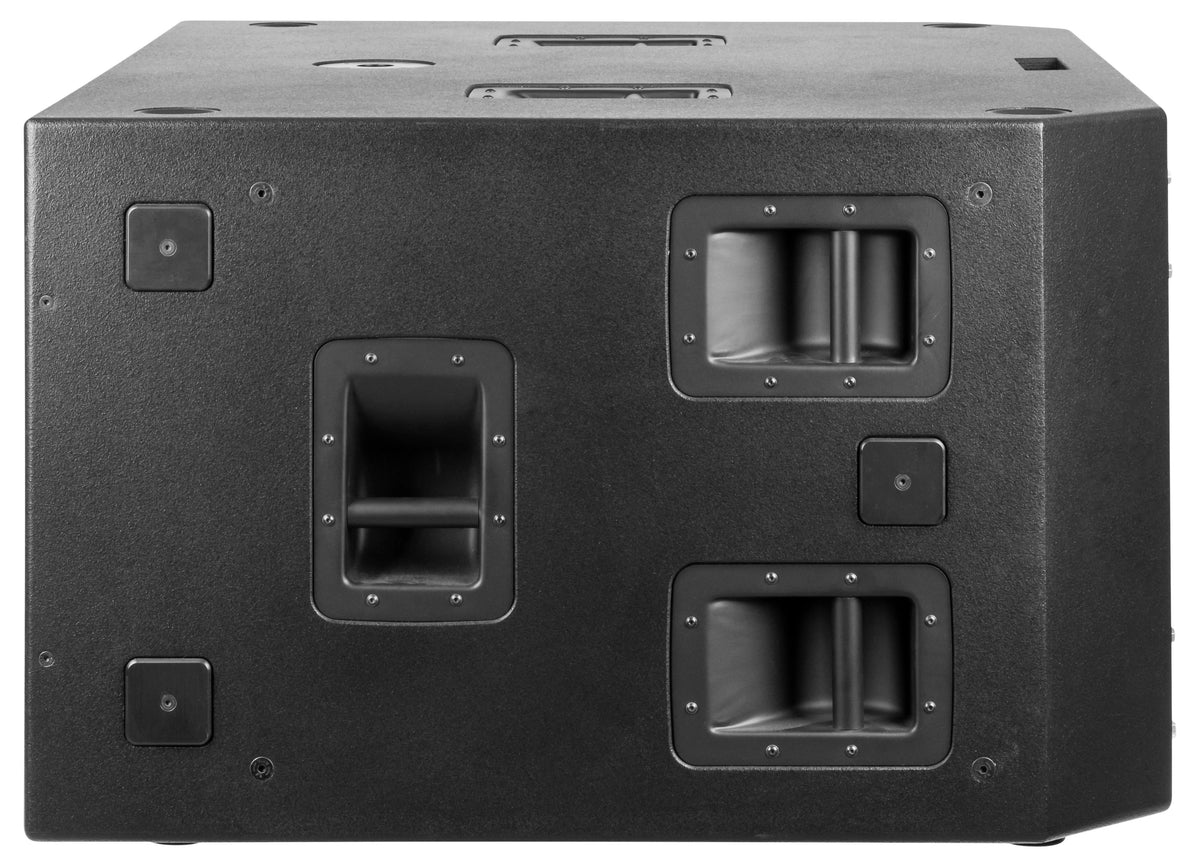

Reinforced birch plywood cabinets have stacking feet and heavy-duty wheels.
Specifications
The details that matter.
- Version
- Active (powered, built-in amplifier). The A in the model number means Active; the passive version is SW218XP.
- SYSTEM
- System’s Acoustic Principle
- Manifolded Transmission Line
- Frequency Response (±3dB)
- 30 Hz - 92Hz (Processed)
- Maximum Peak SPL @ 1m
- 143 dB
- TRANSDUCERS
- Type
- Two 18” (460mm), 4” (100mm) VC
- Cone
- Water repellent cone and epoxy coated plates
- Voice Coil Type
- 3.9 in (100mm) (4in) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 6 in (152mm) (>6in)
- Suspension
- Ultra linear suspension behavior
- ELECTRICAL
- Input Impedance
- 20 kΩ balanced, 10 kΩ unbalanced
- Input Sensitivity
- +4dBu / 1.25 V
- Signal Processing
- CORE processing, 96kHz / 40bit floating point SHARK DSP, 24 bit AD/DA converters
- Direct access Controls
- 4 Presets (Standard/InfraSub/Cardioid/ User), Network Termination button, GND Link button
- Remote Controls
- PRONET control software
- Network protocol
- CANBUS
- Amplifier Type
- Class D with SMPS and PFC, Variable Switching Frequency
- Output Power
- 4000W
- Mains Voltage Range (Vac)
- 90 - 260V 50/60Hz

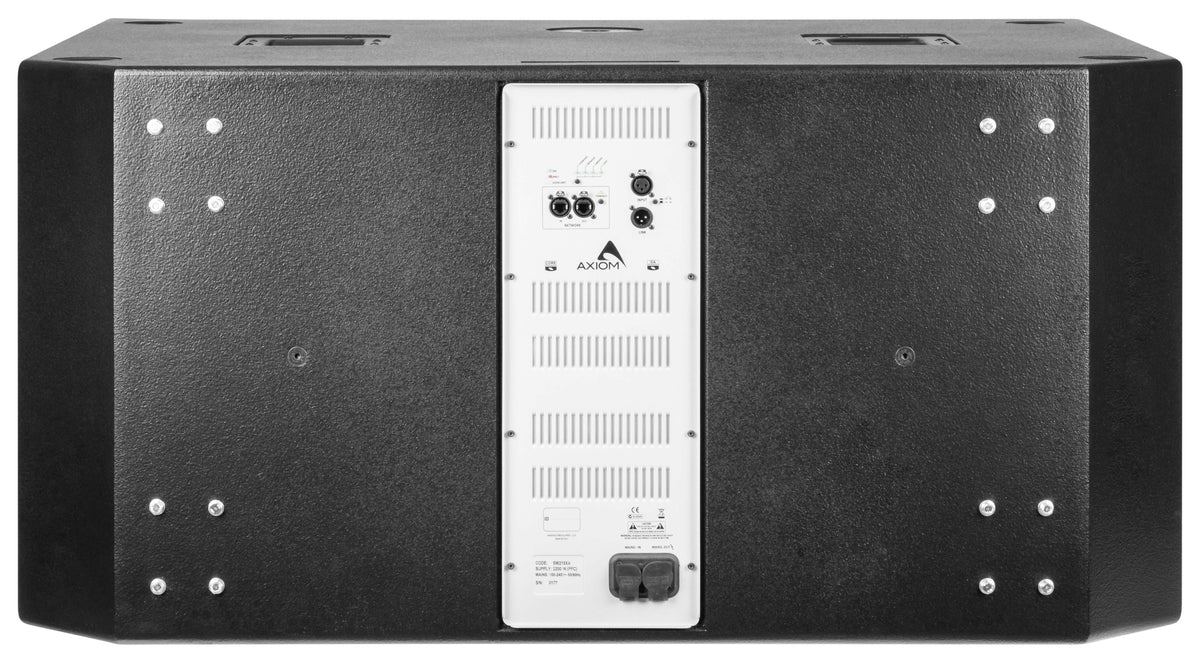

- IN / OUT Connectors
- Neutrik XLR-M / XLR-F
- IN / OUT Network Connectors
- ETHERCON®(NE8FAV)
- Mains Connector
- PowerCon® (NAC3MPA)
- Cooling
- Variable speed DC fan
- ENCLOSURE & CONSTRUCTION
- Width
- 47.87 in (1215 mm)
- Height
- 23.24 in (590 mm)
- Depth
- 37.43 in (950 mm)
- Depth Including Wheels
- 41.37 in (1050 mm)
- Enclosure Material
- 0.59 in (15mm), reinforced phenolic birch
- Paint
- High resistance, water based paint
- Wheels
- 4 heavy-load 3.9 in (100mm) ø
- Net Weight
- 267.2 lb (121.2 kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Extended
- 2 more years (4 in total) when registered on proel.com within 6 months of purchase
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
