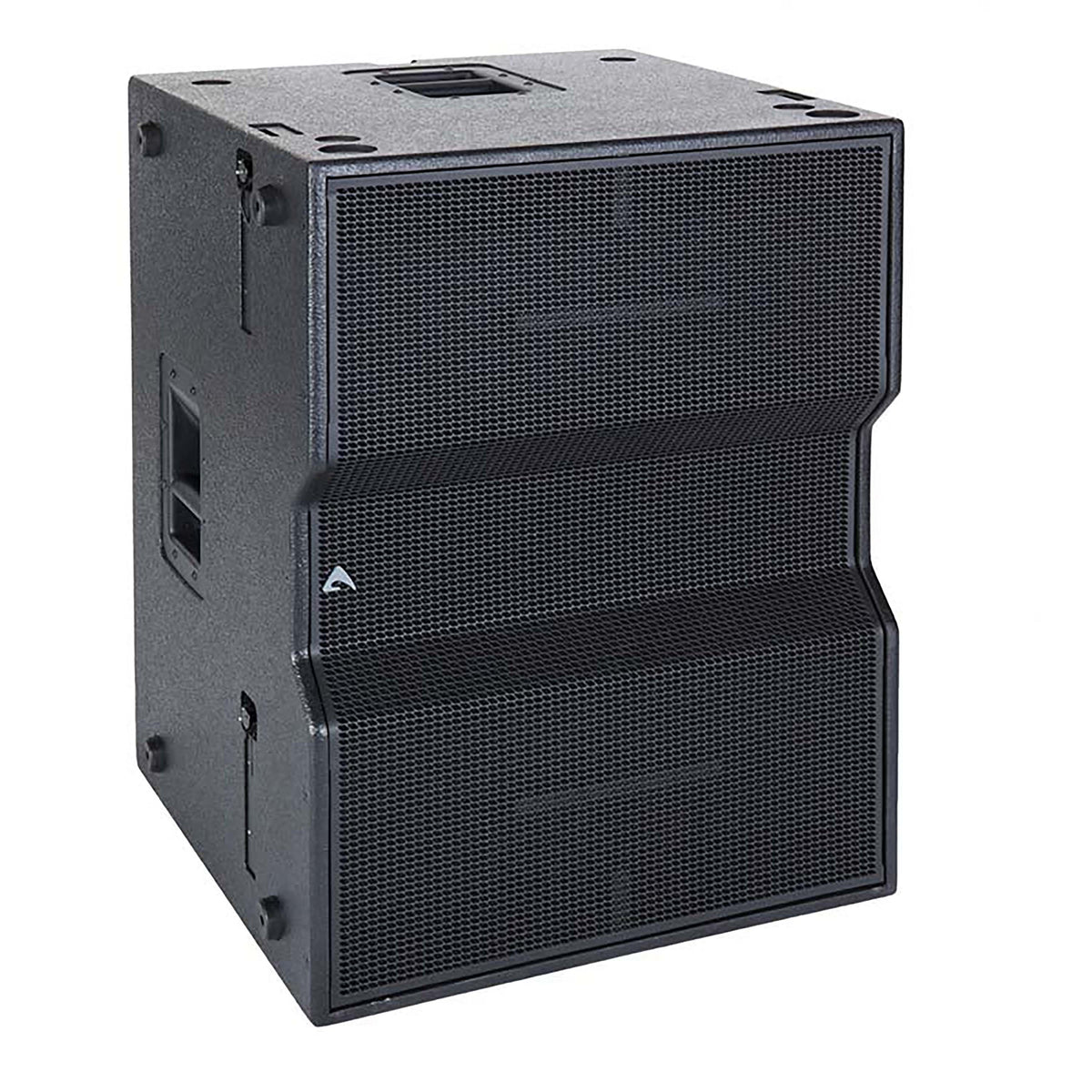

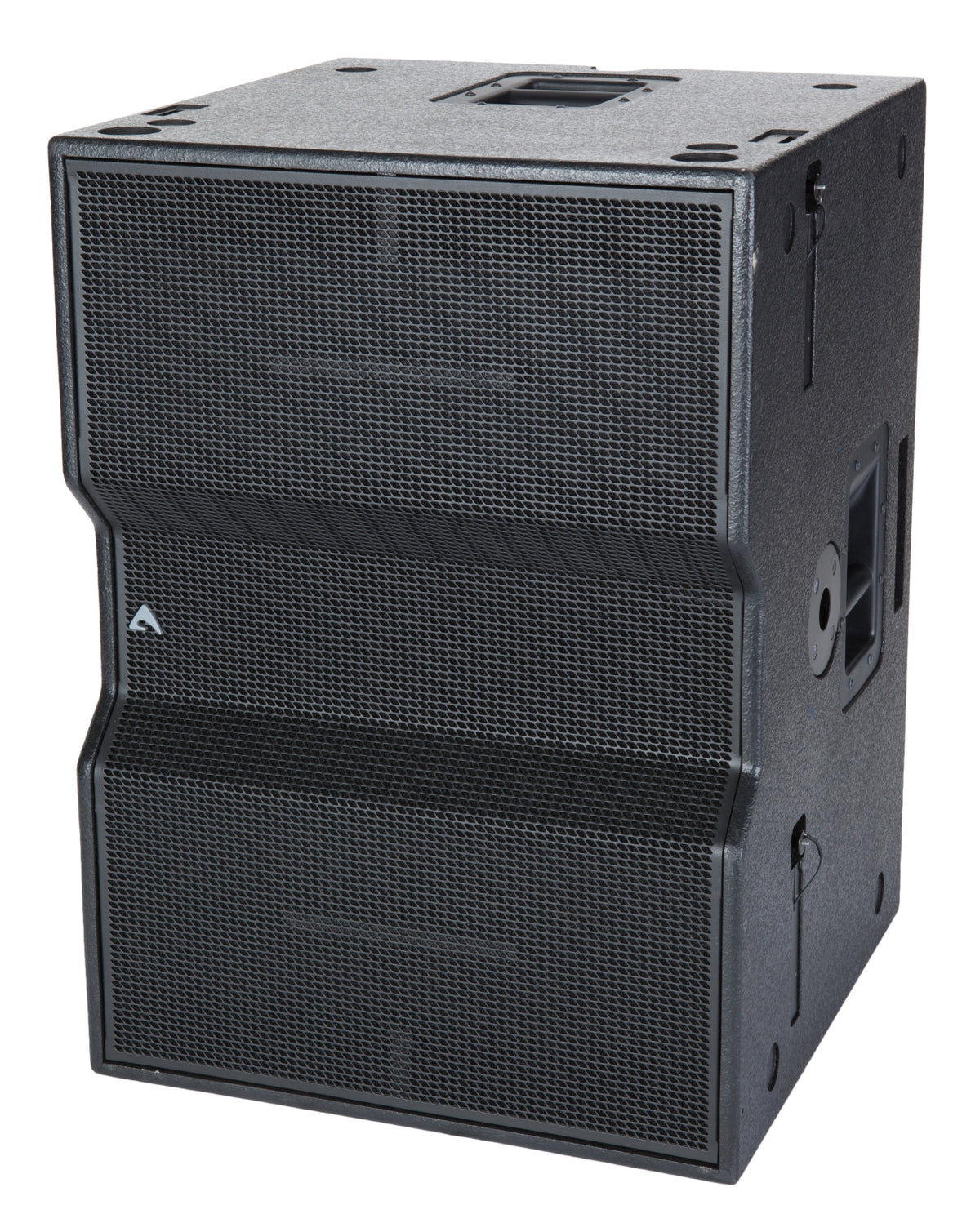

• Axiom SW215FP Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION
  • Axiom SW215FP Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION – view 2
  • Axiom SW215FP Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION – view 3
  • Axiom SW215FP Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION – view 4
  • Axiom SW215FP Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION – view 5

Axiom · Stage Equipment

Dual 15" (380mm) Passive, Very High Output, Manifolded Band Pass Subwoofer System - FLYING VERSION

Item SW215FP · Made in Italy

The flying version of the passive dual-15 in SW215P manifolded band-pass subwoofer, with steel suspension fittings for flown arrays.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design

The SW215P is built for applications where very high output matters, along with well-defined deep bass and fast transient response. Its compact size and light weight suit touring, fixed installations and high-level dance clubs.

It uses a manifolded band-pass design. The front sides of the cones are manifolded to maximize coupling between the two drivers. Small cavities, rather than one large resonant cavity, improve definition at the lowest end and in the upper bass.

Drivers

Two high-power 15 in (380 mm) drivers reach up to 33 mm peak-to-peak excursion. A high-stiffness Double Silicon Spider and heavy-duty surround control the movement. The high-strength (BL²/Re) motor uses a flux demodulating ring to control symmetry and excursion.

The 3 in (75 mm) copper voice coil is wound in two layers, inside and outside the former. This doubles the coil surface exposed to cooling air and improves long-term thermal capacity. Cones are high-stiffness reinforced paper with an invisible water-repellent treatment.

The result is solid low-frequency definition and a punchy upper bass, with a deep low end and fast, accurate bass response.

Flying hardware

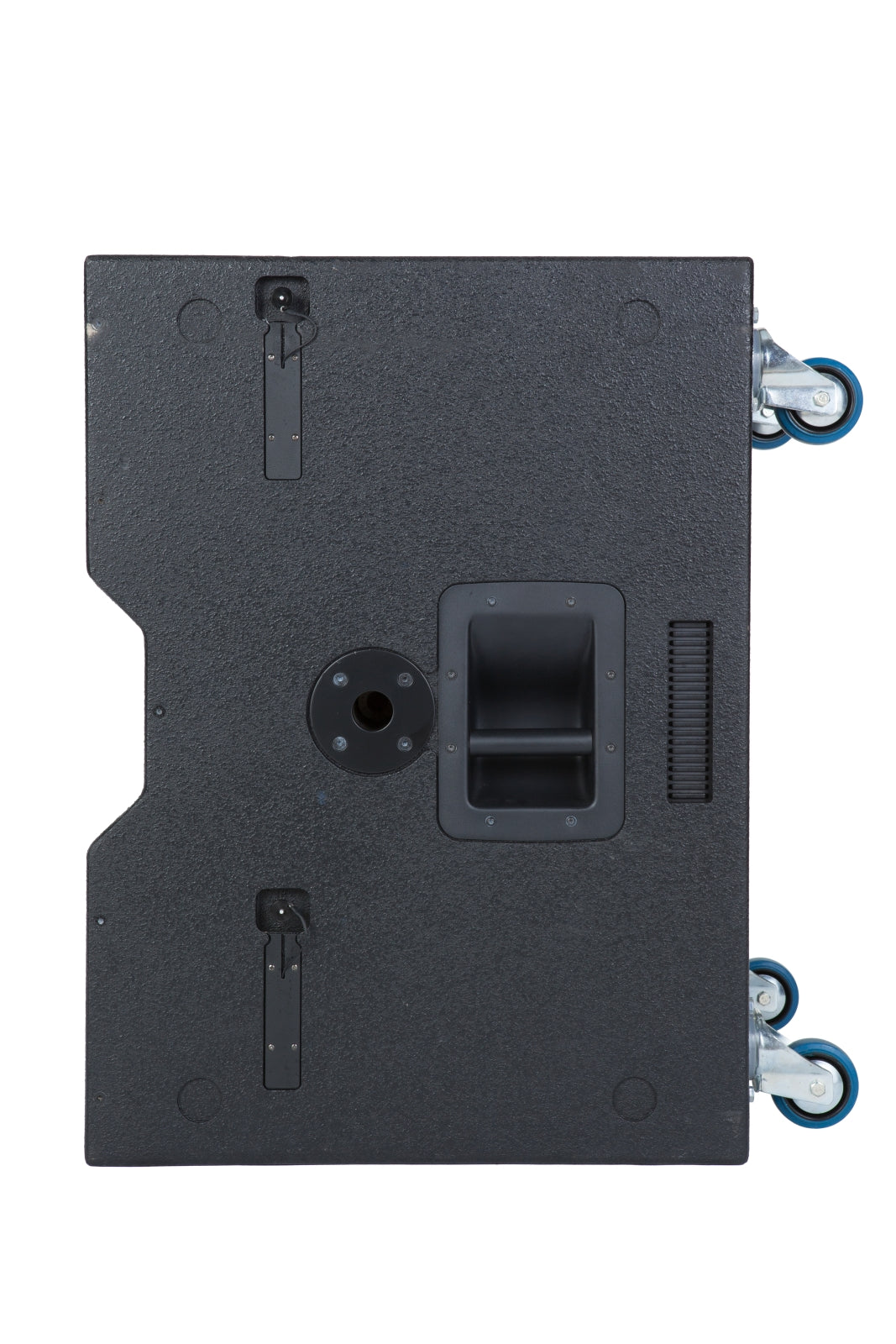

This is the flying version of the SW215P. Its suspension system uses high-strength steel side and back fittings with 1/4 in fast pins.

  • Very high output
  • Compact size for a strong output-to-weight ratio
  • Manifolded band-pass design for high output in a compact size
  • High-strength, water-repellent cones
  • Long-excursion split coil for extended linear response

Specifications

The details that matter.

Manuals & Downloads

Version
Passive (needs an external amplifier). The P in the model number means Passive; the active version is SW215FA.

System

System’s Acoustic Principle
Manifolded Band Pass
Frequency Response (±3dB)
39 Hz – 120 Hz (Processed)
Frequency Range (±10dB)
35 Hz – 300 Hz (Unprocessed)
Nominal Impedance
8 Ω + 8 Ω
Minimum Impedance
6.1 Ω + 6.1 Ω @ 41Hz
Sensitivity (1.41V @ 1m, 2Pi)
102dB (averaged from 40 to 100Hz)
Maximum Peak SPL @ 1m
139 dB

Transducers

Type
Two 15” (380mm), 3” (75mm) VC
Cone
High stiffness, water repellent
Voice Coil Type
Flux Demodulating Ring
Suspension
Double Centering Spider

Input Connections

Connector Type
Neutrik® Speakon® NL4 x 2
Input Wiring
LF1 = Pin 1+/-; LF2 = Pin 2+/-)

Power Handling

Continuous AES Pink Noise Power
700W + 700W
Program Power
900W + 900W
Peak Power
2100W + 2100W
Power Compression
@ -10dB Power (180W + 180W)
0.8dB
@ -3dB Power (900W + 900W)
1.5dB
@ 0dB Power (1800W + 1800W)
2.7dB

Enclosure & Construction

Physical Dimensions

Width
22.48 in (571 mm)
Height
31.5 in (800 mm)
Depth
22.91 in (582 mm)
Depth Including Wheels
27.95 in (710 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Suspension system (flying version)
Side Suspension
High Strength Steel with ¼ Fast Pin
Back Suspension
High Strength Steel with ¼ Fast Pin
Wheels
4 heavy-load 3.9 in (100 mm) ø
Net Weight
SW215P: 134.48 lb (61 kg) - SW215FP: 143.3 lb (65 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
