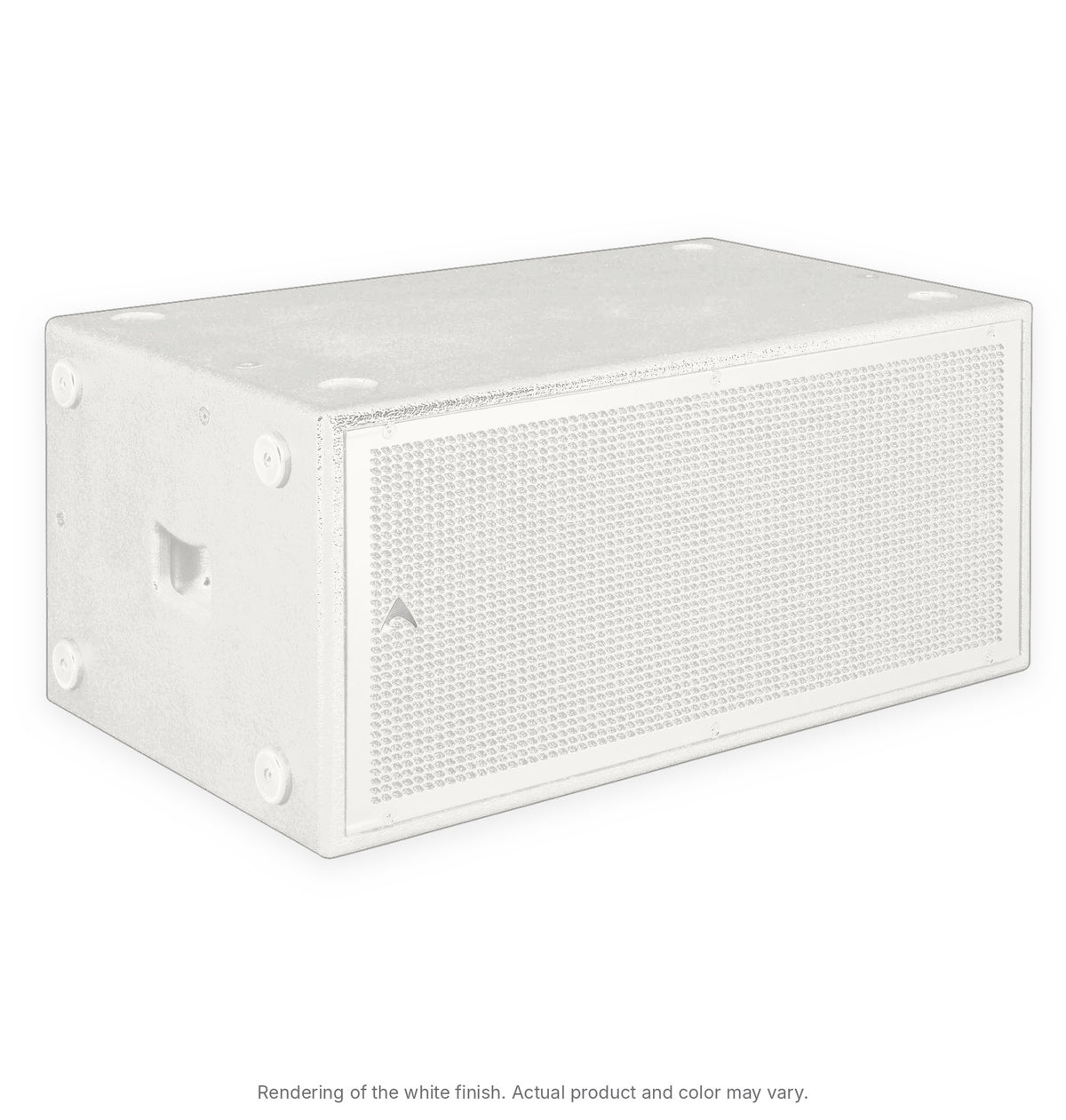

• Axiom SW210PWH white finish (rendering; actual product and color may vary)

Axiom · Stage Equipment

Dual 10", Direct Radiating, Subwoofer

Item SW210PWH · Made in Italy

A white low-profile passive dual-10 in subwoofer with waterproof cones and M10 flying points, sized to fit under seating or in tight spaces.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Low-profile design

The SW210P extends the low end of select ED Series point source loudspeakers. Its low profile fits under seating or in confined spaces. It suits corporate and A/V work and permanent installs in music venues, clubs, bars and houses of worship.

Drivers

Two 10 in drivers have waterproof cones. With the moisture-resistant cabinet, the SW210P handles light-duty outdoor use. Each driver has a 3 in sandwich voice coil on a fiberglass former, a progressive-wave Konex spider and a cloth surround with DAR technology.

A high-excursion ferrite magnet with demodulating ring, plus a ventilated voice coil and magnet, reduce power compression.

Handling and connections

  • Recessed handles and polyurethane wheels
  • Stacking feet and matching recesses for secure ground stacks
  • Four M10 flying points for permanent installation
  • Two Neutrik speakON NL4 connectors for input and link
  • Black or white finish

Applications: corporate and A/V, live music venues, nightclubs and bars, houses of worship.

Product image is a rendering of the white finish. Actual product and color may vary.

Specifications

The details that matter.

System

System’s Acoustic Principle
Direct radiation, vented
Frequency Response (-6dB)
45 Hz - 120 Hz (Processed)
Nominal Impedance
8 + 8 Ohm
Sensitivity 2V
97 dB @ 1 m
Maximum (peak) Output
130 dB SPL @ 1 m

Transducers

Type
Two 10” (254mm) LF drivers, 3” (76mm) voice coil, 8Ω
Cone
Waterproof Cone
Voice Coil Type
Ventilated voice coil
Suspension
Cloth surround, Progressive wave Konex spider

Input Connections

Connector Type
Neutrik® Speakon® NL4 x 2

Power Handling

AES Pink Noise Power
350 W + 350 W
Program Power
700 W + 700 W
Peak Power
1200 W + 1200 W

Enclosure & Construction

Width
25.6 in (650 mm)
Height
12.2 in (310 mm)
Depth
16.1 in (410 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Flying system
4 x M10 flying points
Net Weight
66 lb (30 kg)
Color
White

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
Details
Terms, registration links and claims: proelnorthamerica.com/pages/support
