Axiom · Stage Equipment

18", Direct Radiating, Powered, CORE Processed, Subwoofer

Item SW18A · Made in Italy

A compact powered 18 in subwoofer with a 2,000 W Class D amplifier and CORE DSP, built to extend Axiom ED Series loudspeakers.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design

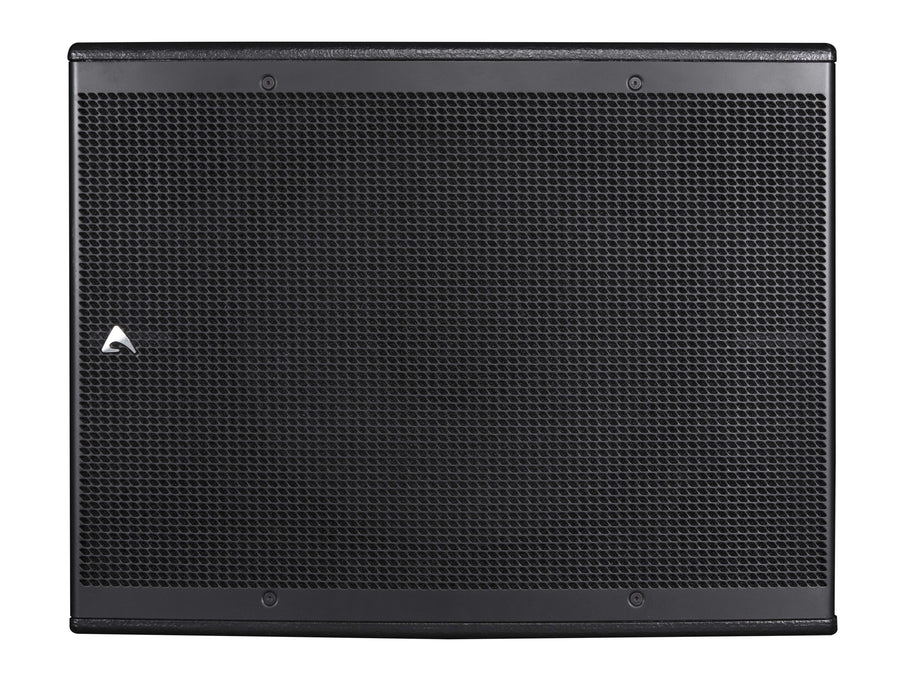

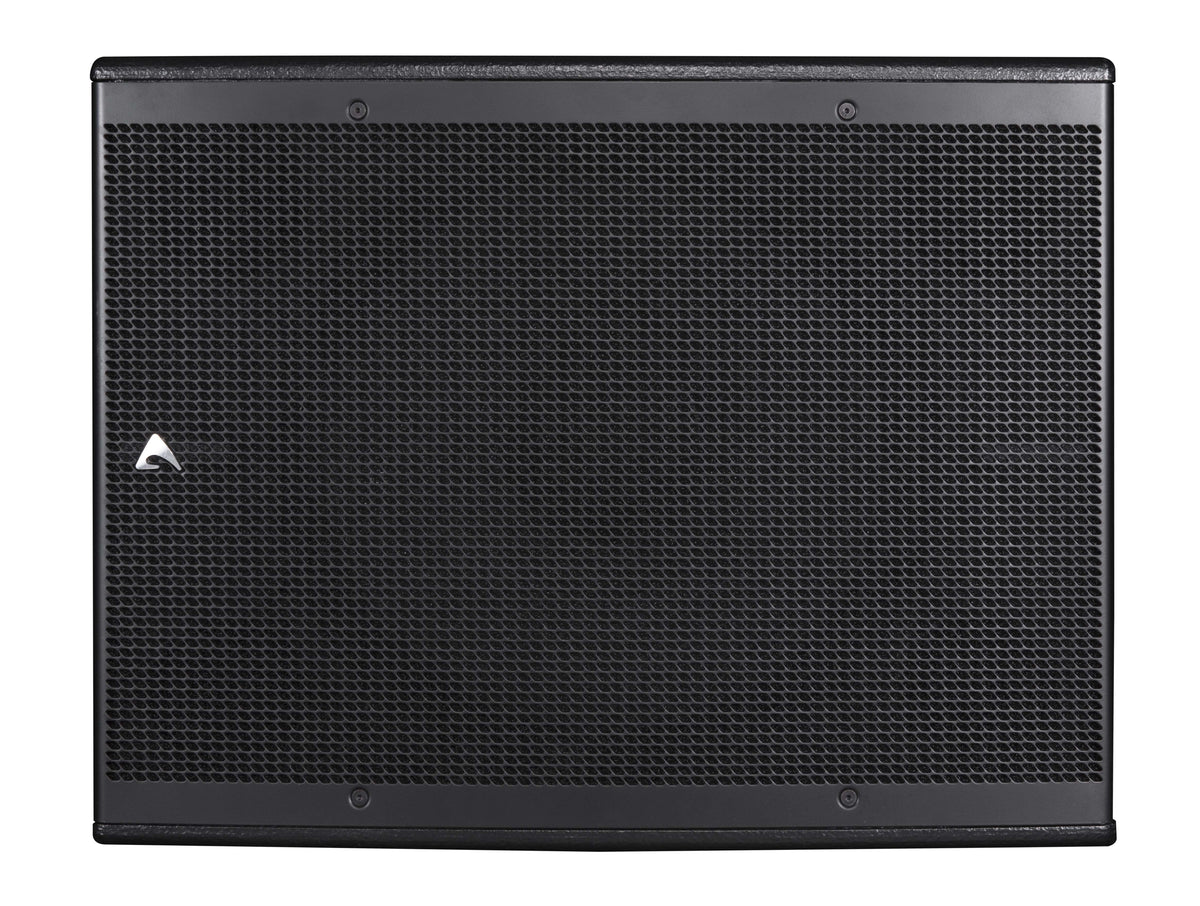

The SW18A extends the low end of select ED Series point source loudspeakers. Its 18 in driver has a moisture-resistant, glass-fiber-reinforced cone. A double centering spider keeps the 4 in voice coil centered even at high excursion.

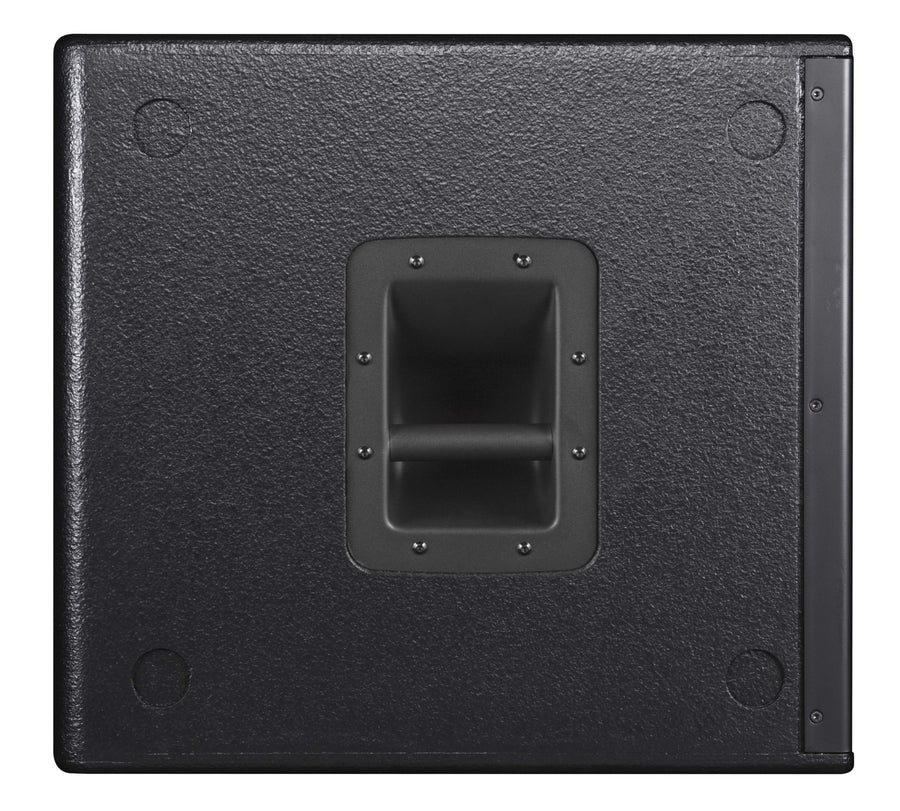

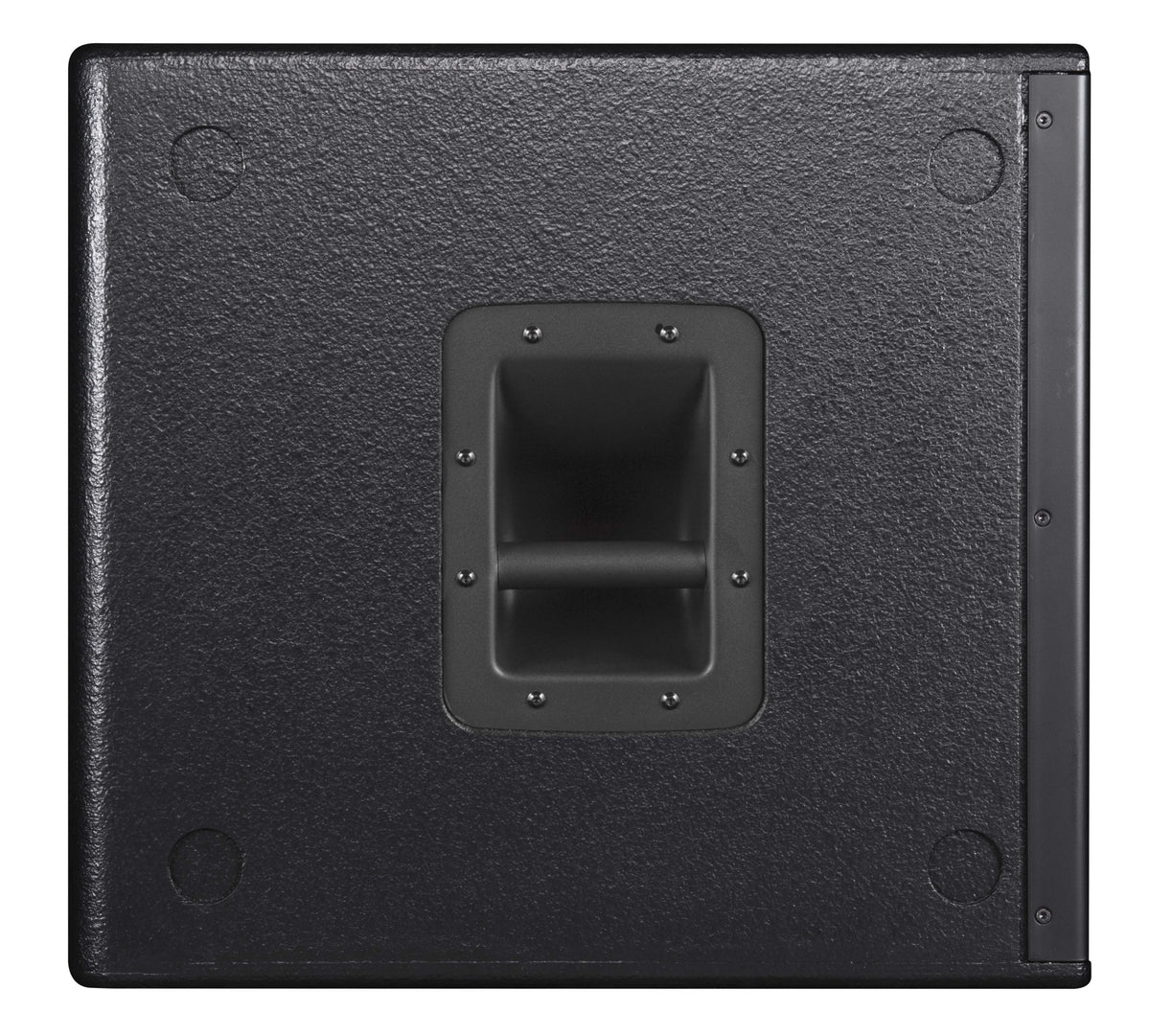

The 15 mm phenolic birch plywood cabinet has a 35 mm pole socket for mounting two-way ED Series speakers above it. Recessed handles, polyurethane wheels, stacking feet and matching recesses aid transport and ground stacking.

Processing and amplifier

Processing runs on the CORE DSP platform designed by PROEL R&D, using a SHARC DSP. It works at 40-bit, 96 kHz floating point with 24-bit AD/DA converters. Dynamic range exceeds 110 dB.

PRONET software, on a CANBUS network, controls the whole system remotely. It handles EQ, delay and protection settings, and monitors amplifier status.

A DA Series Class D power module with a digitally controlled switch-mode power supply drives the system. Its variable switching frequency gives clear sound at every frequency, strong low-level dynamics and very low distortion at full power. Efficiency exceeds 90% in a compact, lightweight module.

The module delivers 2,000 W to the woofer. This power reserve handles high voltage peaks for strong dynamic performance.

Key features

  • Compact powered subwoofer
  • 96 kHz / 40-bit floating point CORE processing with PRONET remote control
  • Digitally controlled Class D amplifier module with SMPS
  • 18 in woofer, 4 in voice coil
  • Water-repellent cone
  • Heavy-duty wheels and pole mount socket

Applications: corporate and A/V, live music venues, nightclubs and bars, houses of worship.

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active; the passive version is SW18P.

System

System’s Acoustic Principle
Direct radiation, vented
Frequency Response (-6dB)
36 Hz - 100 Hz (Processed)
Maximum (peak) Output
132 dB SPL @ 3.3 ft (1m)

Transducers

Type
18", 4" VC
Cone
High stiffness, water repellent, glass fiber reinforced diaphragm
Voice Coil Type
Flux Demodulating Ring
Suspension
Double Centering Spider

Electrical

Input Impedance
20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity
+4dBu / 1.25 V
Signal Processing
CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls
4 Presets (STANDARD/INFRASUB/CARDIOID/USER), Network Termination, GND Link
Remote Controls
PRONET control software
Network protocol
CANBUS
Amplifier Type
Class D with SMPS, Variable Switching Frequency
Output Power
2000W
Mains Voltage Range (Vac)
230V ±15% - 115 ±15% 50/60Hz (internally selectable)

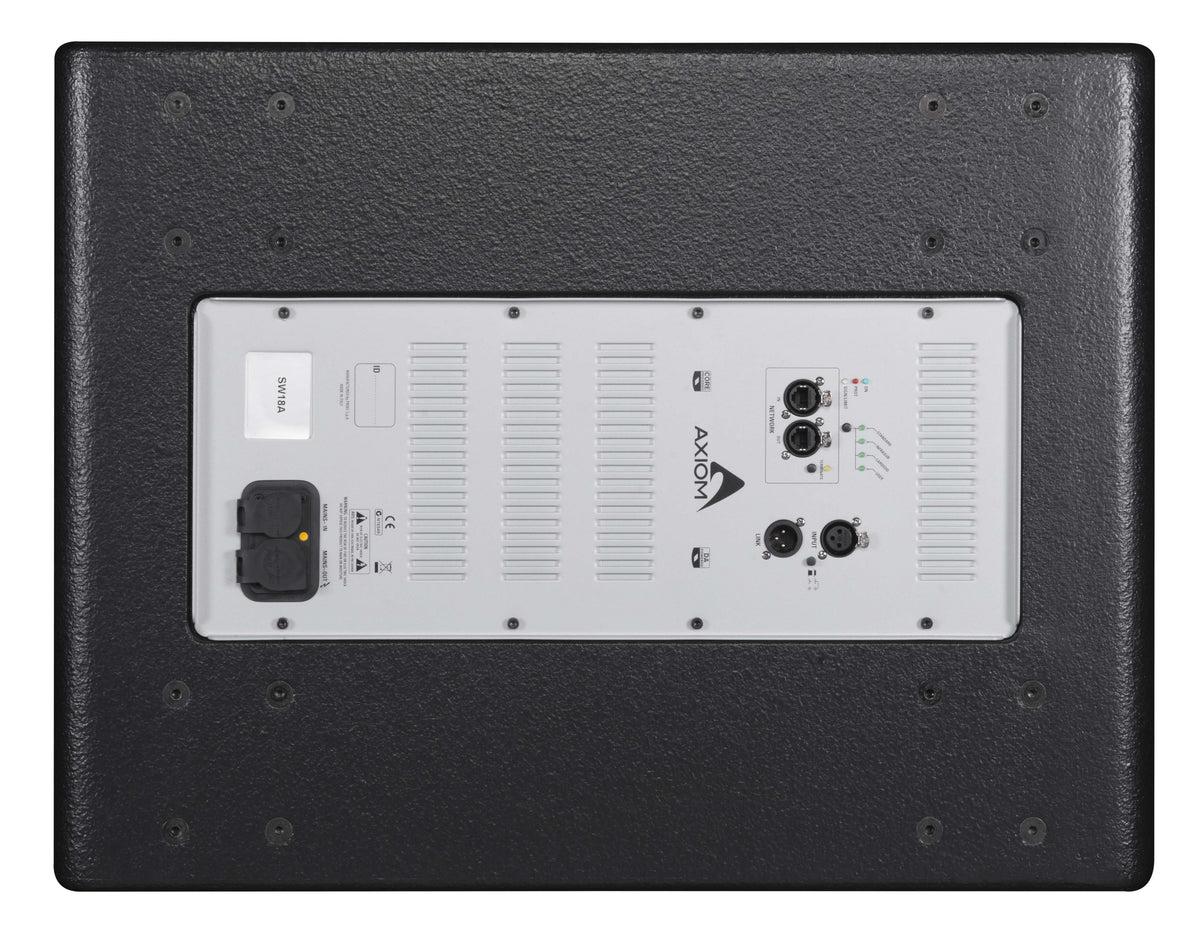

IN / OUT Connectors
Neutrik XLR-M / XLR-F
IN / OUT Network Connectors
ETHERCON®(NE8FAV)
Mains Input Connector
PowerCon® (NAC3MPA)
Mains Link Connector
PowerCon® (NAC3MPB)
Cooling
Variable speed DC fan

Enclosure & Construction

Width
25.6 in (650 mm)
Height
19.7 in (500 mm)
Depth
22.2 in (564 mm)
Depth Including Wheels
26.5 in (673 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Wheels
0.16 × 3.9 in (4 x 100mm) Polyurethane Wheels
Net Weight
93.7 lb (42.5 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
