Axiom · Stage Equipment

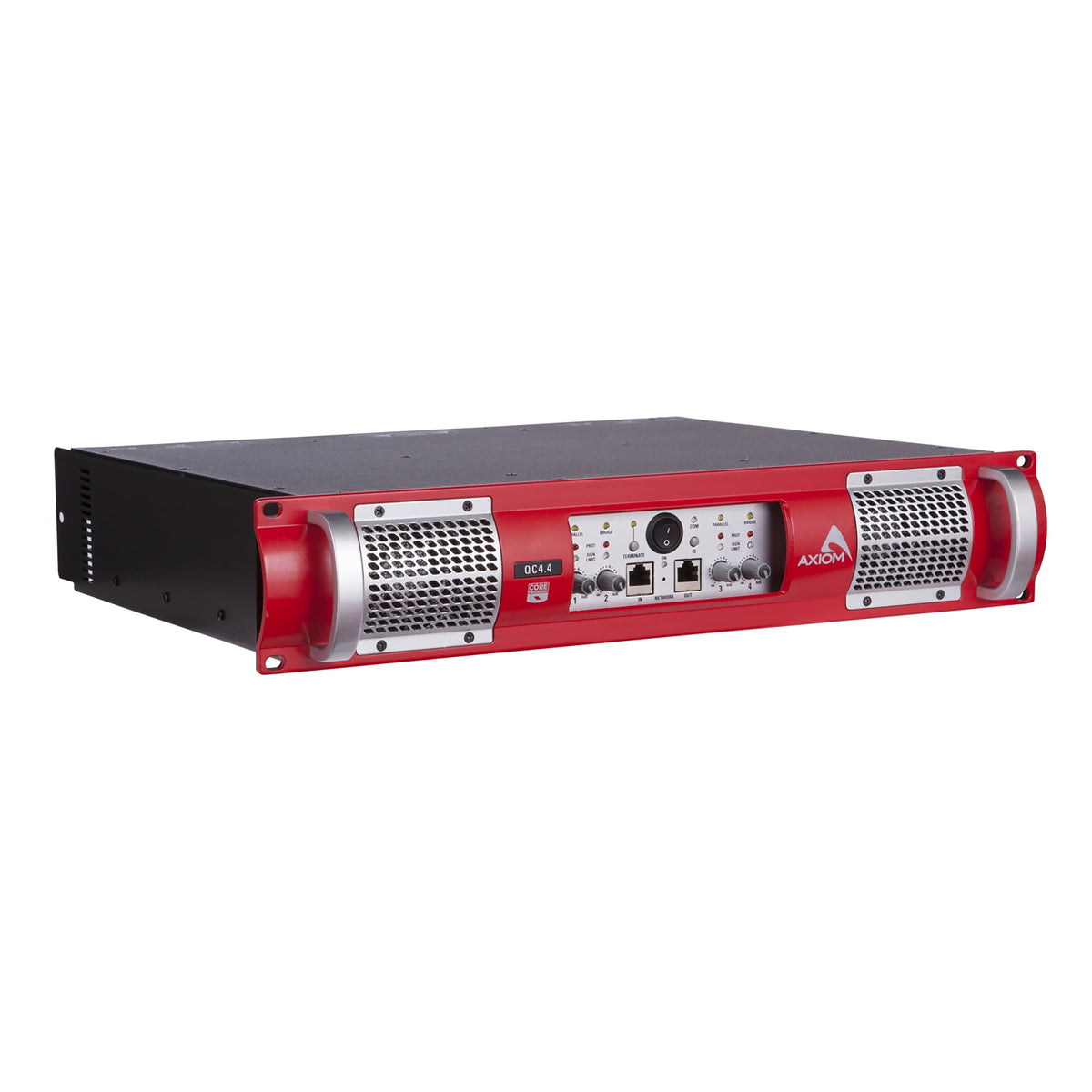

4-Channel DSP Amplifier

Item QC4.4 · Made in Italy

A four-channel 2U Class D amplifier with CORE DSP, delivering 1,000 W per channel at 4 ohms for bi-amped Axiom line arrays.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Overview

The QC Series are 2U rack-mount amplifiers with built-in DSP for large touring PA systems and high-profile fixed installations. They network over the CANBUS protocol with other amplifiers, powered speakers and PC260 speaker processors.

Amplifier design

Digitally controlled Class D modules use switch-mode power supplies with a variable switching frequency that follows input level. The result is sound quality comparable to high-end Class AB designs. Efficiency exceeds 90%, with low weight and negligible heat.

Processing and control

The CORE DSP platform, developed by PROEL R&D, uses a SHARC DSP chip for advanced speaker processing, remote control and monitoring. PROEL PRONET software controls EQ, multiple delays and individual driver protection, and shows amplifier status.

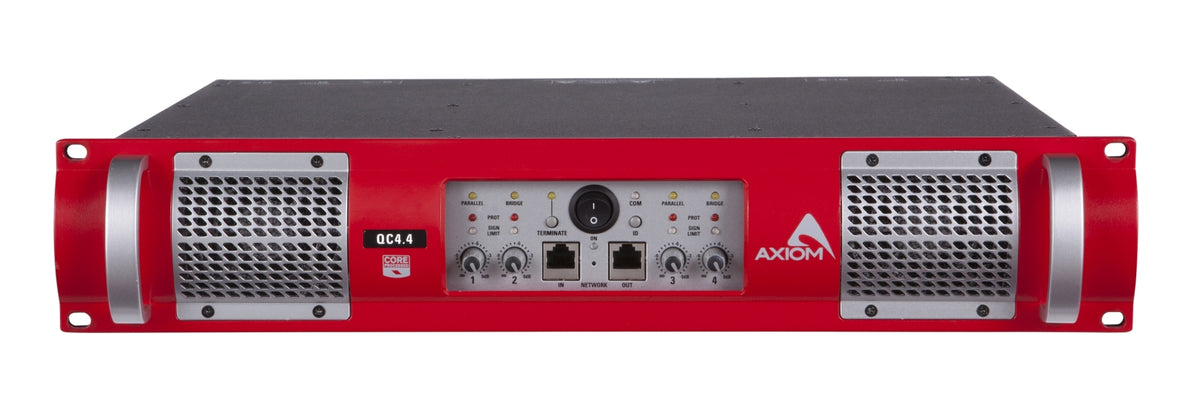

The lightweight chassis has an aluminum front panel. Variable-speed fans move air front to rear, and dust filters remove from the front.

QC4.4

The QC4.4 provides four channels of 1,000 W at 4 ohms. It is the preferred amplifier for multiple bi-amped AX2010P or AX2065P line arrays. Any pair of channels can be bridged for more power into a subwoofer load.

Specifications

The details that matter.

Manuals & Downloads

Channels
4 (single) or 2 (bridge)
Power 8 ohm *
500 W
Power 4 ohm *
1000 W
Power BRIDGE 8 ohm *
2000 W
Frequency response
20 Hz - 20 kHz
Input Sensitivity
+6 dBu
Gain (fixed)
32 dB
Input Impedance
30 kΩ (bal) / 15 kΩ (unbal)

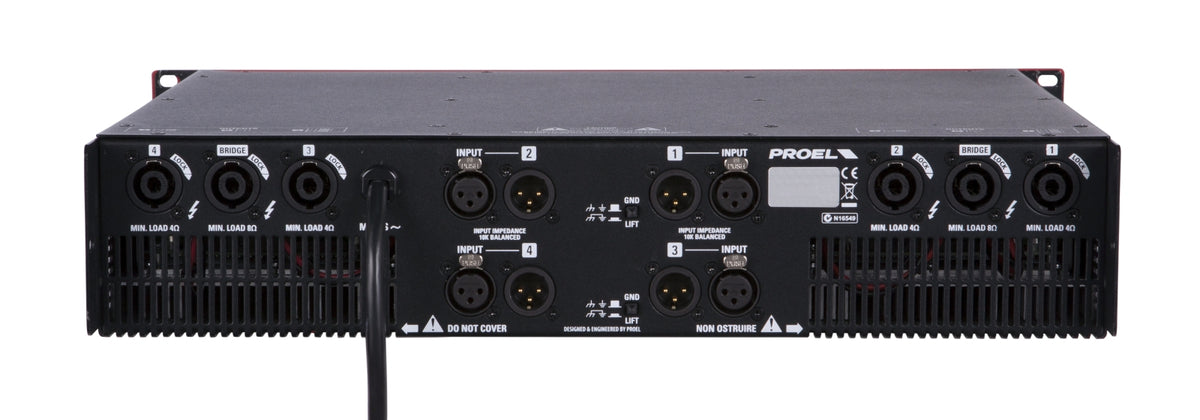

Input Connectors
INPUT: XLR-F LINK: XLR-M
Output Connectors
NL4 Speakon (4x single, 2x bridge)
Network Connectors
2 x RJ45
Controls
Level, GND lift, Terminate, ID
LED Indicators
Signal/Limit, Protection, Bridge, Parallel, Com, Terminate, Power
Signal Processing
CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Cooling
Variable speed DC fan
Protections
Clip Limiter, Short circuit, DC voltage, Over heating
Damping Factor
> 500 @ 8 ohm
Slew Rate
50 V/uS
S/N Ratio
> 105 dB (unweighted)
THD+N
< 0.5 %
Power Supply
230 V~ or 120 V~ - 50/60 Hz
Max Consumption
5300 W
Rated Consumption**
1350 W
Weight
24.3 lb (11 kg)
Dimensions (W x H x D)
483 x 89 x 383 mm (19 x 3.5 x 16.2 inch)
* Standard EIA 1 kHz THD < 1%, per channel
** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
