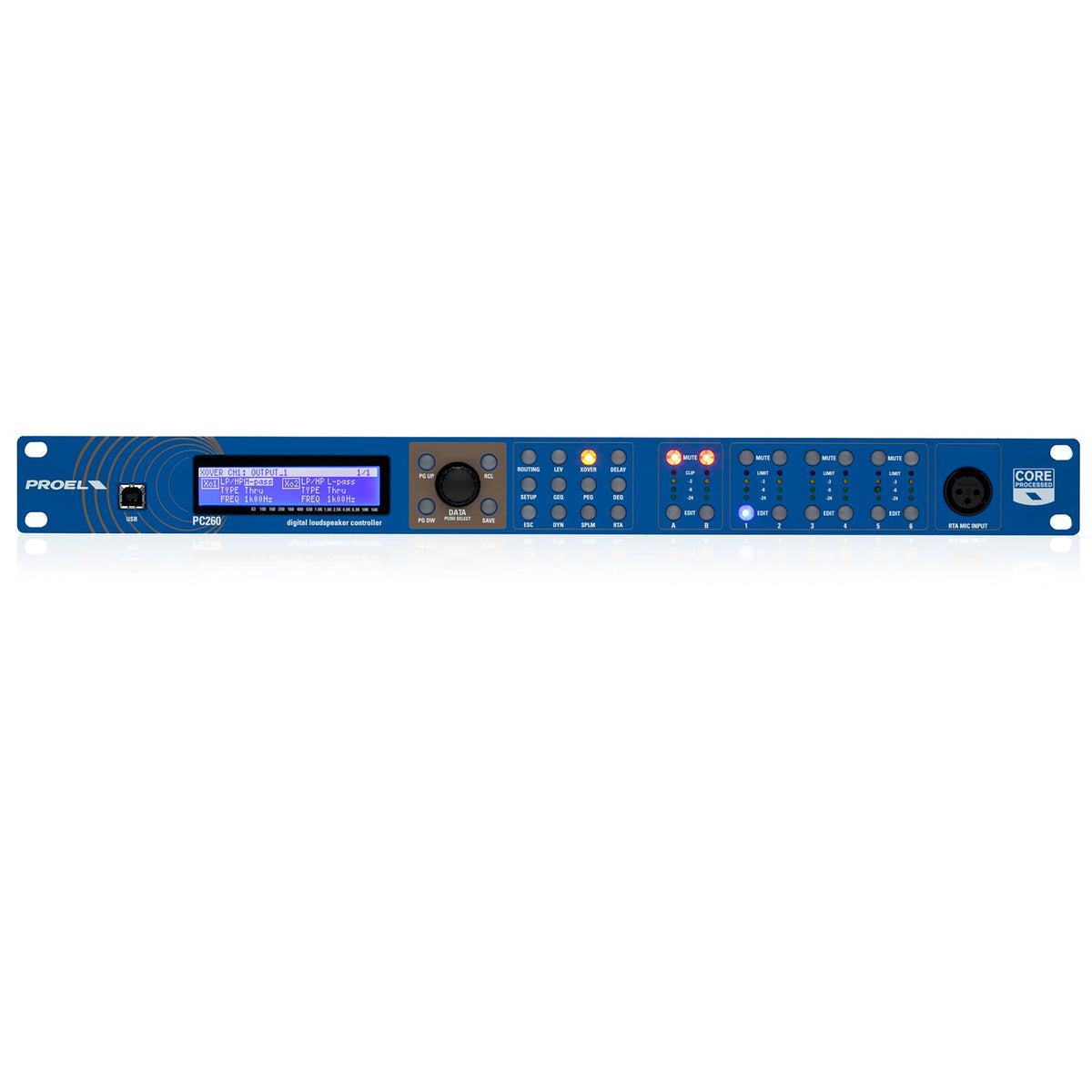

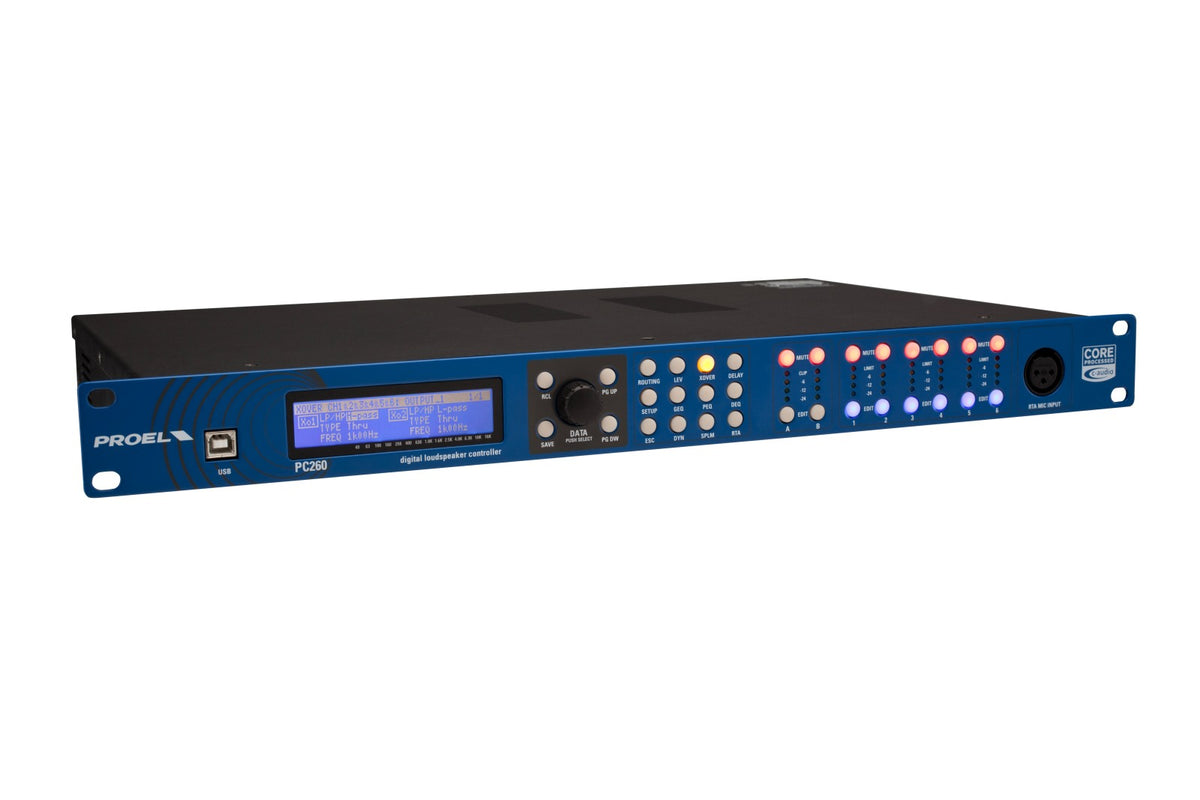

Axiom · Stage Equipment

2-In/6-Out Digital Loudspeaker Controller

Item PC260 · Designed in Italy

Final Stock

A two-input, six-output digital loudspeaker controller on the CORE DSP platform, with RTA, scheduled SPL management and PRONET remote control.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Signal quality

The PC260 is built on the CORE DSP platform with a direct-access user interface. Processing runs at 40-bit floating point with 24-bit AD/DA converters. Dynamic range exceeds 110 dB.

Inputs and outputs

  • 2 inputs, with an AES digital input option
  • Each input: 5-band parametric EQ, 28-band graphic EQ, 3-band dynamic EQ, compressor/limiter and up to 600 ms delay
  • 6 outputs with crossover filters up to 48 dB per octave
  • Each output: 5-band parametric EQ, compressor/limiter and up to 600 ms delay
  • Parametric types include shelving, notch, resonant HP and LP, allpass and bandpass

Tools and scheduling

A 1/3-octave RTA has its own mic input with phantom power. A grouping function links channels. The SPL Manager, designed for fixed installations, schedules 16 events per input and output across 4 scenes.

Scheduled events include mute, level change, compressor threshold change and preset change. They run automatically from the internal clock.

Remote control

Control the PC260 with PRONET software through the front-panel USB port. Two rear RJ45 connectors add it to a PRONET network with the optional USB2CAN converter.

Specifications

The details that matter.

Manuals & Downloads

Input Section

Inputs
2 electronically balanced
Input Impedance
> 10k ohms
Maximum Input Level
+20dBu (-6dB pad)
Input gain
+6 dB to –30 dB in 0.2 dB steps
Input Connector
XLR F - XLR M to link
Digital Input
AES/EBU
Output Section
Outputs
6
Maximum Output Level
+20dBu
Output Gain
+15 dB to –30 dB in 0.2 dB steps and mute
Output Connector
XLR M
Crossover Filters
Slopes
6/12/18/24/48dB per octave
Type
Bessel / Butterworth / Linkwitz-Riley
Delays
Max Delay time
600 ms on all In and Out
Delay Step
21 μs
Parametric EQ filters
Maximum number of filters
5 Per input / 5 per output
EQ Type
Parametric, Notch, Shelf, Bandpass, resonant HP/LP, Allpass
EQ Gain
+15 dB to -15 dB in 0.2 dB steps
Q (bandwidth)
0.4 to 28.85 (3 to 0.05, 1/20 oct. steps)
EQ freq
15.6 Hz – 22.62 kHz (1/20 oct. steps)
Shelving gains
±15 dB in 0.2 dB steps
Dynamic EQ filters
Maximum number of filters
3 per input
EQ Type
Parametric, Shelf 6
EQ Gain
+15 dB to -15 dB in 0.2 dB steps
Q (bandwidth)
0.4 to 28.85 (3 to 0.05, 1/20 oct. steps)
EQ freq
15.6 Hz – 22.62 kHz (1/20 oct. steps)
Shelving gains
±15 dB in 0.2 dB steps
Graphic EQ
Maximum number of EQ.
1 per input
EQ Type
28 band 1/3 oct.
EQ freq
31.5Hz - 16kHz 1/3 oct.
EQ Gain
+15 dB to -15 dB in 0.2 dB steps
Extra Features
RTA range
20Hz-20kHz 1/3oct.
RTA mic input
15V phantom power
SPLm
4 scene /16 events for each scene
Process \ Conversion
AD/DA conversion
24 bit
AD/DA latency
1.68 ms (analog in – analog out @ 48 kHz)
Sampling frequency
48 kHz
Internal processing
40 bit floating point
General Performance (filters out)
Frequency response
+½ dB 20 Hz‐20 kHz
Dynamic range
>110 dB 20 Hz‐20 kHz unweighted
Distortion (THD)
< 0.015% @ 1kHz, +18dBu
Display
192x32 LCD Graphic Display
Input metering LED
2 x 4 LED
Output Metering LED
6 x 4 LED
Remote control
USB, RJ45 PRONET In/Out
General
Dimensions
1.7 × 19 × 11.6 in (44 x 482 x 295 mm)
Weight
9 lb (4.1 kg)
AC Power
80 to 250V ±15% @ 50/60 Hz

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
