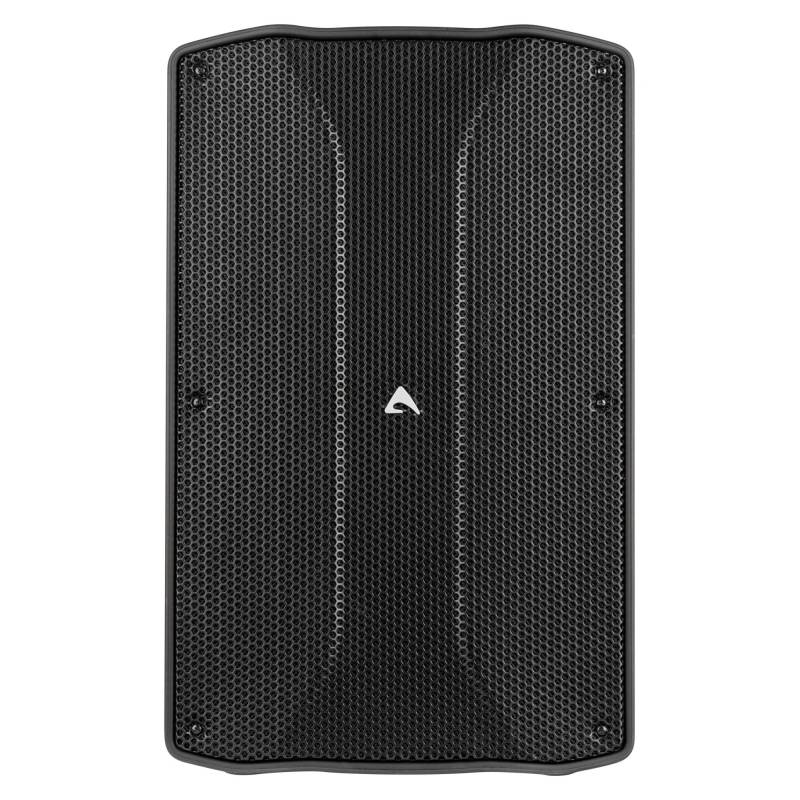

12" Two-Way Powered Point Source Loudspeaker
A powered two-way point source loudspeaker with a 12-inch neodymium woofer and 1-inch compression driver, for portable or installed sound reinforcement.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Design and use
The FL120A provides full-range response and controlled dispersion from an easy-to-handle enclosure. It suits many foreground sound reinforcement applications that call for high-quality sound, repeatable performance and easy operation.
Drivers and amplification

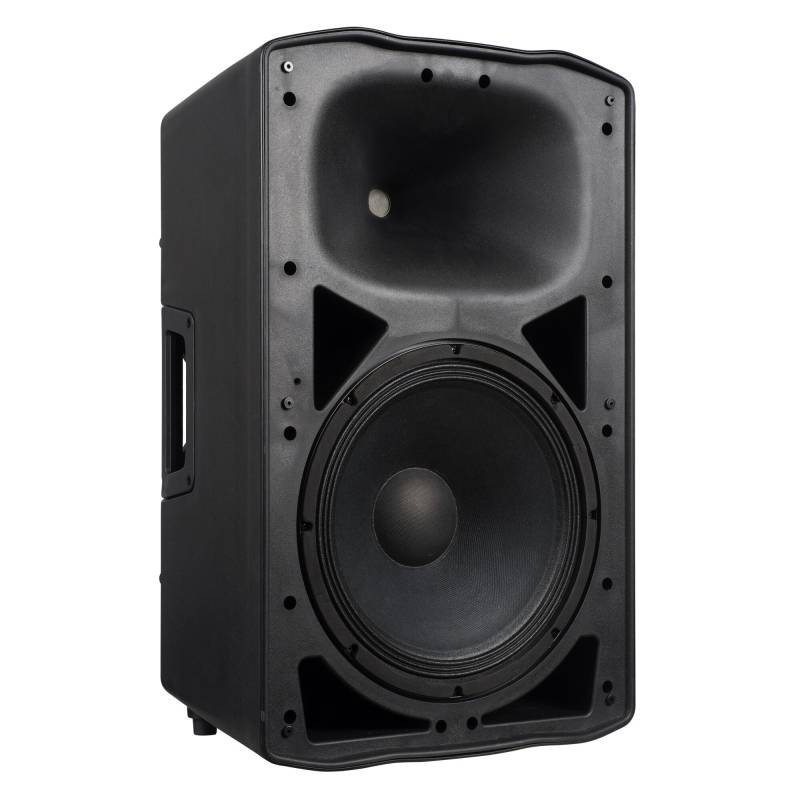

The 12" neodymium woofer is matched to a 1" compression driver with a 1.75" aluminum voice coil, for low weight and good transient response. Each driver runs on its own channel of a Class D amplifier module. A custom HF horn provides wide, accurate coverage of a typical auditorium.
Flexible mounting

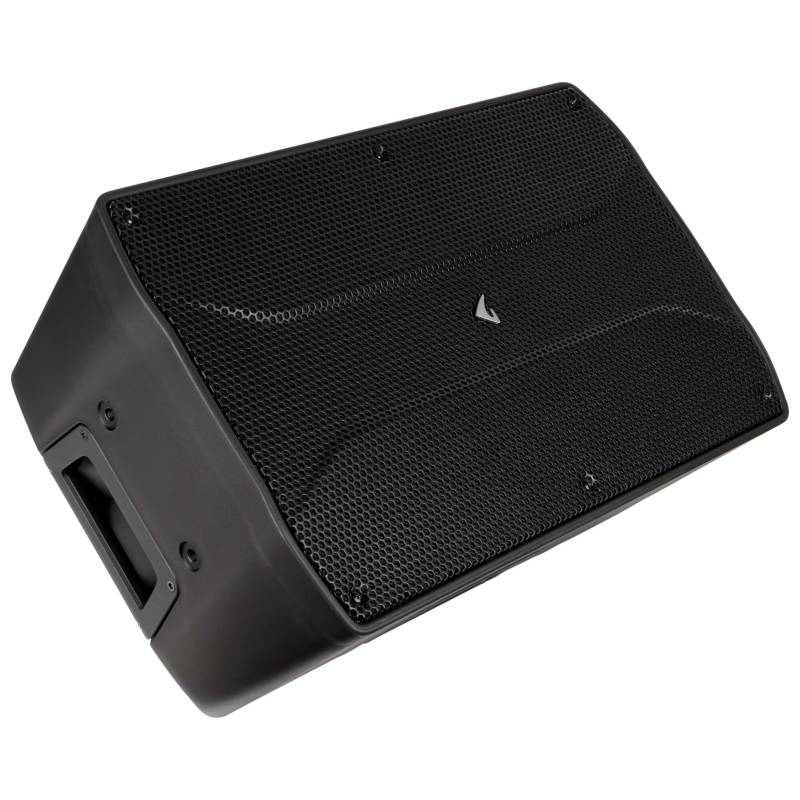

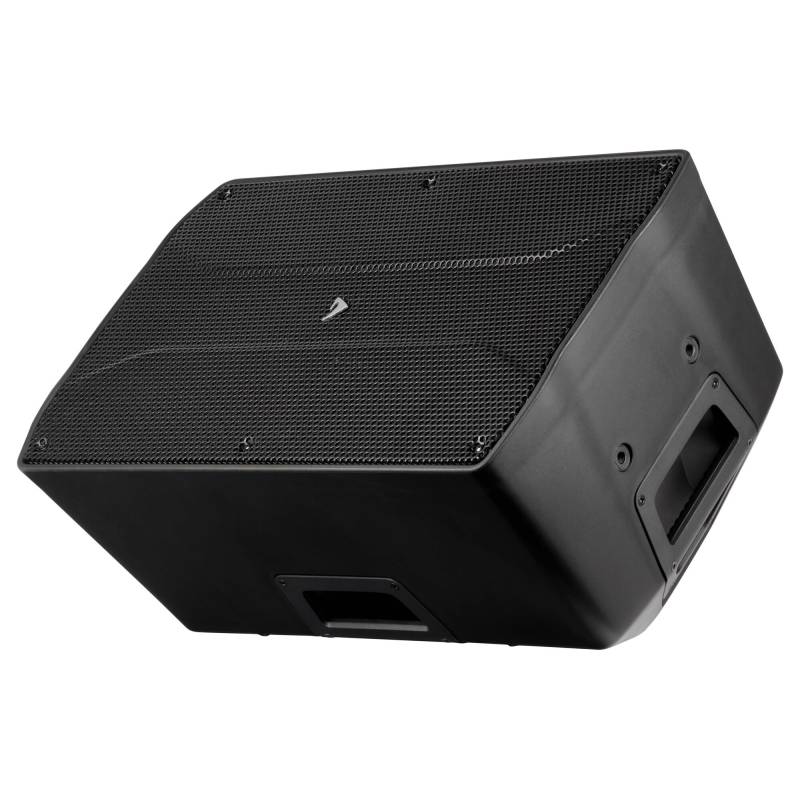

The symmetrical vented enclosure works on a speaker stand for front-of-house or pole-mounted on a subwoofer. Its 42° wedge angle also lets it serve as a stage monitor.

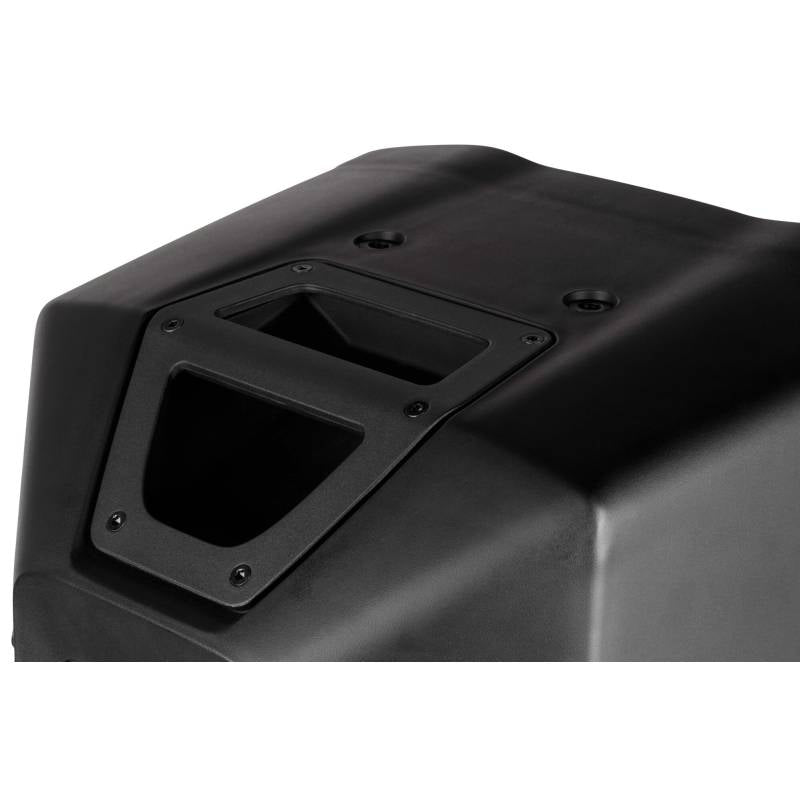

The lightweight high-density polypropylene cabinet has a 35 mm pole mount and three recessed aluminum handles. M10 rigging points allow fixed installation with optional mounting brackets. For extended low end, pair it with an Axiom SW series subwoofer such as the SW18A.
Specifications
The details that matter.
- Version
- Active (powered, built-in amplifier). The A in the model number means Active; the passive version is FL120P.
System
- System’s Acoustic Principle
- 2-way vented enclosure
- Frequency Response (-6dB)
- 50 Hz - 20 kHz (Processed)
- Coverage Angle
- 90° H x 60° V
- Maximum (peak) Output
- 132 dB SPL @ 3.3 ft (1m)
Transducers
- LF
- 12" neodymium magnet low frequency woofer - 2.5" VC
- HF
- 1" exit compression driver - 1.75" aluminum VC
Electrical
- Input Impedance
- 30 kΩ balanced, 15 kΩ unbalanced
- Input Sensitivity
- +4dBu / 1.25 V
- Signal Processing
- DSP with FIR filters
- Controls
- Presets (STANDARD/LIVE/MUSIC/MONITOR/STANDARD LOW CUT)
- Amplifier Type
- Class D with SMPS
- Output Power
- 900W + 300W
- Mains Voltage Range (Vac)
- 230V ±15% - 115 ±15% 50/60Hz (internally selectable)
- IN / OUT Connectors
- XLR-M / XLR-F
- Mains Input Connector
- PowerCon® (NAC3MPA)
- Mains Link Connector
- PowerCon® (NAC3MPB)
- Cooling
- Variable speed DC fan
Enclosure & Construction
- Width
- 15.4 in (390 mm)
- Height
- 24.5 in (623 mm)
- Depth
- 13.8 in (350 mm)
- Monitor Taper
- 42°
- Enclosure Material
- Hi-density Polypropylene with Metal Grid
- Flying system
- 4 x M10 flying points
- Net Weight
- 37.4 lb (17 kg)
