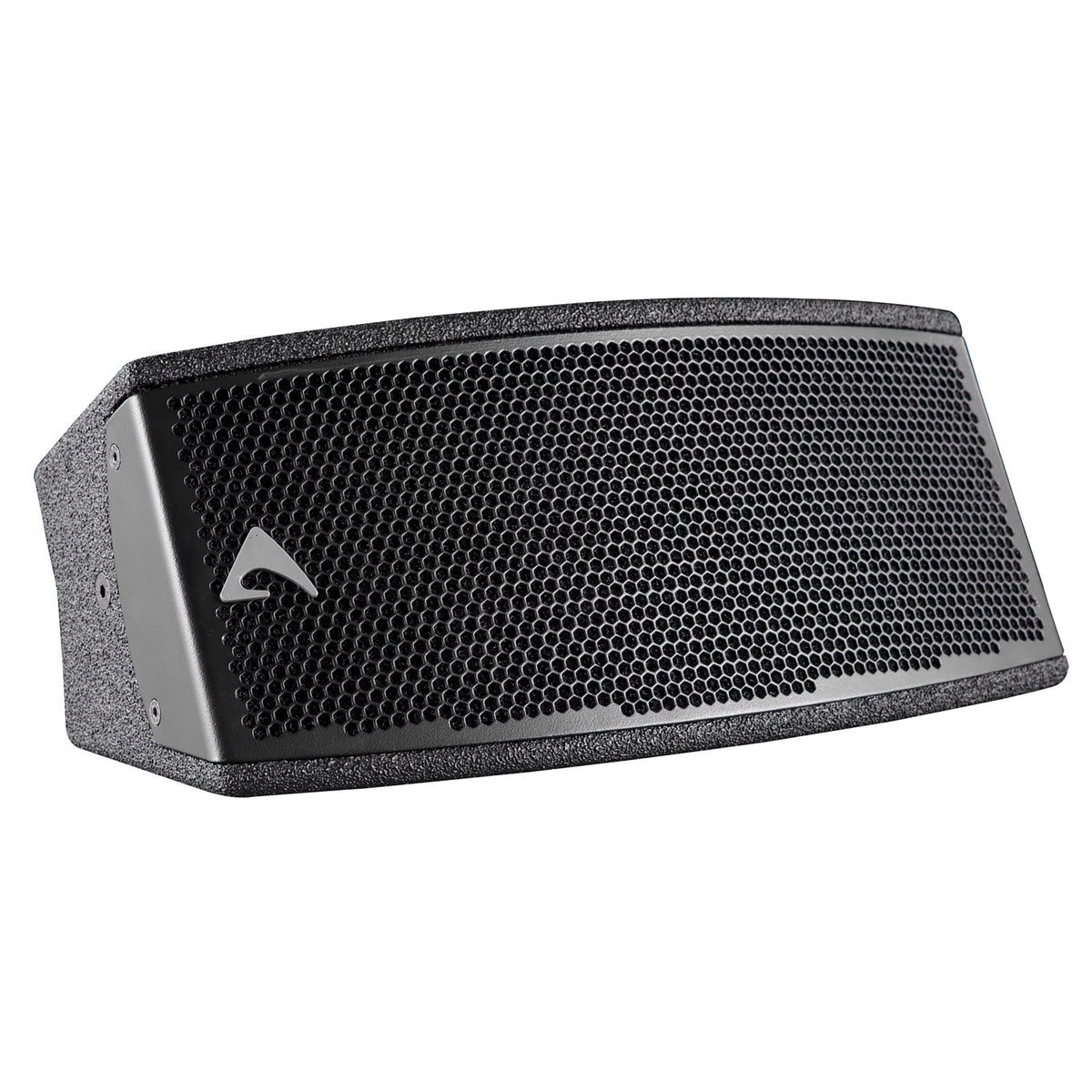

• Axiom ED23PMKII 2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black)
  • Axiom ED23PMKII 2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black) – view 2

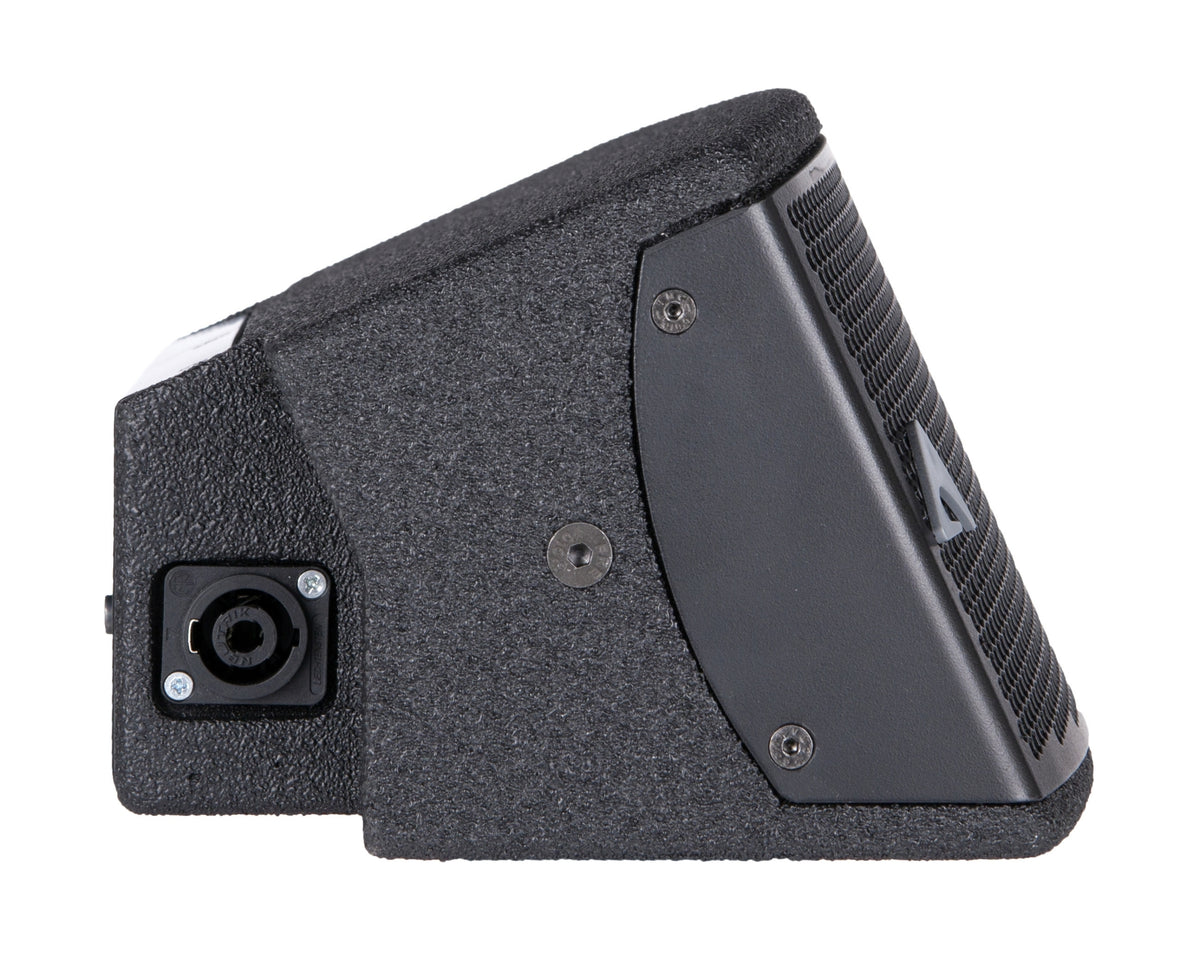

  • Axiom ED23PMKII 2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black) – view 3

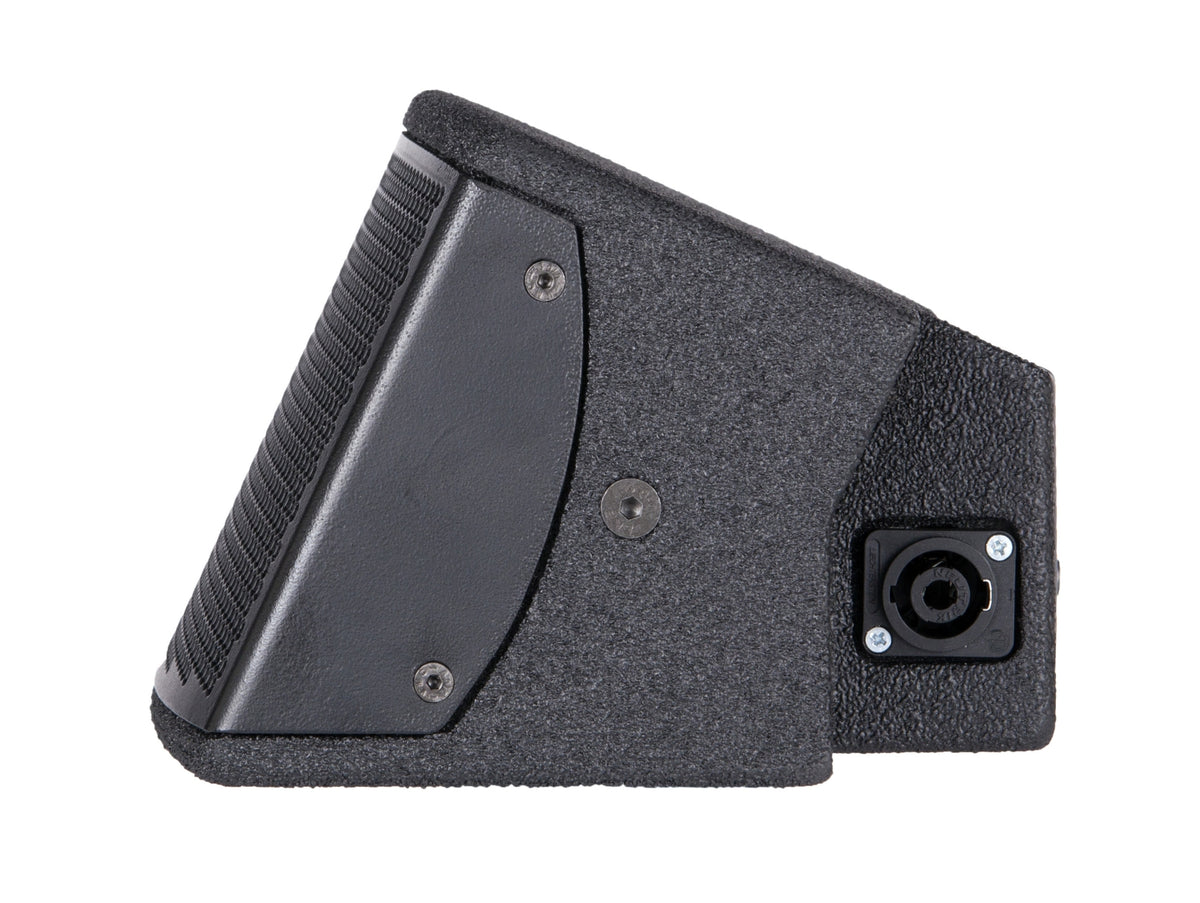

  • Axiom ED23PMKII 2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black) – view 4

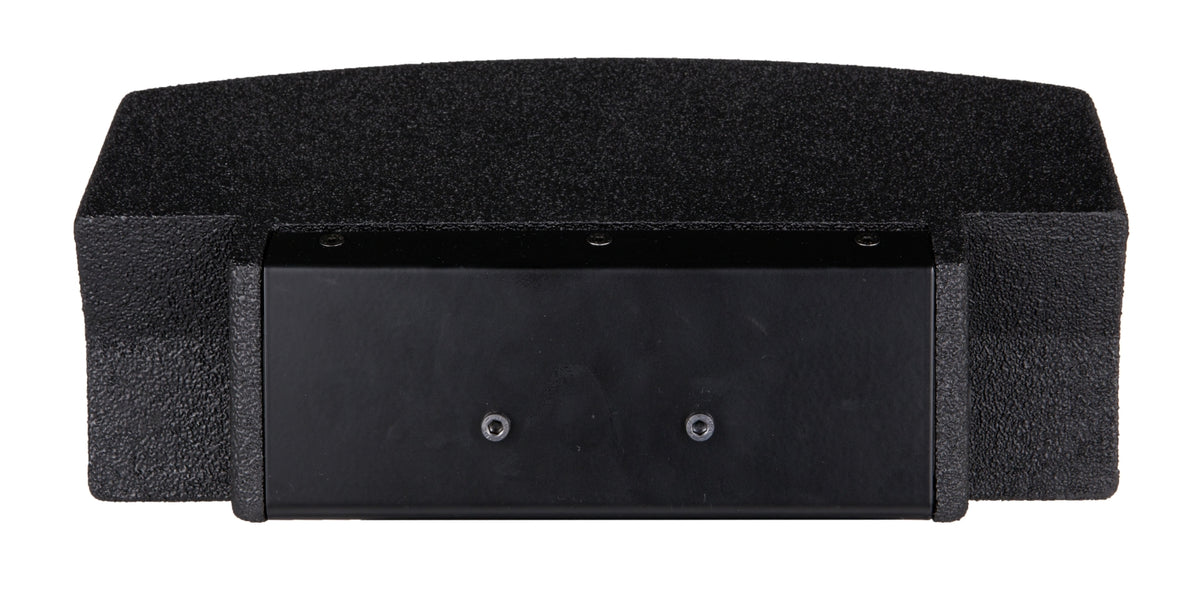

  • Axiom ED23PMKII 2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black) – view 5

Axiom · Stage Equipment

2 x 3.5" Passive, 2-Way Full-Range Loudspeaker (Black)

Item ED23PMKII · Made in Italy

An ultra-compact passive 2-way speaker with two 3.5-inch woofers and a dome tweeter, for near-field fill, stage lip and small arrays.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Overview

The ED23PMKII is built for near-field sound reinforcement such as television, stage front, conferencing, theaters and A/V. Use it alone or in small arrays for even, seamless coverage.

Two 3.5" woofers and a dome tweeter with a Spherical Wave Guide Horn sit in a woofer-tweeter-woofer layout. The wide dispersion lets a few widely spaced units cover large spaces with quality background sound.

Cabinet and uses

The trapezoidal, asymmetric cabinet lets you build small clusters with the integral flypoints. It can also hang horizontally close to a ceiling or sit on a stage front as a low-profile monitor.

Its very low profile makes it an ideal stage lip monitor. On fashion show catwalks it can discreetly cover both the audience and presenters.

High-quality passive crossovers make efficient use of amplifier power and keep operation simple.

Key features

  • Woofer-tweeter-woofer layout with a Spherical Wave Guide Horn (SWGH)
  • FEA computer-modeled horn profile
  • Ultra-compact size
  • Easy to configure in small arrays

Specifications

The details that matter.

Manuals & Downloads

System

System’s Acoustic Principle
2-way vented enclosure
Frequency Response (±6dB)
200 Hz - 20 kHz
Nominal Impedance
32 ohm
Horizontal Coverage Angle
80° averaged, 1 kHz to 20 kHz, (-6 dB)
Vertical Coverage Angle
65° averaged, 1 kHz to 20 kHz (-6 dB)
Sensitivity
90 dB SPL @ 3.3 ft (1m)
Maximum Peak
112 dB SPL @ 3.3 ft (1m)

Transducers

HF
Dome tweeter with spherical waveguide horn SWGH
LF
2 x 3.5'' woofer

Input Connections

Connector Type
Neutrik® Speakon® NL4MP x 2

Power Handling

Input Power Rating (AES)
70 W
Input Power Rating (Program)
140 W

Enclosure & Construction

Width
5.4 in (13.8 cm)
Height
12.6 in (32 cm)
Depth
7.8 in (19.8 cm)
Monitor taper
20°
Enclosure Material
0.59 in (15mm) birch plywood
Paint
Black water based paint
Flying system
2 x M8 top, bottom - 2 x M5 rear
Net Weight
14.1 lb (6.4 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
