15" Passive, 2-way, Full-range, Passive, Loudspeaker System (White)

Overview

The ED150P delivers full-range sound and controlled dispersion from an easy-to-handle cabinet. It suits foreground sound reinforcement that needs quality sound in a portable format.

A 15" woofer pairs with a 1.4" compression driver, both with aluminum voice coils for low weight and good transient response. An audiophile-grade passive crossover joins them.

The asymmetric vented enclosure works as front-of-house on a stand, pole-mounted on a subwoofer, or as a stage monitor at its 35° wedge angle. Add Axiom SW series subwoofers such as the SW210P or SW18P for deeper bass.

Coverage and mounting

The asymmetric HF pattern is 100° wide at the bottom of the horn for near-field coverage. It narrows to 60° at the top for focused far-field coverage. It covers a typical auditorium more accurately than a fixed-pattern horn.

Remove four screws to rotate the horn 90°. In monitor mode, the pattern then covers performers both near and far from the wedge. It also keeps ideal coverage when the cabinet is mounted horizontally.

The 15 mm phenolic birch plywood cabinet has a 35 mm pole mount and a recessed handle. M10 and M6 rigging points accept optional brackets. Two Neutrik speakON NL4 connectors handle input and link.

The KPTED150B wall bracket mounts it vertically or horizontally, with five steps of rotation for accurate aiming. When mounted horizontally, rotate the HF waveguide 90° to keep the best coverage.

Key features and applications

• Passive 2-way point source in a compact, lightweight enclosure
• 15" woofer and 1.4" HF compression driver
• Asymmetric, rotatable HF horn
• Asymmetric, multi-angle enclosure
• M10 and M6 rigging points and pole mount socket
• Black or white finish
• Applications: corporate A/V, TV and broadcast, stage monitoring, near-fill and front-fill, live venues, nightclubs and bars, houses of worship

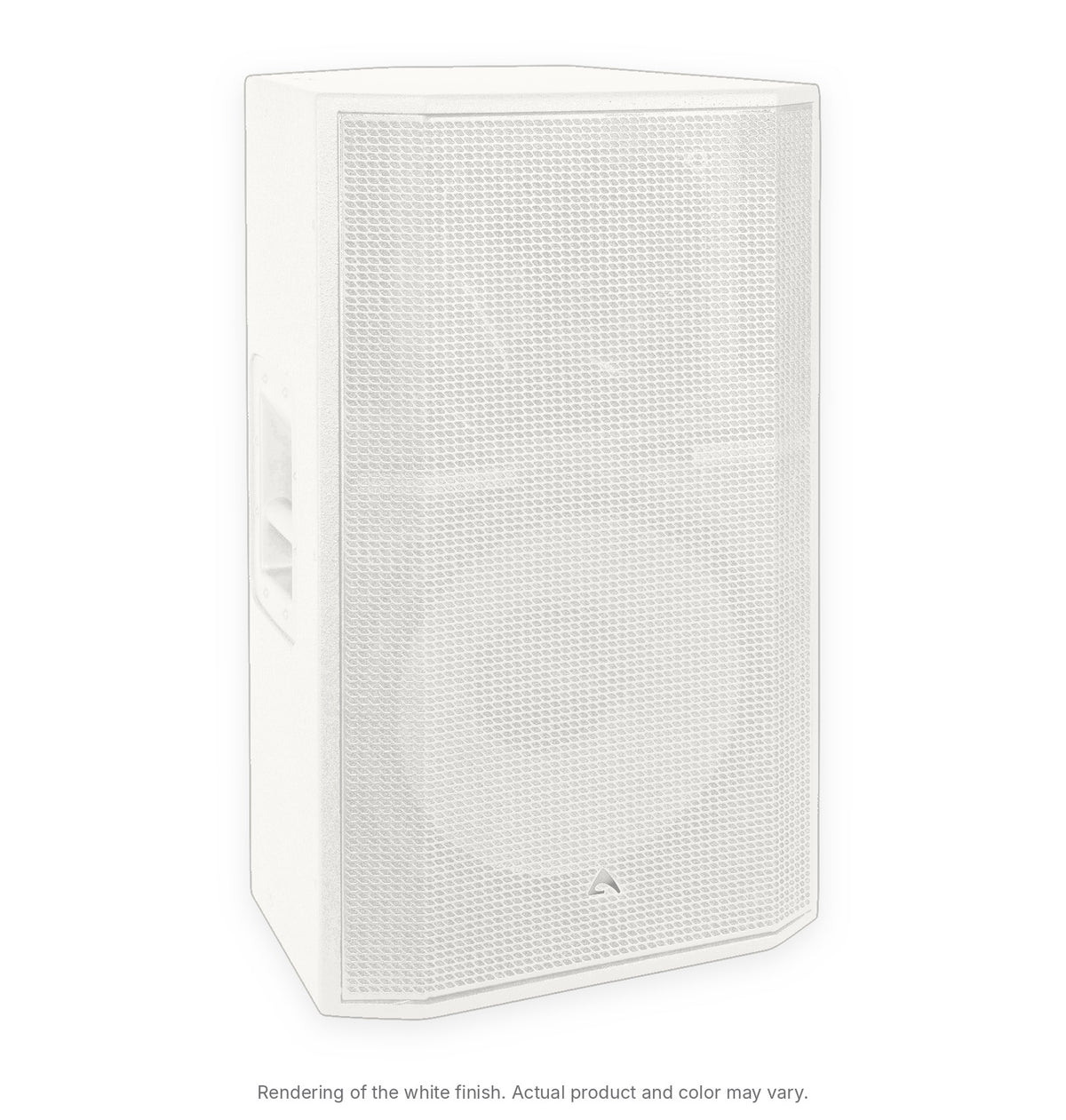

Product image is a rendering of the white finish. Actual product and color may vary.
