AX800A NEO Dual 8" Powered Line Array Element
A powered dual 8-inch neodymium, 2-way line array element in a molded enclosure, with CORE2 DSP and 800 W + 400 W Class D power.
Where to Buy
Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.
Find an integrator or installer near you
Details
About this product.
Overview

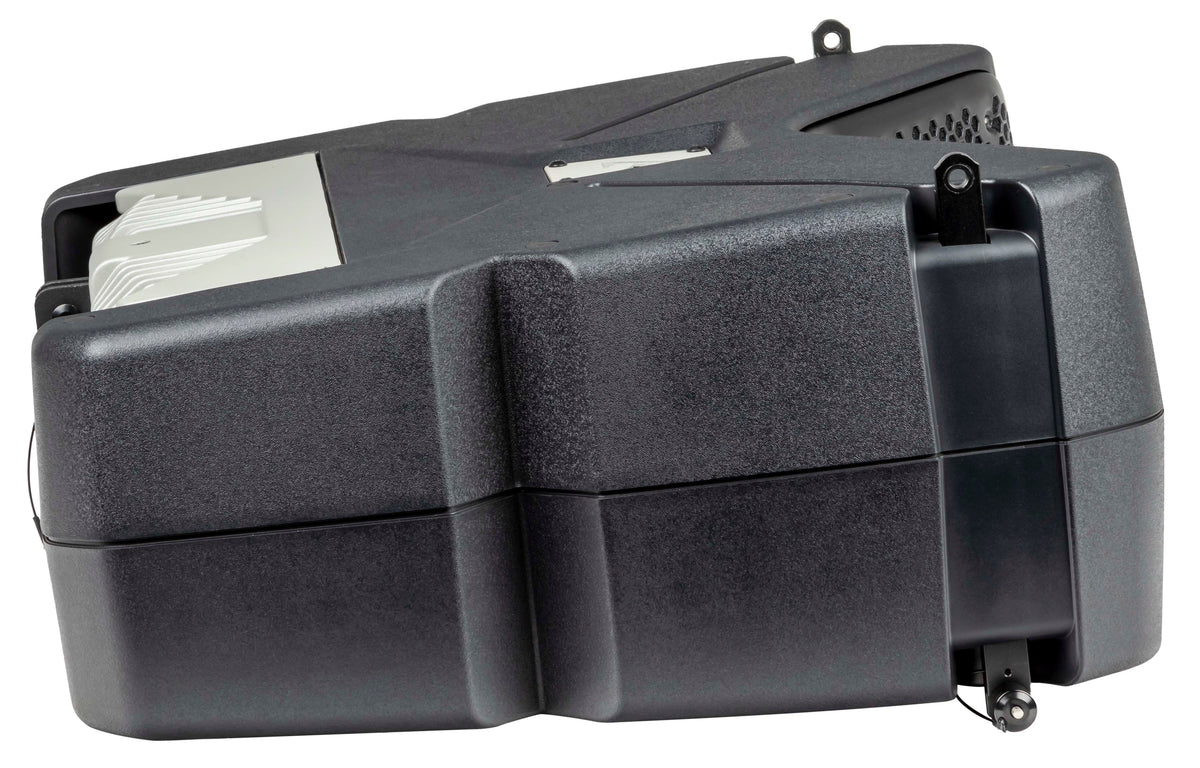

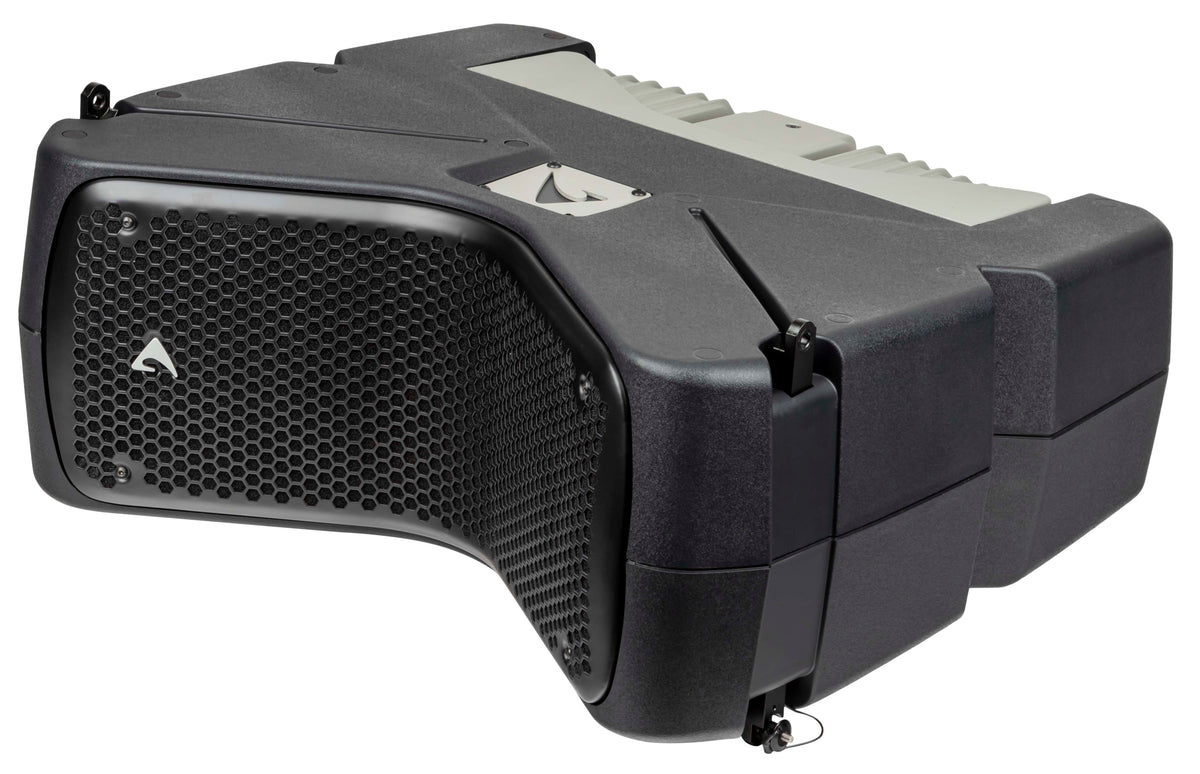

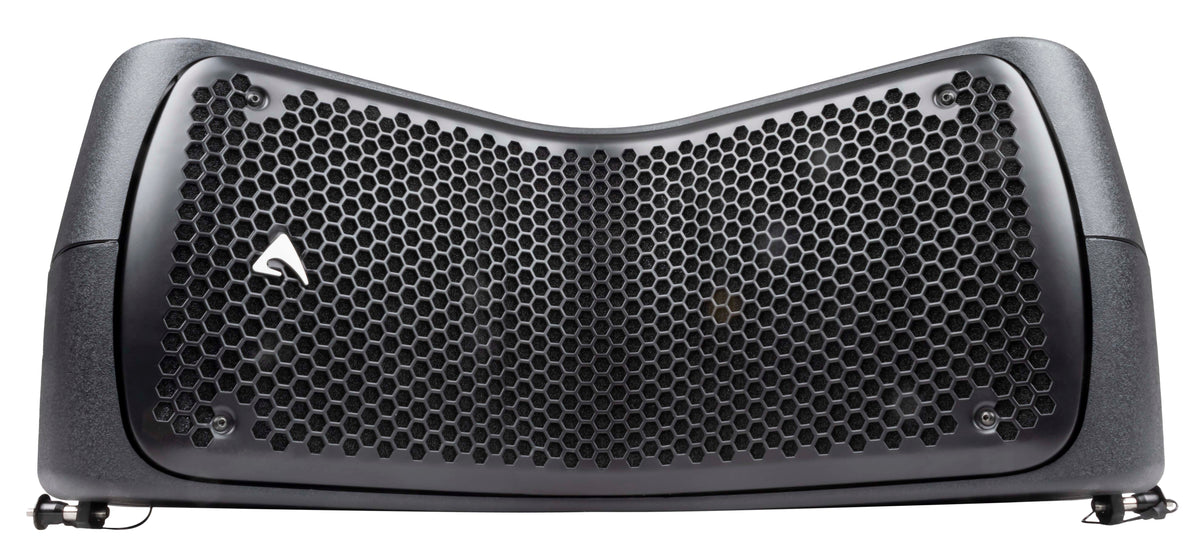

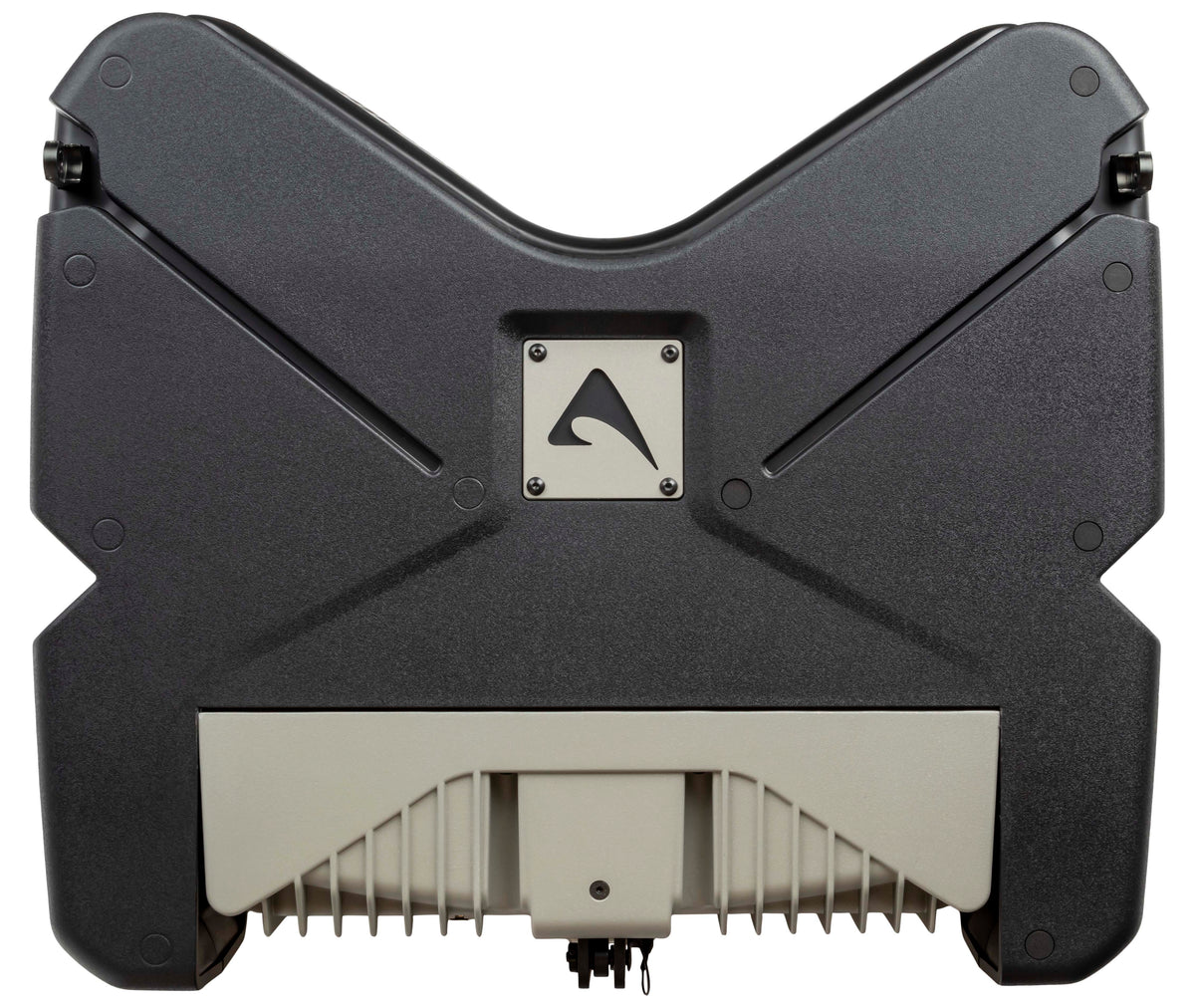

The AX800A NEO is a compact, lightweight line array element in a molded polypropylene enclosure. It suits indoor and outdoor live sound and many fixed installations.
For full low-frequency extension, pair it with the SW1800AV2 or SW218XAV2 subwoofer, typically at a 4:1 ratio.
Transducers and design
A 1.4" neodymium compression driver with a titanium diaphragm feeds a transmission line waveguide, with a 900 Hz crossover point. Two lightweight 8" neodymium woofers use short transmission line loading.
The woofer layout limits beaming near the crossover. A constant power crossover and phase linearization give a coherent time response.
Power, processing and rigging
- Class D amplifier with SMPS and PFC: 800 W LF + 400 W HF
- CORE2 DSP with 40-bit floating-point processing and linear-phase FIR filters
- Four presets: Standard, Long Throw, Downfill/Single Box and User
- PRONET AX remote control over CANBUS via etherCON
- Balanced XLR in/out and powerCON mains in/link
- Integrated front and rear rigging for the KPTAX800 and KPTAX800L flybars
Specifications
The details that matter.
Manuals & Downloads
- Technical DetailsPDF(opens in a new tab)
- User ManualPDF(opens in a new tab)
- User ManualPDF(opens in a new tab)
- User ManualPDF(opens in a new tab)
- User ManualPDF(opens in a new tab)
- Technical Drawing 3DDWG(opens in a new tab)
- KPTAX800 Technical Drawing 3DDWG(opens in a new tab)
- KPAX8 Technical Drawing 3DDWG(opens in a new tab)
- KPTAX800L Technical Drawing 3DDWG(opens in a new tab)
- AX800ANEO brochurePDF(opens in a new tab)
System
- System’s Acoustic Principle
- Line Array Element
Short Transmission Line LF Back Loading
Acoustic Transmission Line HF Waveguide - Frequency Response (±3dB)
- 85 Hz – 16.8kHz (Processed)
- Horizontal/ Vertical Coverage Angle
- 100° x 10° (-6dB)
- Maximum Peak SPL @ 1m
- 133.5 dB
Transducers
- LF
- Two 8”(200mm) neodymium woofers, 2” (38mm) voice coil, 8Ω each, paralleled
- HF
- One 1.4” neodymium driver, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 8Ω
Electrical
- Input Impedance
- 20 kΩ balanced, 10 kΩ unbalanced
- Input Sensitivity
- +4dBu / 1.25 V
- Signal Processing
- CORE2 processing, 40bit floating point SHARC DSP, 24 bit AD/DA converters
- Direct access Controls
- 4 Presets (Standard/Long Throw/Down Fill-Single Box, User), Network Termination, GND Link
- Remote Controls
- PRONET AX control software
- Network Protocol
- CANBUS
- Amplifier Type
- Class D with SMPS
- Output Power
- 800W + 400W
- Mains Voltage Range (Vac)
- 100 - 240V 50/60Hz with PFC
- IN / OUT Connectors
- Neutrik XLR-M / XLR-F
- IN / OUT Network Connectors
- ETHERCON®(NE8FAV)
- Mains Connector
- PowerCon® (NAC3MPA)
- Mains Link Connector
- PowerCon® (NAC3MPB)
- Cooling
- Variable speed DC fan
Enclosure & Construction
- Dimensions (W x H x D)
- 23.6 in (600 mm) x 10.5 in (265.5 mm) x 20.3 in (516 mm)
- Enclosure Material
- Polypropylene
- Rigging System
- Front Suspension
- Aluminum Fast Link structure
- Back Suspension
- High Strength Steel with ¼ Fast Pin
- Net Weight
- 49.6 lb (22.5 kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
