Axiom · Stage Equipment

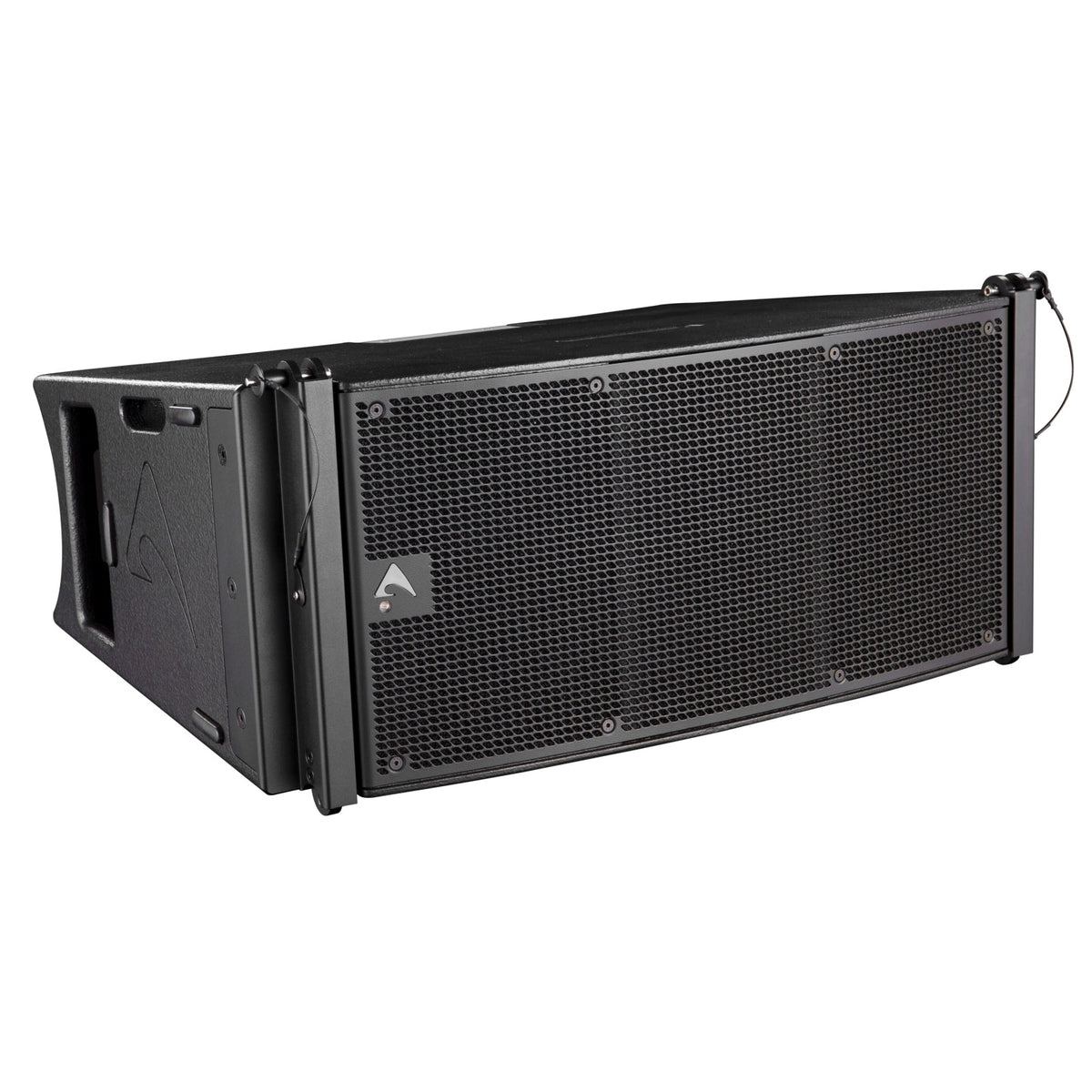

Dual 10" Powered Vertical Array Element (Black)

Item AX2010A · Made in Italy

Final Stock

A powered dual 10-inch line array element with two 1.4-inch compression drivers, CORE DSP and 2000 W of Class D power.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Overview

The AX2010A combines strong sound quality with simple, flexible setup. It is built for rental live sound and fixed installations.

  • High-output line array element with a compact size and high output-to-weight ratio
  • High-quality, low-compression, low-distortion HF drivers
  • Very stable horizontal coverage
  • Transmission line back loading for clean mid-bass
  • Transmission line HF waveguide for natural sound projection
  • 96 kHz / 40-bit floating-point CORE processing with PRONET remote control
  • Digitally controlled Class D amplifier module with SMPS

Transducers

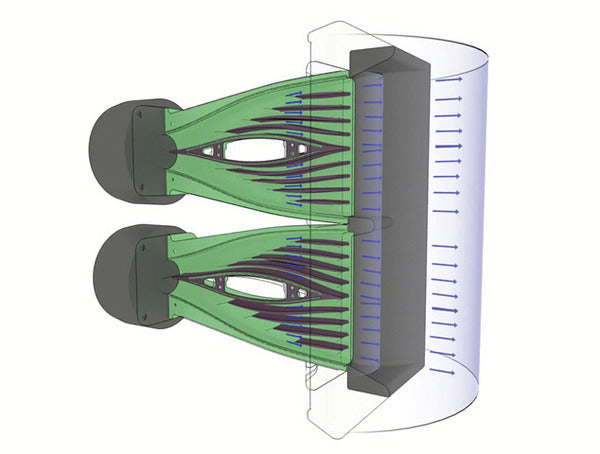

Two low-distortion compression drivers with very light diaphragms reproduce the high frequencies. Two transmission line waveguides load them for detailed, natural sound and long HF throw.

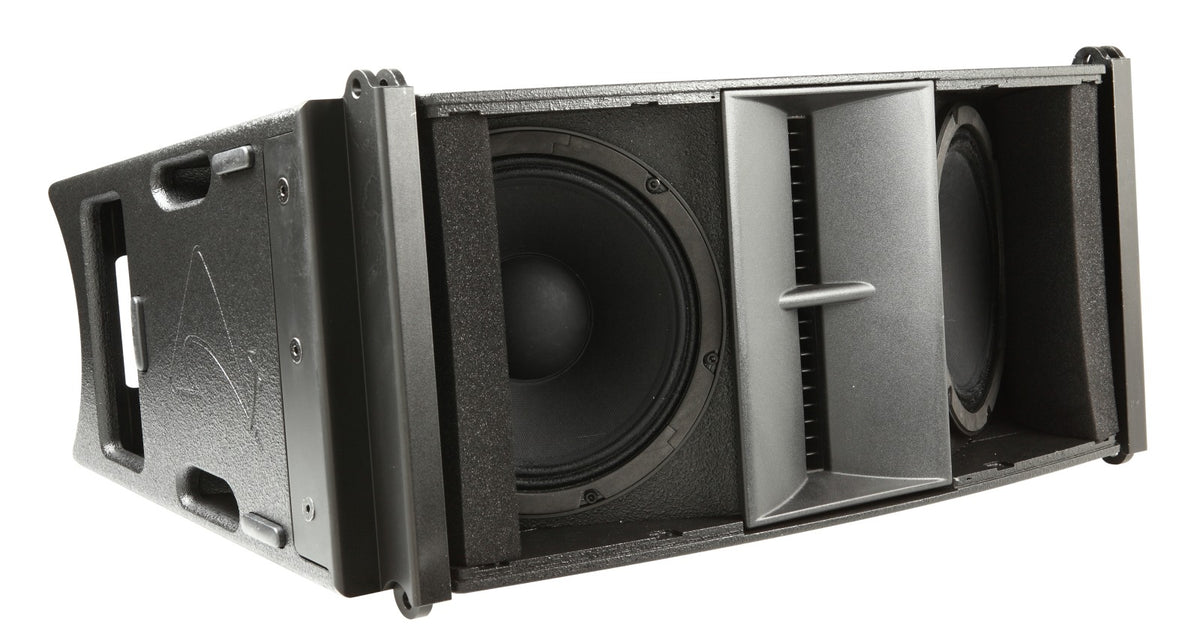

Two 10" woofers with light cones and aluminum voice coils handle the mid-bass. The aluminum coils speed up midrange response, improve thermal capacity and control power compression.

A short hybrid transmission line back-loads the woofers. It reduces box resonances and avoids the boxy mid-bass of typical bass-reflex enclosures.

System design

The symmetrical woofer-tweeter-woofer layout is engineered to minimize beaming around the crossover. The HF diaphragms' low resonance allows a crossover point near 900 Hz.

Woofer orientation reduces interference between the two woofers, and a polyurethane acoustic filter further limits midrange beaming. A constant power crossover keeps horizontal coverage and the off-axis image very stable.

Phase linearization adds a linear phase response and coherent time response. Acoustic instruments and voices sound natural, with better depth in the sound image.

Processing and power

The CORE DSP platform, designed by Proel R&D, uses a SHARC DSP at 40-bit, 96 kHz floating-point resolution. Its 24-bit AD/DA converters deliver more than 110 dB of dynamic range.

PRONET software runs on a CANBUS network for remote EQ, delay, protection settings and amplifier monitoring.

DA Series Class D modules with digitally controlled SMPS and variable switching frequency deliver 2000 W maximum. They offer high dynamics, low distortion, compact size and efficiency above 90%.

Specifications

The details that matter.

Manuals & Downloads

Version
Active (powered, built-in amplifier). The A in the model number means Active; the passive version is AX2010P.
ACOUSTICAL
System's Acoustic Principle
Line Array element, Short Transmission Line LF Back Loading, Acoustic Transmission Line HF Waveguide
Frequency Response (±3dB)
75Hz - 18kHz (Processed)
Horizontal Coverage Angle
110° (-6dB)
Vertical Coverage Angle
10° (-6dB)
Maximum Peak SPL@1m
138 dB
TRANSDUCERS
LF
Two 10" (260mm), 2.5"(64mm) Aluminum voice coil, 16ohm each, paralleled
HF
Two 1.4" drivers, 2.5"(64mm) edgewound voice coil, titanium diaphragm, 16ohm each, paralleled
ELECTRICAL
Input Impedance
20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity
+4dBu / 1.25 V
Signal Processing
CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls
4 Presets (Standard/Long throw/Down Fill-Singular Box, User), Network Termination button, GND Link button
Remote Controls
PRONET control software
Network protocol
CANBUS
Amplifier Type
Class D with SMPS, Variable Switching Frequency
Output Power
1000W + 1000W
Mains Voltage Range (Vac)
230V ±15% - 115 ±15% 50/60Hz. (internally selectable)
IN / OUT Connectors
Neutrik XLR-M / XLR-F
IN / OUT Network Connectors
ETHERCON®(NE8FAV)
Mains Connector
PowerCon® (NAC3MPA)
Mains Link Connector
PowerCon® (NAC3MPB)
Cooling
Variable speed DC fan
ENCLOSURE & CONSTRUCTION
Physical Dimensions
Width
29.37 in (746 mm)
Height
13.42 in (341 mm)
Depth
20.86 in (530 mm)
Enclosure Material
0.59 in (15mm), reinforced Phenolic Birch
Paint
High resistance, Water based paint
Suspension System
Front Suspension
Aluminum Fast Link structure
Back Suspension
High Strength Steel with 1/4 Fast Pin
Net Weight
88.9 lb (40.3 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
